5962-01-233-9477 datasheet, PDF

5962-01-233-9477: DescriptionIC,LOGIC GATE,QUAD 2-INPUT NOR,HC-CMOS,DIP,14PIN,CERAMIC; Categorylogic logic; File Size238KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

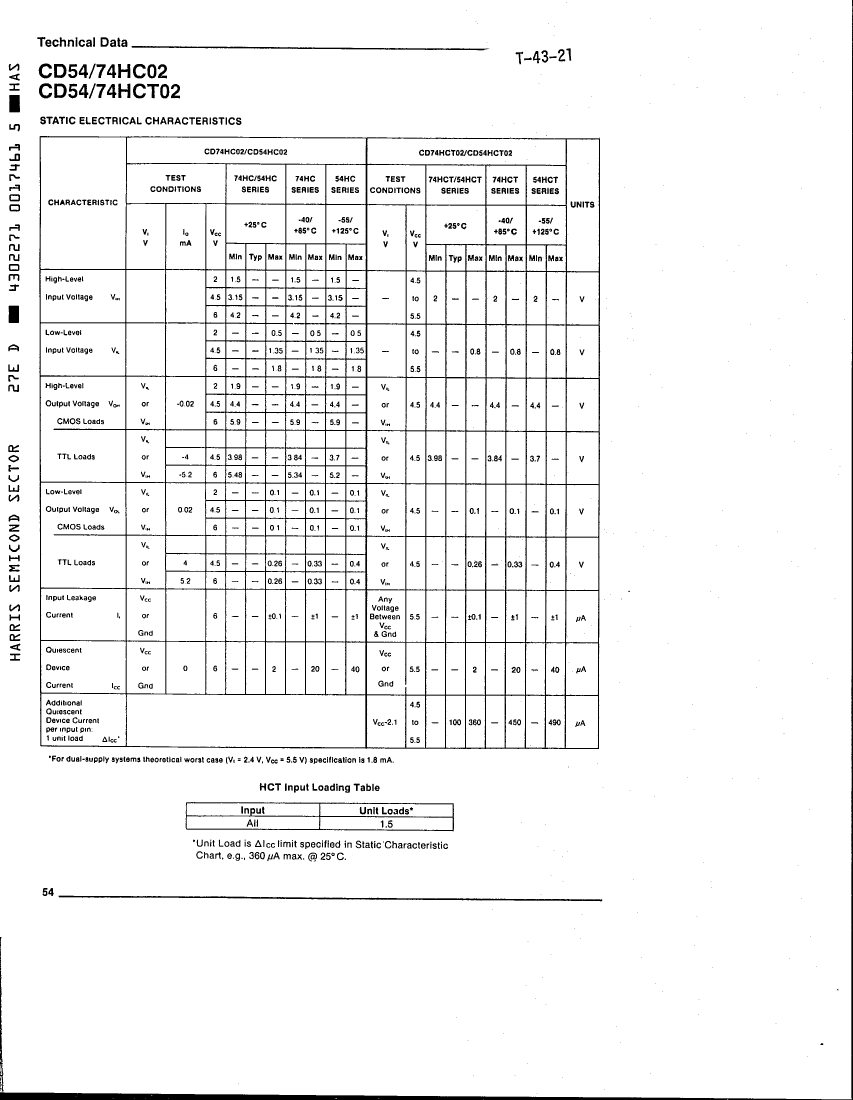

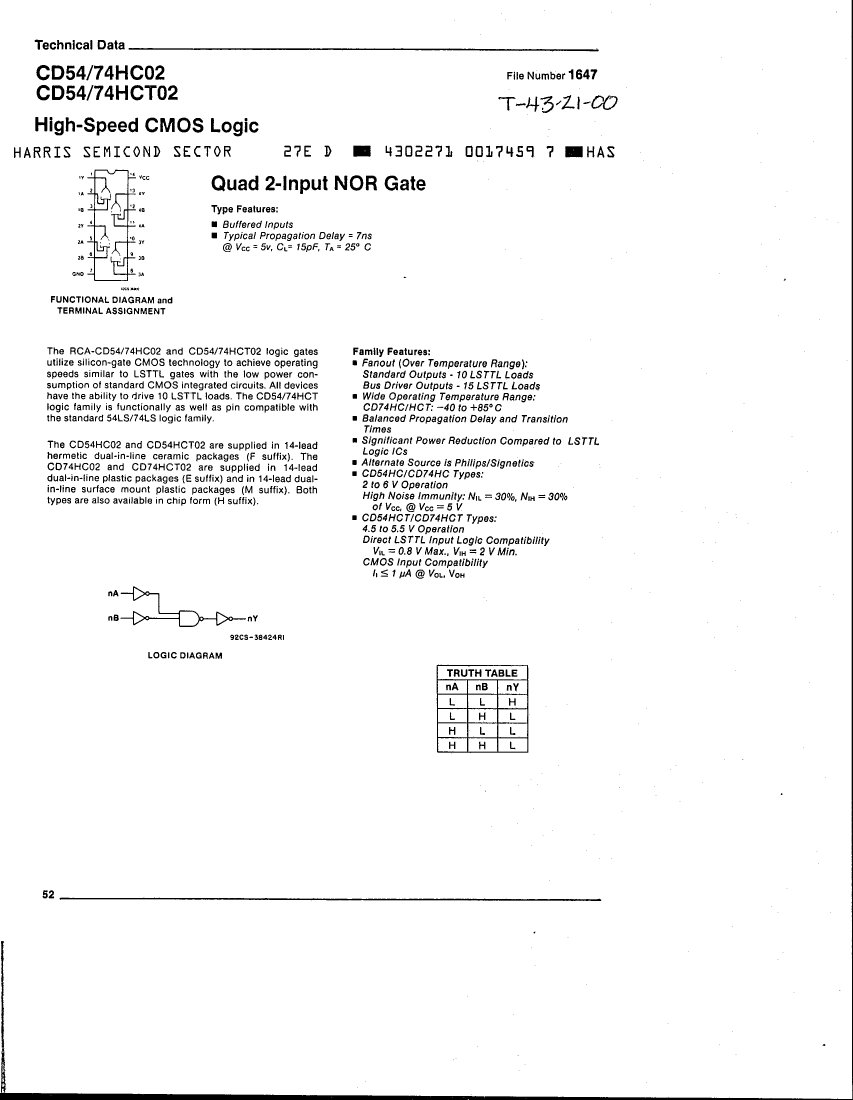

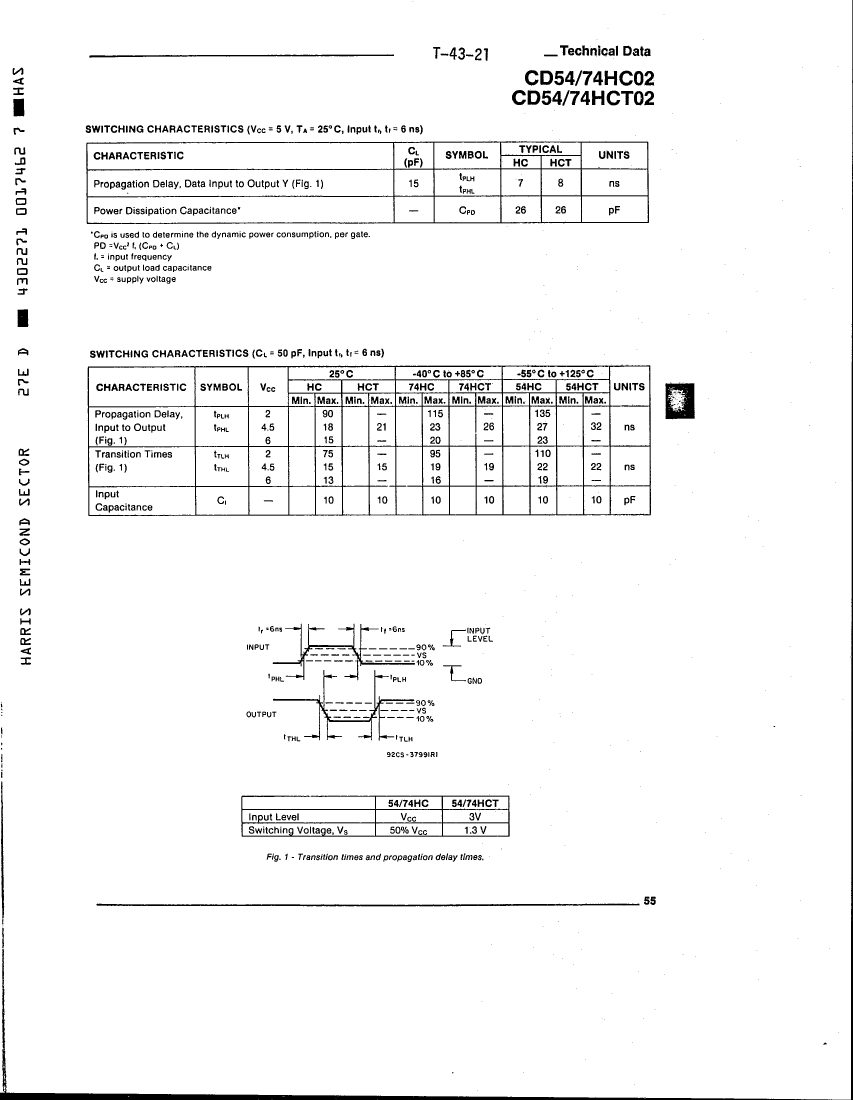

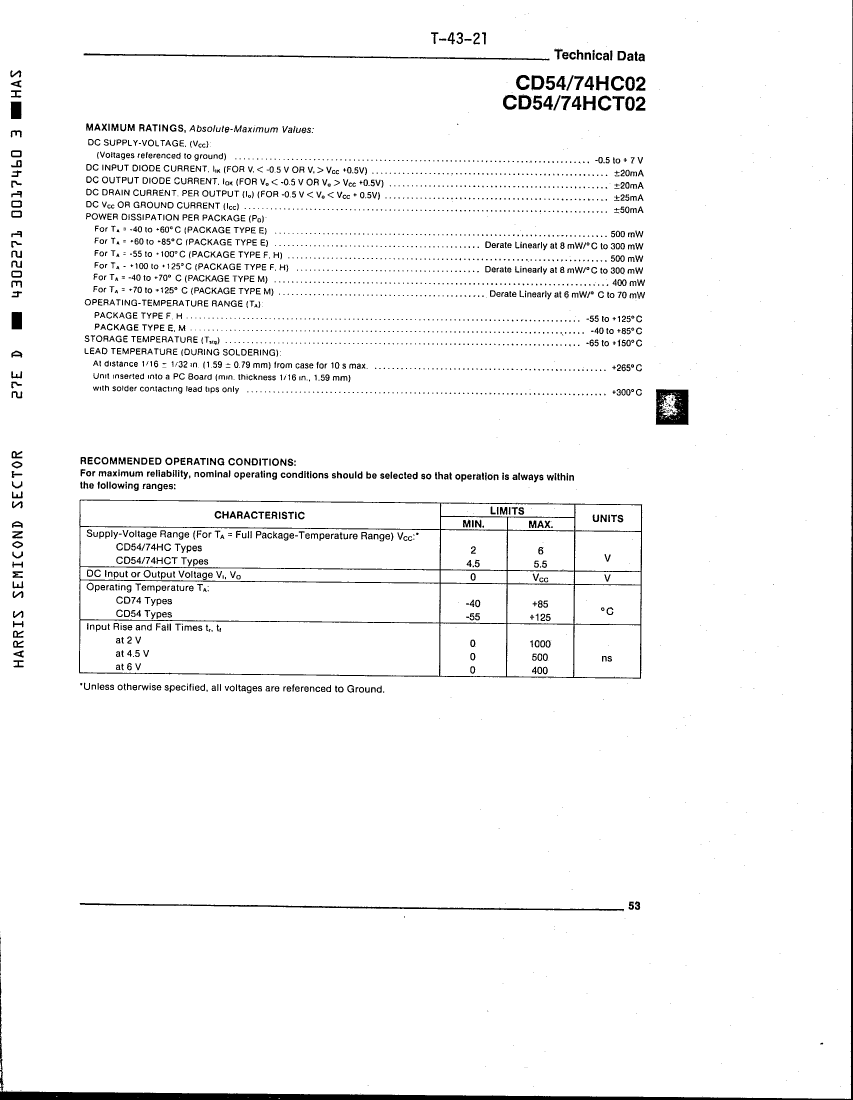

5962-01-233-9477 Overview

IC,LOGIC GATE,QUAD 2-INPUT NOR,HC-CMOS,DIP,14PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
package instruction	DIP, DIP14,.3
Reach Compliance Code	not_compliant
JESD-30 code	R-XDIP-T14
Load capacitance (CL)	50 pF
Logic integrated circuit type	NOR GATE
MaximumI(ol)	0.004 A
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	2/6 V
Prop。Delay @ Nom-Sup	27 ns
Certification status	Not Qualified
Schmitt trigger	NO
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Base Number Matches	1

	5962-01-233-9477	CD54HCT02H	CD54HC02H
Description	IC,LOGIC GATE,QUAD 2-INPUT NOR,HC-CMOS,DIP,14PIN,CERAMIC	CD54HCT02H	IC,LOGIC GATE,QUAD 2-INPUT NOR,HC-CMOS,DIE
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
package instruction	DIP, DIP14,.3	, DIE OR CHIP	, DIE OR CHIP
Reach Compliance Code	not_compliant	unknown	unknown
Load capacitance (CL)	50 pF	50 pF	50 pF
Logic integrated circuit type	NOR GATE	NOR GATE	NOR GATE
MaximumI(ol)	0.004 A	0.004 A	0.004 A
Maximum operating temperature	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C
Encapsulate equivalent code	DIP14,.3	DIE OR CHIP	DIE OR CHIP
power supply	2/6 V	5 V	2/6 V
Prop。Delay @ Nom-Sup	27 ns	32 ns	27 ns
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY
