I
NTEGRATED
P
HOTONICS
T
ECHNOLOGY
ISO
9001
Registered

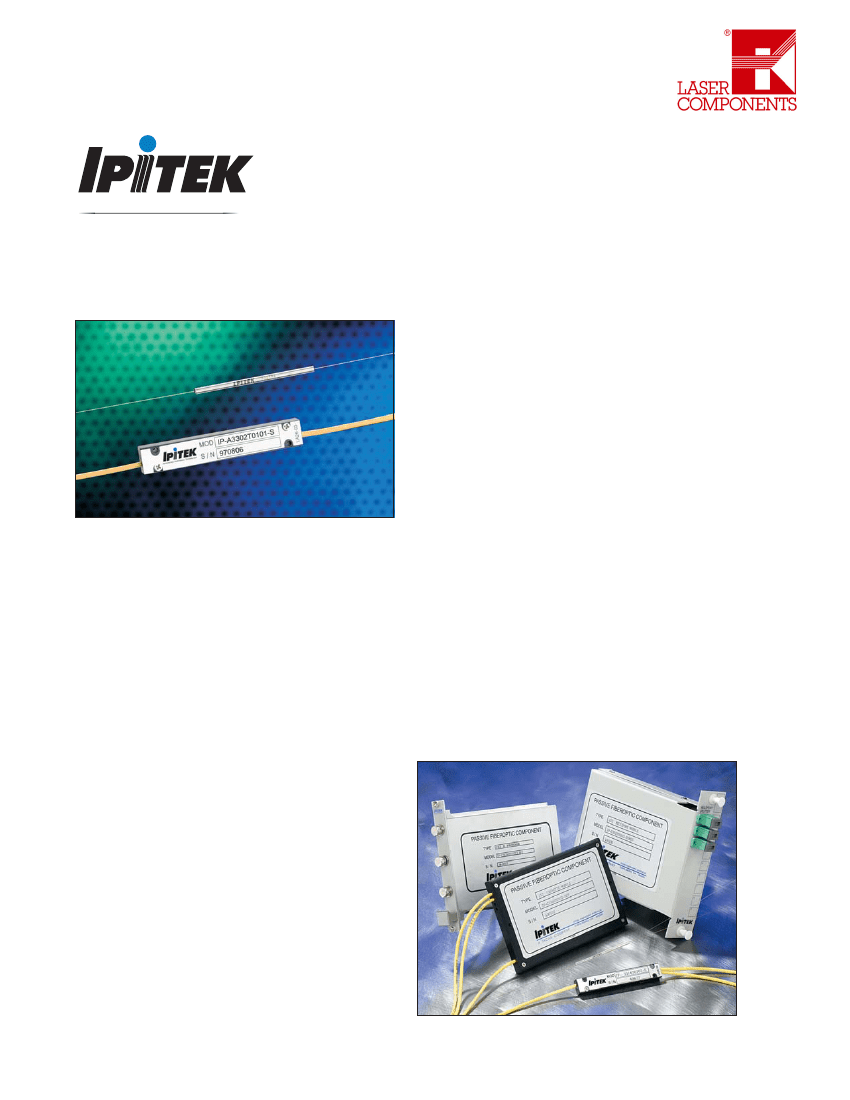

In-Line ATTENUATORS
Single Mode, Fixed
PRODUCT FEATURES
•
•
•
•
•
Standard Packages
IPITEK has been designing and building photonic
component solutions for highly demanding
applications for over 20 years. Our engineering staff
is the most experienced photonics team in the
industry and our operation in Carlsbad, California can
assist you in developing an attenuator solution that
can maximize the performance of any application.
Combine this with our high volume, low cost
manufacturing capabilities and you have an ideal
partner to help your programs and business succeed
at any level.
IPITEK in-line attenuators are manufactured using
fused biconical tapered (FBT) technology for superior
performance and reliability. Built to the highest
standards, IPITEK attentuators are 100% tested
across the entire operational passband, not just at
convenient center points. They are bi-directional
with outstanding directivity and very low excess loss.
IPITEK attenuators are field-proven and time-tested.
Available in various packages, IPITEK attenuators
are designed to facilitate a wide range of installation
parameters and environmental conditions.
IPITEK attenuators are available in 1 dB standard
increments, enabling you to balance your signal
®
1310 and 1550 nm Wavelengths
Low Return Loss
Environmentally Stable
Bi-Directional
Outstanding Reliability
levels with greater precision. For projects requiring
fast deliveries, IPITEK maintains available inventory
of standard items.
Superior performance and quality, custom solutions,
and reliable deliveries at attractive prices -- IPITEK
Fixed In-Line ATTENUATORS provide the best value
for your project dollar.
Various Packaging Options
Germany and other countries:
LASER COMPONENTS GmbH,
Phone:
++49 8142 28640,
Fax: ++49 8142 286411,
info@lasercomponents.com
Great Britain: LASER COMPONENTS Ltd., Phone: ++44 1245 491 499, Fax: ++44 1245 491 801, info@lasercomponents.co.uk
SPECIFICATIONS
In-Line Attenuators
ATTENUATION vs WAVELENGTH
R
E
L
A
T
I
V
E
A
T
T
E
N
U
A
T
I
O
N
1310nm "Window"
+1.0dB
+0.8dB
+0.6dB
+0.4dB
+0.2dB
UNITY
-0.2dB
-0.4dB
-0.6dB
-0.8dB
-1.0dB
Typical Attenuator
1550nm "Window"
Fiber Type:
Pigtail Length:
Single mode Corning SMF 28
1.0m (standard 250µm)
0.5m (900µm loose tube)
0.5m (3mm jacket)
1x1
Port Configuration:
1270
1290
1310
1330
1350
1370
1390
1410
1430
1450
1470
1490
1510
1530
1550
1570
1590
WAVELENGTH (nm)
ATTENUATOR ACCURACY
Attenuation
1 dB
2 dB
3 dB
4 dB
5 dB
6 dB
7 dB
8 dB
9 dB
Accuracy
(Pigtail)
±0.3 dB
±0.3 dB
±0.5 dB
±0.5 dB
±0.5 dB
±0.5 dB
±0.5 dB
±1.0 dB
±1.0 dB
Attenuation
10 dB
11 dB
12 dB
13 dB
14 dB
15 dB
20 dB
25 dB
30 dB
Accuracy
(Pigtail)
±1.0 dB
±1.0 dB
±1.0 dB
±1.0 dB
±1.0 dB
±1.0 dB
±1.5 dB
±1.5 dB
±1.5 dB
*For connectorized attenuators add 0.1 to 0.4 dB insertion loss per connectorized end.
OPTICAL/MECHANICAL PARAMETERS
Grade
Termination
Bare Fiber
Wavelength
1310nm, 1550nm, or
1310 and 1550nm
Passband Return Loss Polarization Stability Thermal Stability Operational Temp.
±40 nm
£
-55 dB
£
0.2 dB
over all SOP
±0.1dB over
temperature range
-40°C to 85°C
T
ORDERING INFORMATION
I
P
A
*
*
*
*
T 0
1
0
1
S
*
*
*
*
Polish
1
= UPC
2
= SPC
3
= APC
4
= PC
Wavelength
1
= 1310 nm
2
= 1550 nm
3
= 1310 nm and 1550 nm
Attenuation
01
= 1 dB
02
= 2 dB
03
thru
14
(1 dB increments)
15
= 15 dB
20
= 20 dB
25
= 25 dB
30
= 30 dB
*Custom available by request
Jacket or Buffer Type
S
= Standard 250 µm
L
= 900 µm loose tube
3
= 3mm kevlar
Inputs/Outputs
Package
P
= Pigtails
1
= 60 mm tube
B
= Bulkhead
2
= 62 mm tube
Adapters
R
= Ruggedized
C
= Splice tray cassette
S
= Standard Module
A
= Value-added module
L
= LGX module
N
= 19" 1U high rack mount
T
= 23" 1U high rack mount
Connector
S
= SC
F
= FC
T
= ST
L
= LC
E
= E-2000
Issue: 06/03 / Version
3
/ P:/www/pdf/ipitek/
attenuat.pdf
DAT-COMP-ATTENUATORS Rev. B Copyright © IPITEK 2002
