DH76022-70T10 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DH76022-70T10

Preview

DH76022-70T10: DescriptionHF-S BAND, 5.2pF, 20V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE, PLASTIC PACKAGE-4; CategoryDiscrete semiconductor diode; File Size57KB，3 Pages; ManufacturerRakon Limited

Download Datasheet Parametric View All

DH76022-70T10 Overview

HF-S BAND, 5.2pF, 20V, SILICON, HYPERABRUPT VARIABLE CAPACITANCE DIODE, PLASTIC PACKAGE-4

DH76022-70T10 Parametric

Parameter Name	Attribute value
Maker	Rakon Limited
package instruction	R-PDSO-G4
Contacts	4
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	20 V
Configuration	SEPARATE, 2 ELEMENTS
Nominal diode capacitance	5.2 pF
Diode component materials	SILICON
Diode type	VARIABLE CAPACITANCE DIODE
frequency band	HIGH FREQUENCY TO S BAND
JESD-30 code	R-PDSO-G4
Number of components	2
Number of terminals	4
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL
Varactor Diode Classification	HYPERABRUPT
Base Number Matches	1

Preview

Download Datasheet

View All

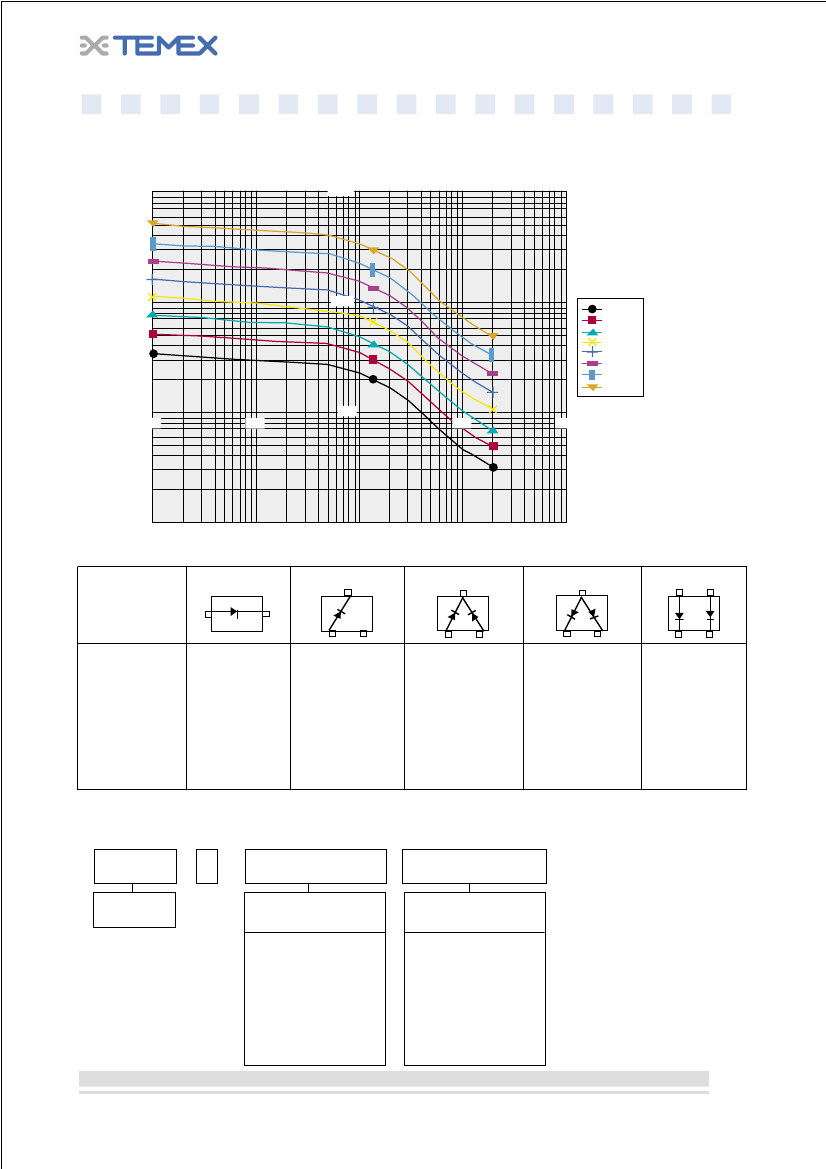

TUNING VARACTOR

Plastic package, Surface Mount hyperabrupt tuning varactor

PLASTIC PACKAGE, SURFACE MOUNT HYPERABRUPT

TUNING VARACTOR

Description

This series of silicon tuning varactors consists of hyperabrupt epitaxial devices. They incorporate

a passivated mesa technology. This family is designed for a low cost medium to high volume market that

may be supplied in tape and reel for automated pick and place assembly on surface mount circuit boards.

Application

The DH76000 series hyperabrupt tuning varactor are offered in a large selection of capacitance range.

They provide the highest Q factor (low reverse series resistance). Typical applications include low

noise narrow and moderate frequency bandwidth applications (VCO mainly) from HF to Microwave

frequencies (up to 3 GHz). Other applications are voltage tuned ﬁlters, phase shifters, delay lines...

20 Volt hyperabrupt junction varactors

Characteristics @ Ta=+25° C

Reverse breakdown voltage, Vb = 20 V min. @ 10 µA

Reverse Current, Ir = 200 nA @ 16 V

Total capacitance (pF)

Ct

f = 1 MHz

f=1 MHz

Vr = 4 V

Vr = 12 V

±20 %

typ.

1.2

0.6

1.7

0.8

2.4

1.1

3.5

1.6

4.9

2.2

7.0

3.1

10.0

4.5

15.0

6.6

Temperature ranges:

Operating junction (Tj) : -55° C to +125° C

Storage : -55° C to +150° C

Tuning

ratio

Ct1V/Ct12V Ct1V/Ct20V

f = 1 MHz

typ.

4.1

4.9

4.4

5.4

4.7

5.8

4.9

6.1

5.0

6.4

5.1

6.5

5.2

6.7

5.2

6.8

Test

conditions

Type

DH76010

DH76015

DH76022

DH76033

DH76047

DH76068

DH76100

DH76150

f = 1 MHz

Vr = 1 V

typ

2.5

3.6

5.2

8.0

11.0

16.0

23.0

35.0

f = 1 MHz

Vr = 20 V

typ.

0.5

0.7

0.9

1.3

1.7

2.4

3.5

5.1

12-36

Vol. 1

SALES OFFICES: VISIT OUR WEB SITE AT

http://www.temex.com
