507-1-00391

Description
Power/Signal Relay
CategoryMechanical and electronic products    relay
File Size165KB,4 Pages
ManufacturerBarnbrook Systems Limited
Download Datasheet Parametric View All

507-1-00391 Overview

Power/Signal Relay

507-1-00391 Parametric

Parameter NameAttribute value
MakerBarnbrook Systems Limited
Reach Compliance Codeunknown
ECCN codeEAR99
Manufacturer's serial numberP
Relay typePOWER/SIGNAL RELAY
Base Number Matches1
DATA SHEET

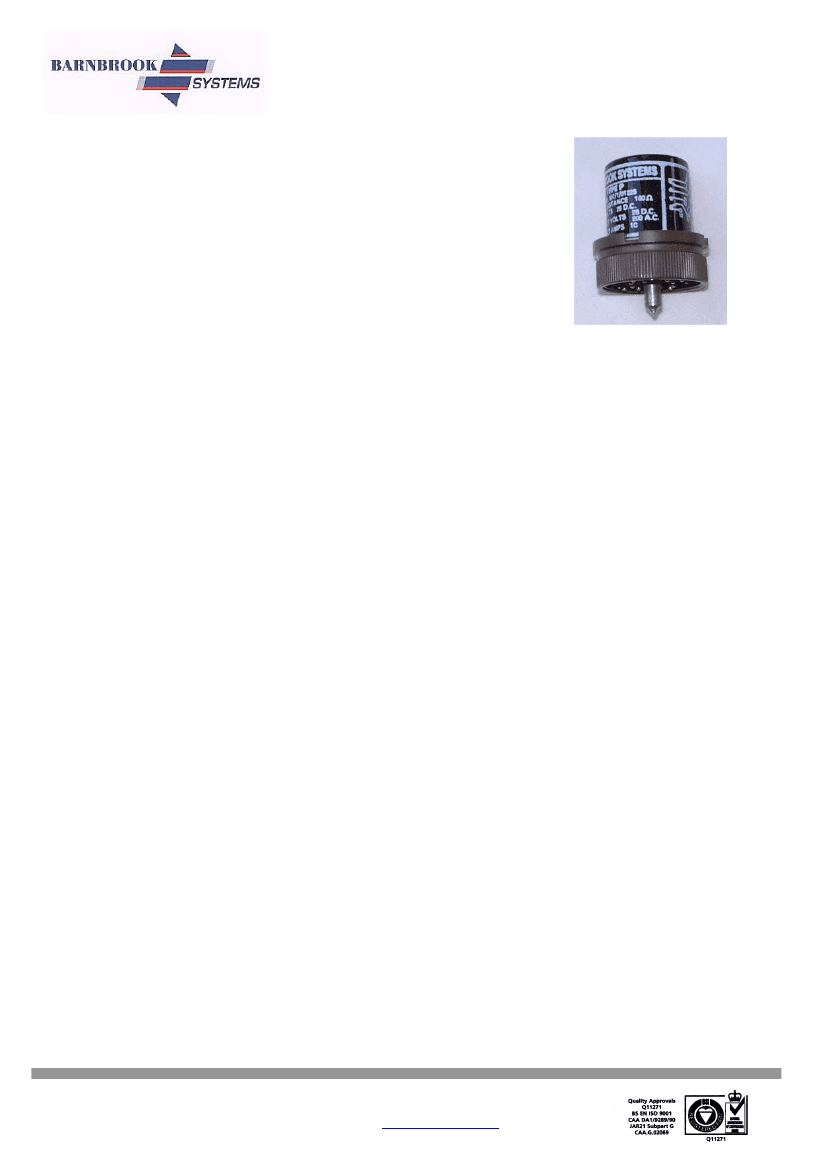

The ‘P' Type coil movement is designed to meet demand for a high-
performance Relay of small size and weight. The movement powers two
contact arrangements, a 6-pole 2-amp changeover and the 4-pole 10-amp
changeover for 28Vdc and 200V 400 Hz.
The design achieves a compact coil and contact arrangement with built-in
standards of cleanliness and reliability. The coil is sealed from the contact
chamber, which is gas filled and hermetically sealed. The Relay is
extremely versatile being produced with terminal block, plug-in
connections, flying leads or with solder connections.
Relays are available in a number of special forms featuring time delay,
special voltage or current-sensitive coils and coil suppression.
RELAY
Key Features
Available with either ac or dc coil operation.
Coil sealed from contact chamber.
Gas filled and hermetically sealed.
Type P
Specification
Electrical
Coil Voltage (AC)
Line transient resistance
Coil Voltage (DC)
Dielectric strength
115 Vac 400 Hz
Up to 1000V for 10
µs
16 – 29 Vdc
The 6-pole Changeover Relay is tested at 1000 volts and
the 4-pole Changeover Relay is tested at 1000 volts in
between contacts.
Contacts
2-amp Relay
10-amp Relay
Rated for either 28 Vdc or 200 V 400 Hz
Rated for either 28 Vdc or 200 V 400 Hz
Environmental and Physical
Endurance
Temperature range
Vibration
Acceleration
100,000 operations minimum
-65
o
C to +100
o
C
DEF 5011. Severity V.1.
DEF 5011. Severity A.1.

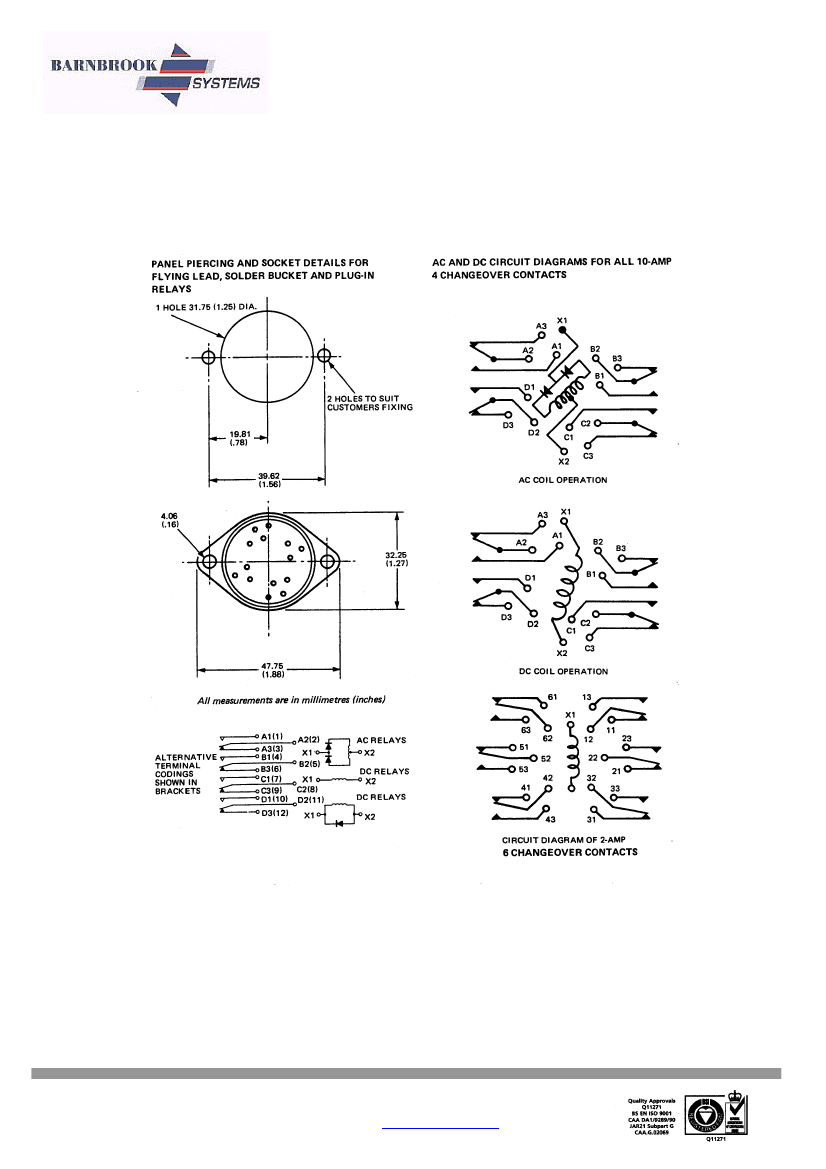

Dimensions

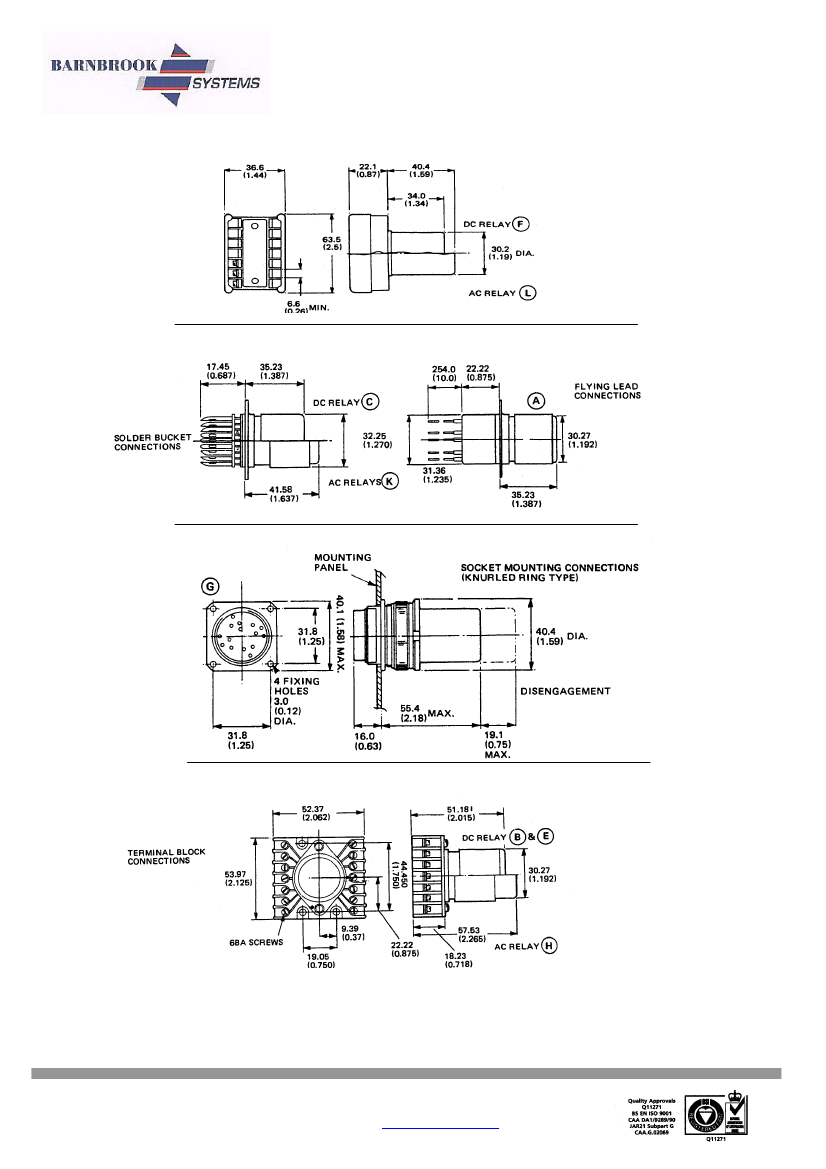

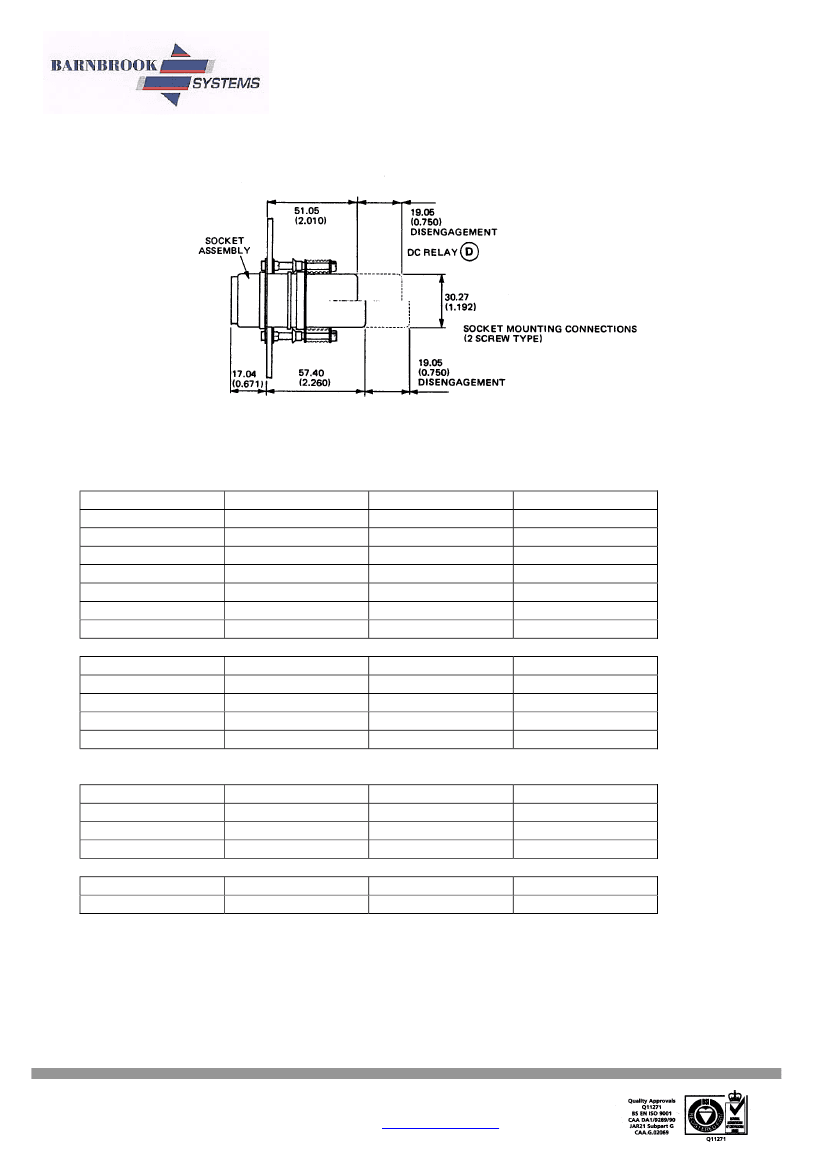

See supplementary sheets for dimensional details
Ordering Information
Quote Part Number from Table on Sheet 3.
Data Sheet No
DSRELP- 0305
Design authority and manufacture by Barnbrook Systems Limited
Barnbrook Systems reserves the right to alter specifications and design without notice
Sheet 1 of 4
BARNBROOK SYSTEMS LIMITED, 25 FAREHAM PARK ROAD, HAMPSHIRE, PO15 6LD
TEL NO: +44(0)1329 847722 FAX: +44(0)1329 844132 E-mail:
sales@barnbrook.co.uk
www.barnbrook.com
