53398-0676 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 53398-0676

53398-0676: DescriptionBoard Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,; CategoryThe connector The connector; File Size362KB，4 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home; Environmental Compliance

Download Datasheet Parametric Compare View All

53398-0676 Overview

Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,

53398-0676 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Molex
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	EMBOSSED TAPE PACKAGING
Board mount options	FITTING NAIL
body width	0.146 inch
subject depth	0.185 inch
body length	0.498 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	BLADE PIN-SKT
Insulator color	BLACK
insulator material	GLASS FILLED NYLON
Manufacturer's serial number	53398
Plug contact pitch	0.049 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Plating thickness	39u inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal pitch	1.2446 mm
Termination type	SURFACE MOUNT
Total number of contacts	6
Base Number Matches	1

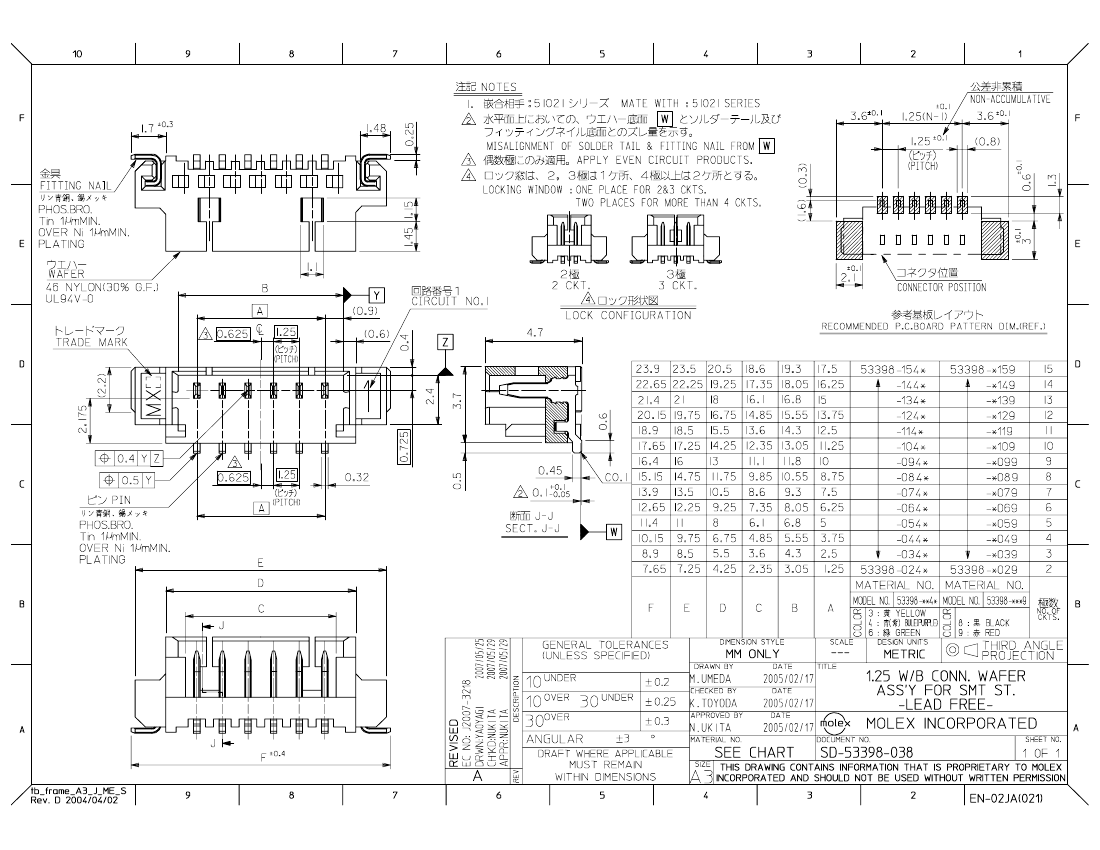

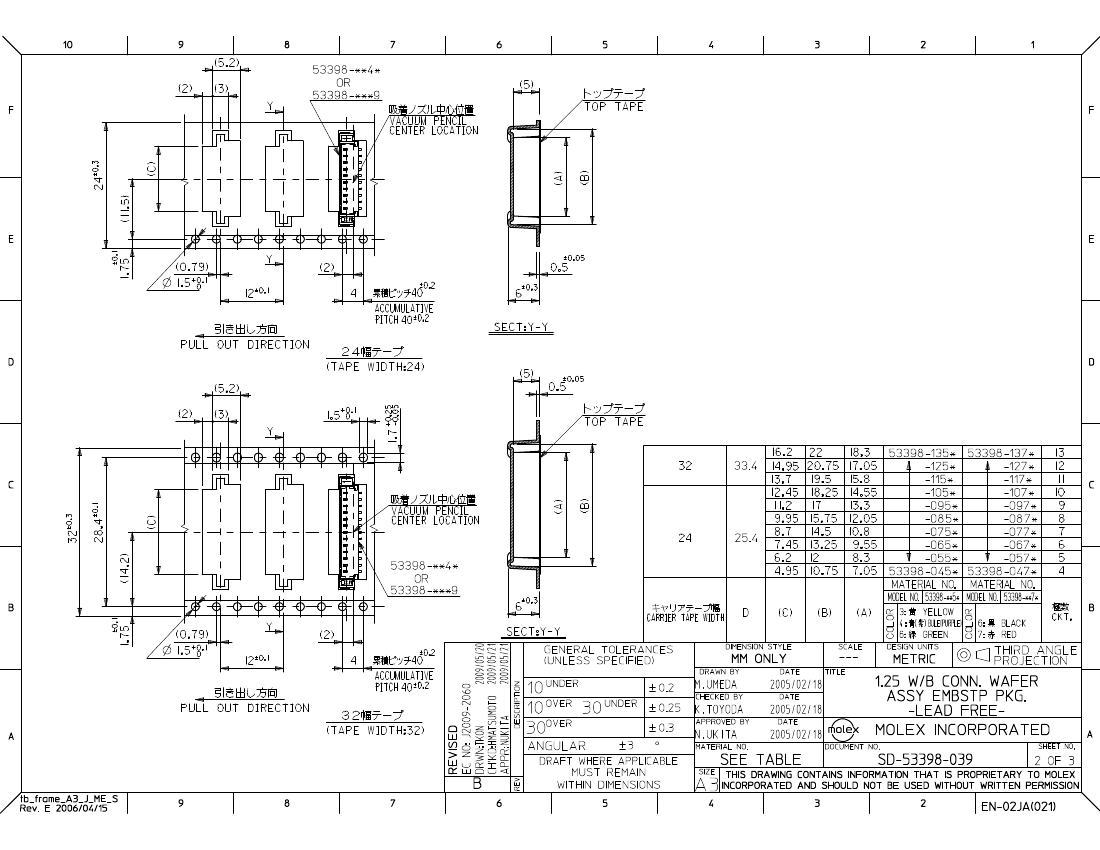

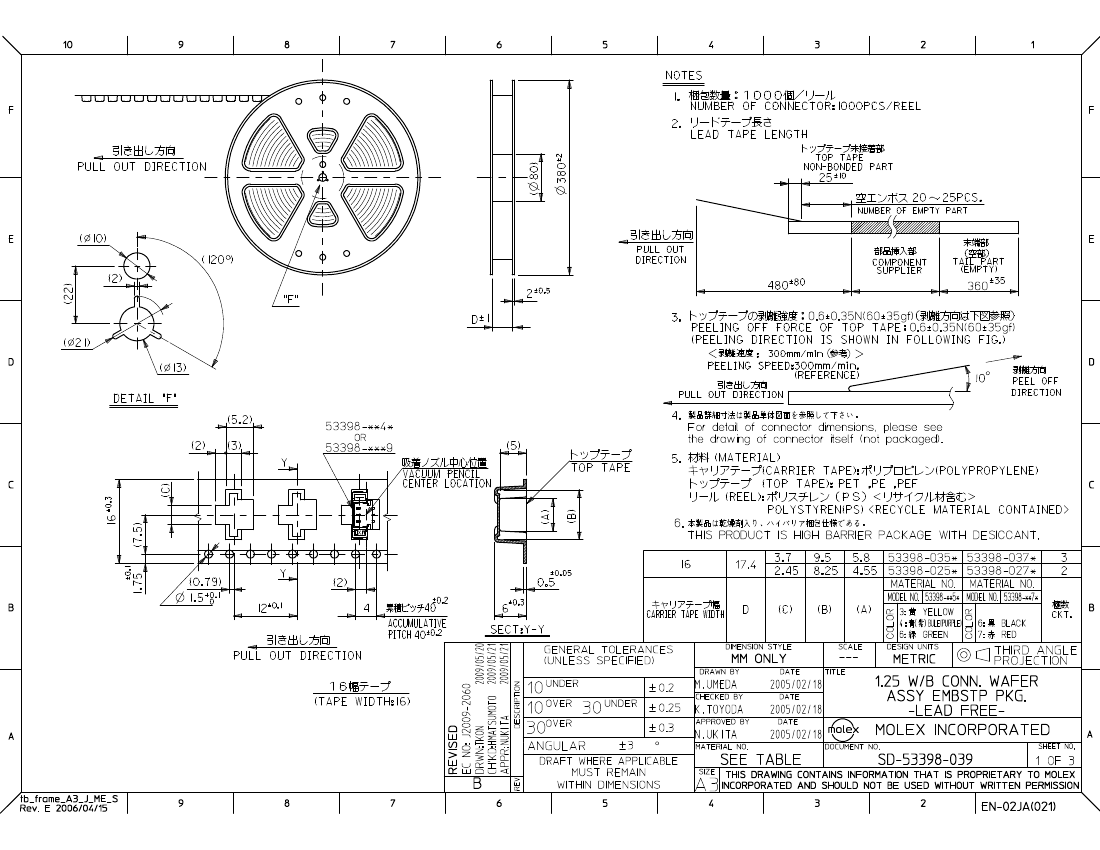

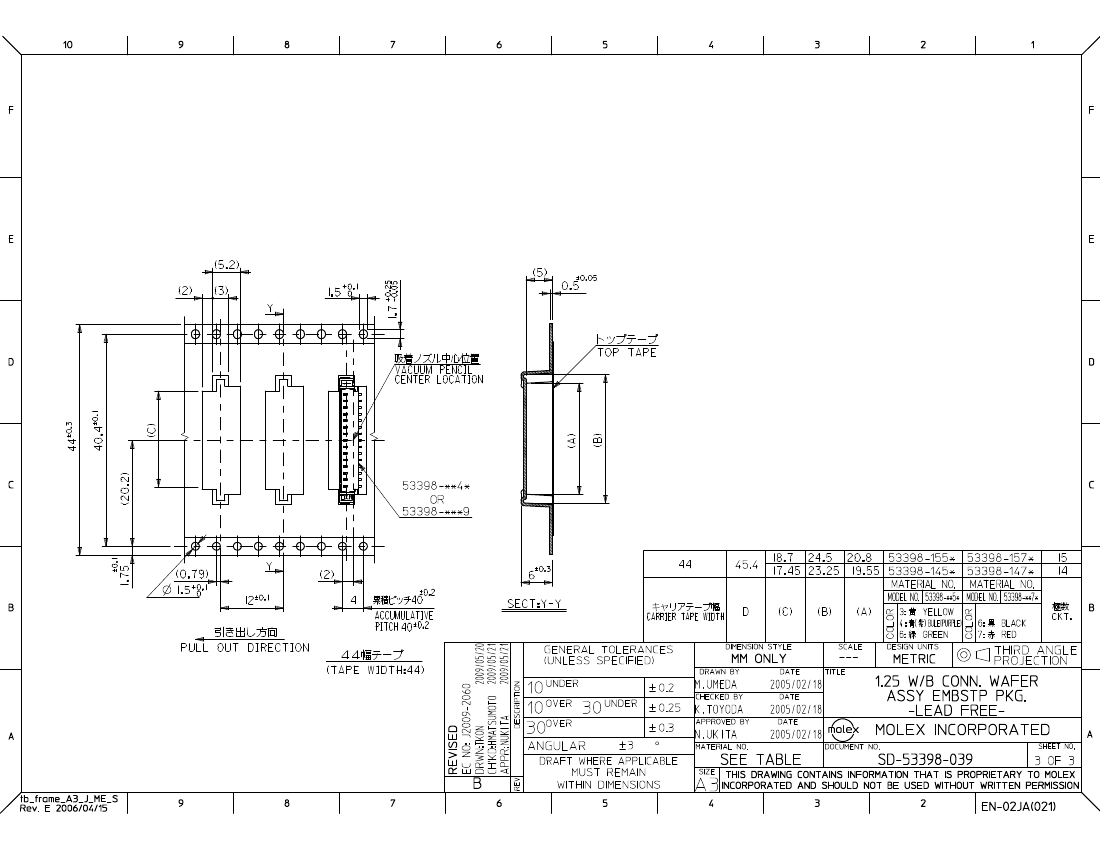

Preview

Download Datasheet

View All

53398-0676 Related Products

	53398-0676	53398-0653	53398-0656	53398-0654
Description	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Black Insulator,	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Yellow Insulator	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Green Insulator,	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.049 inch Pitch, Surface Mount Terminal, Locking, Purple Insulator,
Maker	Molex	Molex	Molex	Molex
Reach Compliance Code	compliant	unknown	unknown	unknown
Other features	EMBOSSED TAPE PACKAGING	EMBOSSED TAPE PACKAGING	EMBOSSED TAPE PACKAGING	EMBOSSED TAPE PACKAGING
Board mount options	FITTING NAIL	FITTING NAIL	FITTING NAIL	FITTING NAIL
body width	0.146 inch	0.146 inch	0.146 inch	0.146 inch
subject depth	0.185 inch	0.185 inch	0.185 inch	0.185 inch
body length	0.498 inch	0.498 inch	0.498 inch	0.498 inch
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI	SN ON NI	SN ON NI	SN ON NI
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL
Contact point gender	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT	BLADE PIN-SKT
Insulator color	BLACK	YELLOW	GREEN	PURPLE
insulator material	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON	GLASS FILLED NYLON
Manufacturer's serial number	53398	53398	53398	53398
Plug contact pitch	0.049 inch	0.049 inch	0.049 inch	0.049 inch
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1
Number of rows loaded	1	1	1	1
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	39u inch	39u inch	39u inch	39u inch
polarization key	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING	POLARIZED HOUSING
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal pitch	1.2446 mm	1.2446 mm	1.2446 mm	1.2446 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Total number of contacts	6	6	6	6
Base Number Matches	1	1	1	1
