5962R9574201TEC datasheet, PDF

5962R9574201TEC: DescriptionDecade Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16, SIDE BRAZED, CERAMIC, DIP-16; Categorylogic logic; File Size157KB，3 Pages; ManufacturerDefense Logistics Agency

Download Datasheet Parametric Compare View All

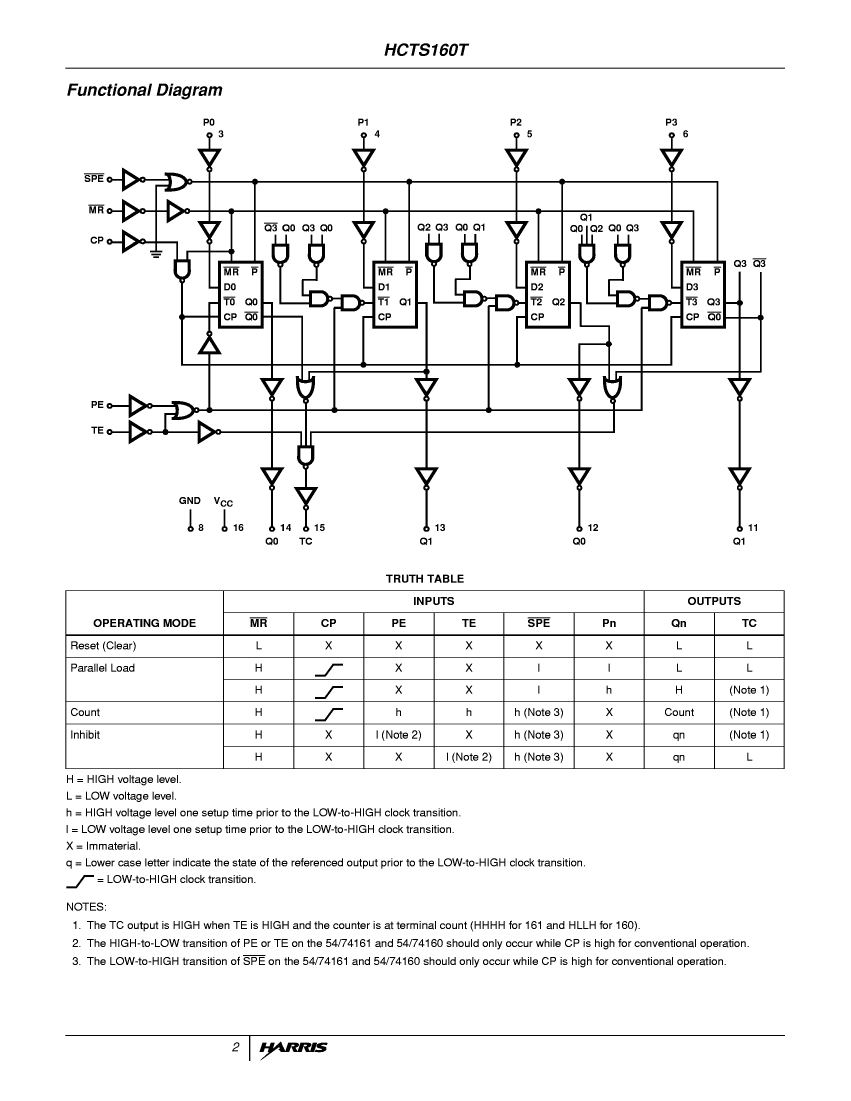

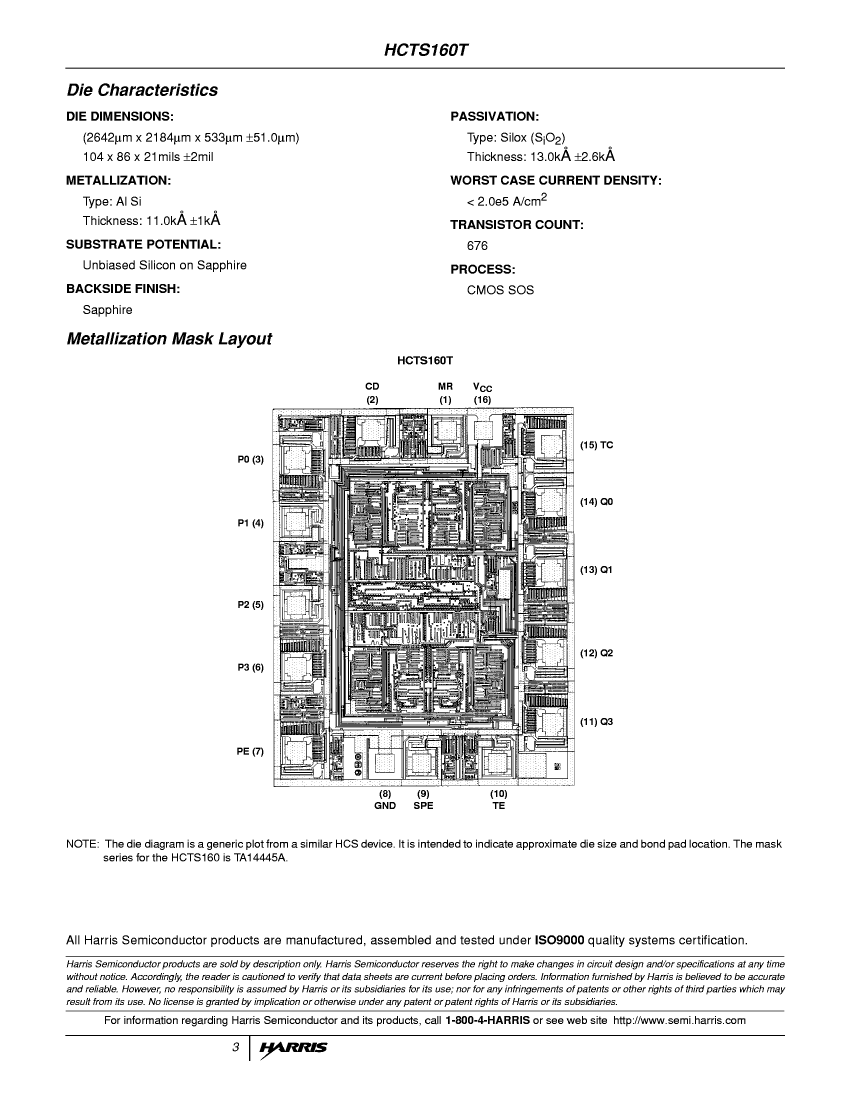

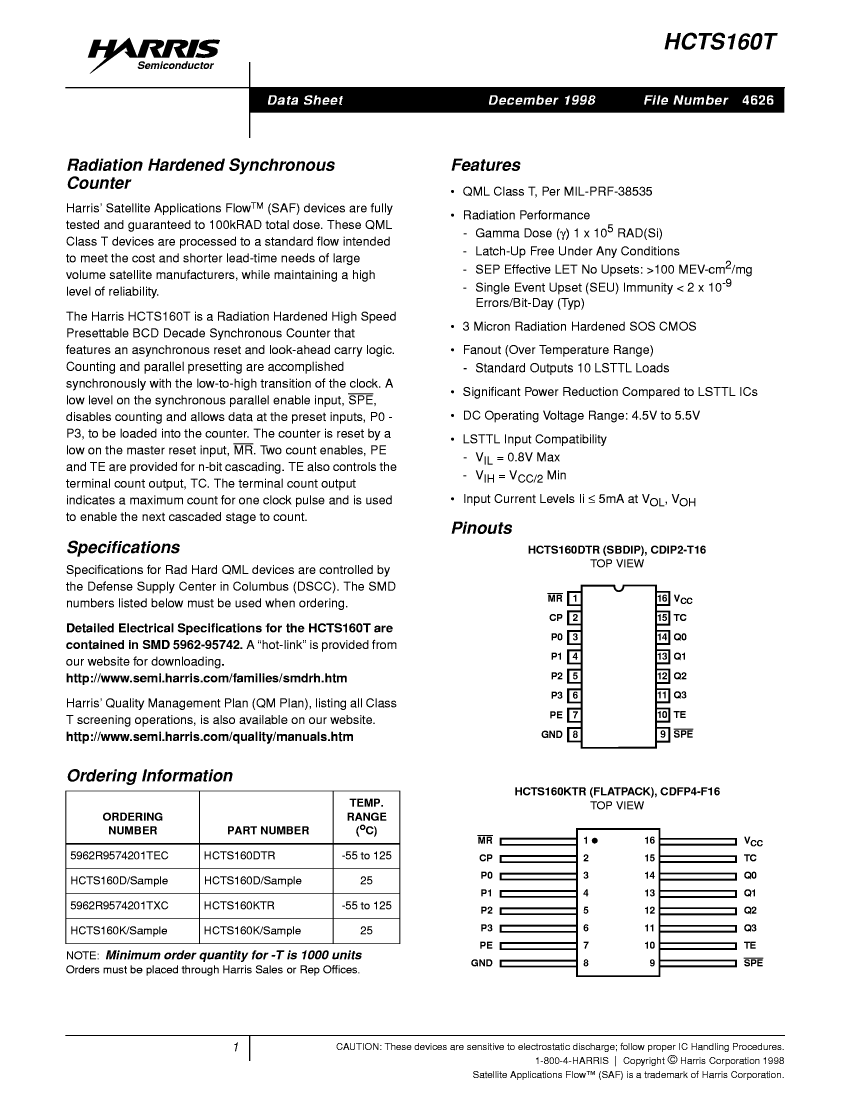

5962R9574201TEC Overview

Decade Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16, SIDE BRAZED, CERAMIC, DIP-16

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	16
Reach Compliance Code	unknown
Other features	TCO OUTPUT
Counting direction	UP
series	HCT
JESD-30 code	R-CDIP-T16
JESD-609 code	e4
length	19.05 mm
Load/preset input	YES
Logic integrated circuit type	DECADE COUNTER
Operating mode	SYNCHRONOUS
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
total dose	100k Rad(Si) V
Trigger type	POSITIVE EDGE
width	7.62 mm
Base Number Matches	1

	5962R9574201TEC	5962R9574201TXC
Description	Decade Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDIP16, SIDE BRAZED, CERAMIC, DIP-16	Decade Counter, HCT Series, Synchronous, Positive Edge Triggered, 4-Bit, Up Direction, CMOS, CDFP16, CERAMIC, FP-16
Parts packaging code	DIP	DFP
package instruction	DIP,	DFP,
Contacts	16	16
Reach Compliance Code	unknown	unknown
Other features	TCO OUTPUT	TCO OUTPUT
Counting direction	UP	UP
series	HCT	HCT
JESD-30 code	R-CDIP-T16	R-CDFP-F16
JESD-609 code	e4	e4
Load/preset input	YES	YES
Logic integrated circuit type	DECADE COUNTER	DECADE COUNTER
Operating mode	SYNCHRONOUS	SYNCHRONOUS
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK
Certification status	Not Qualified	Not Qualified
Filter level	MIL-PRF-38535 Class T	MIL-PRF-38535 Class T
Maximum seat height	5.08 mm	2.92 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	YES
technology	CMOS	CMOS
Temperature level	MILITARY	MILITARY
Terminal surface	GOLD	GOLD
Terminal form	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
total dose	100k Rad(Si) V	100k Rad(Si) V
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	6.73 mm
Base Number Matches	1	1
