760239051 | Z-576-CZ-RR-F12BK/8G/99G/B2
Indoor/Outdoor, Interlocking Armored, Low Smoke Zero Halogen (LSZH),
Riser-Rated, Gel-Free, Central Tube Rollable Ribbon Cable
Product Classification
Portfolio
Product Type
Regional Availability
CommScope®
Fiber indoor/outdoor cable
Asia | Australia/New Zealand | EMEA | Latin America | North America
Standards And Qualifications
EN50575 CPR Cable EuroClass
Cable Qualification Standards
B2ca | s1a | d0 | a1
ANSI/ICEA S-104-696 | EN 187105 | Telcordia GR-409

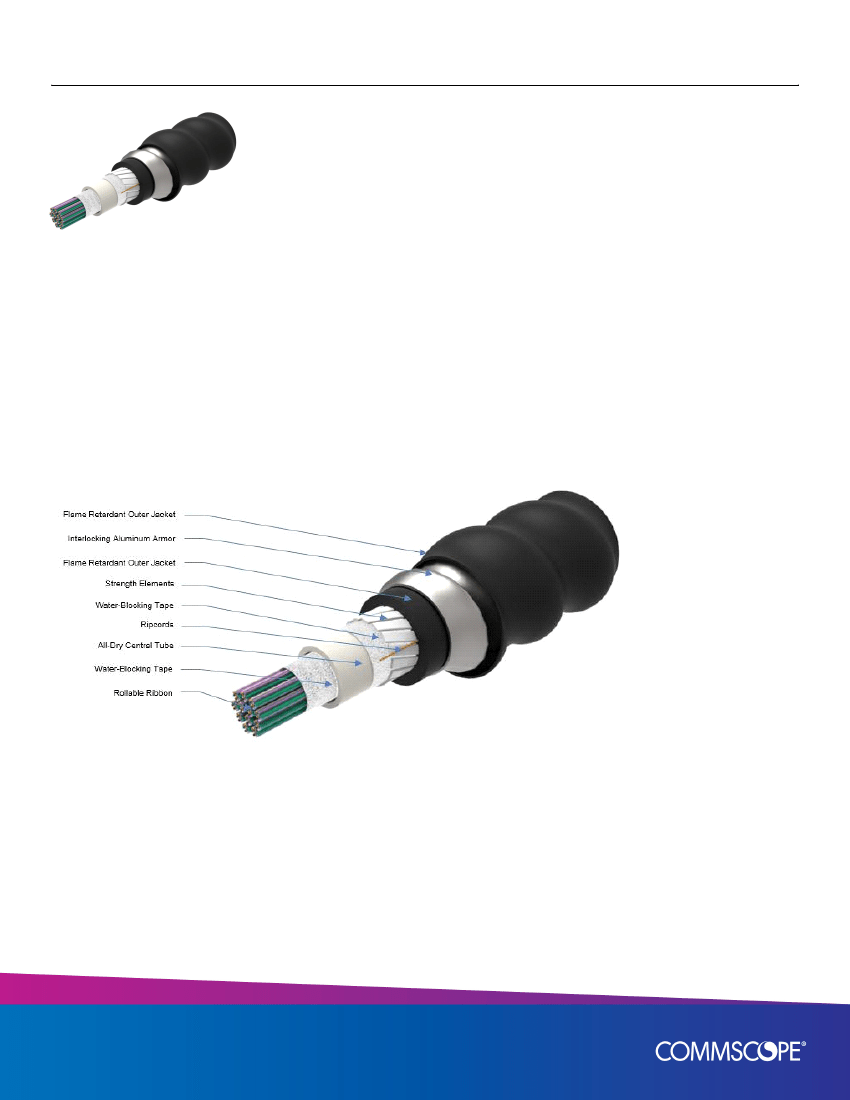

Representative Image
General Specifications
Construction Type
Cable Type
Subunit Type
Armored
Ribbon central tube
Gel-free
Construction Materials
Fiber Type Solution
G.657.A2/B2
page 1 of 3
March 31, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: March 29, 2019
760239051 | Z-576-CZ-RR-F12BK/8G/99G/B2
Total Fiber Count
Fiber Type
Fiber Type, quantity
Fibers per Ribbon, quantity
Inner Jacket Color
Jacket Color
Jacket UV Resistance
576
G.657.A2/B2
576
12
Black
Black
UV stabilized
Dimensions
Buffer Tube/Subunit Diameter
Cable Weight
Diameter Over Jacket
12.00 mm | 0.47 in
646.7 kg/km | 434.6 lb/kft
25.50 mm | 1.00 in
Physical Specifications
Minimum Bend Radius, loaded
Minimum Bend Radius, unloaded
51.0 cm | 20.1 in
35.7 cm | 14.1 in
Tensile Load, long term, maximum
180 lbf | 800 N
Tensile Load, short term, maximum
607 lbf | 2700 N
Flame Test Specifications
Flame Test Listing
Flame Test Method
NEC OFCR-LS (ETL) and c(ETL)
CSA FT4 | IEC 60332-1-2 | IEC 60754-2 | IEC 61034-2 | UL 1666 | UL 1685
Environmental Specifications
Environmental Space
Installation Temperature
Operating Temperature
Storage Temperature
Aerial, lashed | Buried | Low Smoke Zero Halogen (LSZH) | Riser
-20 °C to +60 °C (-4 °F to +140 °F)
-40 °C to +70 °C (-40 °F to +158 °F)
-40 °C to +70 °C (-40 °F to +158 °F)
Mechanical Test Specifications
Compression
Compression Test Method
Flex
Flex Test Method
Impact
Impact Test Method
Strain
Strain Test Method
57 lb/in | 10 N/mm
FOTP-41 | IEC 60794-1 E3
25 cycles
FOTP-104 | IEC 60794-1 E6
3.80 ft lb | 5.15 N-m
FOTP-25 | IEC 60794-1 E4
See long and short term tensile loads
FOTP-33 | IEC 60794-1 E1
page 2 of 3
March 31, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: March 29, 2019
760239051 | Z-576-CZ-RR-F12BK/8G/99G/B2
Twist
Twist Test Method
Water Penentration
Water Penentration Test Method
10 cycles
FOTP-85 | IEC 60794-1 E7
24 h
FOTP-82 | IEC 60794-1 F5
Environmental Test Specifications
Cable Freeze
Cable Freeze Test Method
Heat Age
Heat Age Test Method
Low High Bend
Low High Bend Test Method
Temperature Cycle
Temperature Cycle Test Method
-2 °C | 28 °F
FOTP-98 | IEC 60794-1 F15
-40 °C to +85 °C (-40 °F to +185 °F)
IEC 60794-1 F9
-20 °C to +60 °C (-4 °F to +140 °F)
FOTP-37 | IEC 60794-1 E11
-20 °C to +70 °C (-4 °F to +158 °F)
FOTP-3 | IEC 60794-1 F1
Regulatory Compliance/Certifications
Agency
RoHS 2011/65/EU
ISO 9001:2015
CENELEC
Classification
Compliant
Designed, manufactured and/or distributed under this quality management system
EN 50575 compliant, Declaration of Performance (DoP) available
Included Products
CS -8G-RR-I/O (Product Component—not orderable)
—
Enhanced Low Macrobending, Zero Water Peak, Dispersion-Unshifted
CS-8G-RR-
Component—
Dispersion-
Singlemode Rollable Ribbon Fiber (ITU-T G.657.A2, B2)
(ITU-
* Footnotes
Operating Temperature
Specification applicable to non-terminated bulk fiber cable
page 3 of 3
March 31, 2019
©2019 CommScope, Inc. All rights reserved. All trademarks identified by ® or ™ are registered trademarks,
respectively, of CommScope.All specifications are subject to change without notice. See www.commscope.com for the
most current information. Revised: March 29, 2019
