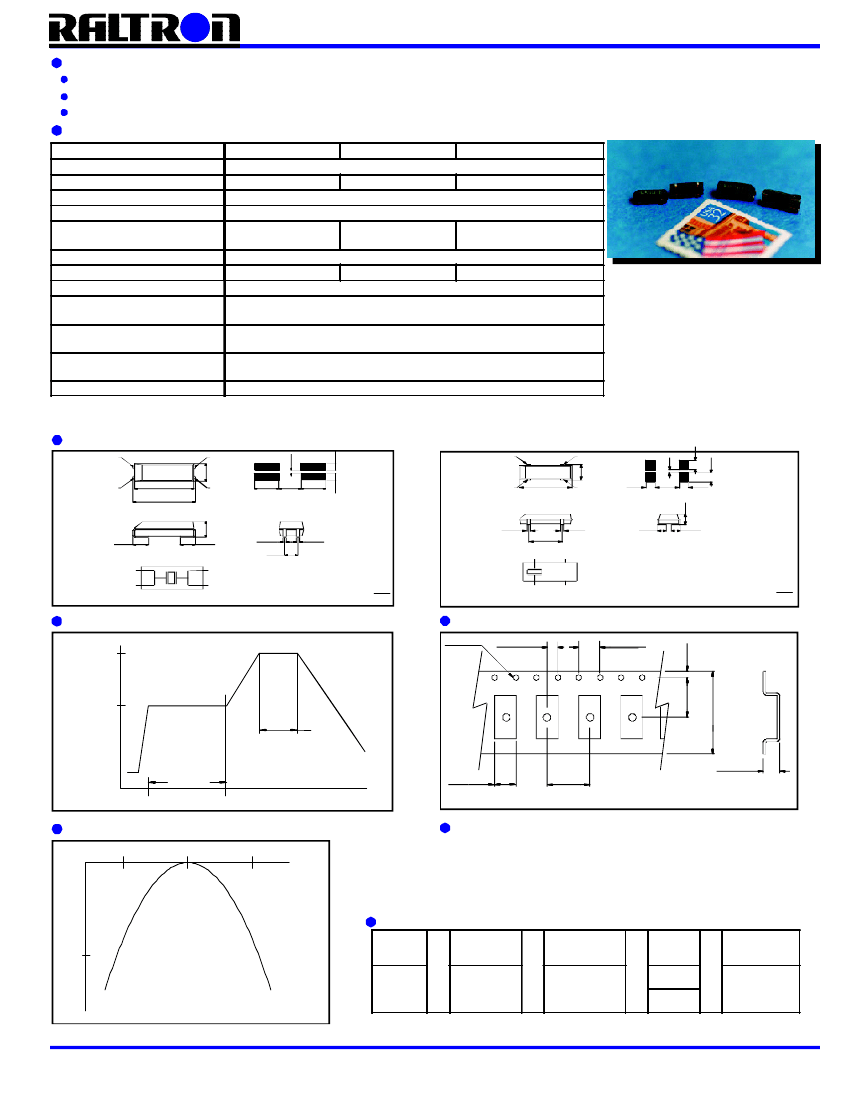

SURFACE MOUNT TUNING FORK CRYSTAL UNIT

FEATURES

SERIES RSE B AND C

SUITABLE FOR TIME OF DAY CLOCK APPLICATIONS

LOW FREQUENCY RANGE

EXCELLENT FOR AUTOMATIC AND HIGH DENSITY SURFACE MOUNTING

SPECIFICATIONS

NOMINAL FREQUENCY

FREQUENCY TOLERANCE

TURNOVER TEMPERATURE

TEMPERATURE COEFFICIENT

LOAD CAPACITANCE

EQUIVALENT SERIES

RESISTANCE (ESR)

DRIVE LEVEL

SHUNT CAPACITANCE

AGING (FIRST YEAR)

OPERATING TEMPERATURE

RANGE

STORAGE TEMPERATURE

RANGE

SHOCK RESISTANCE

SOLDER REFLOW CONDITIONS

32.768 KHz

24.00 TO 350.00 KHz 351.00 KHz TO 615.00 KHz

±20 PPM MAXIMUM (±50 PPM AND ±100 PPM AVAILABLE)

±25°C ±5°C

±25°C ±8°C

±25°C ±15°C

(-0.035 ± 0.008) PPM/°C²

6.0 TO 12.5 pF

50 K OHM MAXIMUM

1.0 µW MAXIMUM

0.95 pF TYPICAL

±5 PPM MAXIMUM

-40°C TO +85°C

-55°C TO +125°C

±5 PPM MAXIMUM 75 cm DROP TEST IN 3 AXES ONTO A HARD

SURFACE OR 3000 g x 0.3 ms x ½ SINEWAVE IN 3 AXES

230 °C MAXIMUM FOR 20 s MAXIMUM

20 K OHM MAXIMUM

1.0 pF TYPICAL

0.9 pF TYPICAL

.024

0.6

0.7

.160

PIN 1

3.56

2.54

.100

2.54

.100

0.51

.020

2.29

.090

0.51

.020

0.6

.024

5.5

.217

PIN 4

0.6

.024

1.4

.055

1.4

.055

PIN 3

PIN 4

PIN 1

PIN 3

PIN 2

2.5

MARKING

AREA

9.40

.370

10.41

.410

0.6

RSE B

2.7

.106

RSE C

PIN 1

MARKING

AREA

8.7

.343

PIN 2

2.7

.106

5.0

.197

PIN 2

SOLDER PAD LAYOUT

0.7

4.8

0.7

.028

.189

.028

SOLDER PAD LAYOUT

PIN 4

PIN 3

1.7

PIN 4

PIN 3

1.6

OUTLINE DRAWINGS

LEAD CONNECTION

Scale none Dimensio n in

inch

PIN 1

PIN 2

LEAD CONNECTION

Scale none Dimensio n in

inch

REFLOW SOLDERING PROFILE

230 °C

TEMPERATURE

CARRIER TAPE DIMENSIONS

1.75

.069

7.5

.295

.630

15 - 20 s

CAVITY HEIGHT “H”

RSE “B” = 4.0 mm / .157 in

RSE “C” = 3.0 mm / .118 in

REFLOW

1.5 DIA

.06 DIA

2.0 ± 0.05

.079 ± .002

4.0 ± 0.1

.16 ± .004

COOLING

150 °C

PREHEATING

25 °C

30 - 40 s

TIME (SECONDS)

4.4 ± 0.1

.170 ± .004

8.0 ± 0.1

.315 ± .004

FREQUENCY VS. TEMPERATURE CURVE

-10

TEMP

(°C)

PACKAGING

330mm REEL DIAMETER

16mm TAPE WIDTH, 8mm PITCH

QUANTITY: RSE B 2000 PIECES PER REEL

RSE C 3000 PIECES PER REEL

PART NUMBERING SYSTEM

-50

HOLDER

TYPE

RSE

FREQUENCY

IN KHz

LOAD

CAPACITANCE

6 OR 12.5 pF

CIRCUIT

TYPE

TAPE AND REEL

∆

f / f o(ppm)

EXAMPLE: RSE-32.768-12.5-B-T
