IDH26-509-01 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> IDH26-509-01

IDH26-509-01: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Hole .087-.098, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size197KB，3 Pages; ManufacturerBel Fuse

Download Datasheet Parametric Compare View All

IDH26-509-01 Overview

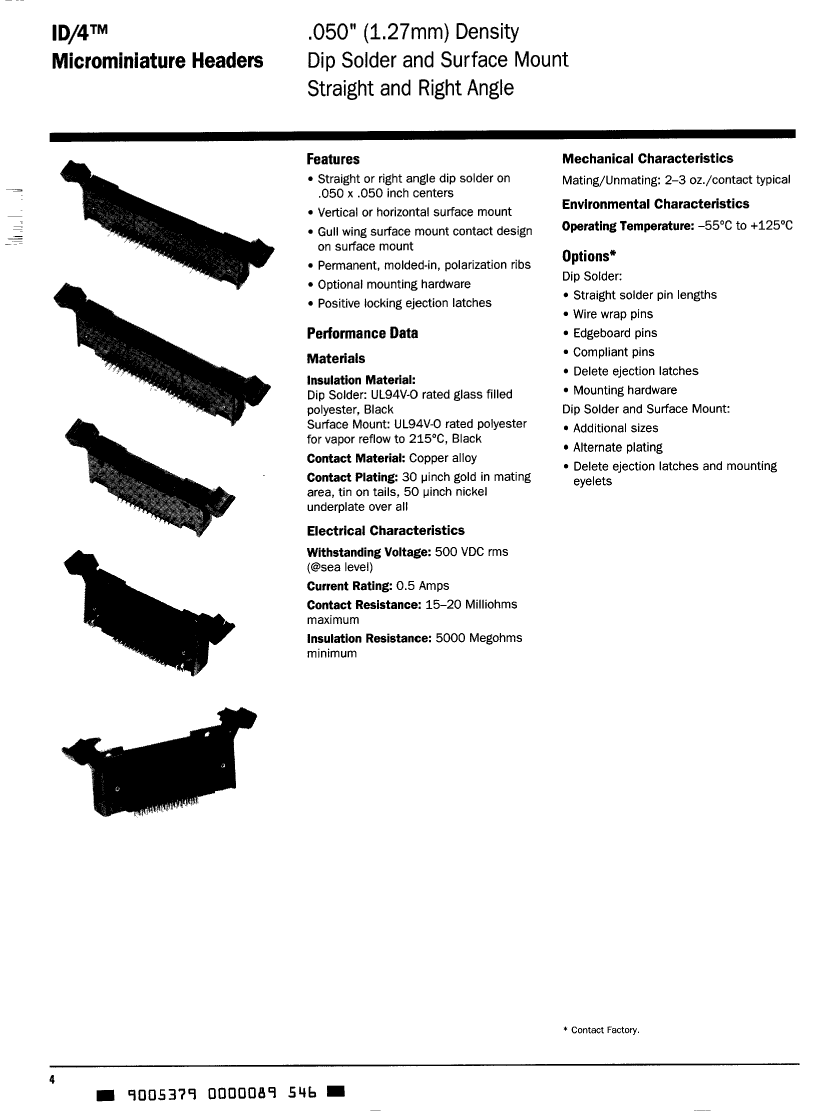

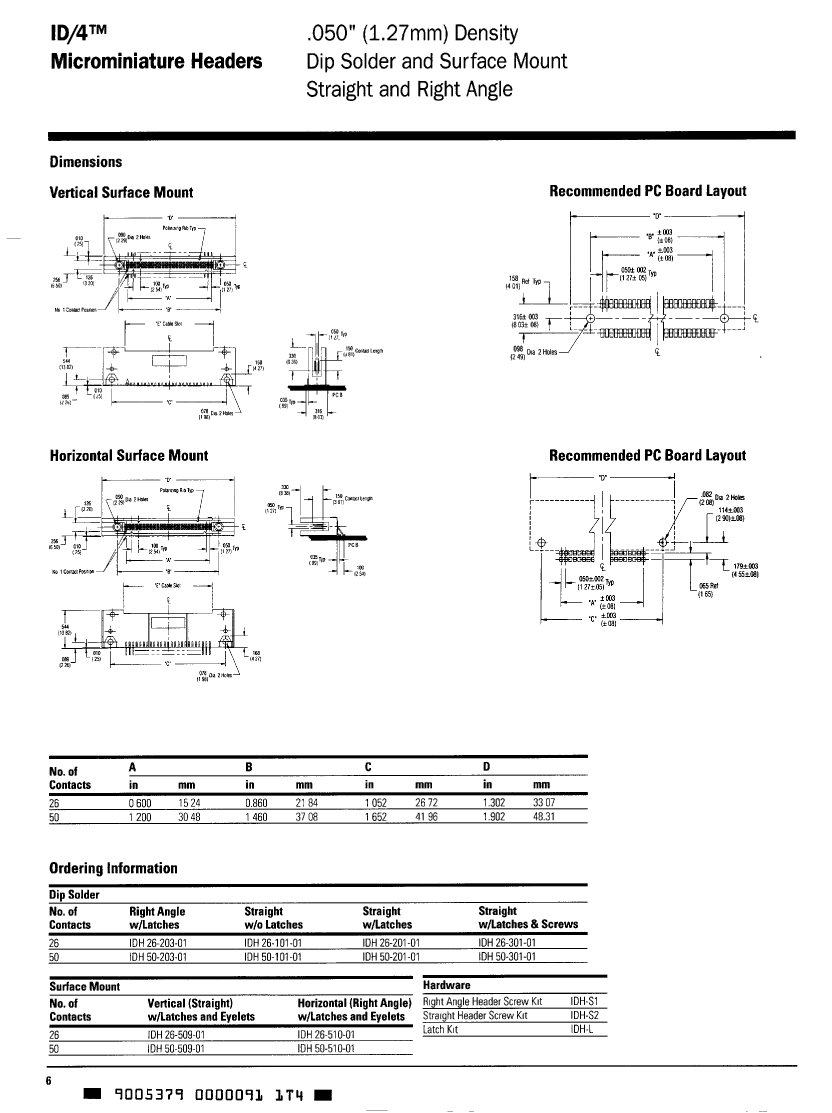

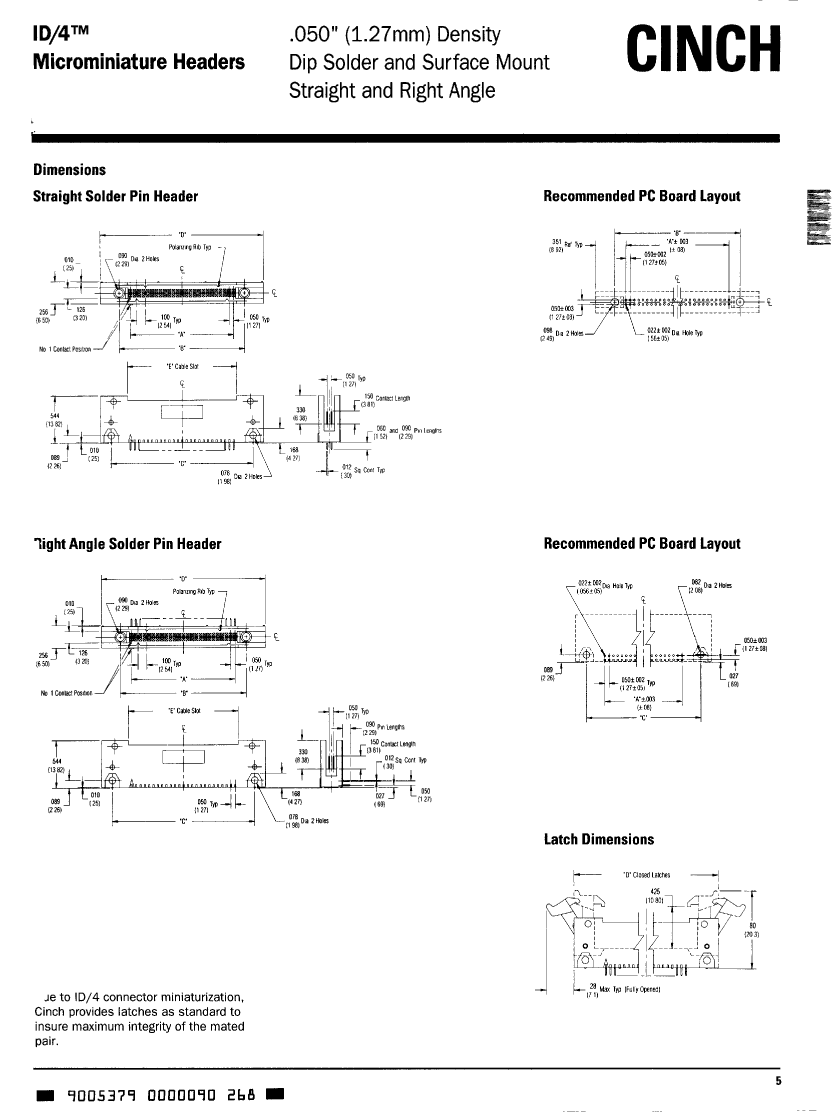

Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Hole .087-.098, Black Insulator, Receptacle,

IDH26-509-01 Parametric

Parameter Name	Attribute value
Maker	Bel Fuse
Reach Compliance Code	compliant
Other features	LATCH, PLASTIC
body width	0.256 inch
subject depth	0.544 inch
body length	1.302 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VDC V
maximum insertion force	.834 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
Manufacturer's serial number	IDH
Plug contact pitch	0.05 inch
Installation option 1	HOLE .087-.098
Installation method	STRAIGHT
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	1.27 mm
Plating thickness	30u inch
polarization key	4 RIBS (2L,2R)
Rated current (signal)	0.5 A
reliability	COMMERCIAL
Terminal pitch	1.27 mm
Total number of contacts	26
Evacuation force-minimum value	.556 N
Base Number Matches	1

Preview

Download Datasheet

View All

IDH26-509-01 Related Products

	IDH26-509-01	IDH50-101-01
Description	Board Connector, 26 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Hole .087-.098, Black Insulator, Receptacle,	Board Connector, 50 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Hole .087-.098, Black Insulator, Receptacle,
Maker	Bel Fuse	Bel Fuse
Reach Compliance Code	compliant	compliant
Other features	LATCH, PLASTIC	NONE
body width	0.256 inch	0.256 inch
subject depth	0.544 inch	0.544 inch
body length	1.302 inch	1.902 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	500VDC V	500VDC V
maximum insertion force	.834 N	.834 N
Insulation resistance	5000000000 Ω	5000000000 Ω
Insulator color	BLACK	BLACK
insulator material	POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	IDH	IDH
Plug contact pitch	0.05 inch	0.05 inch
Installation option 1	HOLE .087-.098	HOLE .087-.098
Installation method	STRAIGHT	STRAIGHT
Number of connectors	ONE	ONE
PCB row number	2	2
Number of rows loaded	2	2
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	1.27 mm	1.27 mm
Plating thickness	30u inch	30u inch
polarization key	4 RIBS (2L,2R)	4 RIBS (2L,2R)
Rated current (signal)	0.5 A	0.5 A
reliability	COMMERCIAL	COMMERCIAL
Terminal pitch	1.27 mm	1.27 mm
Total number of contacts	26	50
Evacuation force-minimum value	.556 N	.556 N
