IRFY240CPBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> IRFY240CPBF

IRFY240CPBF: DescriptionPower Field-Effect Transistor, 16A I(D), 200V, 0.18ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-257AA, HERMETIC SEALED PACKAGE-3; CategoryDiscrete semiconductor The transistor; File Size161KB，7 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric View All

IRFY240CPBF Overview

Power Field-Effect Transistor, 16A I(D), 200V, 0.18ohm, 1-Element, N-Channel, Silicon, Metal-oxide Semiconductor FET, TO-257AA, HERMETIC SEALED PACKAGE-3

IRFY240CPBF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
Parts packaging code	TO-257AA
package instruction	FLANGE MOUNT, R-XSFM-P3
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH RELIABILITY
Avalanche Energy Efficiency Rating (Eas)	580 mJ
Shell connection	ISOLATED
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	200 V
Maximum drain current (ID)	16 A
Maximum drain-source on-resistance	0.18 Ω
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-257AA
JESD-30 code	R-XSFM-P3
Number of components	1
Number of terminals	3
Operating mode	ENHANCEMENT MODE
Maximum operating temperature	150 °C
Package body material	UNSPECIFIED
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Peak Reflow Temperature (Celsius)	260
Polarity/channel type	N-CHANNEL
Maximum pulsed drain current (IDM)	64 A
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE
Maximum time at peak reflow temperature	40
transistor applications	SWITCHING
Transistor component materials	SILICON
Base Number Matches	1

Preview

Download Datasheet

View All

PD - 94187

POWER MOSFET

THRU-HOLE (TO-257AA)

Product Summary

Part Number

IRFY240

IRFY240M

IRFY240,IRFY240M

200V, N-CHANNEL

HEXFET

MOSFET TECHNOLOGY

DS(on)

0.18

Ω

0.18

Ω

16A

Eyelets

Glass

HEXFET

MOSFET technology is the key to International

Rectifier’s advanced line of power MOSFET transistors. The

efficient geometry design achieves very low on-state re-

sistance combined with high transconductance.

HEXFET

transistors also feature all of the well-established advan-

tages of MOSFETs, such as voltage control, very fast switch-

ing, ease of paralleling and electrical parameter temperature

stability. They are well-suited for applications such as switch-

ing power supplies, motor controls, inverters, choppers,

audio amplifiers, high energy pulse circuits, and virtually

any application where high reliability is required. The

HEXFET

transistor’s totally isolated package eliminates the

need for additional isolating material between the device

and the heatsink. This improves thermal efficiency and

reduces drain capacitance.

TO-257AA

Features:

Simple Drive Requirements

Ease of Paralleling

Hermetically Sealed

Electrically Isolated

Glass Eyelets

For Space Level Applications

Refer to Ceramic Version Part

Numbers IRFY240C, IRFY240CM

Absolute Maximum Ratings

Parameter

ID @ VGS = 10V, TC = 25°C Continuous Drain Current

ID @ VGS = 10V, TC = 100°C Continuous Drain Current

IDM

PD @ TC = 25°C

VGS

EAS

IAR

EAR

dv/dt

T STG

Pulsed Drain Current

➀

Max. Power Dissipation

Linear Derating Factor

Gate-to-Source Voltage

Single Pulse Avalanche Energy

➁

Avalanche Current

➀

Repetitive Avalanche Energy

➀

Peak Diode Recovery dv/dt

➂

Operating Junction

Storage Temperature Range

Lead Temperature

Weight

For footnotes refer to the last page

10.2

100

0.8

±20

580

5.0

-55 to 150

300(0.063in./1.6mm from case for 10 sec)

3.3 (Typical)

W/°C

Units

V/ns

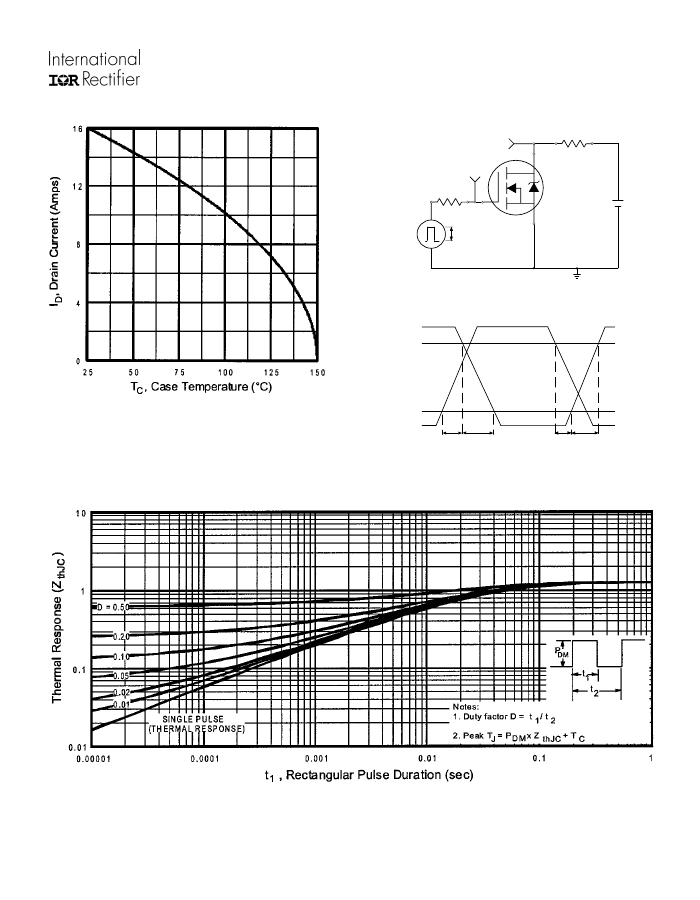

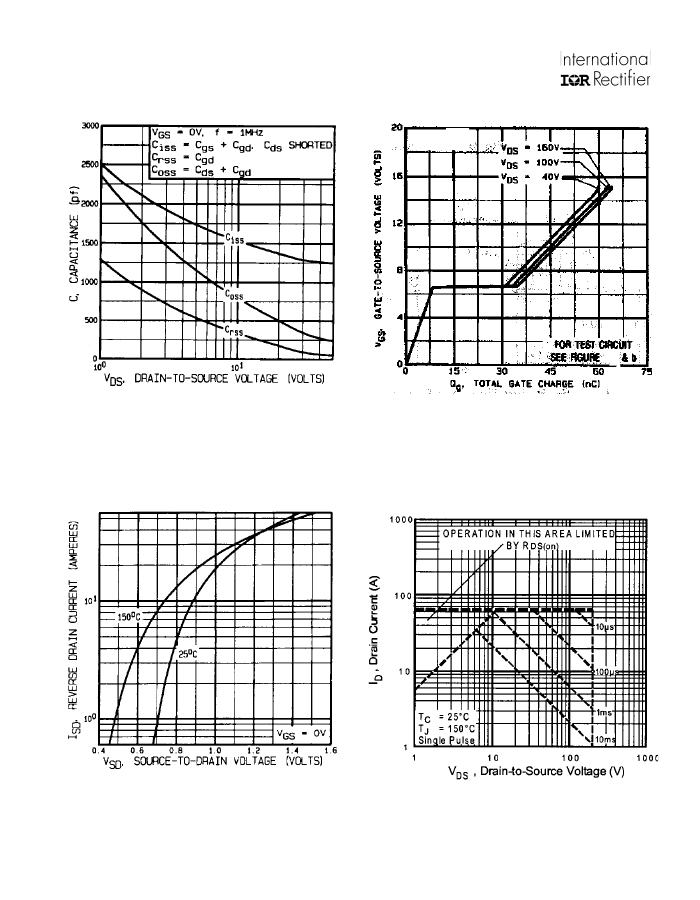

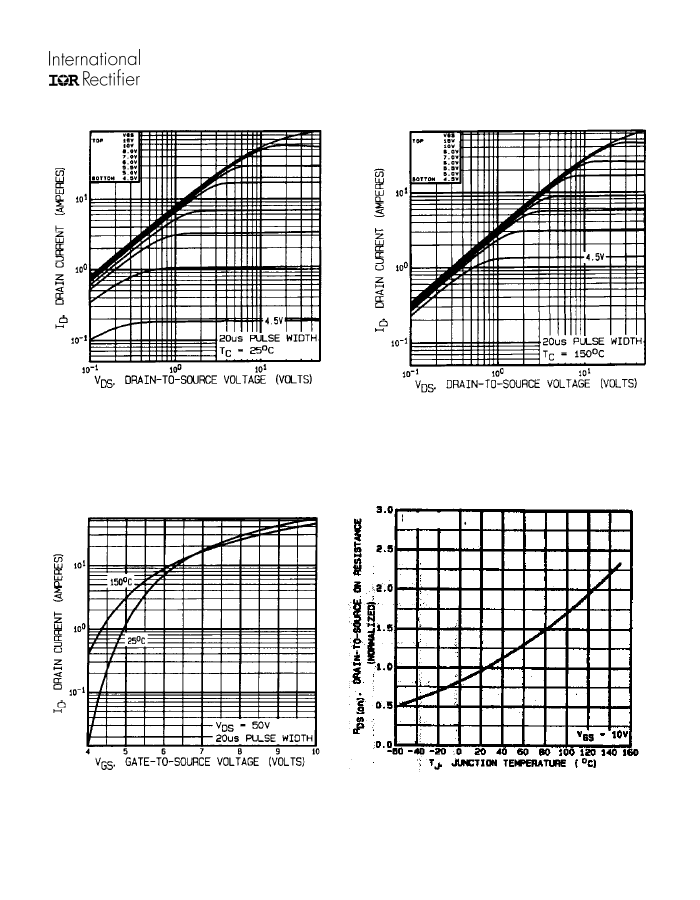

www.irf.com

4/18/01
