Shielded IDC Flat Cable Connector
57FE Series
10 Type
（Plug for Rack and Panel）
20 Type
（Receptacle for
Rack and Panel）
30 Type
（Cable Plug）
40 Type
（Panel Receptacle）

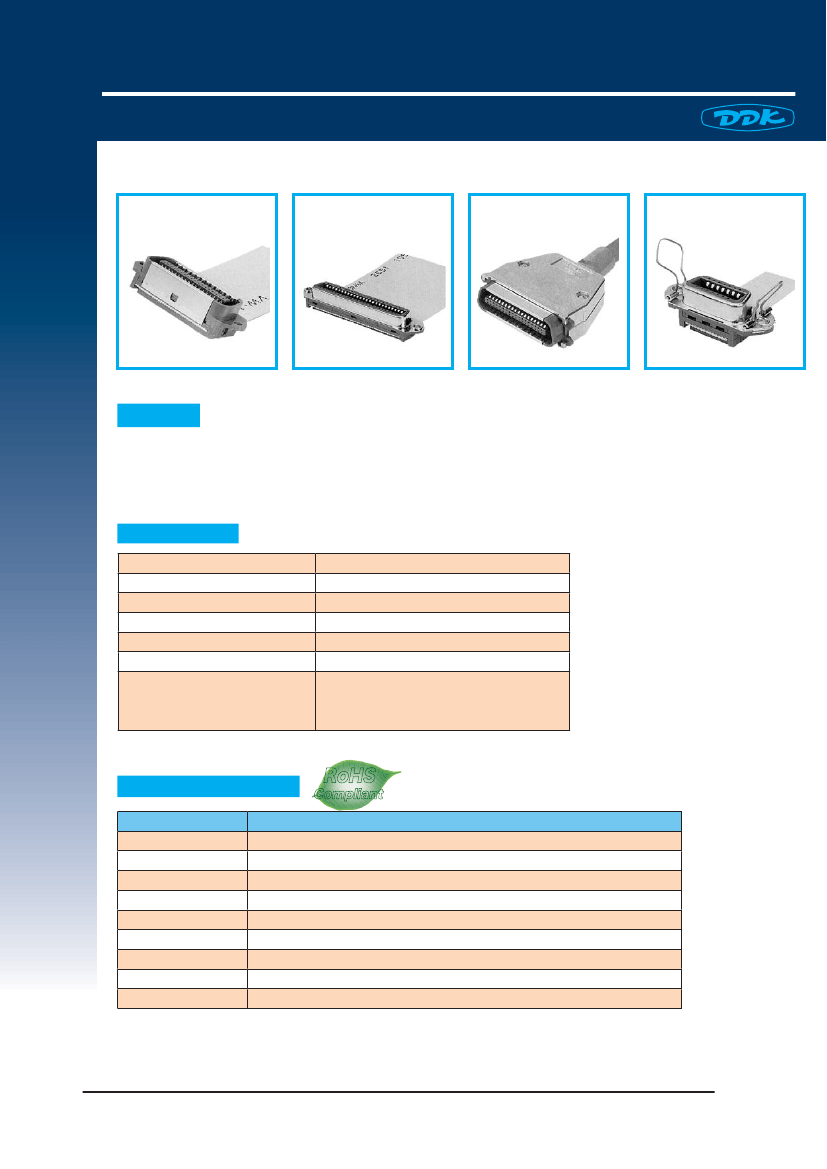

FEATURE
● 57FE series is a shielded IDC connectors for flat cable. It is covered the interface by the metal
plates for EMC.
SPECIFICATIONS
Rated Voltage
Rated Current
Dielectric Withstanding Voltage
Insulation Resistance
Contact Resistance
Operating Temperature
Applicable Cable
250V AC (r.m.s.)
1A / Contact
500V AC (r.m.s.) / 1 minute
1000M Ω min. at 500V DC
35m Ω max.
− 55℃∼＋ 105℃
Cable Pitch : 1.27mm
AWG#28 (Solid Cable, Stranded Cable)
AWG#30 (Solid Cable)
MATERIAL/ FINISH
Item
Insulator
Contact
Shell
Strain Relief
Ground Tab
Bail Lock
Metal Hood
Plastic Hood
Boot
RoHS
Compliant
Compliant
Material / Finish
PC Resin（UL94V-0）/ Blue
Copper Alloy / Au over Ni Plating
Copper Alloy / Ni Plating (57FE-20, 40 Type)
Polycarbonate（UL94V-0）/Blue, or Stainless Steel（36, 50 contacts）
Copper Alloy / Ni Plating（57FE-10, 30 Type）
Stainless Steel（57FE-40 Type）
Aluminum Alloy / Gray（Outside Only）
ABS Resin / Ni Plating
PVC（57FE-30 Type）
100802
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
57FE Series
Unit：mm
○

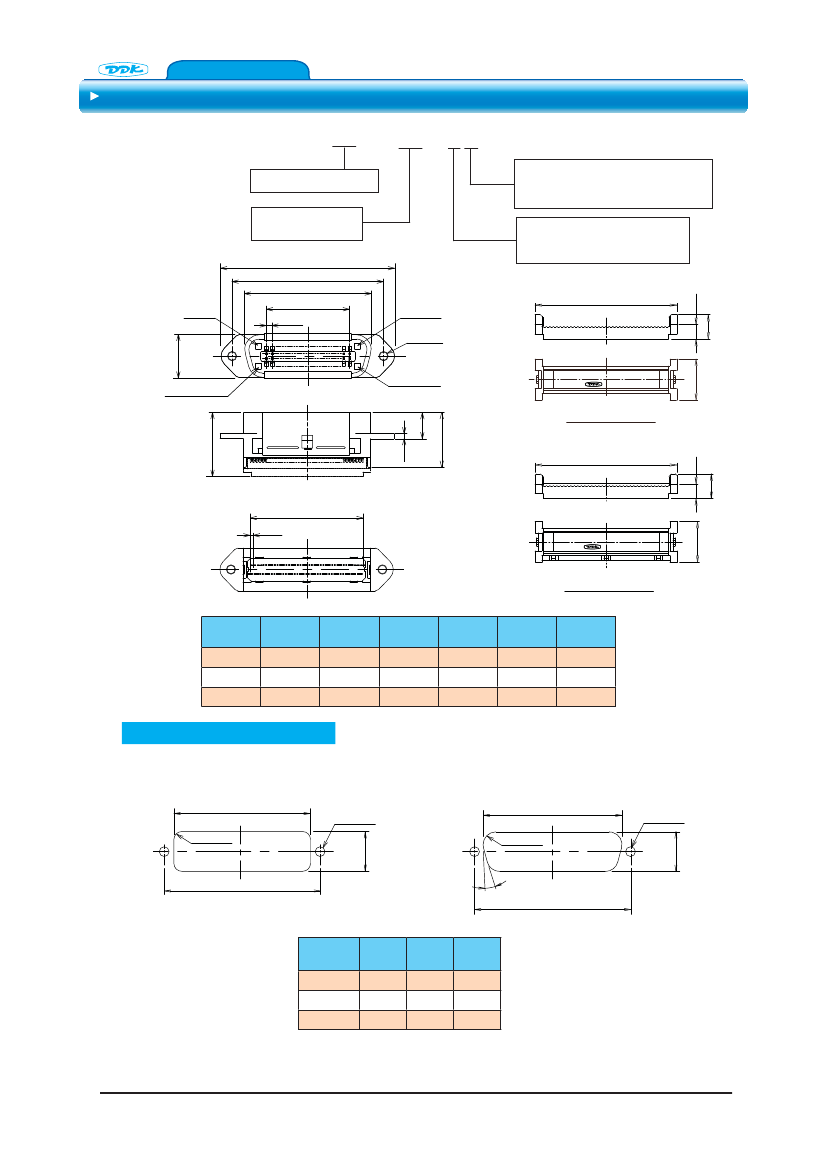

Plug for Rack and Panel
57 FE-10360-20
FE：Shield Type
Cover Style
0：Open-ended Cover, Blue
A：Close-ended Cover, Blue
Contact Plating
1：Au0.8 μ m over Ni Plating
2：Au0.4 μ m over Ni Plating
Number of Contact
24, 36, 50
A
B
C
D
No.1 Contact
2.159
No.n/2 Contact
2-φ3.2Hole
15.1
5.3
5.3
15
G
No.n/
2
+1 Contact
(After
20.1 Assembled)
No.n Contact
57F-XX
9.5
Open-ended Cover
18.6
2.0
G
E
1.27
15
57F-XX
Close-ended Cover
Number of
Contact
24
36
50
A
54.78
67.74
82.85
B
46.78
59.74
74.85
C
39.40
52.20
64.40
D
23.749
36.703
51.816
E
29.21
44.45
62.23
G
36.30
51.50
68.50
■ Panel Mounting Dimensions
● Front Mounting Type
H
0
4-R4.0 max.
+0.2
● Rear Mounting Type
F
0
4-R5.0 max.
+0.2
2-φ3.3
+0.2
0.1
Hole
2-φ3.2
0.1
Hole
15.5
0
+0.2
B
0.2
14.7
0
15
1
Ｂ
0.2
Number of
Contact
24
36
50
B
46.78
59.74
74.85
H
34.7
47.7
62.8
F
40.1
53.0
68.2
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
2
9
9
57FE Series
Unit：mm

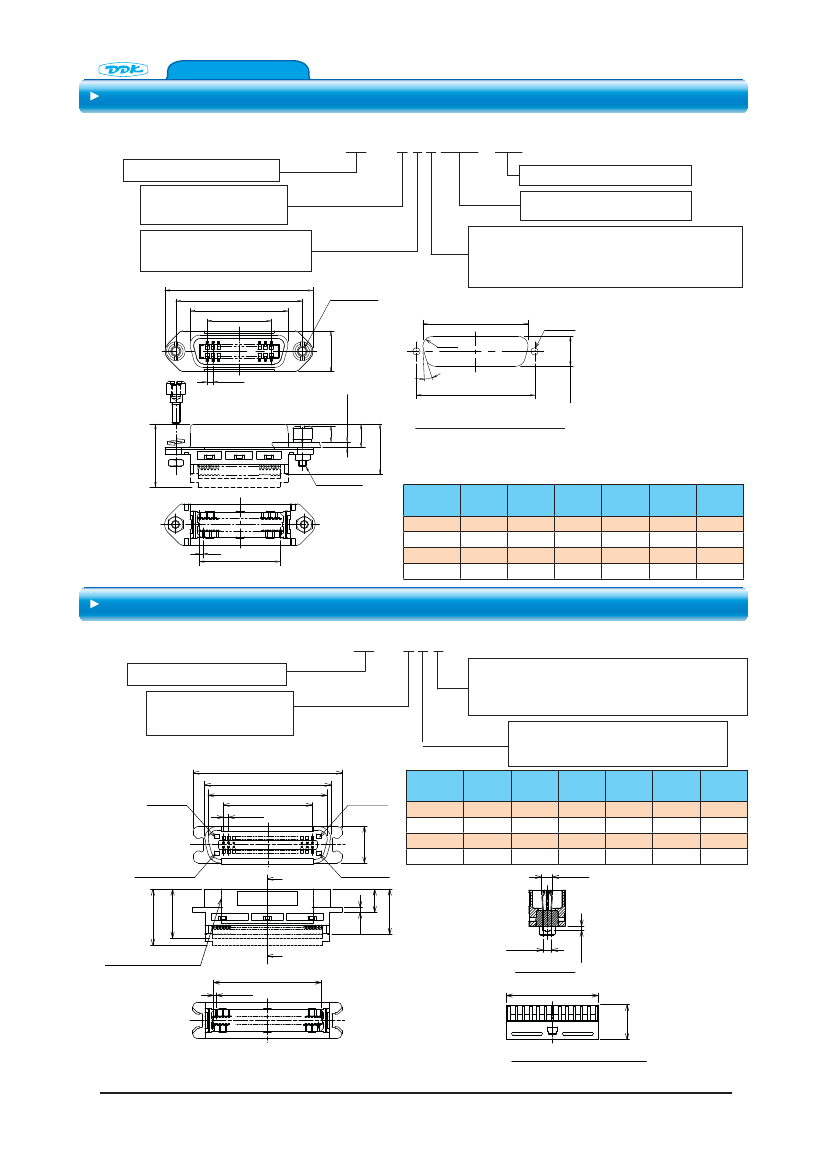

○ Receptacle for Rack and Panel
57FE -20 360-20S
Number of Contact
14, 24, 36, 50
Contact Plating
1：Au0.8 μ m over Ni Plating
2：Au0.4 μ m over Ni Plating
A
B
C
D
Strain Relief
No digit： No Strain Relief
S ：Plastic Strain Relief
K ：Metal Strain Relief（for 36,50 contacts only）
Cover Style
0：Open-ended Cover, Blue
A：Close-ended Cover, Blue
5.3
5.3
15
G
No.1 Contact
No.n/2 Contact
2-φ3.1 min.
15.1
12
57F-XX
No.n Contact
2.159
20.1
（After
Assembled）
No.n/2 +1 Contact
Open-ended Cover
G
8.7
18.6
2.4
Close-ended Cover
1.27
E
Number of
Contact
14
24
36
50
A
44.00
54.78
67.74
82.85
B
36.00
46.78
59.74
74.85
C
25.4
36.2
49.0
64.2
D
12.954
23.749
36.703
51.816
E
16.51
29.21
44.45
62.23
15
57F-XX
9
9
G
68.50
51.50
36.30
23.20
■ Panel Mounting Dimensions
● Rear Mounting Type
+0.2
F 0
4-R5.0 max.
2-φD 0.1Hole
+0.2
＊
15.5 0
Number of
Contact
14
24
36
50
B
36.00
46.78
59.74
74.85
+0.2
0
.
D
3.2
3.2
3.2
3.2
F
29.3
40.1
53.0
68.2
15
1
Ｂ 0.2
＊：When the mating connector is 57FE-10 type, the size is 16.2
Plastic Strain Relief
Metal Strain Relief
57F-14-041
Number of
Contact
57F-36-042
Number of
Contact
36, 50
14, 24,
36, 50
H
Number of
Contact
9.1
H
25.10
38.20
53.40
70.40
H
24
36
10.0
7.0
５７Ｆ−ＸＸ
50
５７Ｆ−ＸＸ
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
3
5.0
7.0
8.4
14
57FE Series
Unit：mm

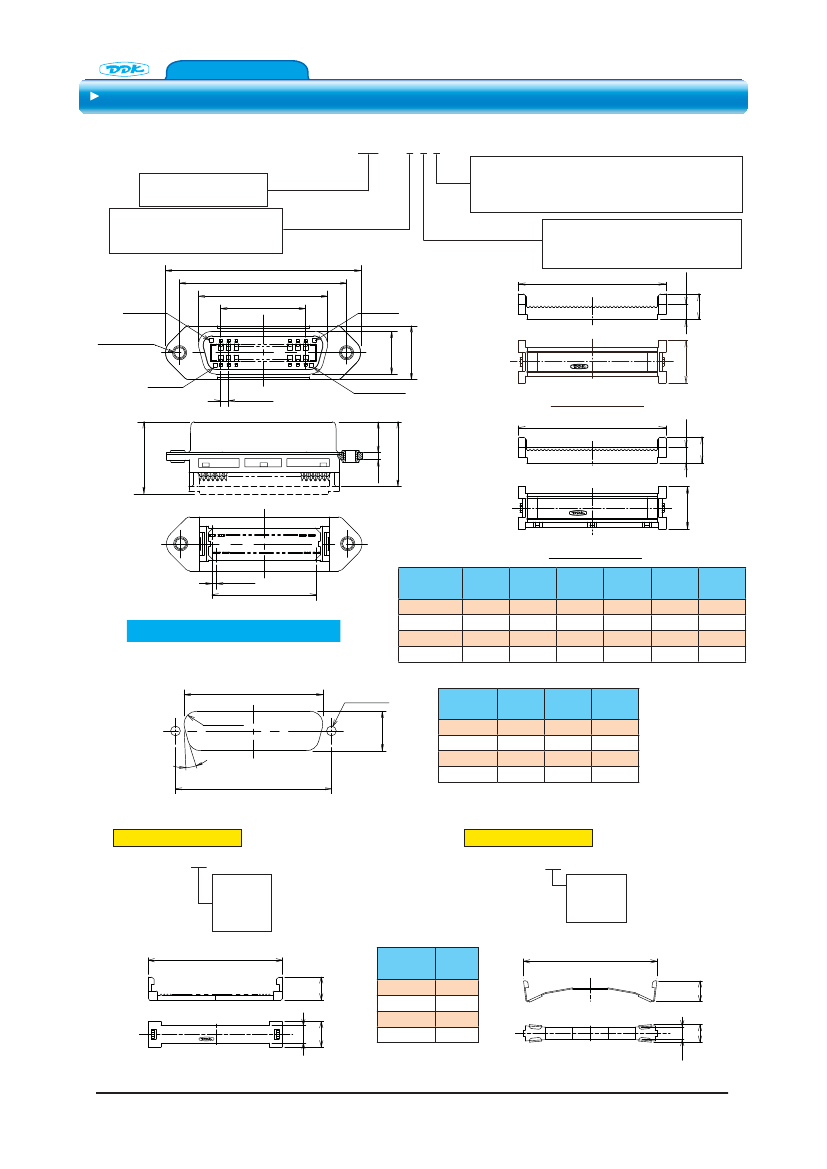

○ Receptacle for Rack and Panel(with Jack Socket)
57FE -20 500-20SD35-C
G
Number of Contatct：14，24,
36, 50
Contact Plating
1：Au0.8 μ m over Ni Plating
2：Au0.4 μ m over Ni Plating
Cover Style
0：Open-ended Cover, Blue
A：Close-ended Cover, Blue
A
B
C
D
Ｍ３． ０． Thread
５ ６
F min.
4-R5.0
x.
CG：Lead and Cadmium Free
Deviation
D35：with Jack Socket
Strain Relief
No Digit： None
S ： Plastic Strain Relief
K ： Metal Strain Relief（for 36,50 Contacts only）
2-φ4.8
0.1
15.1
15
Panel
Thickness
2mm max.
Ｂ
0.1
23.2
Assembled）
6.1
8.7
Rear Mounting Type
18.6
（After
（Panel Thickness 1.0mm max.）
24
13
15.5
0
＊
2.159
+0.2
ma
＊：When the mating connector is 57FE-10 type, the size is 16.2
Ｍ３． ０． Thread
５ ６
+0.2
0
.
Number of
Contact
14
24
1.27
E
A
44.00
54.78
67.74
82.85
B
36.00
46.78
59.74
74.85
C
25.4
36.2
49.0
64.2
D
12.954
23.749
36.703
51.816
E
16.51
29.21
44.45
62.23
F
29.3
40.1
53.0
68.2
36
50
○ Cable Plug
57F E -30 360-20S
Number of Contact：14，24,
36, 50
Contact Plating
1：Au0.8 μ m over Ni Plating
2：Au0.4 μ m over Ni Plating
Strain Relief
No Digit： None
S ： Plastic Strain Relief
K ： Metal Strain Relief（for 36,50 Contacts only）
Cover Style
0：Open-ended Cover, Blue
A：Close-ended Cover, Blue
Number of
n
Ｎ½． /2 Contact
Contact Ｎ½．
１
2.159
A
B
C
D
Contact
14
24
A
37.82
48.64
61.62
76.74
B
28.6
39.4
52.2
67.4
C
25.5
36.4
49.2
64.4
(4.75)
D
12.954
23.749
36.703
51.816
E
16.51
29.21
44.45
62.23
J
17.0
26.0
38.0
53.0
15.1
36
50
n
Ｎ½． /2 +1 Contact
Cover Assembled
Ｚ
Ｎ½． Contact
n
9.5
２．
０
(23.2)
20.1
18.6
(3.45)
Position of Grounding Plate
E
(1.27)
Ｚ
Section Ｚ-Ｚ
Ｊ
14.3
Grounding Plate attached）
（
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
4
(2.2)
57FE Series
Unit：mm

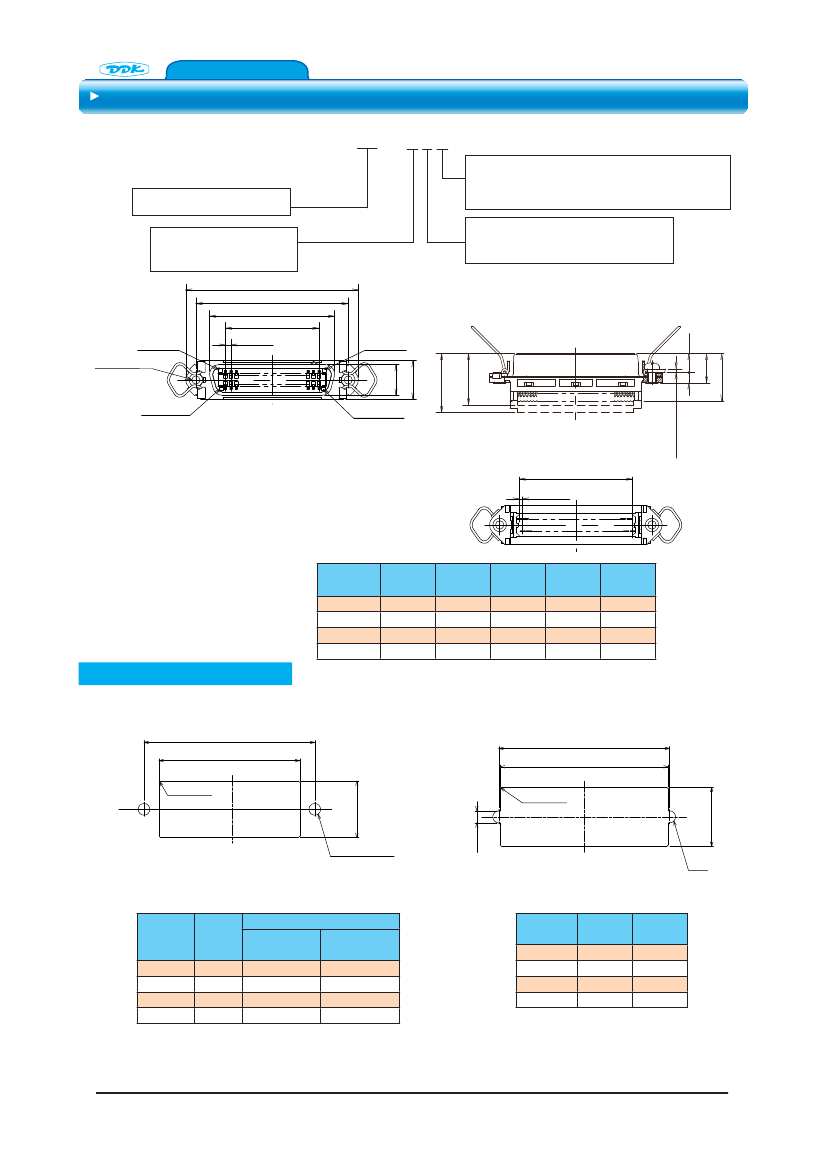

○ Panel Receptacle
57F E -40 360-20S
Number of Contact：14，24,
36, 50
Contact Plating
1：Au0.8 μ m over Ni Plating
2：Au0.4 μ m over Ni Plating
A
B
C
D
(23.2)
（Temporary cover position）
n
Ｎ½． /2 Contact
2.159
Ｎ½． Contact
１
20.1
（Cover Assemble position）
15.1
(7.5)
11.5
Strain Relief
No Digit： None
S ： Plastic Strain Relief
K ： Metal Strain Relief (for 36,50 Contacts)
Cover Style
0：Open-ended Cover, Blue
A：Close-ended Cover, Blue
Ｎ½． Contact
n
（Cover is temporary assembled
when delivered）
E
(1.27)
Number of
Contact
14
24
36
50
A
44.0
54.78
67.74
82.85
B
36.00
46.78
59.74
74.85
C
25.40
36.20
49.00
64.20
D
12.954
12.749
36.703
51.816
E
16.51
29.21
44.45
61.23
■ Panel Mounting Dimensions
● Front Mounting Type
B
0.1
● Rear Mounting Type
Panel Thickness：1.6mm max.
+0.2
G
0
B
0.1
+0.2
H
0
+0.2
＊
15.5
0
2-φ3.2
+0.1
0
Hole
3.3
2-R
＊：When the mating connector is 57FE-10 type, the size is
G
B
36.00
46.78
59.74
74.85
Without Strain
Relief
23.7
36.8
52.0
69.0
with Strain
Relief
25.6
38.7
53.9
70.9
+0.2
16.2
0
.
Number of
Contact
14
24
36
50
Number of
Contact
14
24
36
50
B
36.00
46.78
59.74
74.85
H
35.30
46.08
59.04
74.15
◎ Specifications and/or dimenssions in this catalogue are subject to change without notice.
Your catalogue checking the latest speifications with our drawings would be highly appreciated.
http://www.ddknet.co.jp
5
16.2
0.1
+0.2
0
4-R0.4 max.
４-Ｒ0.4 max.
Panel Thickness
1.5mm max.
n
Ｎ½． /2+1 Contact
12
18.6
２− ３.２ 0.2 Hole
4
