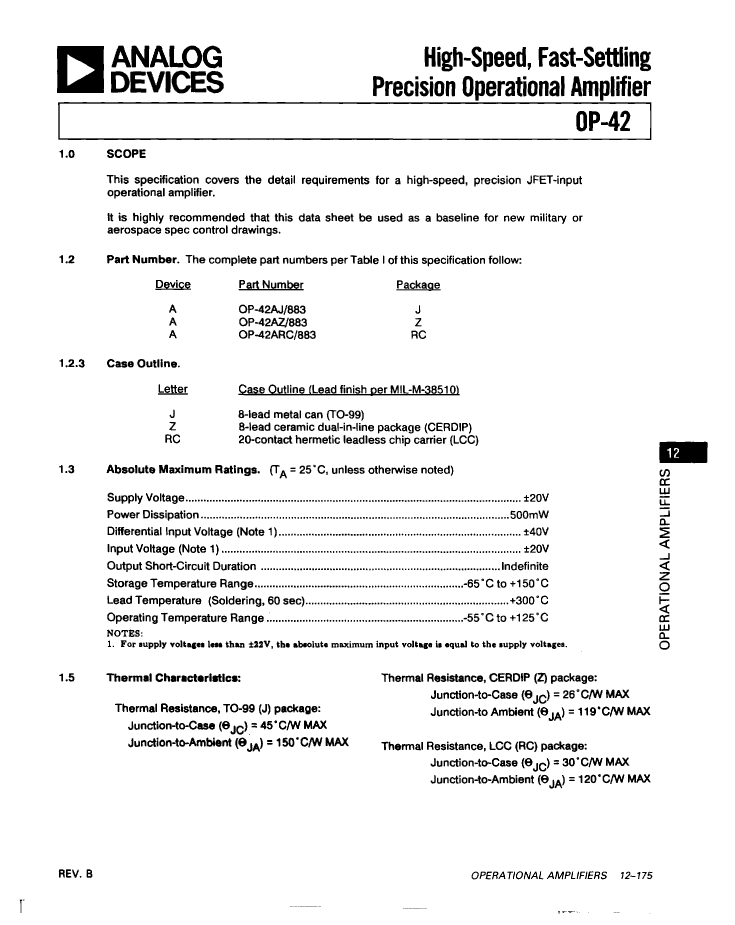

5962-88513012X amplifier basic information:
5962-88513012X is an OPERATIONAL AMPLIFIER. The commonly used packaging method is LCC-20
5962-88513012X amplifier core information:
The minimum operating temperature of 5962-88513012X is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.02 µA
The manufacturer specifies a maximum slew rate of 6 mA for the 5962-88513012X, and a minimum slew rate of 40 V/us. Its minimum voltage gain is 100000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-88513012X gain becomes 0.707 times the low-frequency gain is 10000 kHz. The power of 5962-88513012X is NO.
The nominal supply voltage of 5962-88513012X is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-88513012X is 2000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)
Related dimensions of 5962-88513012X:
The width of 5962-88513012X is: 8.89 mm and the length is 8.89 mm. 5962-88513012X has 20 terminals. Its terminal position type is: QUAD. Terminal pitch is 1.27 mm. Total pins: 20
5962-88513012X amplifier additional information:
5962-88513012X adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962-88513012X is: YES. Its temperature grade is: MILITARY. It is not a micropower amplifier.
The corresponding JESD-30 code is: S-CQCC-N20. The packaging code of 5962-88513012X is: QCCN. The materials used in the 5962-88513012X package are mostly CERAMIC and METAL-SEALED COFIRED. The package shape is SQUARE. The 5962-88513012X package pin format is: CHIP CARRIER.
Its terminal forms are: NO LEAD. The maximum seat height is 2.54 mm.
5962-88513012X amplifier basic information:
5962-88513012X is an OPERATIONAL AMPLIFIER. The commonly used packaging method is LCC-20
5962-88513012X amplifier core information:
The minimum operating temperature of 5962-88513012X is -55 °C and the maximum operating temperature is 125 °C. Its peak reflow temperature is NOT SPECIFIED Its maximum average bias current is 0.02 µA
The manufacturer specifies a maximum slew rate of 6 mA for the 5962-88513012X, and a minimum slew rate of 40 V/us. Its minimum voltage gain is 100000. When the op amp is used in closed loop, at a certain closed-loop gain (usually 1 or 2, 10, etc.), the frequency when the 5962-88513012X gain becomes 0.707 times the low-frequency gain is 10000 kHz. The power of 5962-88513012X is NO.
The nominal supply voltage of 5962-88513012X is 15 V, and its corresponding nominal negative supply voltage is -15 V. The input offset voltage of 5962-88513012X is 2000 µV (Input offset voltage: the compensation voltage added between the two input terminals to make the output terminal of the op amp 0V (or close to 0V).)
Related dimensions of 5962-88513012X:
The width of 5962-88513012X is: 8.89 mm and the length is 8.89 mm. 5962-88513012X has 20 terminals. Its terminal position type is: QUAD. Terminal pitch is 1.27 mm. Total pins: 20
5962-88513012X amplifier additional information:
5962-88513012X adopts the VOLTAGE-FEEDBACK architecture. It does not belong to the low offset class of amplifiers. The frequency compensation status of 5962-88513012X is: YES. Its temperature grade is: MILITARY. It is not a micropower amplifier.
The corresponding JESD-30 code is: S-CQCC-N20. The packaging code of 5962-88513012X is: QCCN. The materials used in the 5962-88513012X package are mostly CERAMIC and METAL-SEALED COFIRED. The package shape is SQUARE. The 5962-88513012X package pin format is: CHIP CARRIER.
Its terminal forms are: NO LEAD. The maximum seat height is 2.54 mm.

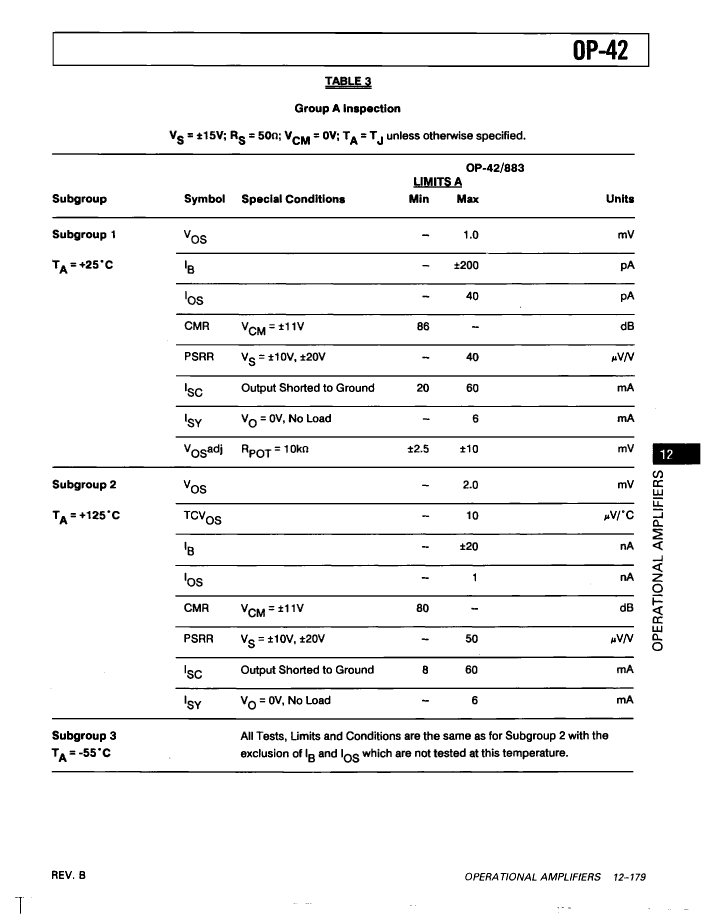

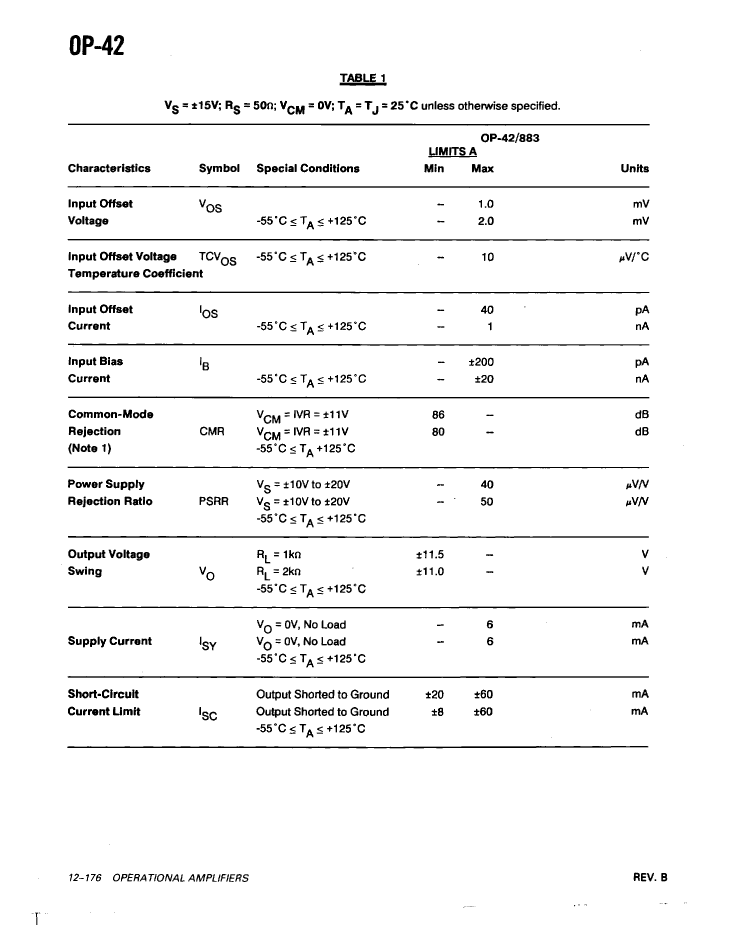

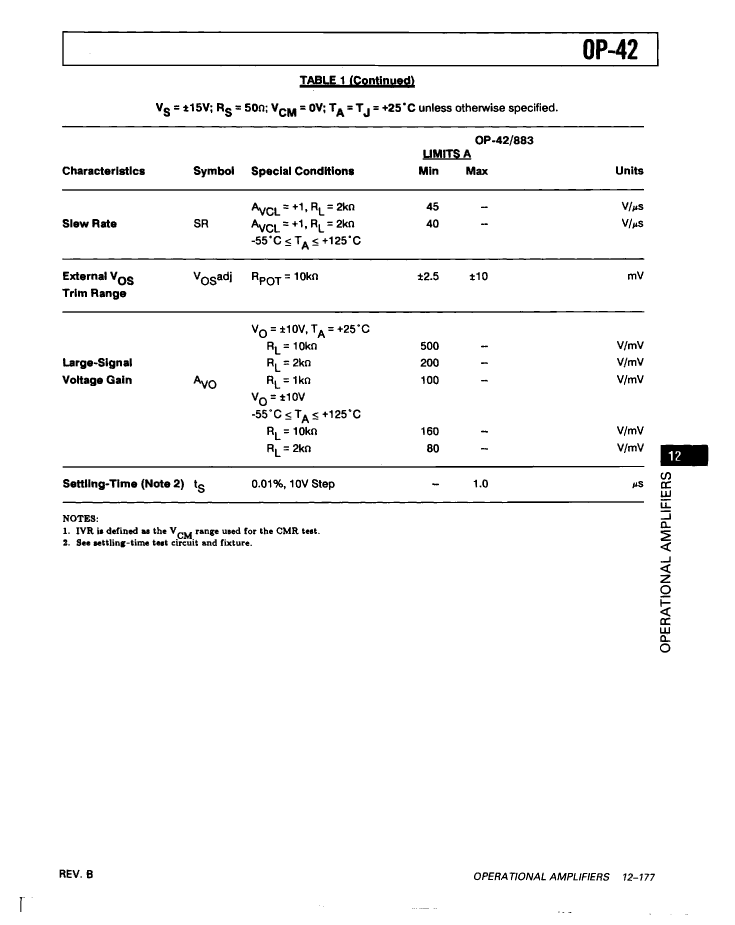

| Parameter Name | Attribute value |
| Maker | ADI |
| Parts packaging code | QLCC |
| package instruction | LCC-20 |
| Contacts | 20 |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER |
| Architecture | VOLTAGE-FEEDBACK |
| Maximum average bias current (IIB) | 0.02 µA |
| Minimum Common Mode Rejection Ratio | 80 dB |
| Nominal Common Mode Rejection Ratio | 94 dB |
| frequency compensation | YES |
| Maximum input offset voltage | 2000 µV |
| JESD-30 code | S-CQCC-N20 |
| length | 8.89 mm |
| low-dissonance | NO |
| micropower | NO |
| Negative supply voltage upper limit | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power | NO |
| Certification status | Qualified |
| Filter level | MIL-STD-883 |
| Maximum seat height | 2.54 mm |
| minimum slew rate | 40 V/us |
| Maximum slew rate | 6 mA |
| Supply voltage upper limit | 20 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | YES |
| technology | BIPOLAR |
| Temperature level | MILITARY |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| total dose | MIL-STD-883 V |
| Nominal Uniform Gain Bandwidth | 10000 kHz |
| Minimum voltage gain | 100000 |
| width | 8.89 mm |
| Base Number Matches | 1 |
| 5962-88513012X | 5962-8851301PX | 5962-8851301GX | |
|---|---|---|---|
| Description | IC OP-AMP, 2000 uV OFFSET-MAX, 10 MHz BAND WIDTH, CQCC20, CERAMIC, LCC-20, Operational Amplifier | IC OP-AMP, 2000 uV OFFSET-MAX, 10 MHz BAND WIDTH, CDIP8, CERDIP-8, Operational Amplifier | IC OP-AMP, 2000 uV OFFSET-MAX, 10 MHz BAND WIDTH, MBCY8, METAL CAN, TO-99, 8 PIN, Operational Amplifier |
| Maker | ADI | ADI | ADI |
| Parts packaging code | QLCC | DIP | BCY |
| package instruction | LCC-20 | DIP, | TO-99, |
| Contacts | 20 | 8 | 8 |
| Reach Compliance Code | compliant | compliant | compliant |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Amplifier type | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER | OPERATIONAL AMPLIFIER |
| Maximum average bias current (IIB) | 0.02 µA | 0.02 µA | 0.02 µA |
| Nominal Common Mode Rejection Ratio | 94 dB | 94 dB | 94 dB |
| Maximum input offset voltage | 2000 µV | 2000 µV | 2000 µV |
| JESD-30 code | S-CQCC-N20 | R-GDIP-T8 | O-MBCY-W8 |
| Negative supply voltage upper limit | -20 V | -20 V | -20 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V |
| Number of functions | 1 | 1 | 1 |
| Number of terminals | 20 | 8 | 8 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | METAL |
| encapsulated code | QCCN | DIP | TO-99 |
| Package shape | SQUARE | RECTANGULAR | ROUND |
| Package form | CHIP CARRIER | IN-LINE | CYLINDRICAL |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Qualified | Qualified | Qualified |
| Filter level | MIL-STD-883 | MIL-STD-883 | MIL-STD-883 |
| Supply voltage upper limit | 20 V | 20 V | 20 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V |
| surface mount | YES | NO | NO |
| technology | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | THROUGH-HOLE | WIRE |
| Terminal location | QUAD | DUAL | BOTTOM |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Nominal Uniform Gain Bandwidth | 10000 kHz | 10000 kHz | 10000 kHz |
| Base Number Matches | 1 | 1 | 1 |
| Maximum seat height | 2.54 mm | 5.08 mm | - |
| Terminal pitch | 1.27 mm | 2.54 mm | - |
| width | 8.89 mm | 7.62 mm | - |
| Nominal slew rate | - | 52 V/us | 52 V/us |
