Detectors
PTIN15- Series
PTIN62- Series
PTIN1.2- Series
PTIN2.5– Series
Receivers for Fiber Optics

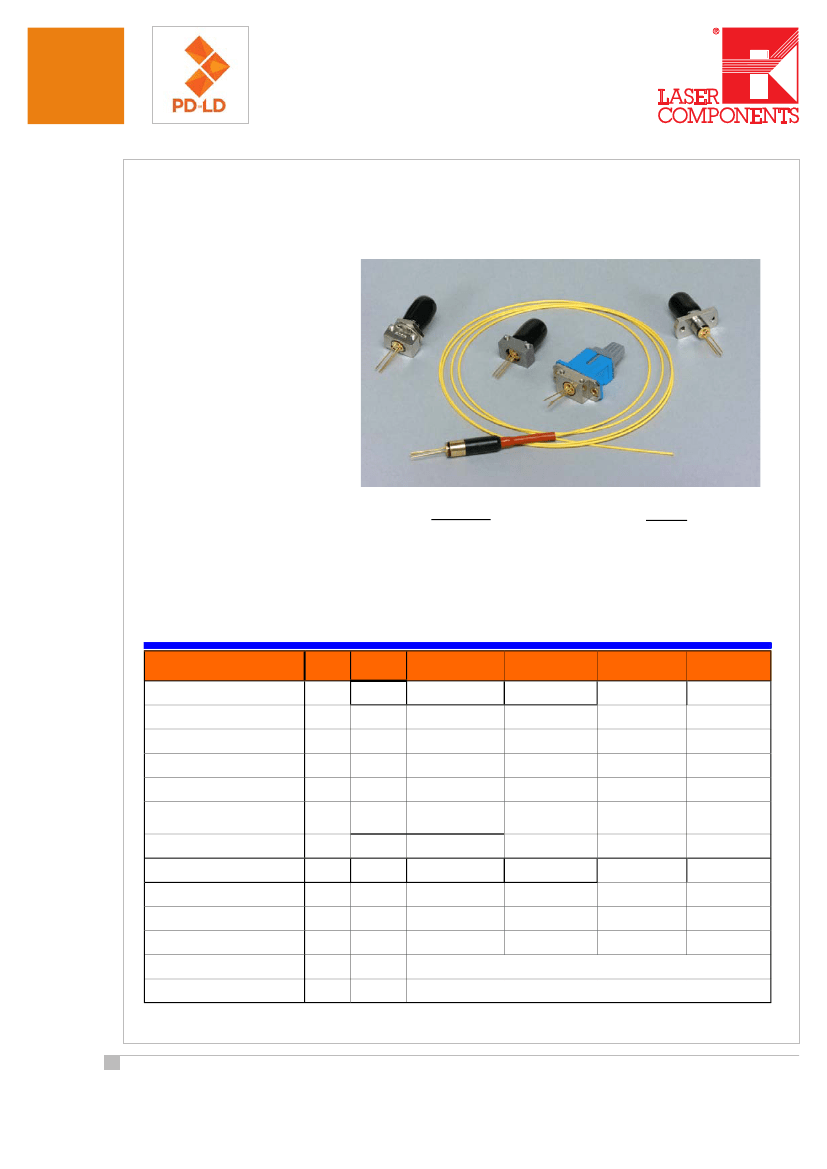

InGaAs PIN w/TIA
InGaAs PIN TIA Receivers
PD-LD Inc. offers low noise, high
responsivity InGaAs photo detectors
paired with a transimpedance amplifiers
(TIA) in convenient fiber coupled
packages. These assemblies incorporate
a 75 micron diameter active area
detector that responds optimally to both
1310 and 1550 nm light sources. This
PIN/Preamp combination delivers
superior characteristics making them
ideal for both digital and analog systems.
Each module contains a TIA whose
bandwidth is ideally suited to industry
standard transmission speeds: 150 MHz,
450 MHz, 1.0 GHz and 2.5GHz. Most
devices include automatic gain control
(AGC), a feature that allows the circuit to
operate with high optical input power
without becoming saturated. AGC makes
possible full dynamic range receivers,
lessening the need to use attenuators
within the cable plant. These modules
are available with either bare or
connectorized fiber pigtails or in
receptacle style housings suitable for
board or panel mounting. These high
reliability units are operational over
industrial environmental conditions.
Parameter
Operating Wavelength
Differential Gain
Analog Bandwidth (-3dB)
Rise and Fall Times
PowerSupply (3.3V available)
Output offset Voltage
Differential Output Voltage
Optical Sensitivity
Optical Saturation Power
Output Resistance
Operating Current
Operating Temperature
Storage Temperature
Units
nm
V/mW
MHz
nsec
V
V
V
dBm
dBm
ohm
mA
degree
degree
Applications
Networking
10/100/1000 MB Ethernet
FDDI
ATM
Telecommunications
SONET OC-3/OC-12/OC-24/
OC-48
SDH: STM1/STM3/STM6/
STM12
Symbol
155 MHz
Min.
Max.
1100
.17
120
—
4.5
V
cc
-3.5
—
—
—
30
—
-38
1650
220
175
3.3
5.5
V
cc
-1.5
1
-36
-3
65
35
Features
IEEE 802.3 Performance
Belcore TA983 Compliant
ITU G.957 Compliant
-40 to 85ºC Operating Range
Differential or Single Ended Ouput
Operates with 3.3V or 5V Supply
FC, ST ,SC Receptacle Housing
Pigtailed w/9/125 μm Fiber
1100 MHz
Min.
Max.
1100
0.2
800
—
4.5
V
cc
-3.5
—-
-24
—
30
—
24
1100
0.26
5.5
1600
—
4.5
2500 MHZ
Min. Typ. Max.
1600
26
2000
0.15
5.5
450 MHz
Min.
Max
1100
0.2
450
5.0
4.5
V
cc
-3.5
—
—
1600
24
—
8.0
5.5
V
cc
-1.5
1.3
-31.5
—
50
—
-3
65
50
Lambda
G
BW
e
t
r,f
V
cc
V
os
V
d
S
P
sat
R
out
I
cc
C
C
1600 1100
V
cc
-1.5 V
cc
-3.5 V
cc
-1.5
0.5
–22 --
-3
65
50
—-
48
—
60
47
0.6
-21
-18
-3
72
57
-29 —
-40 to 85°C
-50 to 85°C
1
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
Detectors
PTIN15- Series
PTIN1.2- Series
PTIN62- Series PTIN2.5– Series
Receivers for Fiber Optics
InGaAs PIN w/TIA
5.35+/-0.1
4.66+/-0.05
4 GND (CASE)
3 D out
1.3+/-0.1
5.35+/- 0.1
4.66+/-0.05
4.5+/-0.15
3.8+/-0.1
2.54
1.0
1 +5V
2 D out
Bottom View
14+/-1
1.0
1
2
3
4
45 deg
InGaAs PIN Photodiode with TIA

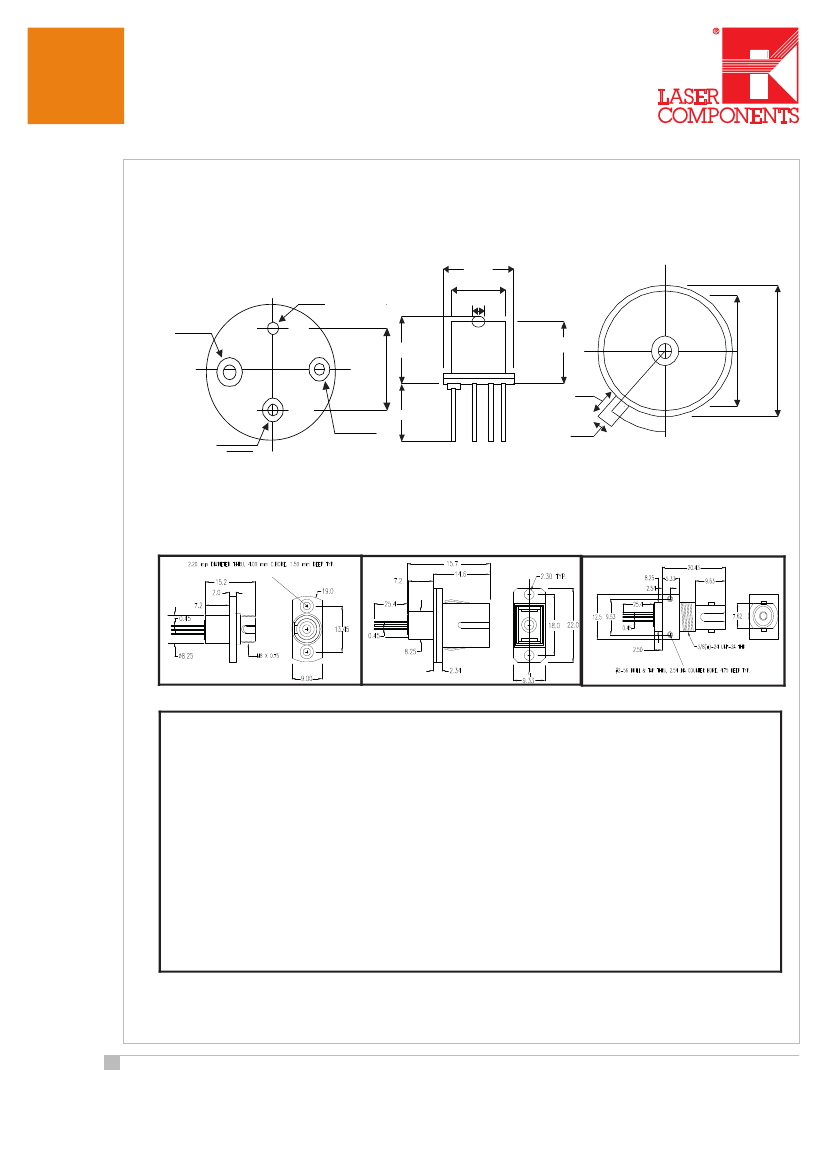

Pinout & Mechanical Dimensions (mm)
Ordering Information
PIN TIA Pigtails
PIN TIA Receptacles
PTINDXXXFCCB-O-V-MM
T= PIN TIA
IN= InGaAs Photodiode
D = Device Identification
Type
See Table
XXX= Bandwidth
155
Mhz
450
MHz
1.2
GHz
2.5
GHz
F = Fiber Type
1
= 9/125/900 SMF
2
= 50/125 MMF
3
= 62.5/125 MMF
9
= Supplied by cust
RRR = Receptacle
PTINDXXXRRRF-O-V
CC = Connector
FA
= FC/APC .
FC
= FC PC
SA
= SC/APC
SC
= SC
ST
= ST
OO
= No Connector
FC1
= FC Panel Mount
FC2
= FC Board Mount
SC2
= SC Board/Panel Mount
ST7
= ST Low Profile
ST8
= ST High Profile
2
Germany & Other Countries
Laser Components GmbH
Tel: +49 8142 2864 – 0
Fax: +49 8142 2864 – 11
info@lasercomponents.com
www.lasercomponents.com
United Kingdom
Laser Components (UK) Ltd.
Tel: +44 1245 491 499
Fax: +44 1245 491 801
info@lasercomponents.co.uk
www.lasercomponents.co.uk
France
Laser Components S.A.S.
Tel: +33 1 39 59 52 25
Fax: +33 1 39 59 53 50
info@lasercomponents.fr
www.lasercomponents.fr
Detectors
PTIN15- Series
PTIN1.2- Series
PTIN62- Series PTIN2.5– Series
Receivers for Fiber Optics
InGaAs PIN w/TIA

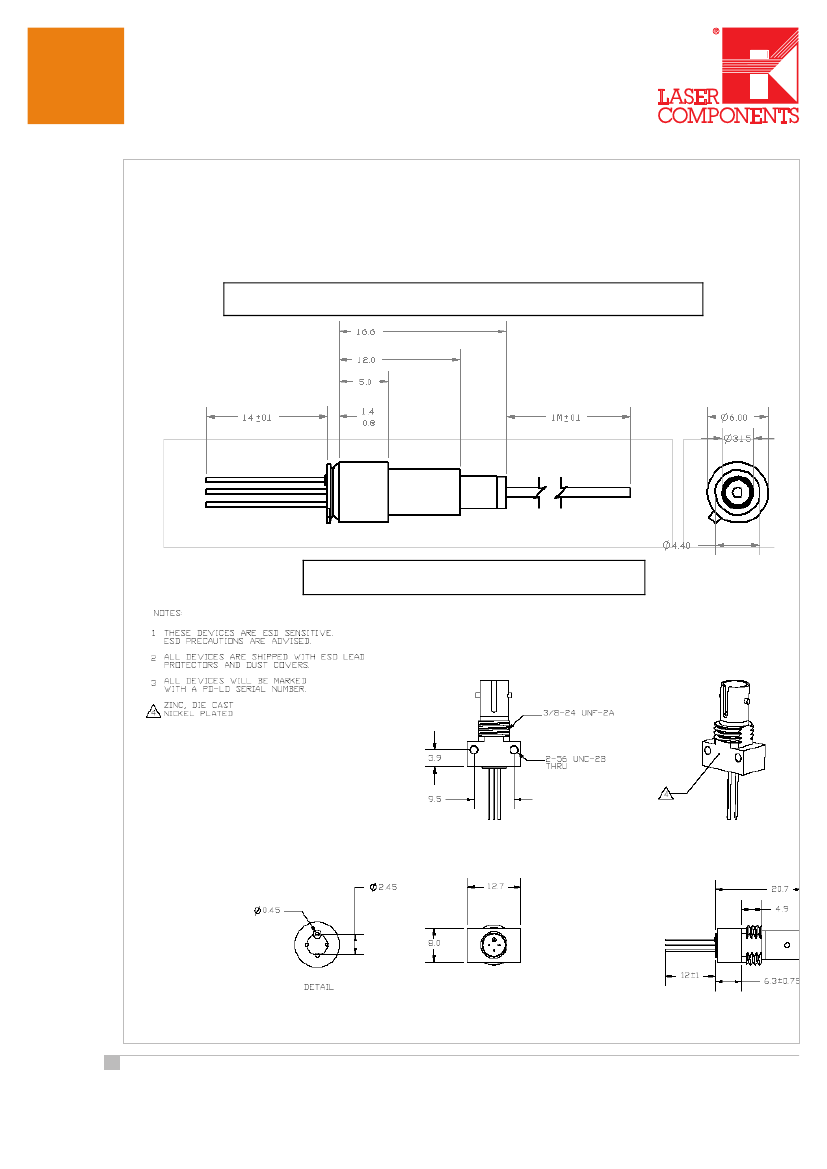

Mechanical Drawing for Fiber Pigtailed PIN-TIA Assemblies
