HI-Z212 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> HI-Z212

Preview

HI-Z212: DescriptionFerrite Chip, 2 Function(s), 50V, 0.5A, SMD, 8 PIN; CategoryAnalog mixed-signal IC filter; File Size48KB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/

Download Datasheet Parametric Compare View All

HI-Z212 Overview

Ferrite Chip, 2 Function(s), 50V, 0.5A, SMD, 8 PIN

HI-Z212 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
package instruction	SMD, 8 PIN
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	COMMON MODE CHOKE
Certification	UL
filter type	FERRITE CHIP
JESD-609 code	e0
Manufacturer's serial number	HI-Z
Installation type	SURFACE MOUNT
Number of functions	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output impedance	300 OHM Ω
method of packing	TAPE AND REEL
Rated current	0.5 A
Rated voltage	50 V
Terminal surface	Tin/Lead (Sn/Pb)
Base Number Matches	1

Preview

Download Datasheet

View All

PA

R

NU T

MB

ER

FR

E

RA QU

NG EN

E CY

(M

Hz

VO

)

LT

RA AG

TI E

NG

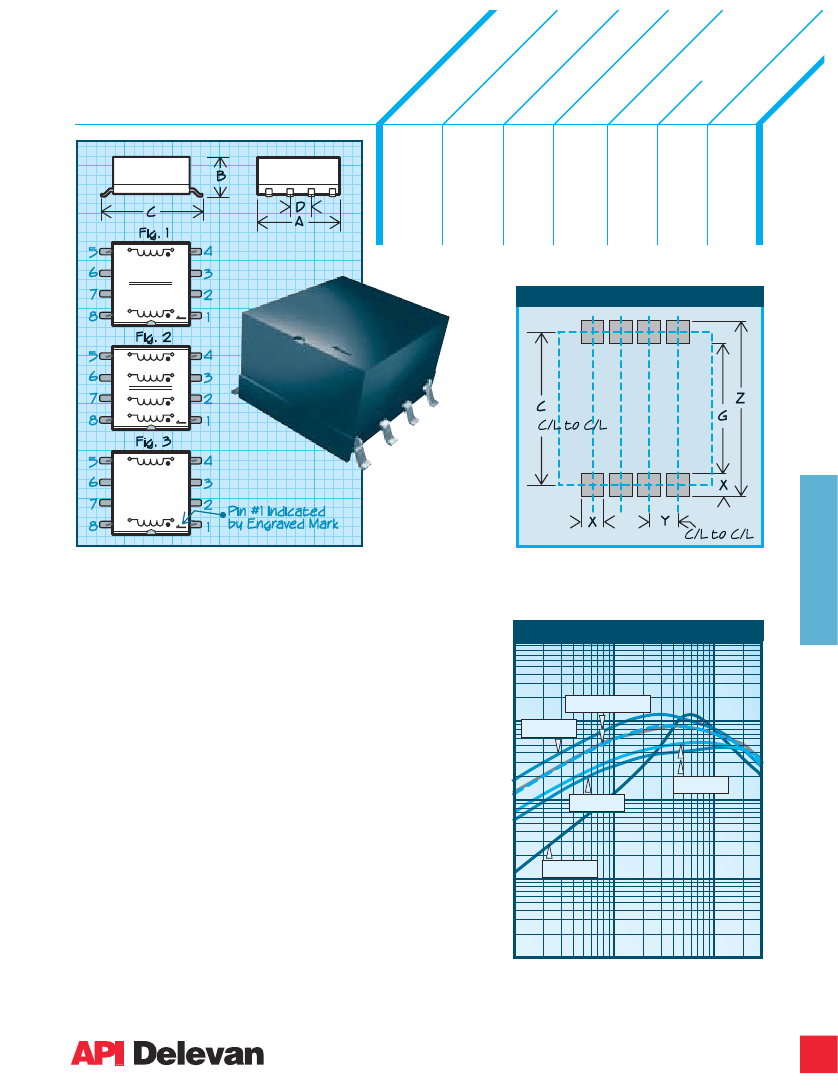

Surface Mount EMI/RFI Filters

HI-Z 206

HI-Z 208

HI-Z 210

HI-Z 212

HI-Z 405

HI-Z 408

10 – 200

50V

500mA

365

615

950

300

265

620

400

500

565

580

330

530

PAD DIMENSIONS

FI

GU

RE

1

3

2

25

MH

z

#

Series Hi-Z

CU

R

MA RE

XI NT

MU R

M ATI

(A NG

10

m

0M

ps

)

Hz

IMPEDANCE

MINIMUM

SUPPRESSORS

High performance ferrites

with superior frequency characteristics.

Common mode noise suppression for data lines between CPU and

terminals.

Compact, Economical & Effective

Economically priced, highly

effective in suppressing radiated emissions per FCC, VDE and

VCCI standards with minimal effect on transmission waveforms.

Ensures excellent attenuation characteristics over a wide frequency

range.

Physical Parameters

Inches

A

0.448 Max.

B

0.275 Max.

C

0.460 ± .01

D

0.098 ± .01

G

0.415

X

0.045

Y

0.098

Z

0.505

Millimeters

11.4 Max.

7.0 Max.

11.68 ± .5

2.5 ± .5

10.54

1.143

2.49

12.83

10000

Z-F CHARACTERISTICS

Hi-Z 208 & 408

1000

Hi-Z 210

IMPEDANCE (Ohms)

Hi-Z 206

100

Hi-Z 405

Operating Temperature Range

–55°C to +125°C

Packaging

Tape and reel (24 mm), 13” reel, 500 pcs. max.

Mechanical Conﬁguration

Units designed for surface mounting;

ferrite core. Both the SMD base and cover carry a UL 94V-O rating.

Termination

90/10 (tin/lead)

Impedances are measured

on the HP4191A Impedance Analyzer

10

Hi-Z 212

1.0

1

10

100

300

FREQUENCY (MHz)

For more detailed graphs, contact factory

www

.

delevan

.

com

E-mail: apisales@delevan.com

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814

2/ 2002

PAGE

104

HI-Z212 Related Products

	HI-Z212	HI-Z208	HI-Z405	HI-Z206
Description	Ferrite Chip, 2 Function(s), 50V, 0.5A, SMD, 8 PIN	Ferrite Chip, 2 Function(s), 50V, 0.5A, SMD, 8 PIN	Ferrite Chip, 4 Function(s), 50V, 0.5A, SMD, 8 PIN	Ferrite Chip, 2 Function(s), 50V, 0.5A, SMD, 8 PIN
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
package instruction	SMD, 8 PIN	SMD, 8 PIN	SMD, 8 PIN	SMD, 8 PIN
Reach Compliance Code	compliant	compli	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	COMMON MODE CHOKE	COMMON MODE CHOKE	COMMON MODE CHOKE	COMMON MODE CHOKE
Certification	UL	UL	UL	UL
filter type	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP	FERRITE CHIP
JESD-609 code	e0	e0	e0	e0
Manufacturer's serial number	HI-Z	HI-Z	HI-Z	HI-Z
Installation type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	2	2	4	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Output impedance	300 OHM Ω	615 OHM Ω	265 OHM Ω	365 OHM Ω
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
Rated current	0.5 A	0.5 A	0.5 A	0.5 A
Rated voltage	50 V	50 V	50 V	50 V
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Base Number Matches	1	1	1	1
