Part Number

Search

74ABT244-1DB-T

Description
IC ABT SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver
Categorylogic    logic
File Size244KB,8 Pages
ManufacturerNXP
Websitehttps://www.nxp.com
Download Datasheet Parametric View All

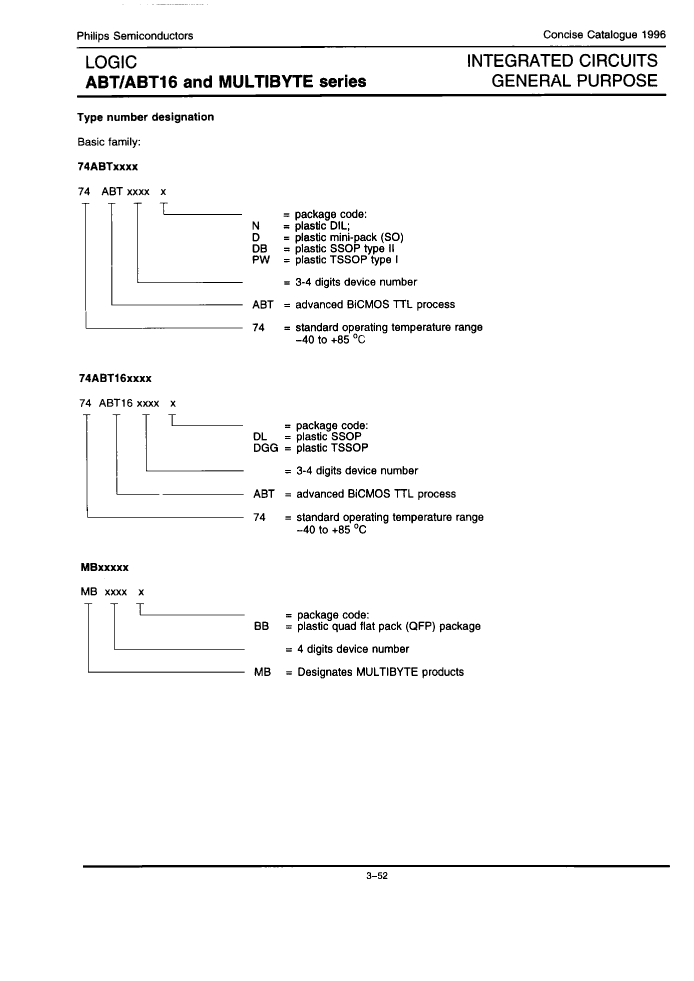

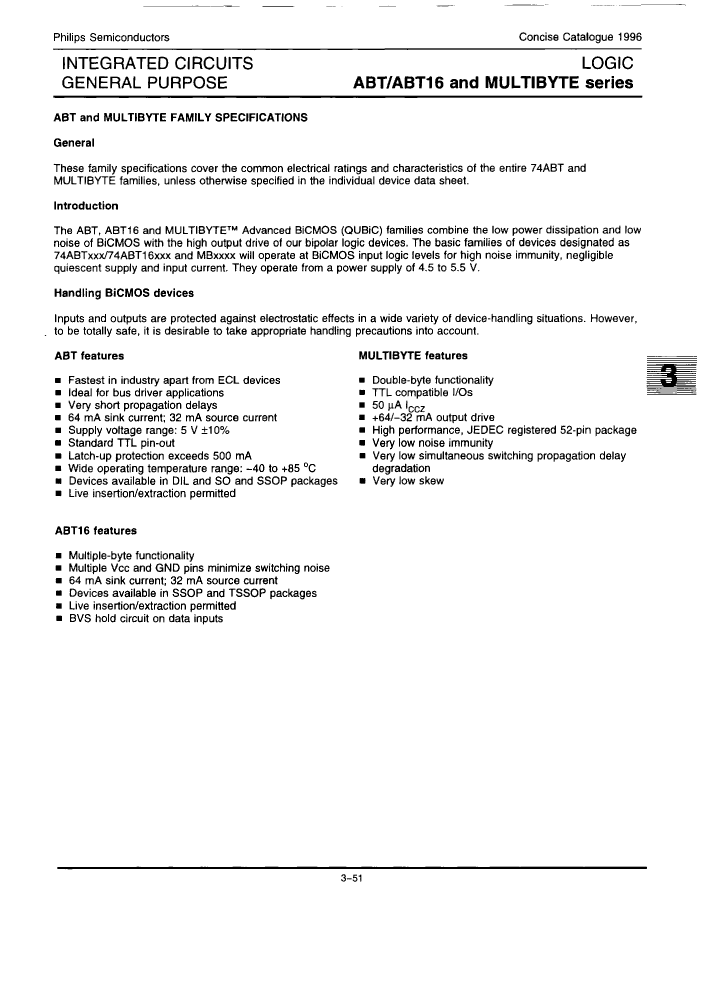

74ABT244-1DB-T Overview

IC ABT SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, Bus Driver/Transceiver

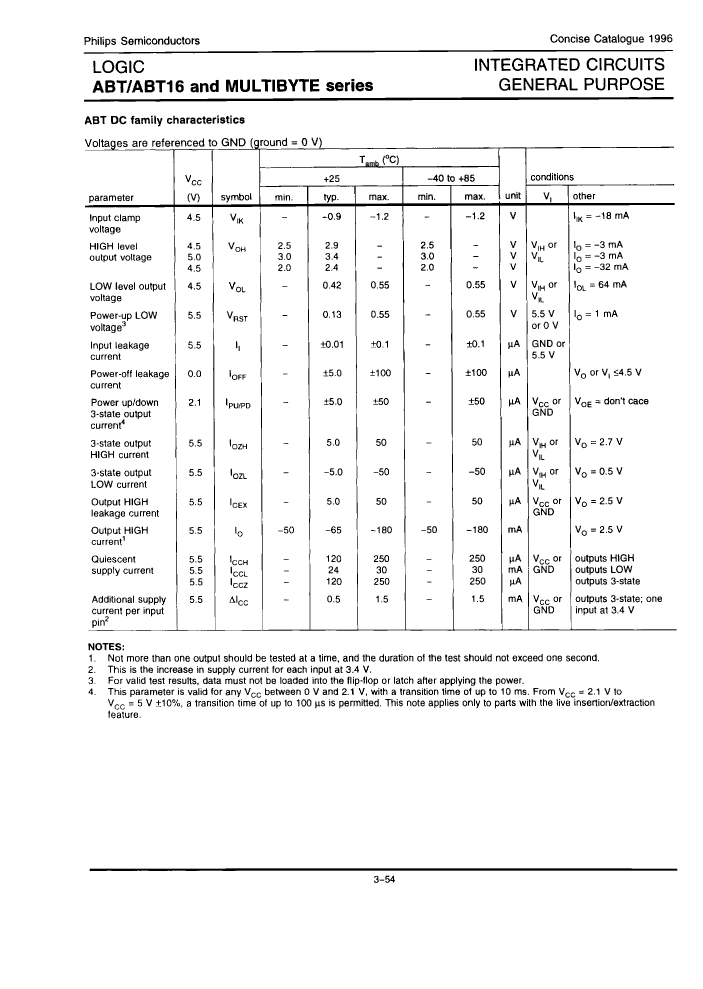

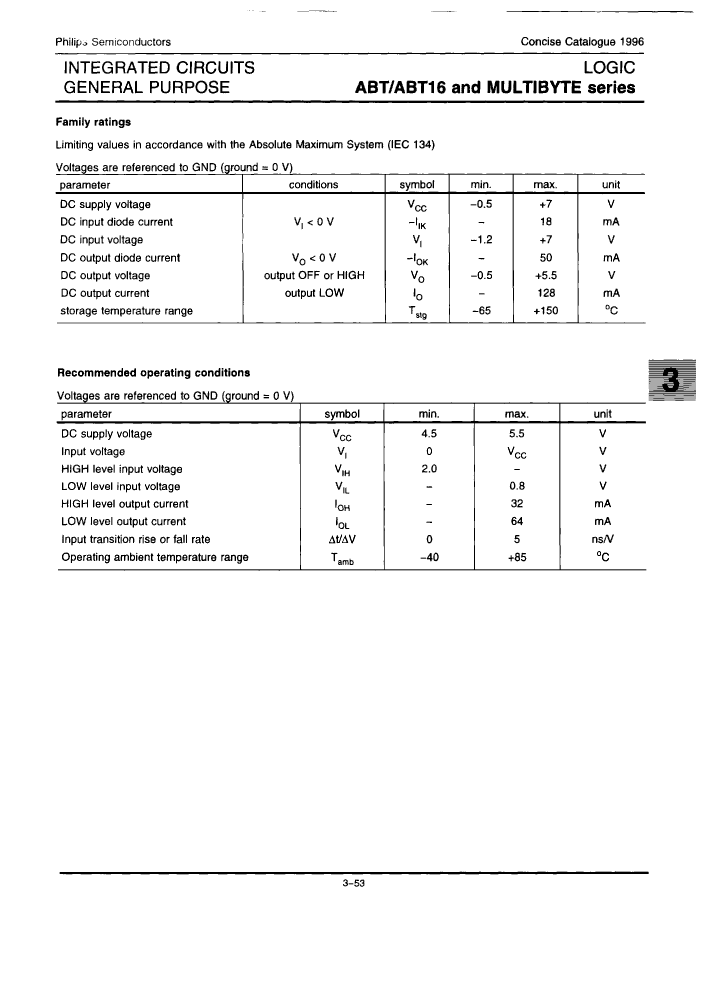

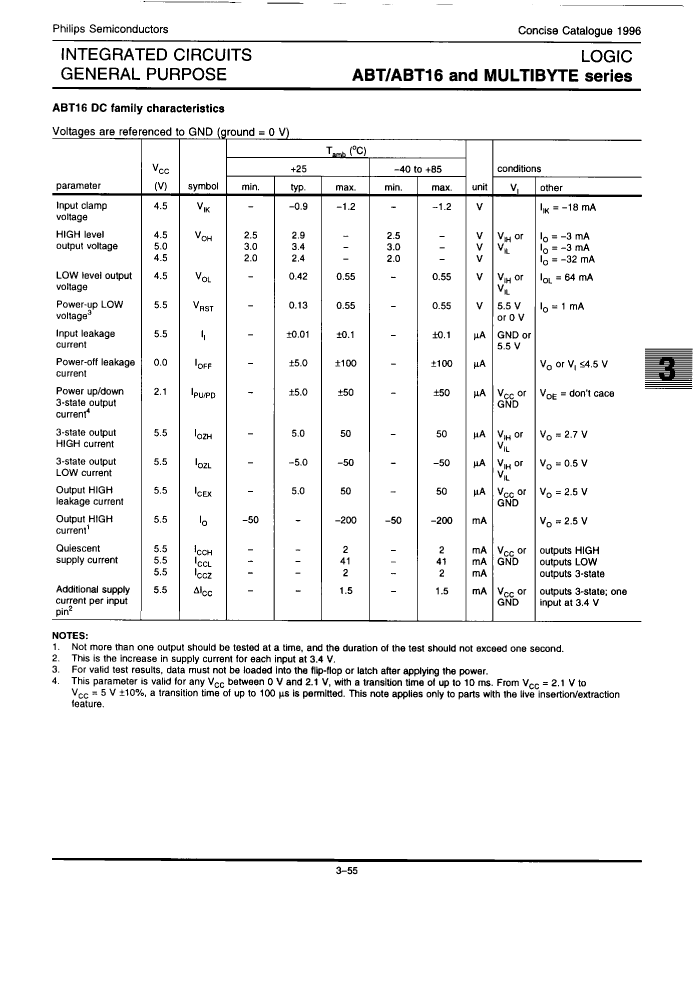

74ABT244-1DB-T Parametric

Parameter NameAttribute value
MakerNXP
Reach Compliance Codeunknown
Other featuresPOWER OFF DISABLE OUTPUTS TO PERMIT LIVE INSERTION; 30 OHM OUTPUT SERIES RESISTOR
seriesABT
JESD-30 codeR-PDSO-G20
length7.2 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeBUS DRIVER
Number of digits4
Number of functions2
Number of ports2
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Output characteristics3-STATE WITH SERIES RESISTOR
Output polarityTRUE
Package body materialPLASTIC/EPOXY
encapsulated codeSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, SHRINK PITCH
Maximum supply current (ICC)30 mA
propagation delay (tpd)4.4 ns
Certification statusNot Qualified
Maximum seat height2 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyBICMOS
Temperature levelINDUSTRIAL
Terminal formGULL WING
Terminal pitch0.65 mm
Terminal locationDUAL
width5.3 mm
Base Number Matches1
