tion, schmitt input buffering, voltage translation, cold and warm
sparing. With either or both V
DD1
and V
DD2
are equal to zero
volts, the UT54ACS164245SEI outputs and inputs present a
minimum impedance of 1MΩ making it ideal for "cold spare"
applications. Balanced outputs and low "on" output impedance
make the UT54ACS164245SEI well suited for driving high ca-
pacitance loads and low impedance backplanes. The
UT54ACS164245SEI enables system designers to interface 3.3
volt CMOS compatible components with 5 volt CMOS compo-
nents. For voltage translation, the A port interfaces with the 3.3
volt bus; the B port interfaces with the 5 volt bus. The direction
control (DIRx) controls the direction of data flow. The output
enable (OEx) overrides the direction control and disables both
ports. These signals can be driven from either port A or B.
TM
The direction and output enable controls operate these devices
as either two independent 8-bit transceivers or one 16-bit trans-
ceiver.

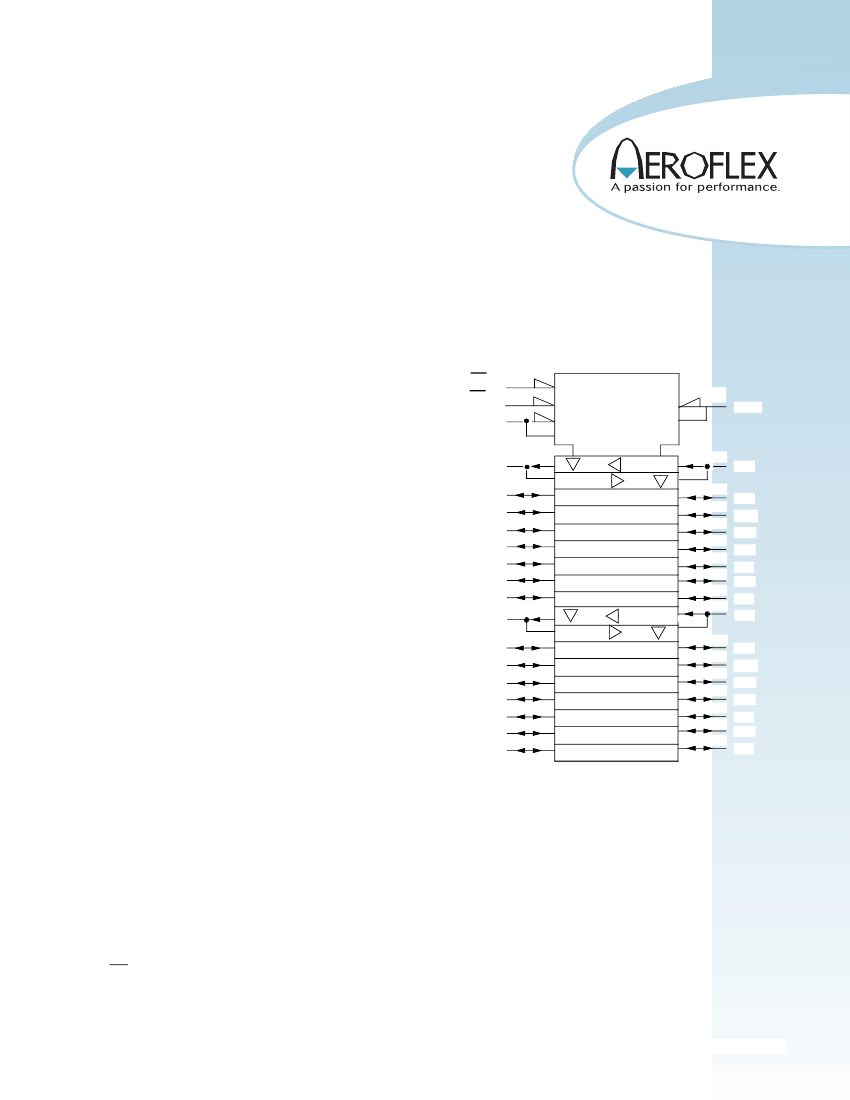

LOGIC SYMBOL
OE1 (48)
OE2 (25)
(1)
DIR1
(47)
(46)
(44)
G1
G2
2EN1 (BA)
2EN2 (AB)
1EN1 (BA)
1EN2 (AB)
11
12
(24)
DIR2
1A1
1A2
1A3
(2)
(3)
(5)
(6)
(8)
1B1
1B2
1B3
1B4
(43)
1A4
(41)
1A5
(40)
1A6
(38)
1A7
(37)
1A8
(36)
2A1
2A2
2A3
(35)
(33)
21
22
1B5
(9)
1B6
(11)
1B7
(12)
1B8
(13)
2B1
(14)
2B2
(16)
2B3
(17)
2B4
(19)
2B5
(20)
2B6
(22)
2B7
(23)
2B8
(32)
2A4
(30)
2A5
(29)
2A6
(27)
2A7
(26)
2A8
1
PIN DESCRIPTION
Pin Names
OEx
DIRx
xAx
xBx
Description
Output Enable Input (Active Low)
Direction Control Inputs
Side A Inputs or 3-State Outputs (3.3V Port)
Side B Inputs or 3-State Outputs (5V Port)
PINOUTS
48-Lead Flatpack
Top View
DIR1
1B1
1B2
V
SS
1B3
OPERATION
B Data To A Bus
A Data To B Bus
Isolation
1B4
VDD1
1B5
1B6
V
SS
1B7
1B8
2B1
2B2
V
SS
2B3
2B4
VDD1
2B5
2B6
V
SS
2B7
2B8
DIR2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
OE1
1A1
1A2
V
SS
1A3
1A4
VDD2
1A5
1A6
V
SS
1A7
1A8
2A1
2A2
V
SS
2A3
2A4
VDD2
2A5
2A6
V
SS
2A7
2A8
OE2
FUNCTION TABLE
ENABLE
OEx
L
L
H
DIRECTION
DIRx
L
H
X
2
IO GUIDELINES
All inputs are 5 volt tolerant. When V
DD2
is at 3.3 volts, either
3.3 or 5 volt CMOS logic levels can be applied to all control in-
puts. It is recommended that all unused inputs be tied to VSS
through a 1KΩ resistor. Input signal transitions should be driven
to the UT54ACS164245SEI with a rise and fall time that is
<100ms.
POWER TABLE
Port B
5 Volts
5 Volts
3.3 Volts
V
SS
V
SS
3.3V or 5V
Port A
3.3 Volts
5 Volts
3.3 Volts
V
SS
3.3V or 5V
V
SS
OPERATION
Voltage Translator
Non Translating
Non Translating
Cold Spare
Port A Warm Spare
Port B Warm Spare
POWER APPLICATION GUIDELINES
For proper operation, connect power to all V
DD
pins and ground
all V
SS
pins (i.e., no floating V
DD
or V
SS
input pins). By virtue
of the UT54ACS164245SEI warm spare feature, power supplies
V
DD1
and V
DD2
may be applied to the device in any order. To
ensure the device is in cold spare mode, both supplies, V
DD1
and
V
DD2
must be equal to V
SS
+/- 0.3V. Warm spare operation is
in effect when one power supply is >1V and the other power
supply is equal to V
SS
+/- 0.3V. If V
DD1
has a power on ramp
longer than 1 second, then V
DD2
should be powered on first to
ensure proper control of DIRx and OEx. During normal opera-
tion of the part, after power-up, ensure VDD1>VDD2.
By definition, warm sparing occurs when half of the chip re-
ceives its normal V
DD
supply value while the V
DD
supplying the
other half of the chip is set to 0.0V. When the chip is "warm
spared", the side that has V
DD
set to a normal operational value
is "actively" tri-stated because the chip’s internal OE signal is
forced low. The side of the chip that has V
DD
set to 0.0V is "pas-
sively" tri-stated by the cold spare circuitry. In order to mini-
mize transients and current consumption, the user is encouraged
to first apply a high level to the OEx pins and then power down
the appropriate supply.
3

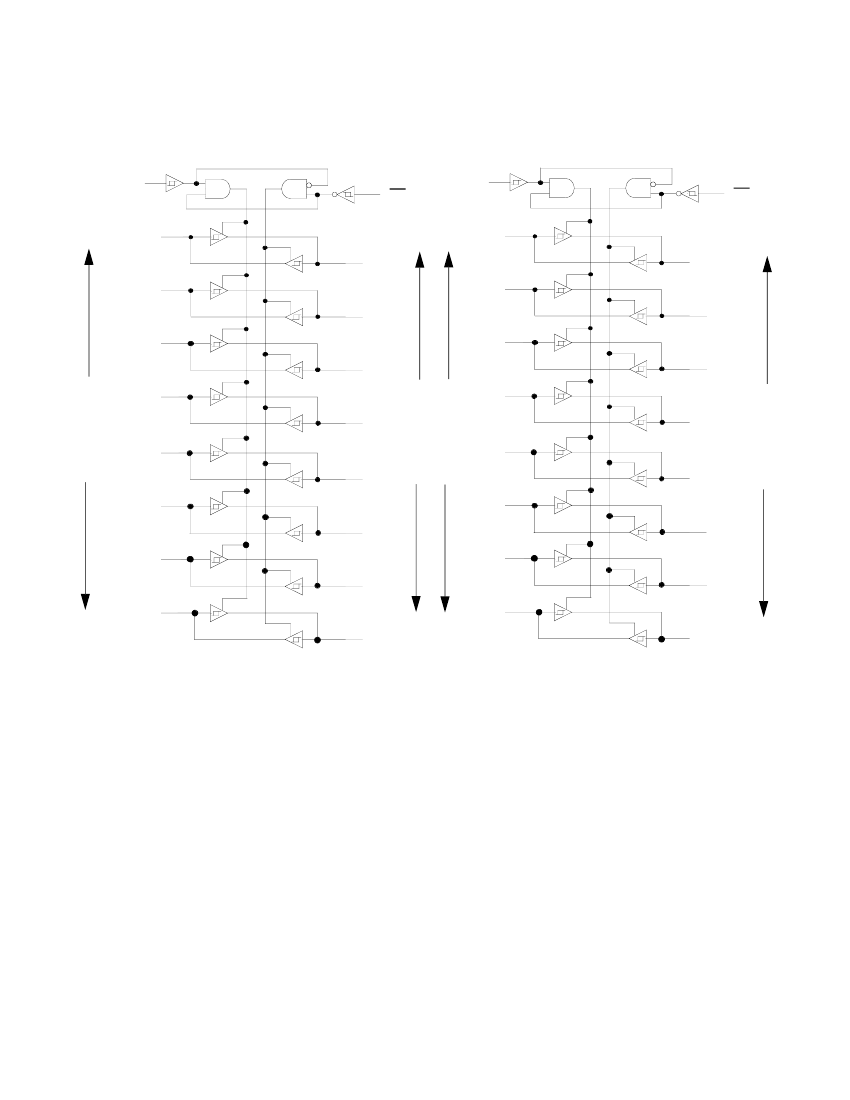

LOGIC DIAGRAM
DIR1
(1)
(48)
OE1
DIR2
(24)
(25)
OE2
1A1
(47)
(2)
1B1
2A1
(36)
(13)
2B1
1A2
(46)
(3)
1B2
2A2
(35)
(14)
2B2
1A3
(44)
(5)
1B3
2A3
(33)
(16)
2B3
3.3V PORT
3.3V PORT
1A4
(43)
2A4
(32)
(17)
2B4
5 V PORT
(6)
1A5
(41)
(8)
1A6
(40)
(9)
1A7
(38)
(11)
1A8
(37)
(12)
1B4
2A5
(30)
(19)
2B5
1B5
2A6
1B6
2A7
1B7
2A8
1B8
(26)
(27)
(29)
(20)
2B6
(22)
2B7
(23)
2B8
4
5 V PORT
RADIATION HARDNESS SPECIFICATIONS
1
PARAMETER
Total Dose
SEL Immune
Neutron Fluence
2
LIMIT
1.0E5
>114
1.0E14
UNITS
rad(Si)
MeV-cm
2
/mg
n/cm
2
Notes:
1. Logic will not latchup during radiation exposure within the limits defined in the table.
2. Not tested, inherent of CMOS technology.
ABSOLUTE MAXIMUM RATINGS
1
SYMBOL
V
I/O
(Port B)
2
V
I/O
(Port A)
2
V
DD1
V
DD2
T
STG
T
J
Θ
JC
I
I
P
D
PARAMETER
Voltage any pin during operation
Voltage any pin during operation
Supply voltage
Supply voltage
Storage Temperature range
Maximum junction temperature
Thermal resistance junction to case
DC input current
Maximum power dissipation
LIMIT (Mil only)
-.3 to V
DD1
+.3
-.3 to V
DD2
+.3
-0.3 to 6.0
-0.3 to 6.0
-65 to +150
+175
20
±10
1
UNITS
V
V
V
V
°C
°C
°C/W
mA
W
Note:
1. Stresses outside the listed absolute maximum ratings may cause permanent damage to the device. This is a stress rating only, functional operation of the device at
these or any other conditions beyond limits indicated in the operational sections is not recommended. Exposure to absolute maximum rating conditions for extended
periods may affect device reliability and performance.
2. For cold spare mode (V
DD
= V
SS
), V
I/O
may be -0.3V to the maximum recommended operating V
Now I want to use eeprom to store data, and then update it in real time. After the board is powered off, the data is saved. When it is powered on again, the data before the power failure is read out a...
