PHAP3368AR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> PHAP3368AR

PHAP3368AR: DescriptionKeypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Surface Mount-straight; CategoryMechanical and electronic products switch; File Size357KB，15 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric Compare View All

PHAP3368AR Overview

Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Surface Mount-straight

PHAP3368AR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	ROUND TYPE
body width	6 mm
body height	3.5 mm
Body length or diameter	6 mm
Circuit configuration	1X1
Maximum contact current (DC)	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC
Maximum contact voltage (DC)	12 V
Electrical life	100000 Cycle(s)
Installation features	SURFACE MOUNT-STRAIGHT
Number of switches	1
Maximum operating force	2.1 N
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
method of packing	TAPE AND REEL
surface mount	NO
Switch action	MOMENTARY-TACTILE
switch function	SPST
Switch type	KEYPAD SWITCH
Termination type	SOLDER
Base Number Matches	1

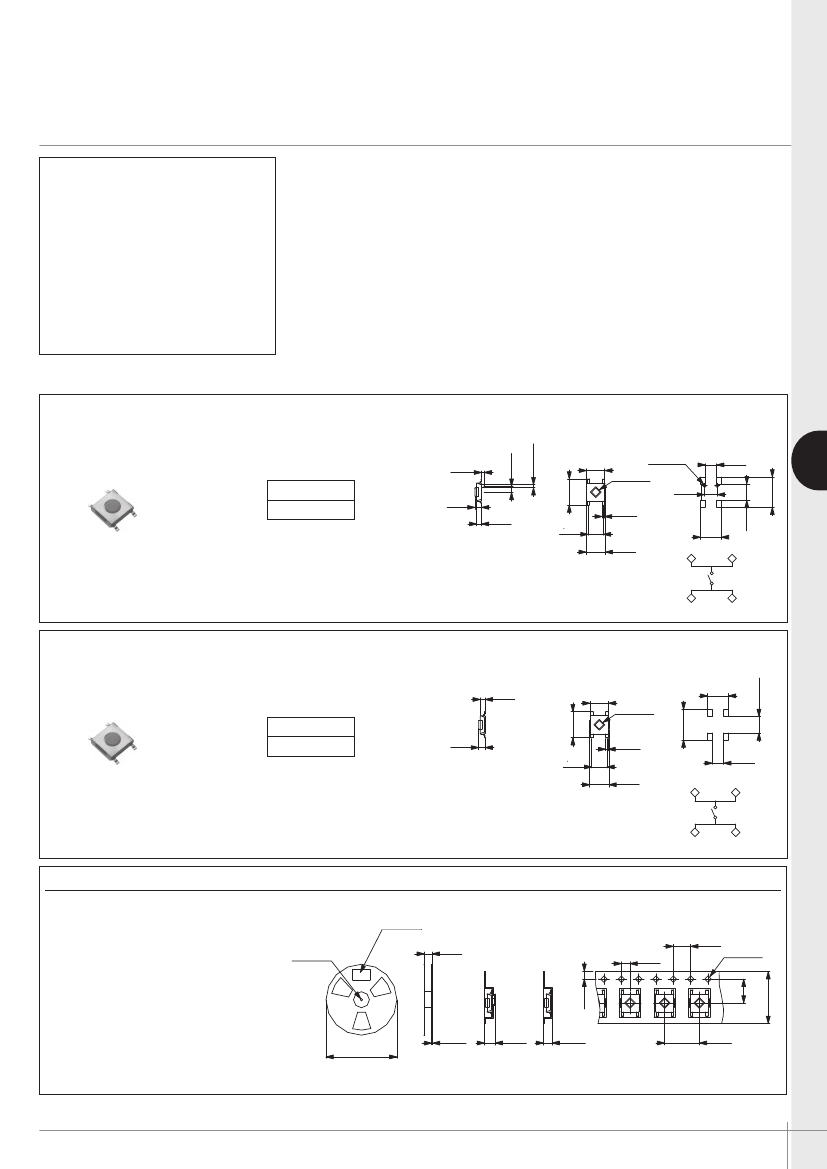

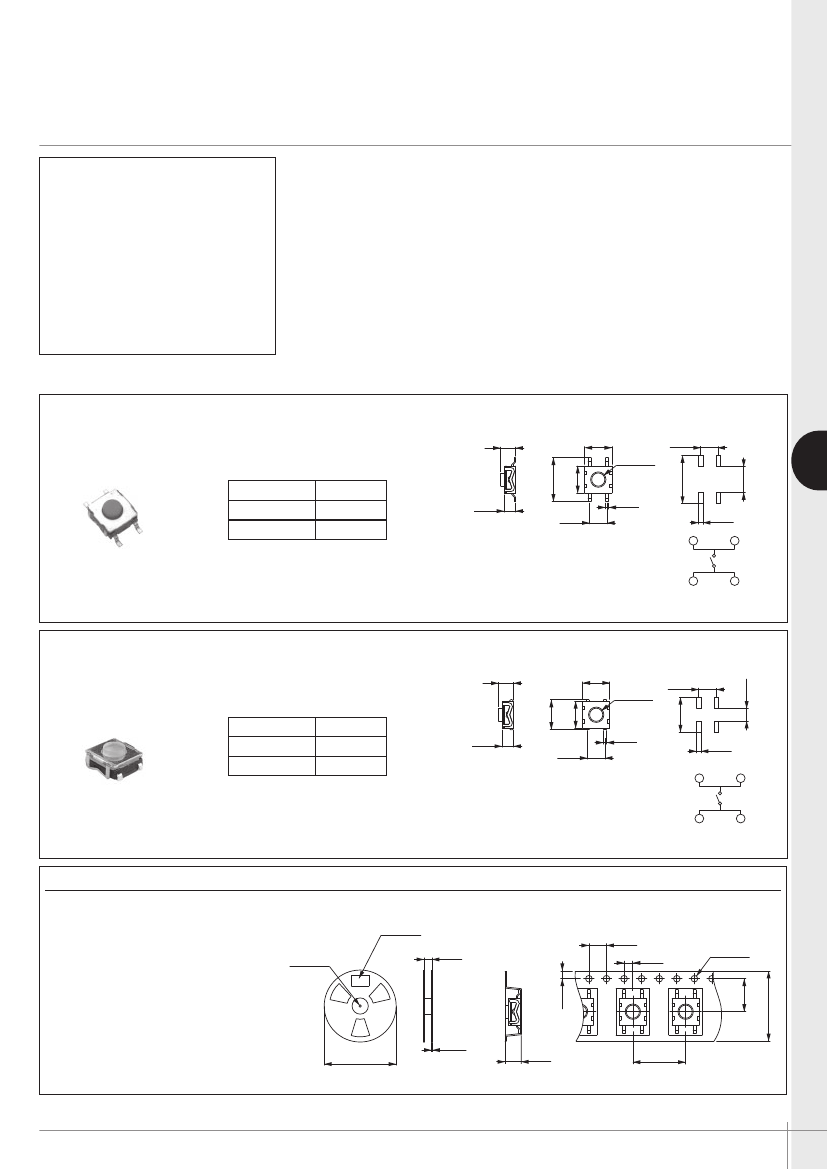

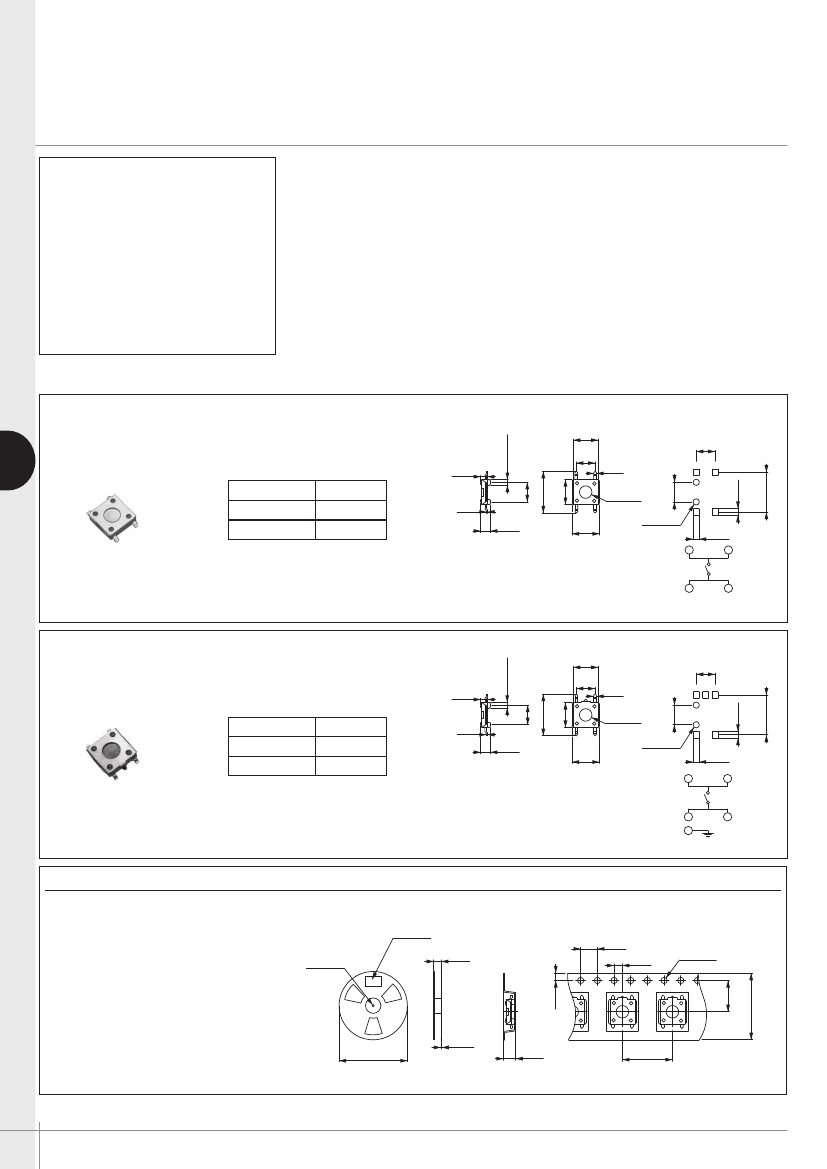

Preview

Download Datasheet

View All

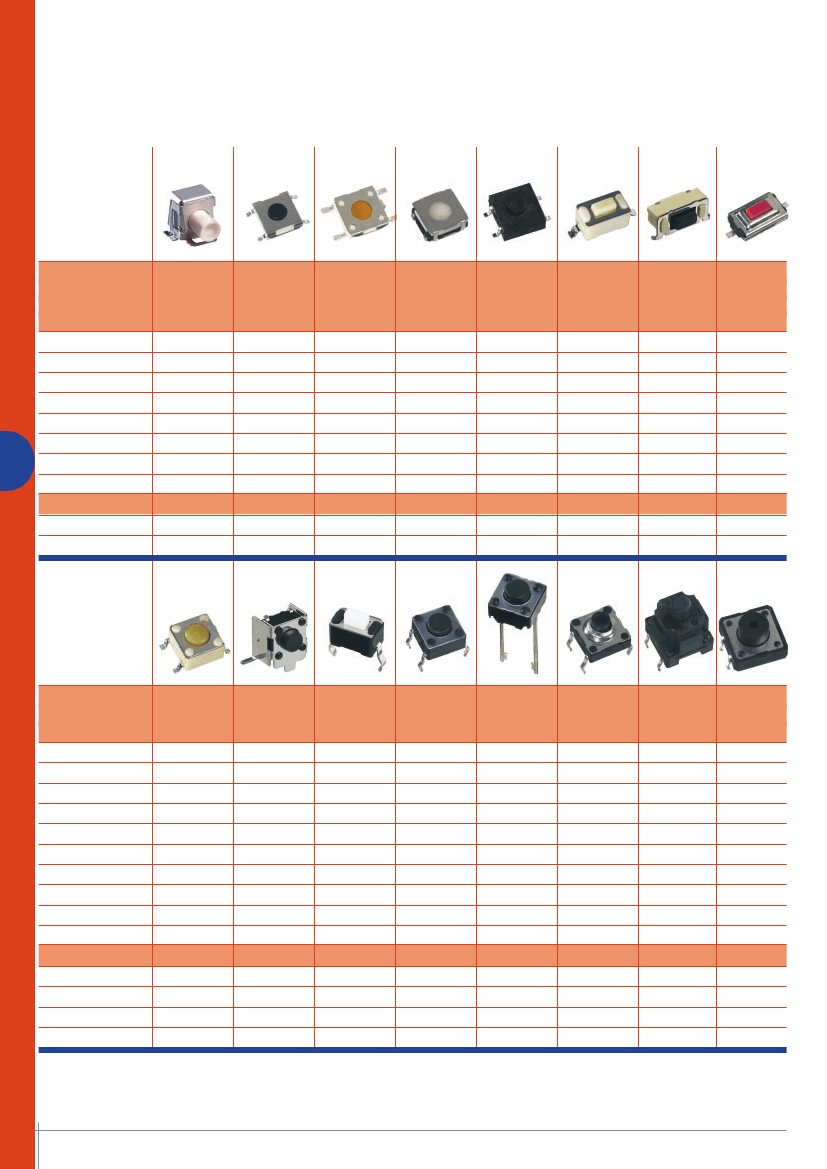

Selection guide

Tact switches

Series

D162

PHAP3390

PHAP3391

PHAP3380

PHAP3371

PHAP3372

PHAP3373

PHAP3374

C-7

SMT

N.O.

6,2x6,2mm

2,6 to 3,4mm

Yes

T/R - Bags

50mA 12VDC

PHAP3378

PHAP3361

PHAP3355

PHAP3366

PHAP3365

Page

Type (SMT/Through hole)

Contact

Case format

Button height from PCB

Grounding tab

SMT

N.O.

6x6mm

3,96mm

Yes

T/R

50mA 12VDC

C-5

SMT

N.O.

4,2x4,2mm

1,5mm

T/R - Bags

50mA 12VDC

C-6

SMT

N.O.

6x6mm

1,6mm

Yes

T/R - Bags

50mA 12VDC

C-9

SMT

N.C.

7,6x7,6mm

4,3mm

T/R

50mA 12VDC

C-10

SMT

N.O.

6x3,5mm

4,3 and 5mm

T/R - Bags

50mA 12VDC

C-10

SMT

N.O.

6x3,5mm

1,8mm

Yes

T/R

50mA 12VDC

C-11

SMT

N.O.

6,1x3,7mm

2,5mm

T/R

50mA 12VDC

Packaging

Maximum ratings

Mounting options

SMT

Right angle SMT

Series

PHAP3368

PHAP3305

PHAP3362

PHAP3363

C-13

Through hole

N.O.

6x3,5mm

4,3 and 5mm

Bags

PHAP3301 to

PHAP3308

C-14

Through hole

N.O.

6x6mm

4,3 to 13mm

Yes

Bags

PHAP3307

PHAP3350

PHAP3351

PHAP3352

C-16

Through hole

N.O.

7,2x7,2mm

4,35 to 13mm

Yes

Bags

Yes

PHAP3353

PHAP3320

PHAP3321

C-17

Through hole

N.O.

12x12mm

4,3 to 12mm

Yes

Bags

Page

Type (SMT/Through hole)

Contact

Case format

Button height from PCB

Grounding tab

Caps

Packaging

Process sealed

Maximum ratings

Mounting options

SMT

Right angle SMT

Through hole

Right angle Through hole

C-12

SMT

N.O.

6x6mm

4,3 to 13mm

Yes

T/R - Bags

C-12

SMT

N.O.

6x6mm

5,9mm

Yes

T/R

C-15

Through hole

N.O.

6,1x6,1mm

4,3 to 7mm

Tape

C-16

Through hole

N.O.

10x10mm

13mm

Bags

Yes

50mA 12VDC

C-2

www.apem.com

APEM

PHAP3368AR Related Products

	PHAP3368AR	PHAP3374R	PHAP3373R	PHAP3390R	PHAP3391R	PHAP3382R	PHAP3384R	PHAP3381R	PHAP3383R	PHAP3371R
Description	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Surface Mount-straight	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Surface Mount-straight	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Surface Mount-straight	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 3.1N, Solder Terminal, Surface Mount-straight	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 3.1N, Solder Terminal, Surface Mount-straight	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Surface Mount-straight	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Surface Mount-straight	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Surface Mount-straight	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Surface Mount-straight	Keypad Switch, 1 Switches, SPST, Momentary-tactile, 0.05A, 12VDC, 2.1N, Solder Terminal, Surface Mount-straight
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	6 mm	6.2 mm	6.2 mm	4.2 mm	4.2 mm	6 mm	6 mm	6 mm	6 mm	6.2 mm
body height	3.5 mm	2.6 mm	2.6 mm	1.5 mm	1.5 mm	1.6 mm	1.6 mm	1.6 mm	1.6 mm	2.6 mm
Body length or diameter	6 mm	6.2 mm	6.2 mm	4.2 mm	4.2 mm	6 mm	6 mm	6 mm	6 mm	6.2 mm
Circuit configuration	1X1	1X1	1X1	1X1	1X1	1X1	1X1	1X1	1X1	1X1
Maximum contact current (DC)	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A	0.05 A
Contact (DC) maximum rated R load	.05A@12VDC	.05A@12VDC	.05A@12VDC	.05A@12VDC	.05A@12VDC	.05A@12VDC	.05A@12VDC	.05A@12VDC	.05A@12VDC	.05A@12VDC
Maximum contact voltage (DC)	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V	12 V
Electrical life	100000 Cycle(s)	75000 Cycle(s)	75000 Cycle(s)	70000 Cycle(s)	70000 Cycle(s)	70000 Cycle(s)	70000 Cycle(s)	70000 Cycle(s)	70000 Cycle(s)	75000 Cycle(s)
Installation features	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT	SURFACE MOUNT-STRAIGHT
Number of switches	1	1	1	1	1	1	1	1	1	1
Maximum operating force	2.1 N	2.1 N	2.1 N	3.1 N	3.1 N	2.1 N	2.1 N	2.1 N	2.1 N	2.1 N
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY-TACTILE	MOMENTARY-TACTILE	MOMENTARY-TACTILE	MOMENTARY-TACTILE	MOMENTARY-TACTILE	MOMENTARY-TACTILE	MOMENTARY-TACTILE	MOMENTARY-TACTILE	MOMENTARY-TACTILE	MOMENTARY-TACTILE
switch function	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST	SPST
Switch type	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH	KEYPAD SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Maker	APEM	-	-	-	APEM	APEM	APEM	APEM	APEM	APEM
Other features	-	LOW PROFILE	LOW PROFILE	ULTRA-LOW PROFILE	ULTRA-LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE	LOW PROFILE
