532840-6 datasheet, PDF - EEWORLD Datasheet

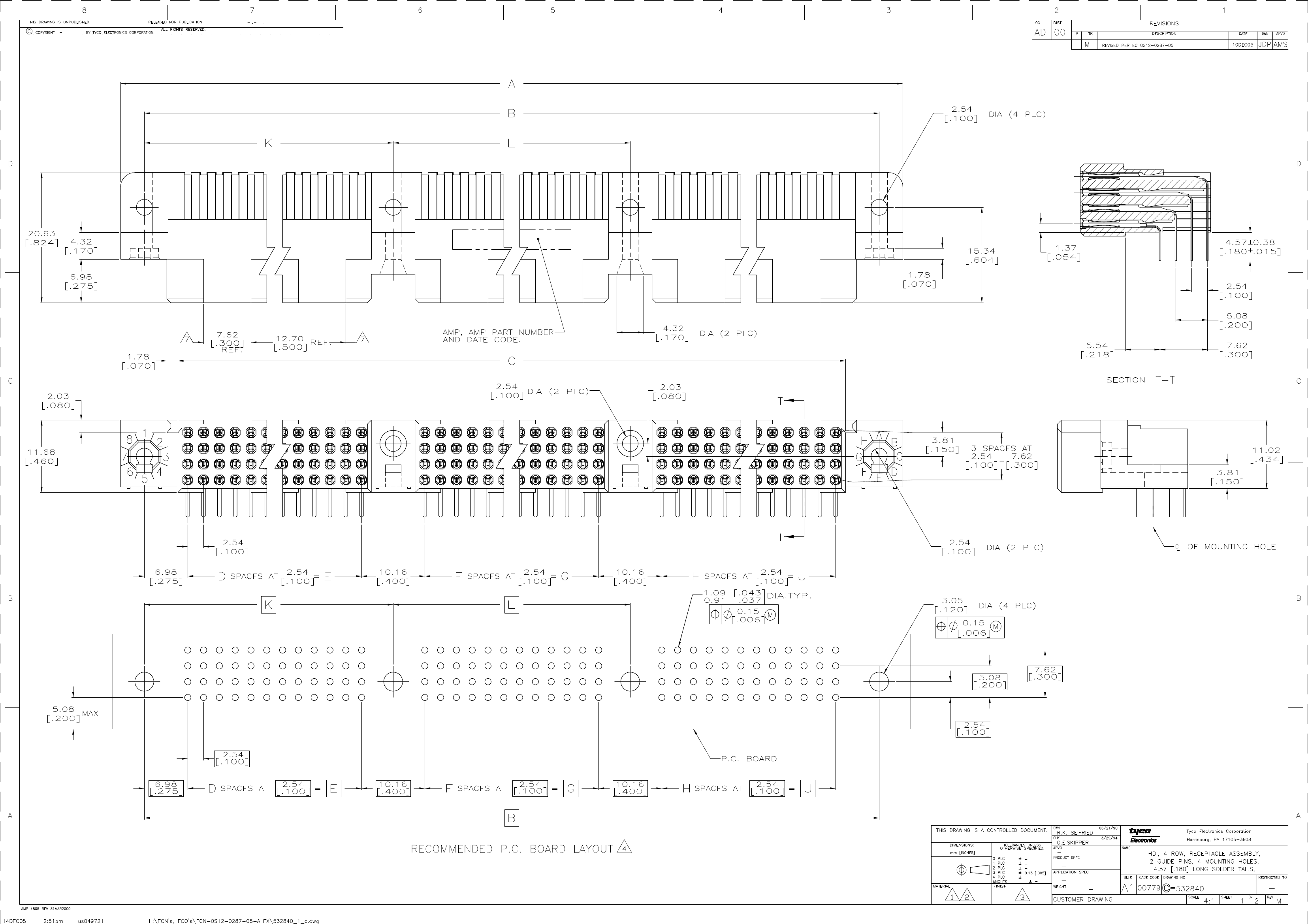

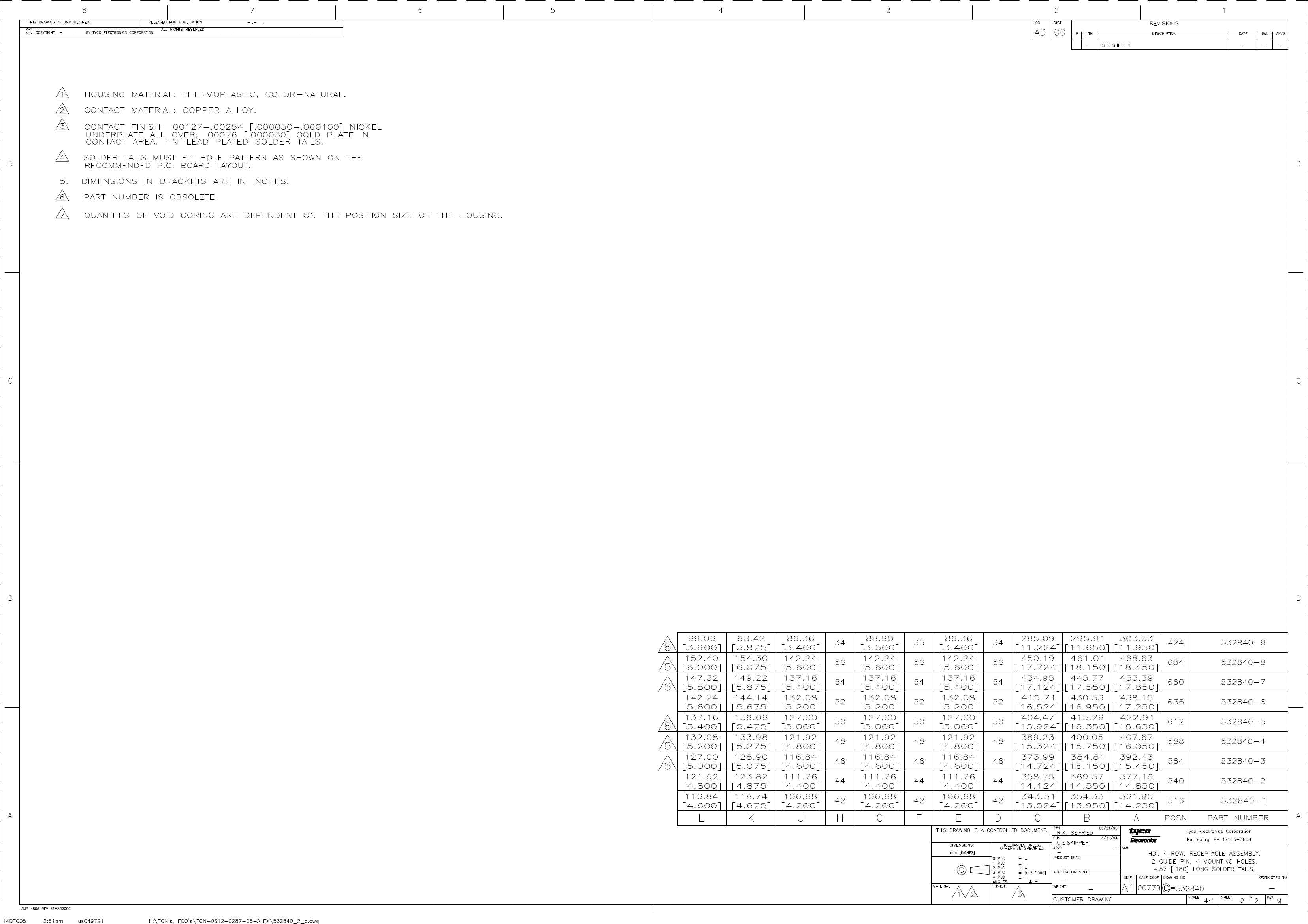

532840-6: DescriptionHEADER CONNECTOR,PCB MNT,PLUG,636 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL; CategoryThe connector The connector; File Size324KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

532840-6 Overview

HEADER CONNECTOR,PCB MNT,PLUG,636 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL

Parameter Name	Attribute value
Objectid	301475403
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	MOUNT, EARS OPTIONAL
Board mount options	#2-56 THD HOLE
body width	0.46 inch
subject depth	0.824 inch
body length	17.25 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	NICKEL
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	250 Cycles
Insulator color	NATURAL
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	533525
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
polarization key	POLARIZED KEY
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.18 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	636

	532840-6	532840-9
Description	HEADER CONNECTOR,PCB MNT,PLUG,636 CONTACTS,SKT,0.1 PITCH,PC TAIL TERMINAL,#2-56,NATURAL	CONNECTOR, 424 CONTACT(S), FEMALE, RIGHT ANGLE TWO PART BOARD CONNECTOR, SOLDER, RECEPTACLE
Reach Compliance Code	unknown	unknown
Body/casing type	PLUG	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	GOLD (30) OVER NICKEL
Contact completed and terminated	NICKEL	TIN LEAD OVER NICKEL
Contact point gender	FEMALE	FEMALE
Manufacturer's serial number	533525	532840
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
Number of rows loaded	4	4
Terminal pitch	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER
Total number of contacts	636	424
