ADT3-ED7313/1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power management> transformer> ADT3-ED7313/1

ADT3-ED7313/1: DescriptionRF Transformer, 0.06MHz Min, 1300MHz Max; CategoryPower management transformer; File Size95KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com

Download Datasheet Parametric View All

ADT3-ED7313/1 Overview

RF Transformer, 0.06MHz Min, 1300MHz Max

ADT3-ED7313/1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	OHMS RATIO IS 3
maximum cutoff frequency	1300 MHz
minimum cutoff frequency	0.06 MHz
high	2.845 mm
JESD-609 code	e0
length	7.874 mm
Manufacturer's serial number	ADT3-ED7313/1
Installation features	SURFACE MOUNT
method of packing	TAPE & REEL
physical size	7.874mm X 5.588mm X 2.845mm
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
Transformer type	RF TRANSFORMER
width	5.588 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Engineering Development Model

RF Transformer

Impedance Ratio : 3

Important Note

This model has been designed, built and tested in our engineering

department. Performance data represents model capability.

At present it is a non-catalog model. On request, we can supply a

final specification sheet, part number and price/delivery information.

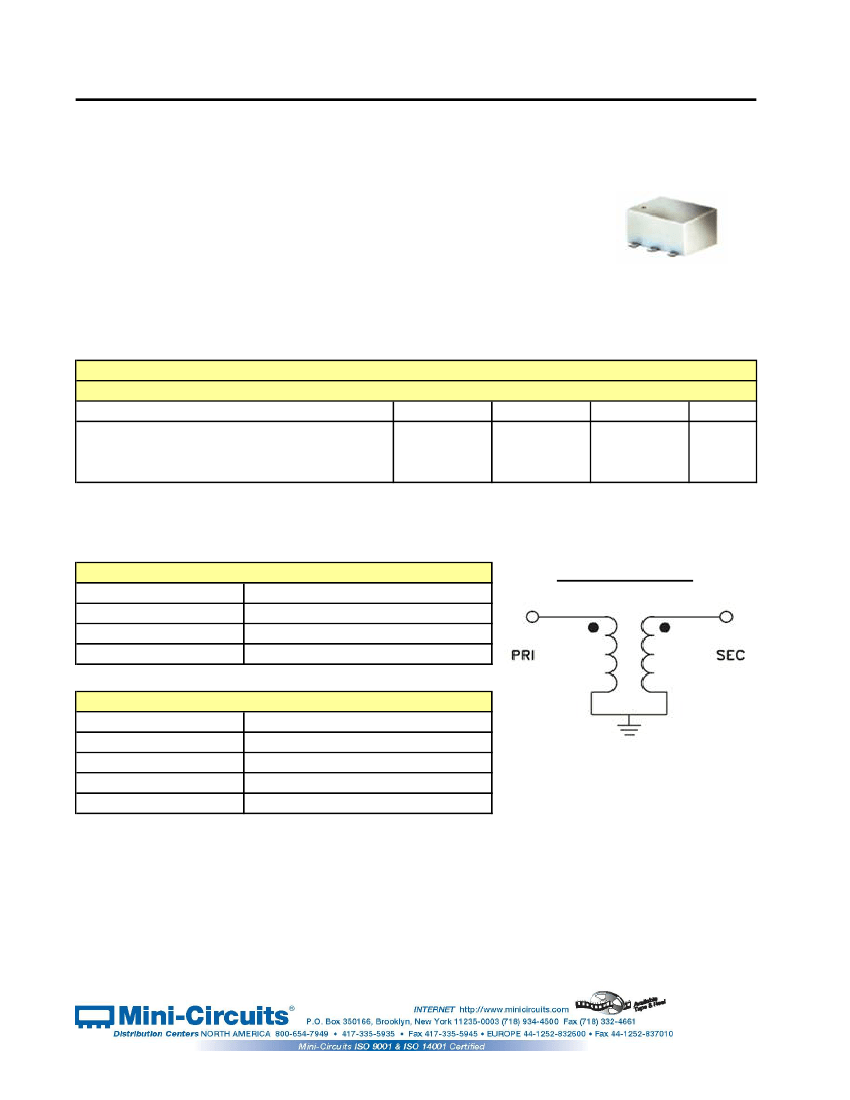

ADT3-ED7313/1

Please click "Back", and then click "Contact Us" for Applications support.

CASE STYLE : CD542

ELECTRICAL SPECIFICATIONS 75Ω @ +25°C

Parameter

Frequency

Insertion Loss *

Min.

0.06

3 dB Bandwidth

2 dB Bandwidth

1 dB Bandwidth

Typ.

0.06 - 1300

0.2 - 1200

0.4 - 1000

Max.

1300

Units

MHz

Note:

* Insertion Loss is referenced to mid-band loss, 0.18dB typ.

MAXIMUM RATINGS

-20°C to 85°C

Operating Temperature

-55°C to 100°C

Storage Temperature

0.25 W

RF Power

30 mA

DC Current

PIN CONNECTIONS

PRIMARY DOT

PRIMARY

SECONDARY DOT

SECONDARY

NOT USED

2,3,4

Configuration : D

REV. X1

ADT3-ED7313/1

060808

Page 1 of 1
