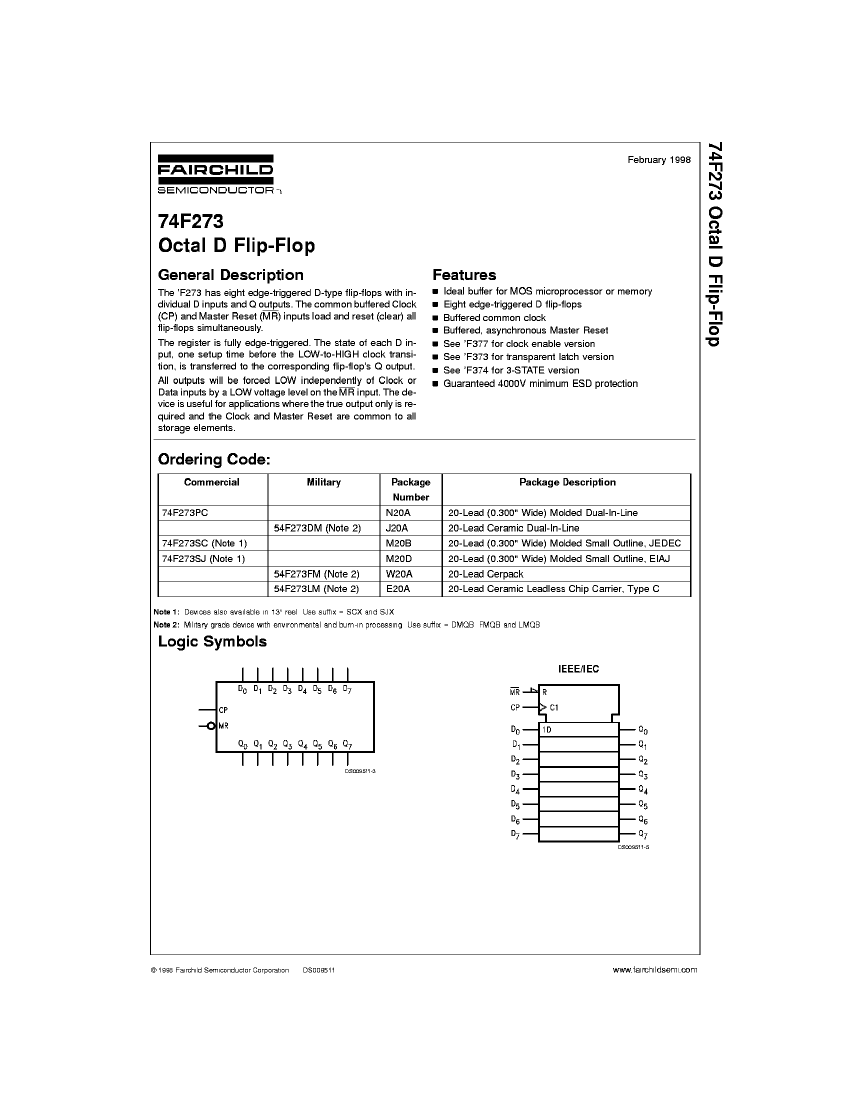

D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20

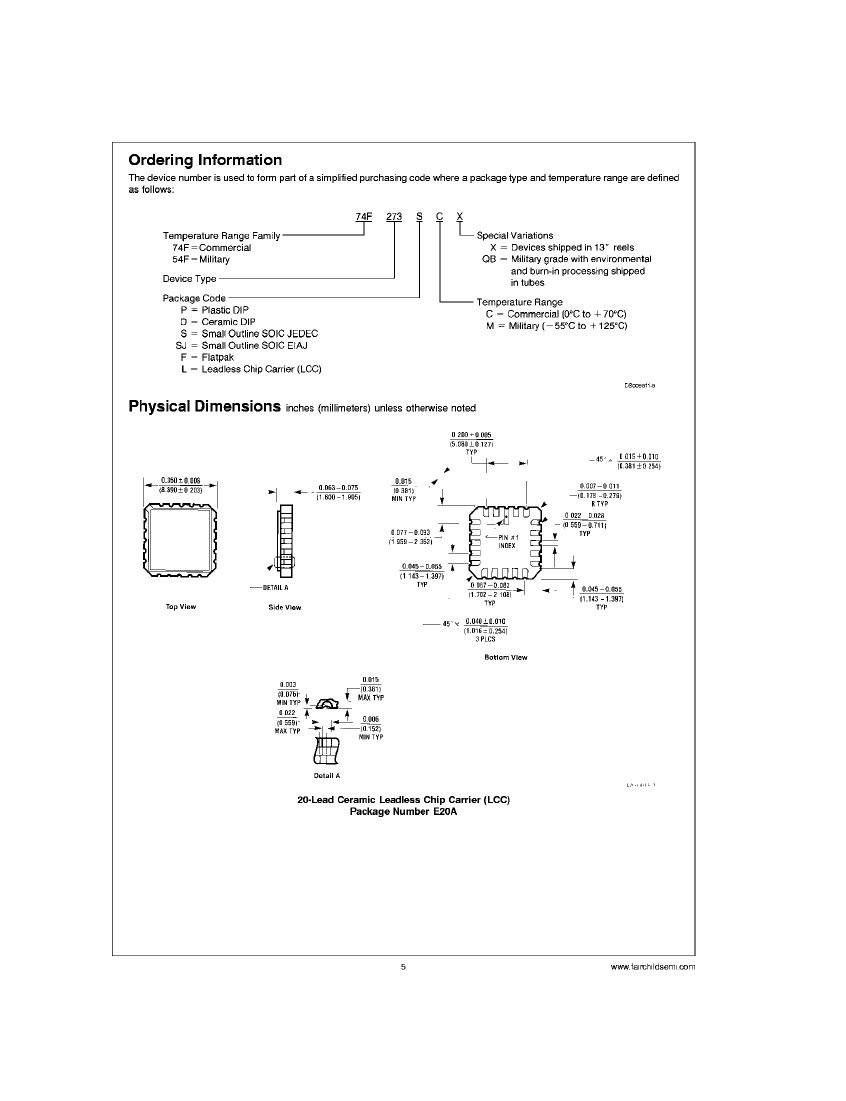

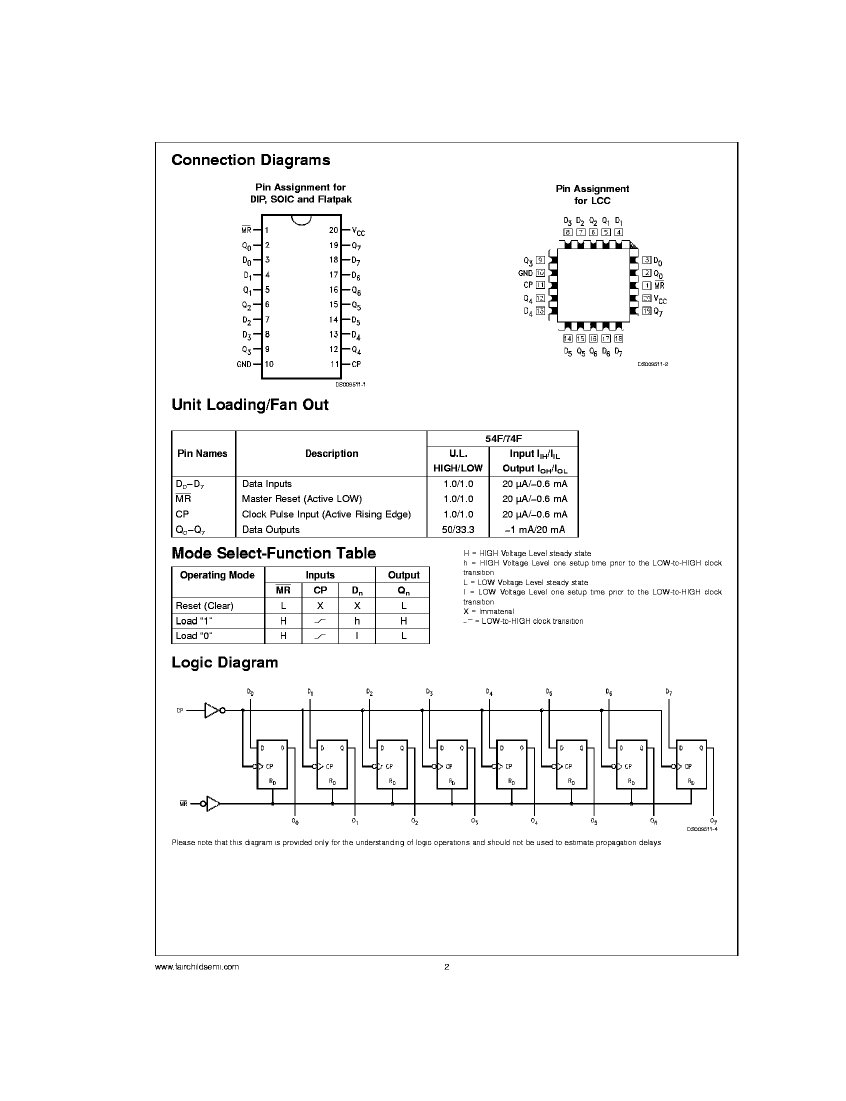

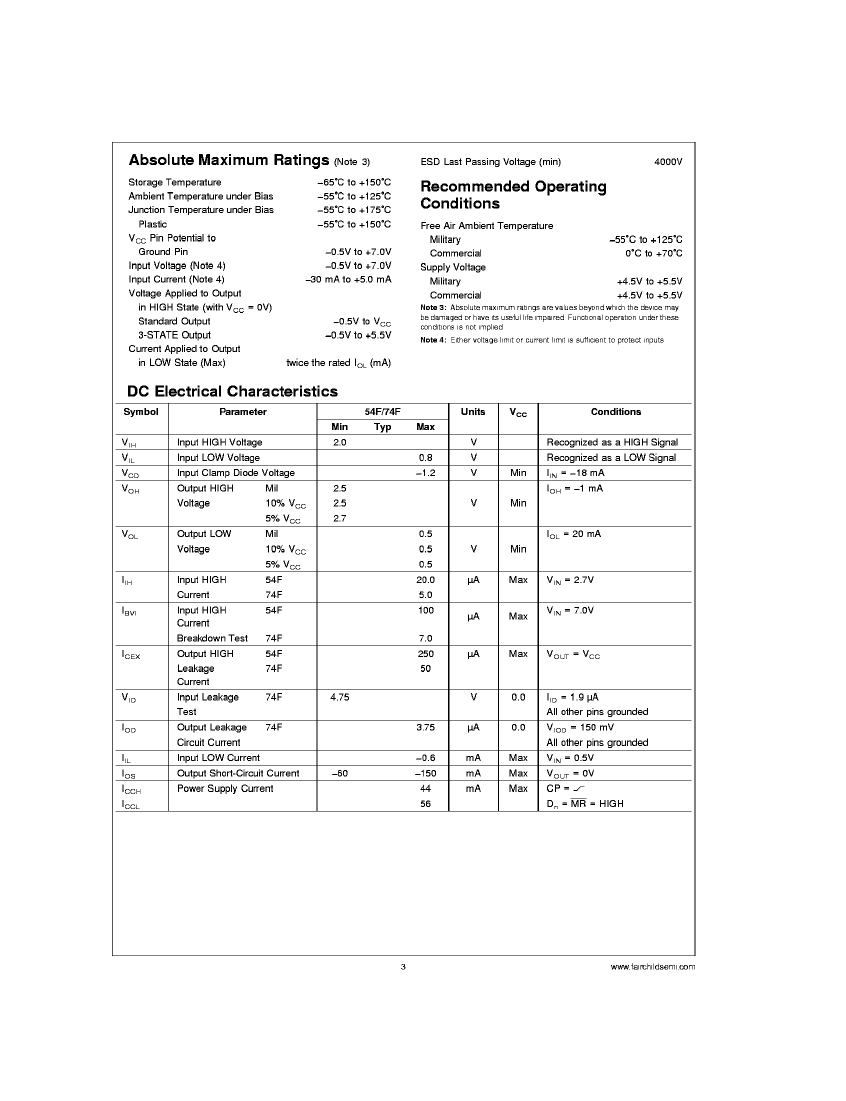

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Parts packaging code | QLCC |
| package instruction | QCCN, LCC20,.35SQ |
| Contacts | 20 |
| Reach Compliance Code | compliant |
| series | F/FAST |
| JESD-30 code | S-CQCC-N20 |
| JESD-609 code | e0 |
| length | 8.89 mm |
| Load capacitance (CL) | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP |
| Maximum Frequency@Nom-Sup | 95000000 Hz |
| MaximumI(ol) | 0.02 A |
| Number of digits | 8 |
| Number of functions | 1 |
| Number of terminals | 20 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Output polarity | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN |
| Encapsulate equivalent code | LCC20,.35SQ |
| Package shape | SQUARE |
| Package form | CHIP CARRIER |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | 5 V |
| Maximum supply current (ICC) | 56 mA |
| propagation delay (tpd) | 11 ns |
| Certification status | Not Qualified |
| Filter level | MIL-STD-883 Class B |
| Maximum seat height | 1.905 mm |
| Maximum supply voltage (Vsup) | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | NO LEAD |
| Terminal pitch | 1.27 mm |
| Terminal location | QUAD |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| Trigger type | POSITIVE EDGE |
| width | 8.89 mm |
| minfmax | 95 MHz |
| Base Number Matches | 1 |
| 54F273LMQB | FS1DR11A2682MLF | 54F273FMQB | 54F273FM | 54F273DMQB | 54F273LM | |
|---|---|---|---|---|---|---|
| Description | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20 | Cable Assembly, | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CDFP20, CERPACK-20 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CDFP20, CERPACK-20 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CDIP20, CERAMIC, DIP-20 | D Flip-Flop, F/FAST Series, 1-Func, Positive Edge Triggered, 8-Bit, True Output, TTL, CQCC20, CERAMIC, LCC-20 |
| Reach Compliance Code | compliant | compliant | unknown | unknown | compliant | unknow |
| Maximum operating temperature | 125 °C | 70 °C | 125 °C | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -20 °C | -55 °C | -55 °C | -55 °C | -55 °C |
| Is it Rohs certified? | incompatible | conform to | incompatible | - | incompatible | - |
| Parts packaging code | QLCC | - | DFP | DFP | DIP | QLCC |
| package instruction | QCCN, LCC20,.35SQ | - | DFP, FL20,.3 | DFP, | DIP, DIP20,.3 | QCCN, |
| Contacts | 20 | - | 20 | 20 | 20 | 20 |
| series | F/FAST | - | F/FAST | F/FAST | F/FAST | F/FAST |
| JESD-30 code | S-CQCC-N20 | - | R-GDFP-F20 | R-GDFP-F20 | R-GDIP-T20 | S-CQCC-N20 |
| length | 8.89 mm | 82 mm | - | - | 24.51 mm | 8.89 mm |
| Load capacitance (CL) | 50 pF | - | 50 pF | 50 pF | 50 pF | 50 pF |
| Logic integrated circuit type | D FLIP-FLOP | - | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP | D FLIP-FLOP |
| Number of digits | 8 | - | 8 | 8 | 8 | 8 |
| Number of functions | 1 | - | 1 | 1 | 1 | 1 |
| Number of terminals | 20 | - | 20 | 20 | 20 | 20 |
| Output polarity | TRUE | - | TRUE | TRUE | TRUE | TRUE |
| Package body material | CERAMIC, METAL-SEALED COFIRED | - | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | QCCN | - | DFP | DFP | DIP | QCCN |
| Package shape | SQUARE | - | RECTANGULAR | RECTANGULAR | RECTANGULAR | SQUARE |
| Package form | CHIP CARRIER | - | FLATPACK | FLATPACK | IN-LINE | CHIP CARRIER |
| Maximum supply current (ICC) | 56 mA | - | 56 mA | 56 mA | 56 mA | 56 mA |
| propagation delay (tpd) | 11 ns | - | 11 ns | 11 ns | 11 ns | 11 ns |
| Certification status | Not Qualified | - | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 1.905 mm | - | 2.286 mm | 2.286 mm | 5.08 mm | 1.905 mm |
| Maximum supply voltage (Vsup) | 5.5 V | - | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.5 V | - | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | - | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | - | YES | YES | NO | YES |
| technology | TTL | - | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | - | MILITARY | MILITARY | MILITARY | MILITARY |
| Terminal form | NO LEAD | - | FLAT | FLAT | THROUGH-HOLE | NO LEAD |
| Terminal pitch | 1.27 mm | - | 1.27 mm | 1.27 mm | 2.54 mm | 1.27 mm |
| Terminal location | QUAD | - | DUAL | DUAL | DUAL | QUAD |
| Trigger type | POSITIVE EDGE | - | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE | POSITIVE EDGE |
| width | 8.89 mm | - | 6.731 mm | 6.731 mm | 7.62 mm | 8.89 mm |
| minfmax | 95 MHz | - | 95 MHz | 95 MHz | 95 MHz | 95 MHz |
| Base Number Matches | 1 | - | 1 | 1 | 1 | - |
