54AC648DMQB datasheet, PDF - EEWORLD Datasheet

54AC648DMQB: DescriptionRegistered Bus Transceiver, AC Series, 1-Func, 8-Bit, Inverted Output, CMOS, CDIP24, CERAMIC, DIP-24; Categorylogic logic; File Size113KB，4 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric View All

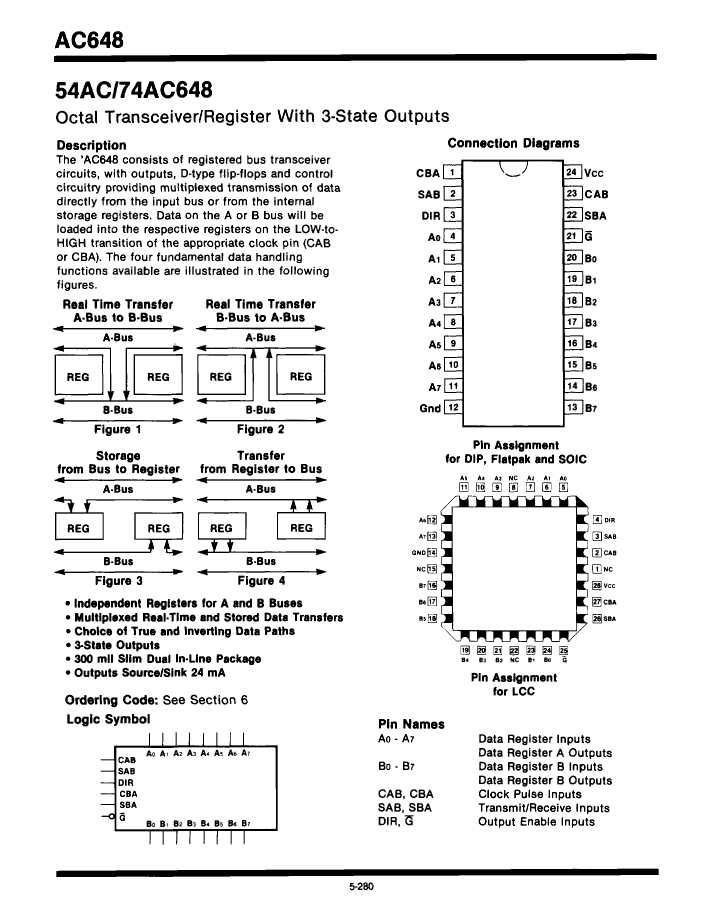

54AC648DMQB Overview

Registered Bus Transceiver, AC Series, 1-Func, 8-Bit, Inverted Output, CMOS, CDIP24, CERAMIC, DIP-24

Parameter Name	Attribute value
Parts packaging code	DIP
package instruction	DIP,
Contacts	24
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
series	AC
JESD-30 code	R-GDIP-T24

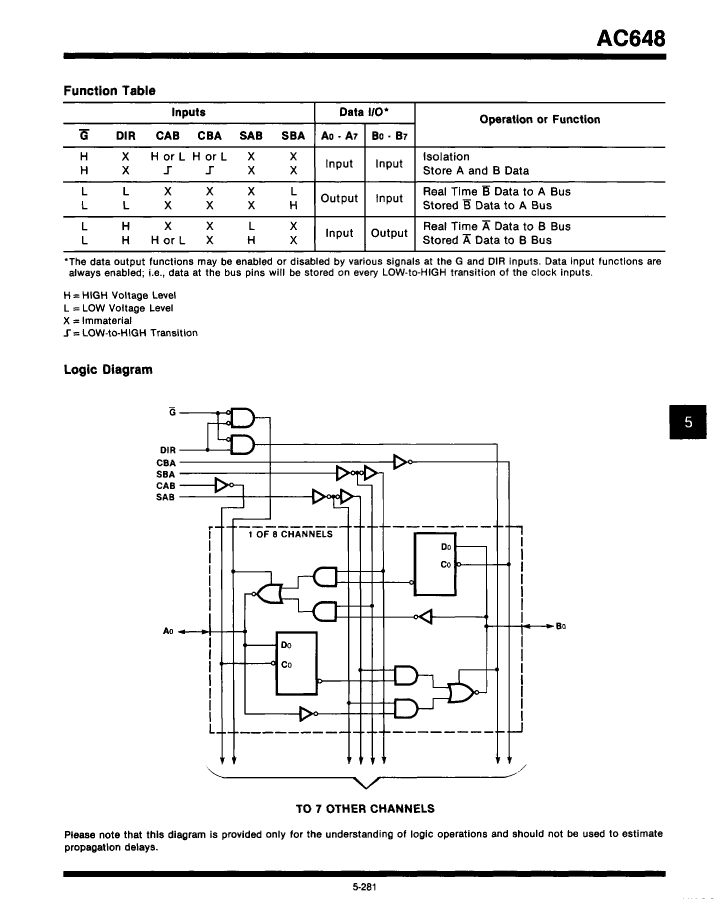

Logic integrated circuit type	REGISTERED BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	24
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE

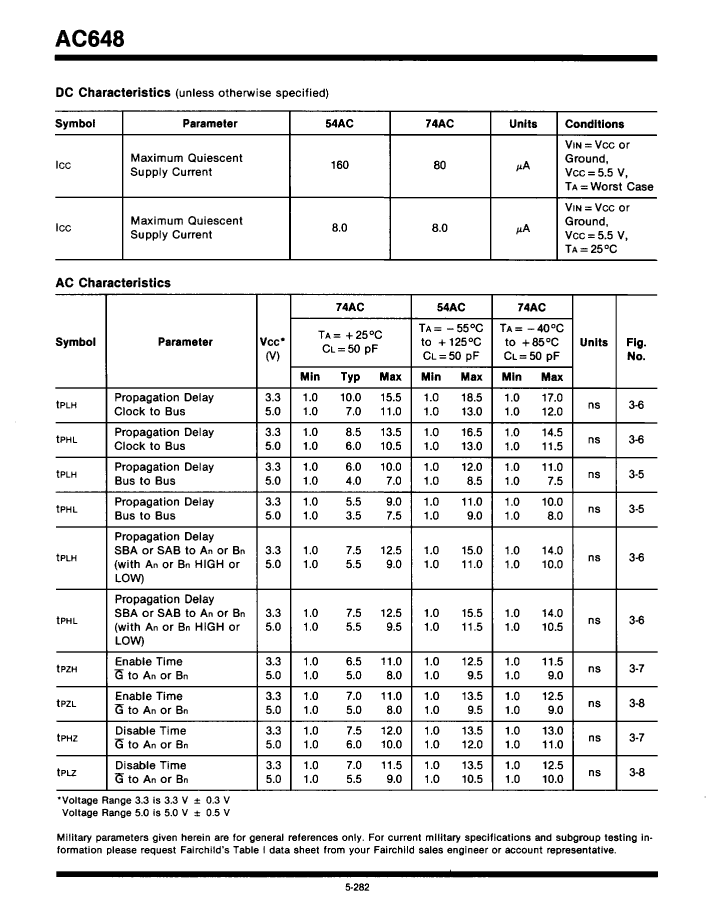

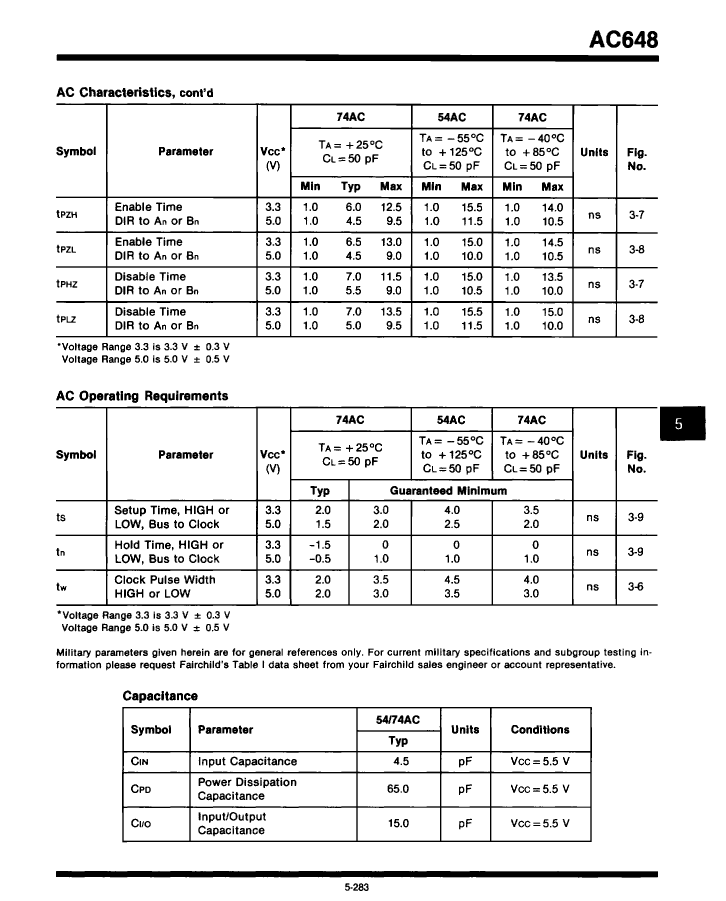

propagation delay (tpd)	16.5 ns
Certification status	Not Qualified
Maximum seat height	5.715 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	15.24 mm
Base Number Matches	1
