IA
Features
■
■
■
■
■
Applications
■
■
■
■
NT
Lead free as standard
RoHS compliant*
Protects 1 or 2 lines
Unidirectional & bidirectional
configurations
ESD protection > 40 KV
RS-232, RS-422 & RS-423 data lines
Portable electronics
Wireless bus protection
Control & monitoring systems
*R
oH
S
CO
M
PL

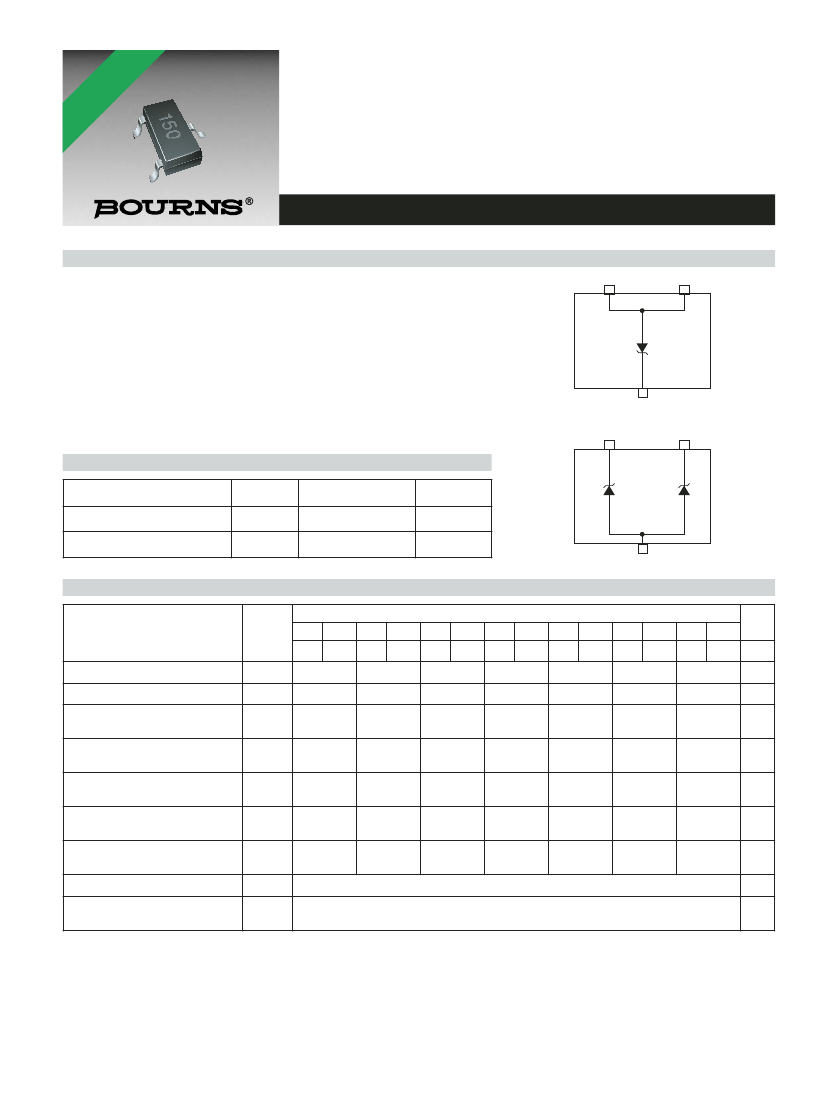

CDSOT23-T03~T36C – TVS Diode Array Series
General Information
The markets of portable communications, computing and video equipment are
challenging the semiconductor industry to develop increasingly smaller electronic
components.
Bourns offers Transient Voltage Suppressor Array diodes for surge and ESD
protection applications, in compact chip package SOT23 size format. The Transient
Voltage Supressor Array series offers a choice of voltage types ranging from 3 V to
36 V. Bourns
®
Chip Diodes conform to JEDEC standards, are easy to handle on
standard pick and place equipment and their flat configuration minimizes roll away.
The Bourns device will meet IEC 61000-4-2 (ESD), IEC 61000-4-4 (EFT) and IEC
61000-4-5 (Surge) requirements.
2
1
2
1
3
Thermal Characteristics (@ TA = 25 °C Unless Otherwise Noted)
Parameter
Operating Temperature
Storage Temperature
Symbol
T
J
T
STG
Value
-55 to +150
-55 to +150
Unit
°C
°C
3
Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted)
CDSOT23-
Parameter
Symbol Uni-
Bi-
Uni-
Bi-
Uni-
Bi-
Uni-
Bi-
Uni-
Bi-
Uni-
Bi-
Uni-
Bi-
T03 T03C T05 T05C T08 T08C T12 T12C T15 T15C T24 T24C T36 T36C
Unit
Breakdown Voltage @ 1 mA
Working Peak Voltage
Maximum Clamping Voltage
VC @ IP
1
Maximum Clamping Voltage
@ 8/20 µs VC @ IPP
1
Maximum Leakage Current
@ VWM
Maximum Cap Undirectional
@ 0 V, 1 MHz
V
BR
V
WM
V
F
V
F
I
D
C
j(SD)
C
j(SD)
P
PP
V
F
4.0
3.3
7.0
10.9 V
@ 43 A
125
500
300
6.0
5.0
9.8
13.5 V
@ 42 A
20
350
210
8.5
8.0
13.4
16.9 V
@ 34 A
10
250
150
13.3
12.0
19.0
25.9 V
@ 21 A
2
150
90
500
1.5
16.7
15.0
24.0
30.0 V
@ 17 A
1
100
60
26.7
24.0
43.0
49.0 V
@ 12 A
1
88
63
40.0
36.0
51.0
76.8 V
@9A
1
80
60
V
V
V
V
µA
pF
pF
W
V
Maximum Cap Bidirectional
@ 0 V, 1 MHz
Peak Pulse Power (tp = 8/20 µs)
2
Forward Voltage @ 100 mA,
300 µs – Square Wave
3
Notes:
1. See Pulse Wave Form.
2. See Peak Pulse Power vs. Pulse Time.
3. Only applies to unidirectional devices.
4. Part numbers with a “C” suffix are bidirectional devices, i.e., CDSOT23-T03C.
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
CDSOT23-T03~T36C – TVS Diode Array Series
Product Dimensions
This is a molded JEDEC SOT-23 package with lead free 100 % Sn
plating on the lead frame. It weighs approximately 0.6 g and has a
flammability rating of UL 94V-0.
A
B
Recommended Footprint
A
B
3
J
C
1
2
I
E
D
C
E
F
D
G
DIMENSIONS =
MILLIMETERS
(INCHES)
DIMENSIONS =
MILLIMETERS
(INCHES)
Dimensions
H
A
Dimensions
A
B
C
D
E
F
G
H
I
J
2.80 - 3.04
(0.1102 - 0.1197)
0.89 - 1.02
(0.0350 - 0.0401)
1.20 - 1.40
(0.0472 - 0.0551)
2.10 - 2.50
(0.0830 - 0.0984)
1.78 - 2.04
(0.0701 - 0.0807)
0.45 - 0.60
(0.0177 - 0.0236)
0.89 - 1.11
(0.035 - 0.044)
0.34 - 0.50
(0.0150 - 0.0200)
0.45 - 0.60
(0.0180 - 0.0236)
0.085 - 0.177
(0.0034 - 0.0070)
0.95
(0.037)
0.95
(0.037)
2.00
(0.079)
0.85
(0.033)
0.85
(0.033)
B
C
D
E
How To Order
CD S0T23 - T 03 C
Common Code
Chip Diode
Package
• S0T23 = S0T23 Package
Model
T = Transient Voltage Supressor
Working Peak Voltage
3 = 3 V
RWM
(Volts)
Suffix
C = Bidirectional Diode
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
CDSOT23-T03~T36C – TVS Diode Array Series
Performance Graphs
Peak Pulse Power vs Pulse Time
10,000
I
PP
– Peak Pulse Current (% of I
PP
)
P
PP
– Peak Pulse Power (W)
Pulse Wave Form
120
100
80
60
40
20
0
0
5
10
15
t – Time (µs)
20
25
30
t
d
= t
|
I
PP
/2
t
t
Test Waveform Parameters
t
t
= 8 µs
t
d
= 20 µs
e
t
1,000
500 W, 8/20 µs Waveform
100
10
0.01
1
10
100
1,000
10,000
t
d
– Pulse Duration (µs)
Block Diagram
The device block diagrams below include the pin names and basic
electrical connections associated with each channel.
Unidirectional
2
1
Power Derating Curve
100
80
60
40
20
Average Power
0
3
3
Bidirectional
2
1
% of Rated Power
Peak Pulse Power
8/20 µs
0
25
50
75
100
125
150
T
L
– Lead Temperature (°C)
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
CDSOT23-T03~T36C – TVS Diode Array Series
Packaging
The surface mount product is packaged in a 12 mm x 8 mm Tape and Reel format per EIA-481 standard.
TOP SIDE VIEW
(INTO COMPONENT POCKET)
DIMENSIONS =
0.3 ± 0.05
(.01 ± .002)
2.0 ± 0.05
(.08 ± .002)
4.0 ± 0.1
(.16 ± .004)
1.5 ± 0.1/-0
(.06 ± .004/-0)
DIA.
1.75 ± 0.1
(.07 ± .004)
MILLIMETERS
(INCHES)
R
0.3
MAX.
(0.01)
12.0 ± 0.3
(.47 ± .01)
5.5 ± 0.3
(.22 ± .01)
3.9 ± 0.1
(.154 ± .004)
8.0 ± 0.3
(.31 ± .01)
R 0.25 TYP.
(0.010)
0.9 ± 0.1
(.035 ± .004)
3.9 ± 0.1
(.154 ± .004)
ORIENTATION
OF COMPONENT
IN POCKET
BACKSIDE FACING UP
Reliable Electronic Solutions
Asia-Pacific:
Tel: +886-2 2562-4117 • Fax: +886-2 2562-4116
Europe:
Tel: +41-41 768 5555 • Fax: +41-41 768 5510
The Americas:
Tel: +1-951 781-5500 • Fax: +1-951 781-5700
www.bourns.com
REV. 12/07
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
