Part Number

Search

DG180AP

Description
SPST, 2 Func, 1 Channel, JFET, CDIP14
CategoryAnalog mixed-signal IC    The signal circuit
File Size163KB,6 Pages
ManufacturerHarris
Websitehttp://www.harris.com/
Download Datasheet Parametric View All

DG180AP Online Shopping

Suppliers Part Number Price MOQ In stock
DG180AP - - View Buy Now

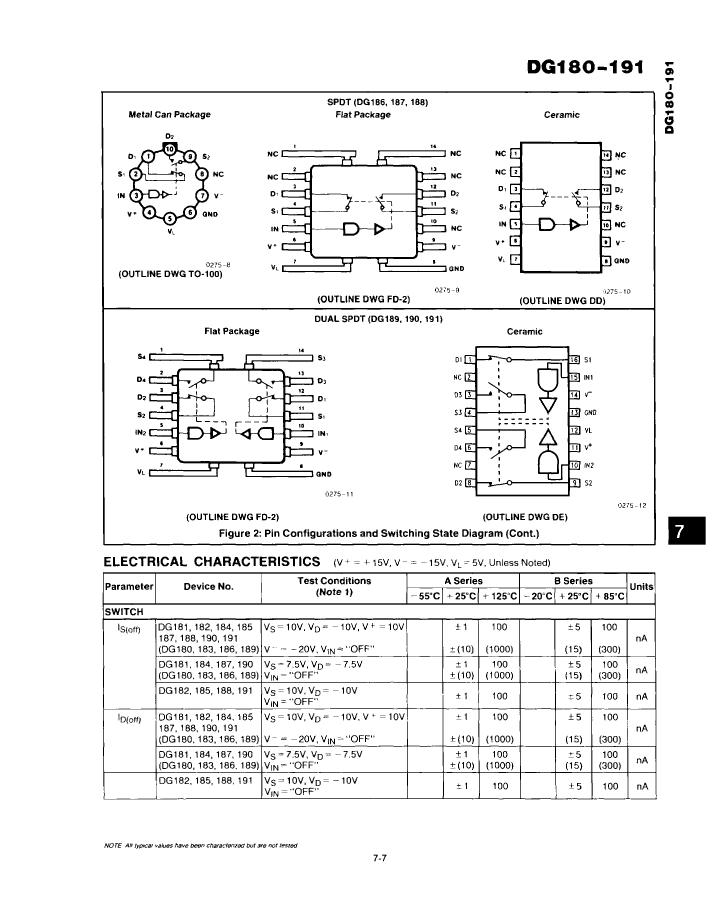

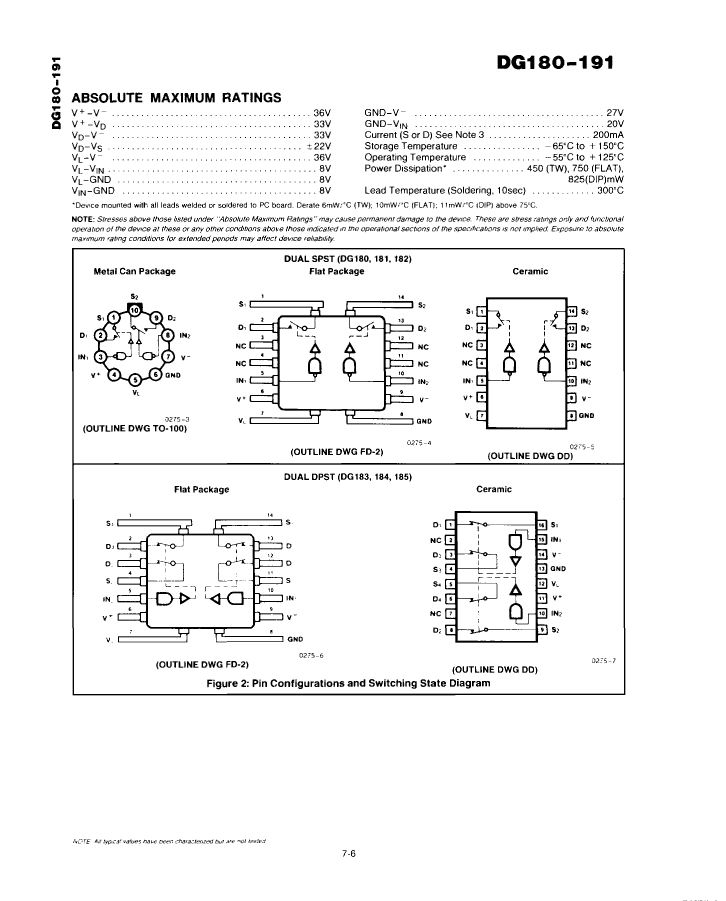

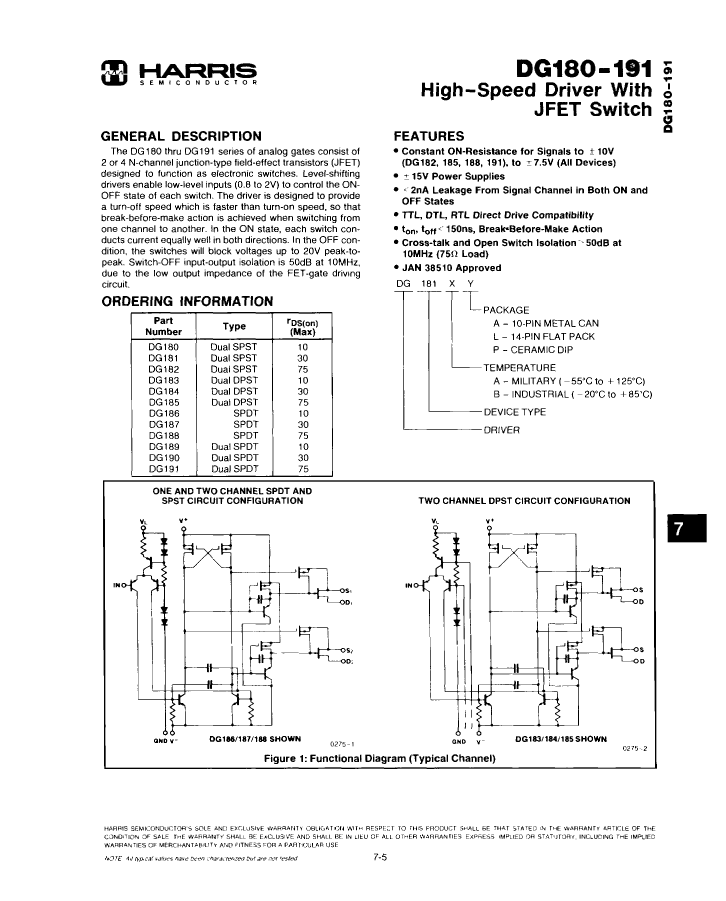

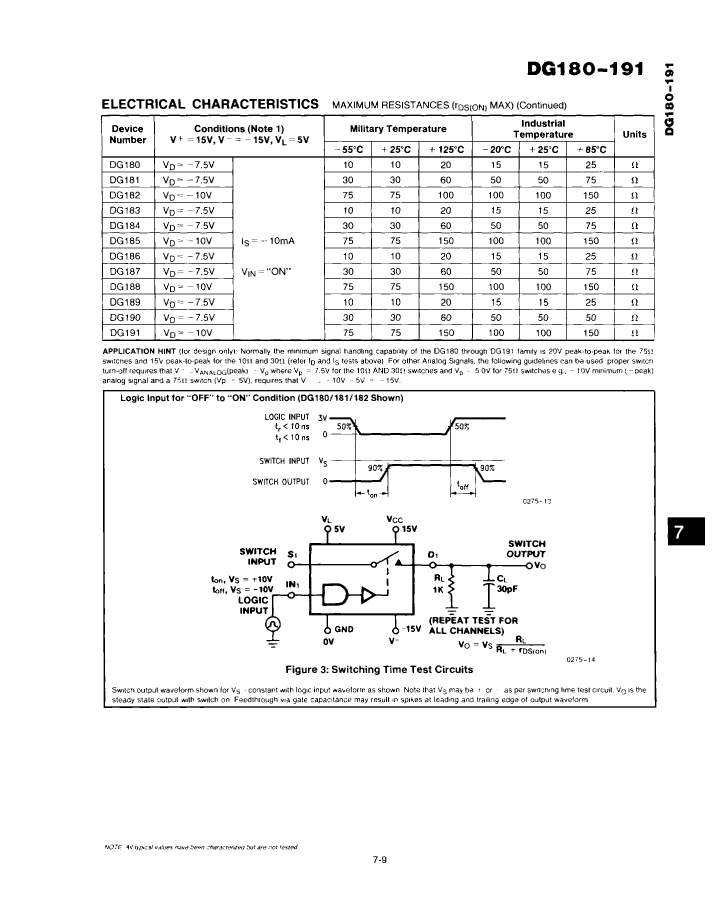

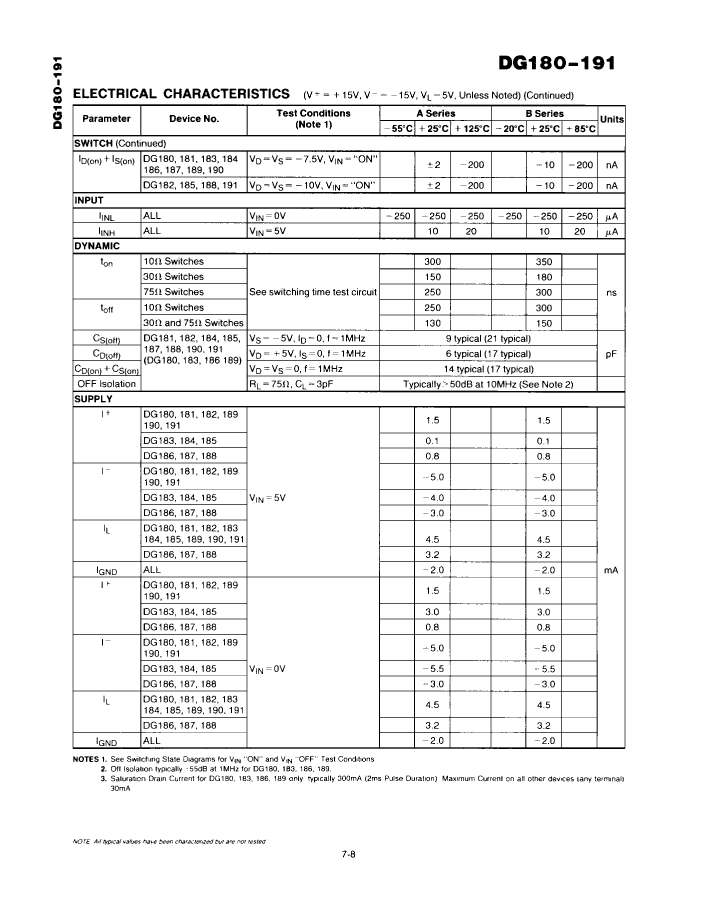

DG180AP Overview

SPST, 2 Func, 1 Channel, JFET, CDIP14

DG180AP Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerHarris
package instructionDIP, DIP14,.3
Reach Compliance Codeunknown
Analog Integrated Circuits - Other TypesSPST
JESD-30 codeR-CDIP-T14
JESD-609 codee0
Nominal Negative Supply Voltage (Vsup)-15 V
normal positionNO
Number of channels1
Number of functions2
Number of terminals14
Nominal off-state isolation55 dB
Maximum on-state resistance (Ron)10 Ω
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
outputSEPARATE OUTPUT
Package body materialCERAMIC, METAL-SEALED COFIRED
encapsulated codeDIP
Encapsulate equivalent codeDIP14,.3
Package shapeRECTANGULAR
Package formIN-LINE
power supply+-15 V
Certification statusNot Qualified
Nominal supply voltage (Vsup)15 V
surface mountNO
Maximum disconnect time250 ns
Maximum connection time300 ns
switchBREAK-BEFORE-MAKE
technologyJFET
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Base Number Matches1
