TD8086 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> TD8086

TD8086: DescriptionMicroprocessor, 16-Bit, 5MHz, NMOS, CDIP40, CERDIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，30 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

TD8086 Overview

Microprocessor, 16-Bit, 5MHz, NMOS, CDIP40, CERDIP-40

TD8086 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
Other features	MULTIBUS SYSTEM COMPATIBLE INTERFACE; MAXIMUM AND MINIMUM MODES OF OPERATION
Address bus width	20
bit size	16
boundary scan	NO
maximum clock frequency	5 MHz
External data bus width	16
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.325 mm
low power mode	NO
Number of DMA channels
Number of external interrupt devices	2
Number of serial I/Os
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	5.72 mm
speed	5 MHz
Maximum slew rate	340 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1

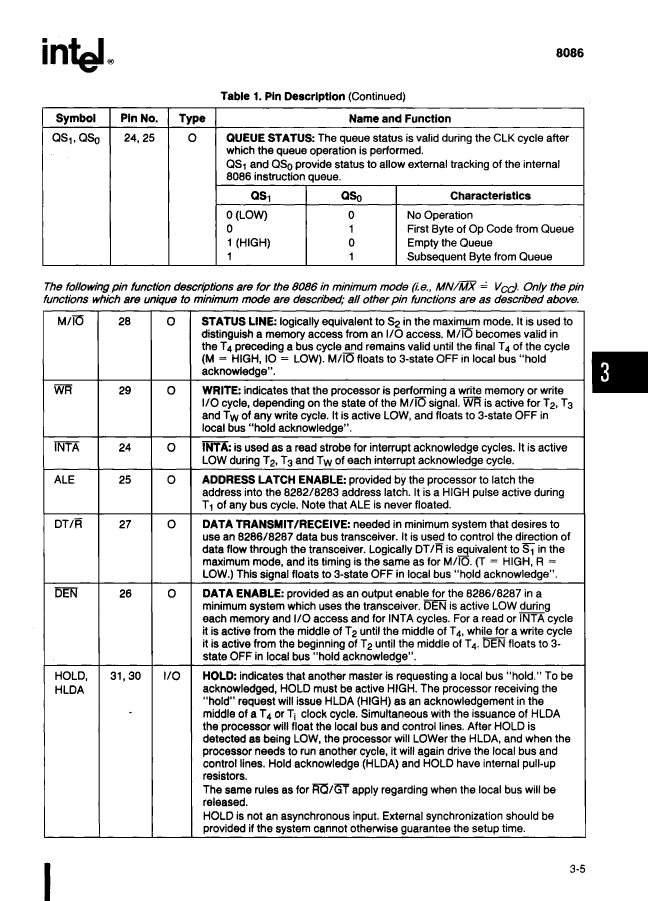

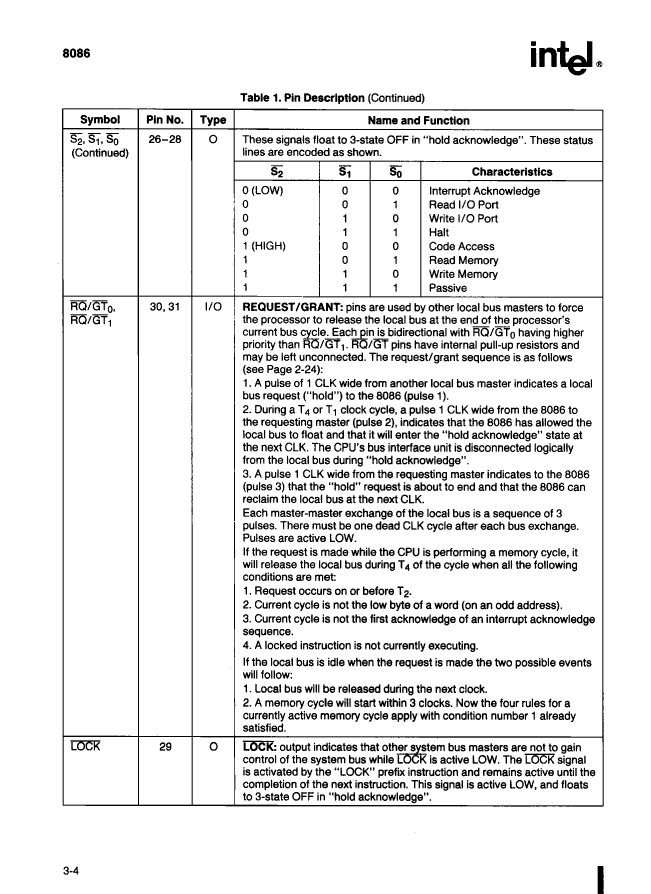

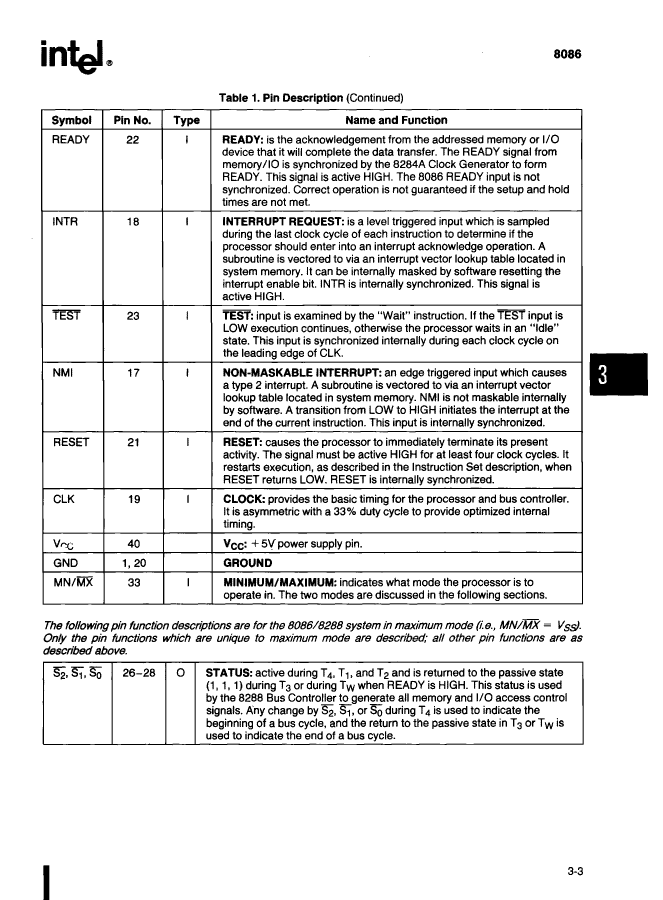

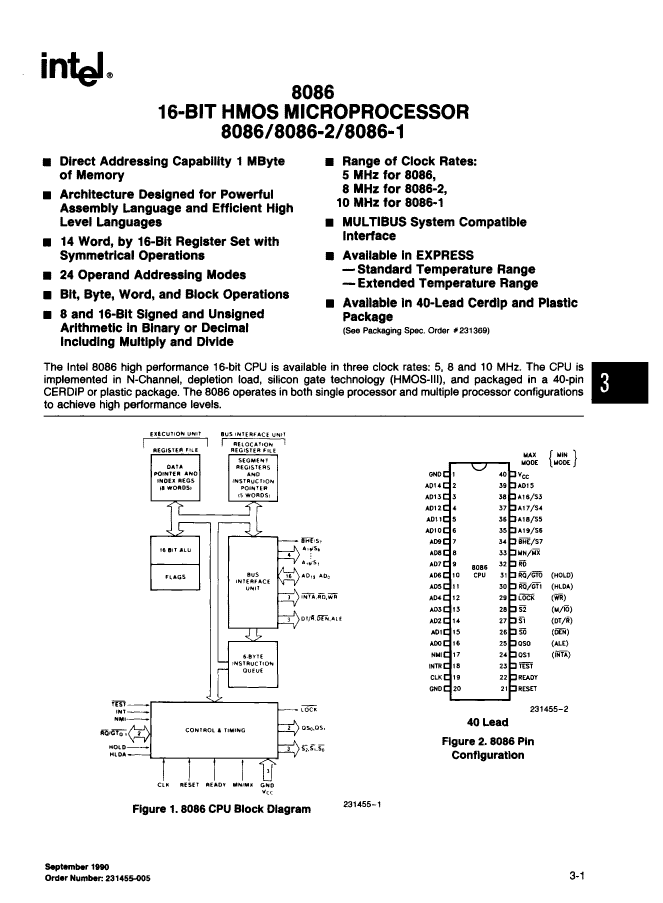

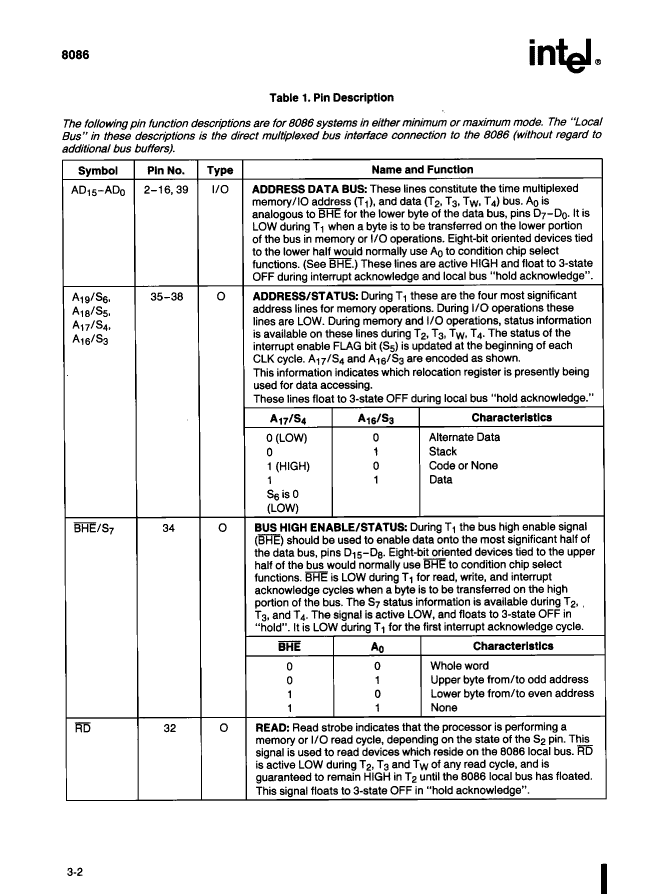

Preview

Download Datasheet

View All

TD8086 Related Products

	TD8086	TD8086-2	TD8086-1	TP8086	TP8086-2	TP8086-1	P8086-2	P8086-1	P8086
Description	Microprocessor, 16-Bit, 5MHz, NMOS, CDIP40, CERDIP-40	Microprocessor, 16-Bit, 8MHz, NMOS, CDIP40, CERDIP-40	Microprocessor, 16-Bit, 10MHz, NMOS, CDIP40, CERDIP-40	Microprocessor, 16-Bit, 5MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 16-Bit, 8MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 16-Bit, 10MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 16-Bit, 8MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 16-Bit, 10MHz, NMOS, PDIP40, PLASTIC, DIP-40	Microprocessor, 16-Bit, 5MHz, NMOS, PDIP40, PLASTIC, DIP-40
Maker	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel	Intel
Parts packaging code	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP	DIP
package instruction	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6	DIP,	DIP,	DIP,	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Contacts	40	40	40	40	40	40	40	40	40
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	compliant	unknown	compli
Is it Rohs certified?	incompatible	incompatible	incompatible	-	-	-	incompatible	incompatible	incompatible
Other features	MULTIBUS SYSTEM COMPATIBLE INTERFACE; MAXIMUM AND MINIMUM MODES OF OPERATION	MULTIBUS SYSTEM COMPATIBLE INTERFACE; MAXIMUM AND MINIMUM MODES OF OPERATION	MULTIBUS SYSTEM COMPATIBLE INTERFACE; MAXIMUM AND MINIMUM MODES OF OPERATION	-	MULTIBUS SYSTEM COMPATIBLE INTERFACE; MAXIMUM AND MINIMUM MODES OF OPERATION	MULTIBUS SYSTEM COMPATIBLE INTERFACE; MAXIMUM AND MINIMUM MODES OF OPERATION	MULTIBUS SYSTEM COMPATIBLE INTERFACE; MAXIMUM AND MINIMUM MODES OF OPERATION	MULTIBUS SYSTEM COMPATIBLE INTERFACE; MAXIMUM AND MINIMUM MODES OF OPERATION	-
Address bus width	20	20	20	-	20	20	20	20	-
bit size	16	16	16	-	16	16	16	16	-
boundary scan	NO	NO	NO	-	NO	NO	NO	NO	-
maximum clock frequency	5 MHz	8 MHz	10 MHz	-	8 MHz	10 MHz	8 MHz	10 MHz	-
External data bus width	16	16	16	-	16	16	16	16	-
Format	FIXED POINT	FIXED POINT	FIXED POINT	-	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	-
Integrated cache	NO	NO	NO	-	NO	NO	NO	NO	-
JESD-30 code	R-GDIP-T40	R-GDIP-T40	R-GDIP-T40	-	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	R-PDIP-T40	-
JESD-609 code	e0	e0	e0	-	-	-	e0	e0	-
length	52.325 mm	52.325 mm	52.325 mm	-	52.26 mm	52.26 mm	52.26 mm	52.26 mm	-
low power mode	NO	NO	NO	-	NO	NO	NO	NO	-
Number of external interrupt devices	2	2	2	-	2	2	2	2	-
Number of terminals	40	40	40	-	40	40	40	40	-
Maximum operating temperature	85 °C	85 °C	85 °C	-	85 °C	85 °C	70 °C	70 °C	-
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-	-40 °C	-40 °C	-	-	-
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-
encapsulated code	DIP	DIP	DIP	-	DIP	DIP	DIP	DIP	-
Encapsulate equivalent code	DIP40,.6	DIP40,.6	DIP40,.6	-	-	-	DIP40,.6	DIP40,.6	-
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Package form	IN-LINE	IN-LINE	IN-LINE	-	IN-LINE	IN-LINE	IN-LINE	IN-LINE	-
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	-	NOT SPECIFIED	NOT SPECIFIED	-
power supply	5 V	5 V	5 V	-	-	-	5 V	5 V	-
Certification status	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-
Maximum seat height	5.72 mm	5.72 mm	5.72 mm	-	5.08 mm	5.08 mm	5.08 mm	5.08 mm	-
speed	5 MHz	8 MHz	10 MHz	-	8 MHz	10 MHz	8 MHz	10 MHz	-
Maximum slew rate	340 mA	350 mA	360 mA	-	350 mA	360 mA	350 mA	360 mA	-
Maximum supply voltage	5.5 V	5.25 V	5.25 V	-	5.25 V	5.25 V	5.25 V	5.25 V	-
Minimum supply voltage	4.5 V	4.75 V	4.75 V	-	4.75 V	4.75 V	4.75 V	4.75 V	-
Nominal supply voltage	5 V	5 V	5 V	-	5 V	5 V	5 V	5 V	-
surface mount	NO	NO	NO	-	NO	NO	NO	NO	-
technology	NMOS	NMOS	NMOS	-	NMOS	NMOS	NMOS	NMOS	-
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	-	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	COMMERCIAL	-
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	-
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	2.54 mm	-
Terminal location	DUAL	DUAL	DUAL	-	DUAL	DUAL	DUAL	DUAL	-
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-	-	-	NOT SPECIFIED	NOT SPECIFIED	-
width	15.24 mm	15.24 mm	15.24 mm	-	15.24 mm	15.24 mm	15.24 mm	15.24 mm	-
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	-	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	MICROPROCESSOR	-
