8054-5241: DescriptionD Type Connector, 24 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Receptacle; CategoryThe connector The connector; File Size214KB，1 Pages; ManufacturerConexcon Group

Download Datasheet Parametric Compare View All

8054-5241 Overview

D Type Connector, 24 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Receptacle

8054-5241 Parametric

Parameter Name	Attribute value
Maker	Conexcon Group
Reach Compliance Code	unknown
body width	0.614 inch
subject depth	0.591 inch
body length	2.146 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	CENTRONIC
insulator material	GLASS FILLED POLYESTER
Manufacturer's serial number	8054
Plug contact pitch	0.085 inch
Installation option 1	BAIL MT M
Installation option 2	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.2926 mm
Plating thickness	15u inch
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	STEEL
Terminal length	0.187 inch
Terminal pitch	2.159 mm
Termination type	SOLDER
Total number of contacts	24
Base Number Matches	1

Preview

Download Datasheet

View All

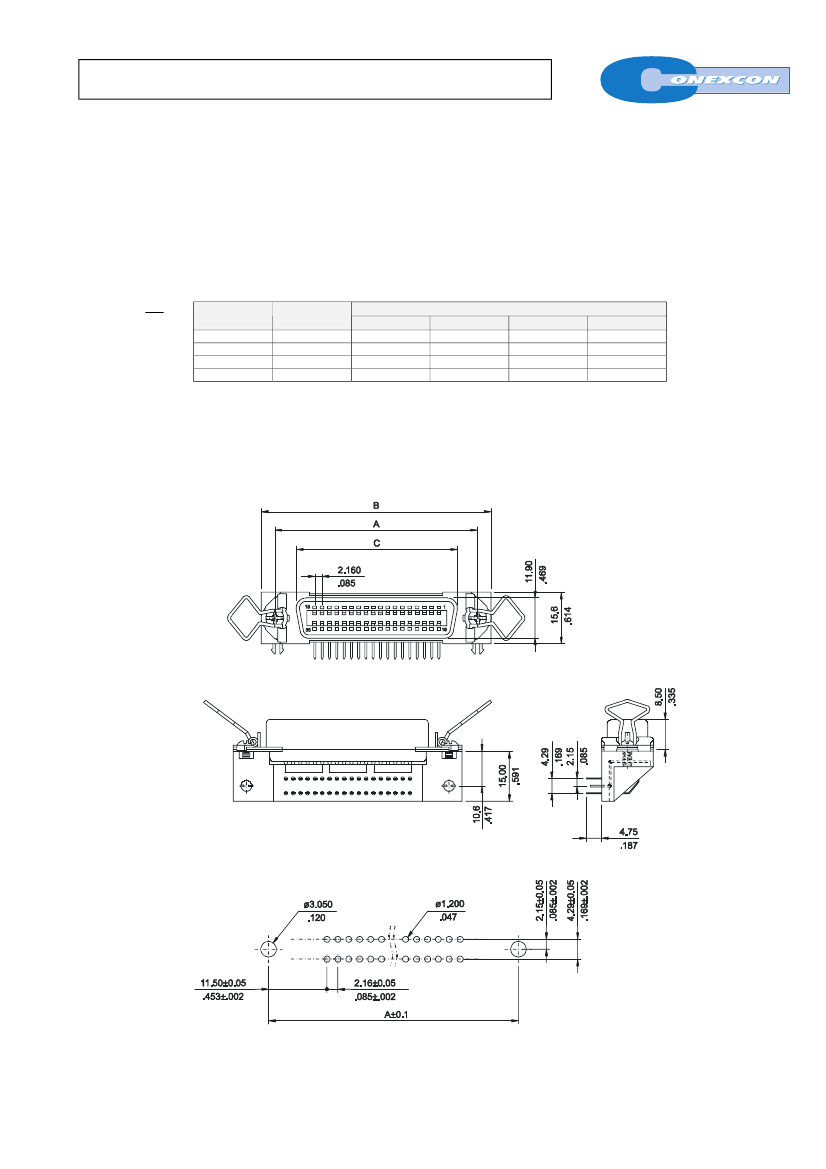

RIGHT ANGLE DIP SOLDER RECEPTACLE

SERIES.

8054 SERIES

For PCB Solder. Centronic Connector.

Features

!

#

Shell: Steel, tin plated as standard

#

With retaining clip

#

For other options consult the Sales Office

Ordering and Dimensional Information

#

Available in 14, 24, 36 and 50 circuits

Insulator Material: Glass filled polyester UL 94V-0

Contact Material: Phosphor bronze

Different plating options are available.

Dimensional Information!

!

Unit:

mm.

Inch.

Circuit Size

14

24

36

50

Part Number

8054 –

T141

8054 –

T241

8054 –

T361

8054 –

T501

Dimensions

A

35.99 (1.417)

46.79 (1.842)

59.74 (2.352)

74.85 (2.947)

B

43.71 (1.720)

54.50 (2.146)

67.60 (2.661)

82.80 (3.260)

C

25.20 (0.992)

35.90 (1.413)

48.70 (1.917)

64.10 (2.524)

D

-

T = Contact Plating

#

T =

3.

Gold flash over 50µ” nickel

#

T =

4.

10µ” gold over 50µ” nickel

#

T =

5.

15µ” gold over 50µ” nickel

#

T =

6.

30µ” gold over 50µ” nickel

RECOMMENDED HOLE PATTERN

CONEXCON

Products specifications are subjet to be changed without notice. Please contact Sales Office for further confirmation

8054-5241 Related Products

	8054-5241	8054-4141
Description	D Type Connector, 24 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Receptacle	D Type Connector, 14 Contact(s), Male, 0.085 inch Pitch, Solder Terminal, Bail Mt M, Receptacle
Maker	Conexcon Group	Conexcon Group
Reach Compliance Code	unknown	unknown
body width	0.614 inch	0.614 inch
subject depth	0.591 inch	0.591 inch
body length	2.146 inch	1.72 inch
Body/casing type	RECEPTACLE	RECEPTACLE
Contact to complete cooperation	AU ON NI	AU ON NI
Contact point gender	MALE	MALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE
contact mode	RECTANGULAR	RECTANGULAR
Contact style	CENTRONIC	CENTRONIC
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
Manufacturer's serial number	8054	8054
Plug contact pitch	0.085 inch	0.085 inch
Installation option 1	BAIL MT M	BAIL MT M
Installation option 2	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD
PCB row number	2	2
Number of rows loaded	2	2
PCB contact pattern	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.2926 mm	4.2926 mm
Plating thickness	15u inch	10u inch
Guideline	UL	UL
reliability	COMMERCIAL	COMMERCIAL
Shell surface	TIN	TIN
Shell material	STEEL	STEEL
Terminal length	0.187 inch	0.187 inch
Terminal pitch	2.159 mm	2.159 mm
Termination type	SOLDER	SOLDER
Total number of contacts	24	14
Base Number Matches	1	1
