HPFC-116-01-TM-D-02-A datasheet, PDF

HPFC-116-01-TM-D-02-A: DescriptionRectangular Power Connector, 18 Contact(s), Female, Solder Terminal, Socket; CategoryThe connector The connector; File Size670KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

HPFC-116-01-TM-D-02-A Overview

Rectangular Power Connector, 18 Contact(s), Female, Solder Terminal, Socket

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SAMTEC
Reach Compliance Code	compliant
Body/casing type	SOCKET
Connector type	RECTANGULAR POWER CONNECTOR
Contact arrangement	S16P2
Contact to complete cooperation	MATTE TIN
Contact completed and terminated	MATTE TIN
Contact point gender	FEMALE
Contact material	POWER-BERYLLIUM COPPER; SIGNAL-PHOSPHOR BRONZE
Contact resistance	10 mΩ
Contact style	HYBRID
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	1.39 N
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER (LCP)
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	HPFC
Mixed contacts	YES
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
reliability	COMMERCIAL
Terminal length	0.123 inch
Termination type	SOLDER
Total number of contacts	18
Evacuation force-minimum value	.834 N
Base Number Matches	1

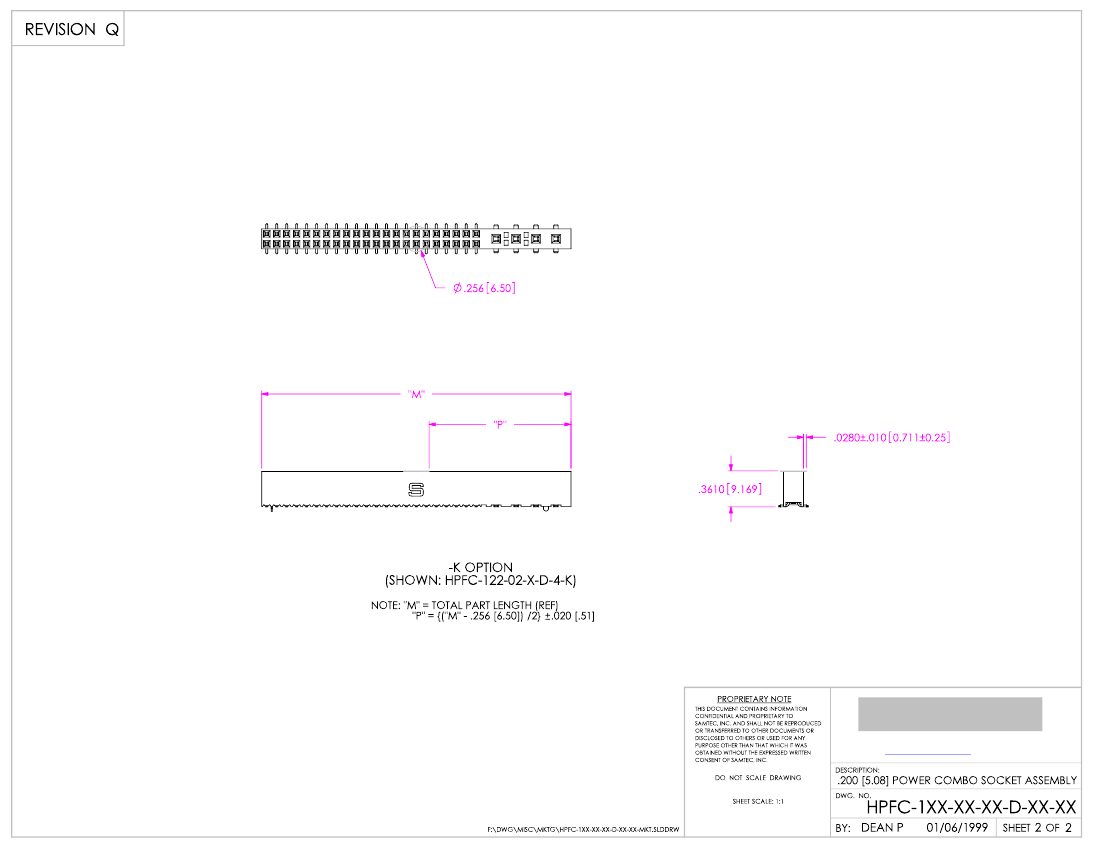

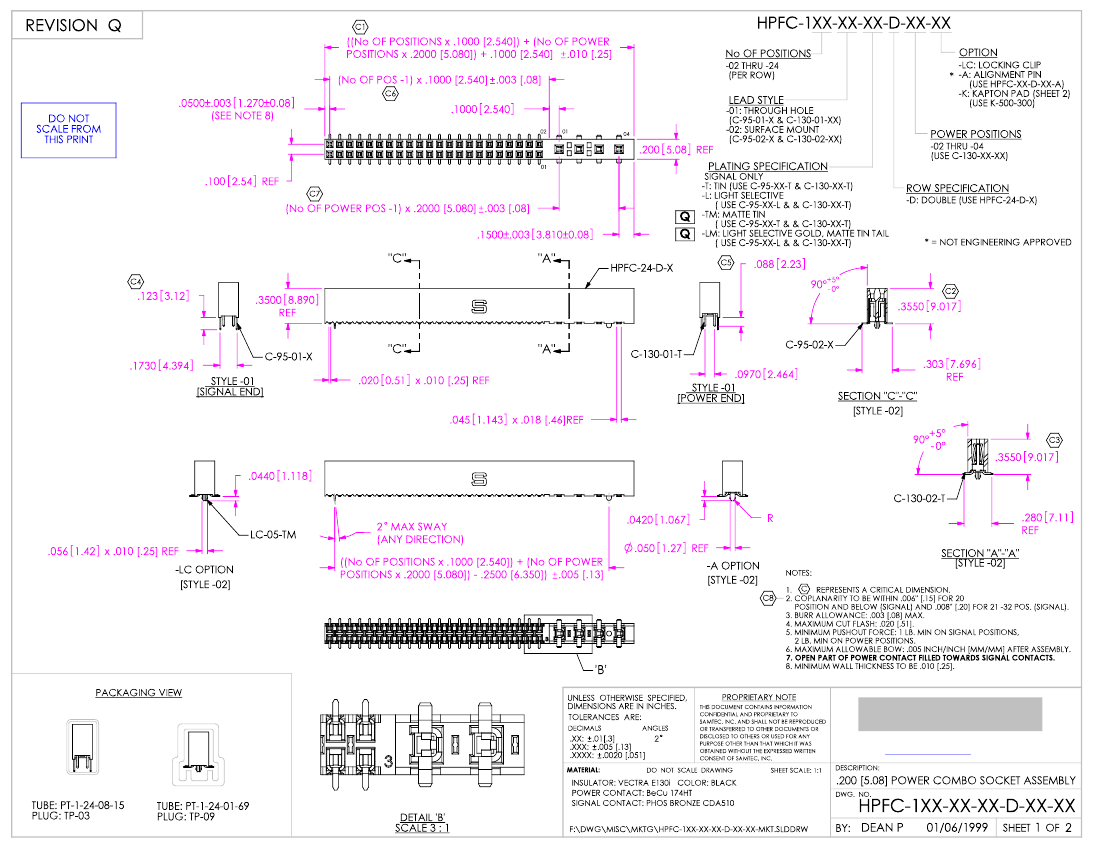

S A M TE C

*

5 2 0 P A R K E A S T B L V D , N E W A L B A N Y , IN 4 7 1 5 0

P H O N E : 8 1 2 .9 4 4 .6 7 3 3

F A X : 8 1 2 .9 4 8 .5 0 4 7

e-M ail:

IN F O @ S A M T E C .C O M

C O D E: 55322
