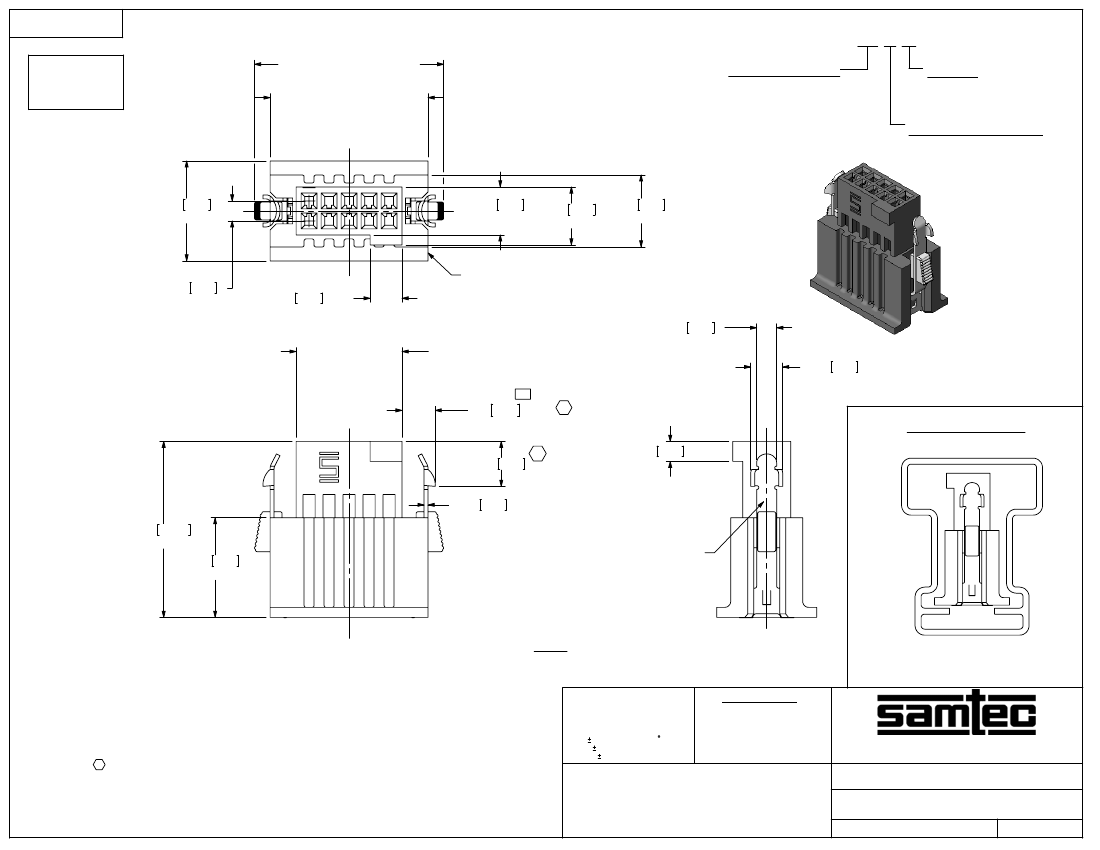

REVISION G
DO NOT
SCALE FROM
THIS PRINT
(No OF POS x .050[1.27])
+ .223[5.66] REF
(No OF POS x .050[1.27])
+ .145[3.68] REF
C
L
ISDF-XX-D-X
No OF POSITIONS
-02 THRU -50
(PER ROW)
OPTION
-M: METAL RETENTION LATCH
-S: DUAL SCREW DOWN
-D: DOUBLE
ROW SPECIFICATION
.250 6.35
REF
C
L
.120 3.05
REF
.145 3.68
REF
.180 4.57
REF
ISDF-XX-D-R
.050 1.27
REF
.080 2.03 REF
.050 1.27
REF
.080 2.03
REF
(No OF POS x .050[1.27])
+ .015[0.38] REF
G
C
L
.083 2.11 (TYP)
C1
C
L
.113 2.86
C2
.050 1.27 REF
PACKAGING VIEW
-M OPTION
.010 0.25 REF
.440 11.18
REF
.249 6.32
REF
SUB-IM-LTC-07-01-N
(2 PLCS)
ISDF-05-D-M SHOWN
FIG 1
TUBE: PT-1-24-02-44
PLUG: TP-03
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. LATCH RETENTION FORCE: .5 LB [2.22N].
3. PARTS TO BE PACKAGED IN TUBES.
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
INSULATOR: LCP, COLOR: BLACK
LATCH: NICKEL-PLATED PHOS BRONZE
BUTTON: NYLON, COLOR: WHITE
F:\DWG\MISC\MKTG\ISDF-XX-D-X-MKT.SLDDRW
.050[1.27] DISCRETE WIRE INSULATOR & LATCH ASM
DWG. NO.
ISDF-XX-D-X
SHEET
1
OF
2
BY:
BRATCHER 11/16/2006
REVISION G
C3
((No OF POS X .050 [1.27]) + .360 [9.14])
((No OF POS X .050 [1.27]) + .600 [15.24])REF
"B"
"B"
C
L
.125 3.18
REF
.225 5.72
REF
DETAIL 'A'
SCALE 8 : 1
R.057 1.45 REF
C
L
.218 5.52 REF
((No OF POS X .050 [1.27]) + .015 [0.38]) REF
ACCRT-01
CPS-RR-M2-01-X
'A'
C
L

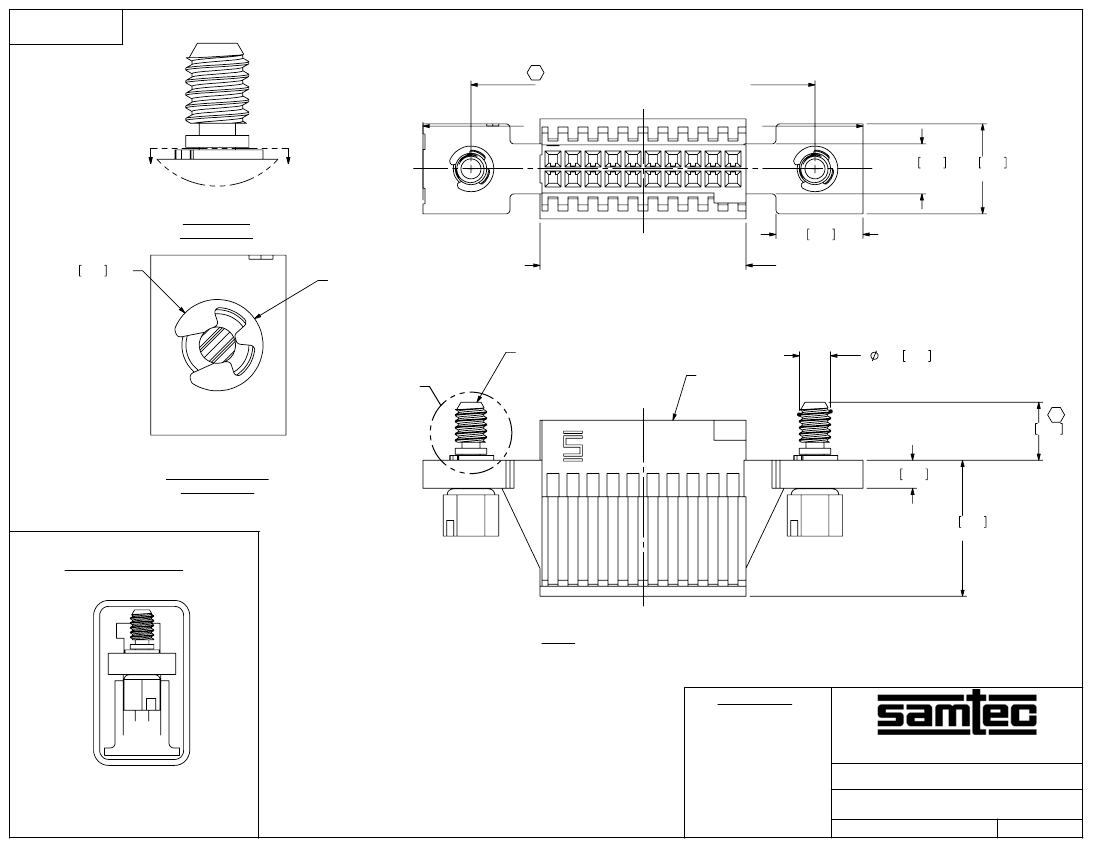

ISDF-XX-D-DS
.079 2.00 REF
C4
.145 3.68
SECTION "B"-"B"
SCALE 8 : 1
.070 1.78 REF
.340 8.64
REF
PACKAGING VIEW
-S OPTION
ISDF-10-D-S SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
PROPRIETARY NOTE
THIS DOCUMENT CONTAINS INFORMATION
CONFIDENTIAL AND PROPRIETARY TO
SAMTEC, INC. AND SHALL NOT BE REPRODUCED
OR TRANSFERRED TO OTHER DOCUMENTS OR
DISCLOSED TO OTHERS OR USED FOR ANY
PURPOSE OTHER THAN THAT WHICH IT WAS
OBTAINED WITHOUT THE EXPRESSED WRITTEN
CONSENT OF SAMTEC, INC.
-S: DUAL SCREW DOWN OPTION
FIG 2
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DO NOT SCALE DRAWING
DESCRIPTION:
.050[1.27] DISCRETE WIRE INSULATOR & LATCH ASM
DWG. NO.
TUBE: PT-1-24-08-15
PLUG: TP-03
F:\DWG\MISC\MKTG\ISDF-XX-D-X-MKT.SLDDRW
SHEET SCALE: 4:1
ISDF-XX-D-X
SHEET
2
OF
2
BY:
BRATCHER 11/16/2006
