KRL3264E-C-R068-F-T5: DescriptionFixed Resistor, Metal Foil, 2W, 0.068ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2512, CHIP, HALOGEN FREE AND ROHS COMPLIANT; CategoryPassive components The resistor; File Size1MB，1 Pages; ManufacturerSUSUMU; Environmental Compliance

Download Datasheet Parametric View All

KRL3264E-C-R068-F-T5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	KRL3264E-C-R068-F-T5	-	-	View	Buy Now

KRL3264E-C-R068-F-T5 Overview

Fixed Resistor, Metal Foil, 2W, 0.068ohm, 1% +/-Tol, 50ppm/Cel, Surface Mount, 2512, CHIP, HALOGEN FREE AND ROHS COMPLIANT

KRL3264E-C-R068-F-T5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUSUMU
package instruction	SMT, 2512
Reach Compliance Code	compliant
ECCN code	EAR99
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-55 °C
Package height	0.5 mm
Package length	6.3 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.1 mm
method of packing	TR, EMBOSSED, 10 INCH
Rated power dissipation(P)	2 W
Rated temperature	120 °C
Guideline	AEC-Q200
resistance	0.068 Ω
Resistor type	FIXED RESISTOR
size code	2512
surface mount	YES
technology	METAL FOIL
Temperature Coefficient	50 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	ONE SURFACE
Tolerance	1%
Base Number Matches	1

Preview

Download Datasheet

View All

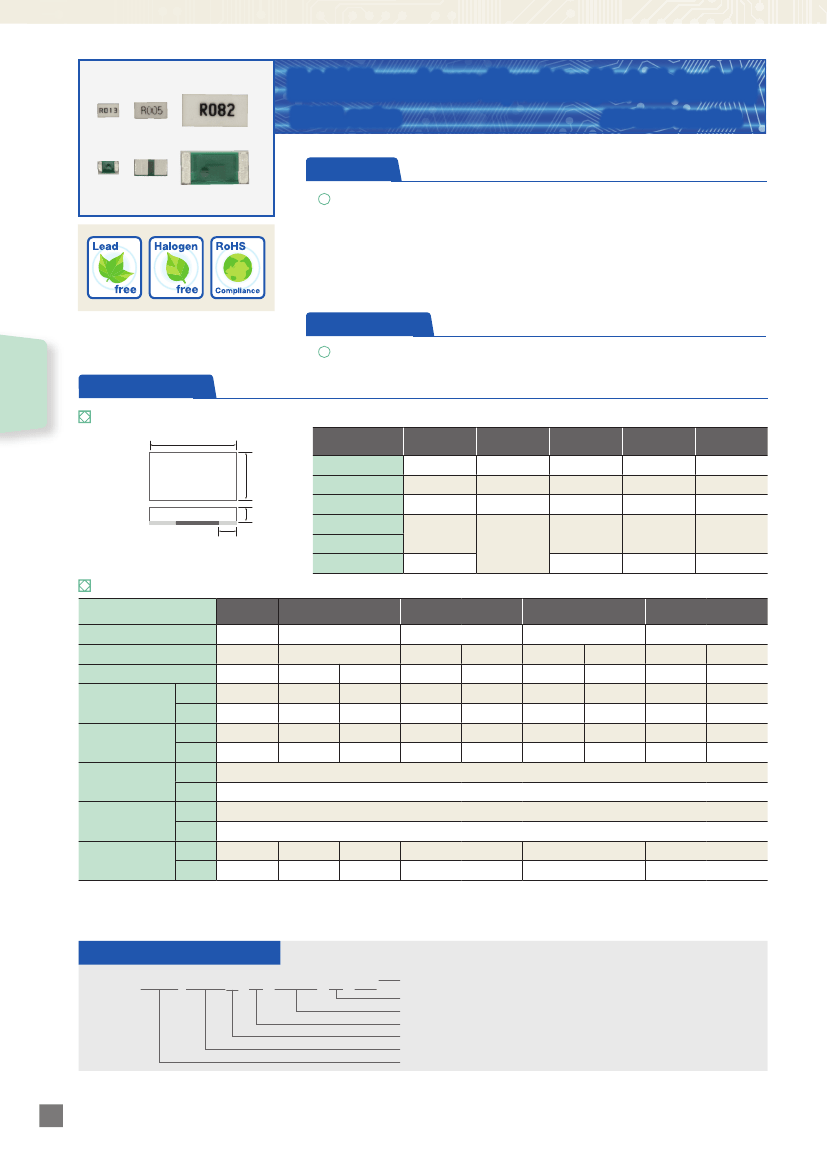

Metal foil low resistance chip resistors (short-side terminals)

■

KRL series

AEC-Q200 Compliant

Features

●

The C type utilizes materials that withstand high temperatures and

can be operated up to 175°C. The M type utilizes low emf materials

that are stable up to 155°C. TCR is very stable for very low resistance:

+/-100ppm°C for 5mΩ

〜

9mΩ, and +/-50ppm°C for 10mΩ

〜

. Face down

mounting allows for accurate current measurement. Long and short side

terminal types, as well as power ratings from 1/3W to 5W are offered to

meet customers’ specific requirements. The protective outer coating is

halogen free in consideration of the environment.

Applications

Current sensing surface

mount resistors

●

PCs, hard drive discs, audio visual equipments, power sources, inverters, automotive

electronics, industrial machining equipments, industrial test and measurements, etc.

Specifications

▪

Dimensions

L

＊All made to order.

KRL series

Dimensions

（mm）

L

W

KRL0816

(0603)

1.60±0.20

0.80±0.20

0.50±0.20

−

0.30±0.20

KRL1220

(0805)

2.00±0.20

1.25±0.20

0.50±0.20

KRL1632

(1206)

3.20±0.20

1.60±0.20

0.50±0.20

1.10±0.20

0.50±0.20

KRL3264

(2512)

6.30±0.20

3.10±0.20

0.50±0.20

1.90±0.20

1.00±0.20

KRL50110

(4320)

11.0±0.20

5.00±0.20

0.65±0.20

3.60±0.30

2.36±0.30

W

t

a

（5.0 ½7.0mΩ）

a

（8.0mΩ½）

a

（9.0mΩ½）

0.40±0.20

▪

Electrical characteristics

Series name

Power

E series offered

Resistance range

（Ω）

Resistance

tolerance

（％）

±1.0

（F）

±2.0

（G）

KRL0816

0.3W

E-12

10m〜 100m

○

ー

○

ー

5m〜9m

ー

○

ー

○

KRL1220

1/2Ｗ

E-12

10m〜100m

○

ー

○

ー

KRL1632

3/4Ｗ

1mΩ STEP

5m〜9m

ー

○

ー

○

E-12

10m〜500m

○

ー

○

ー

−55℃〜 175 ℃

−55℃〜 155 ℃

120 ℃ or less

100 ℃ or less

KRL3264

2Ｗ

1mΩ STEP

5m〜 9m

ー

○

ー

○

E-12

10m〜1000m

○

ー

○

ー

KRL50110

5Ｗ

1mΩ STEP

5m〜 9m

ー

○

ー

○

E-12

10m〜1000m

○

ー

○

ー

Temperature

±50

coefficient of

resistance

（ppm/℃）±100

Operating

temperature

Rated ambient

temperature

(at terminals)

Packaging

Ｃ

Ｍ

Ｃ

Ｍ

1,000pcs

5,000pcs

○

ー

Part numbering system

KRL 1220E - C - R010 - F - T1

Packaging T1

：（1000pieces）T5

（5000pieces）

Resistance tolerance

Resistance value

Operating temperature C

：（High temperature type）M

（Low emf type）

Lap electrode type D

：（Bottom electrode）E

（U-shape electrode）

Size

Series code

17

Complete Product Catalogue
