Part Number

Search

281285-5

Description
TWO PART BOARD CONNECTOR
CategoryThe connector    The connector
File Size143KB,2 Pages
ManufacturerTE Connectivity
Websitehttp://www.te.com
Environmental Compliance
Download Datasheet Parametric View All

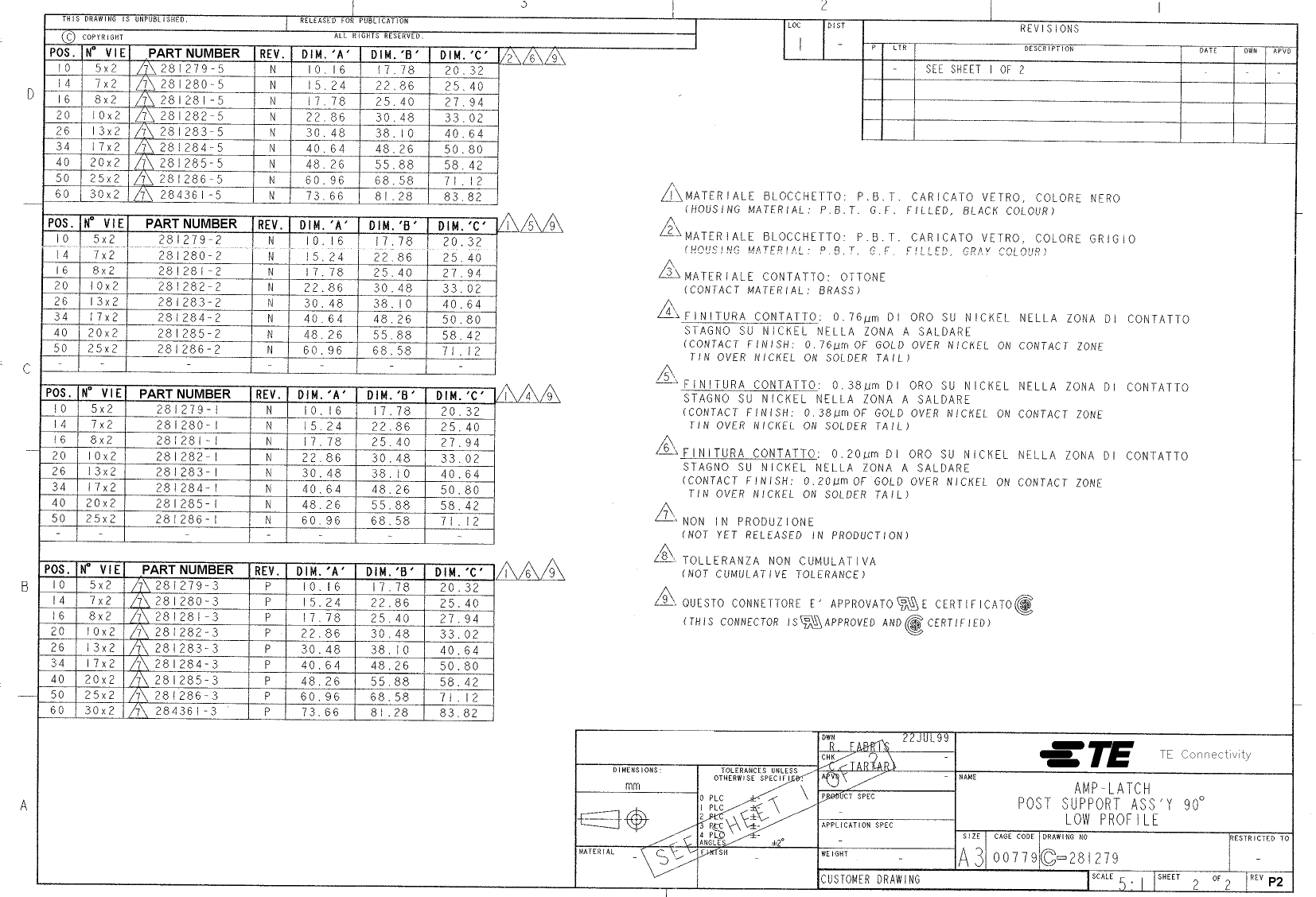

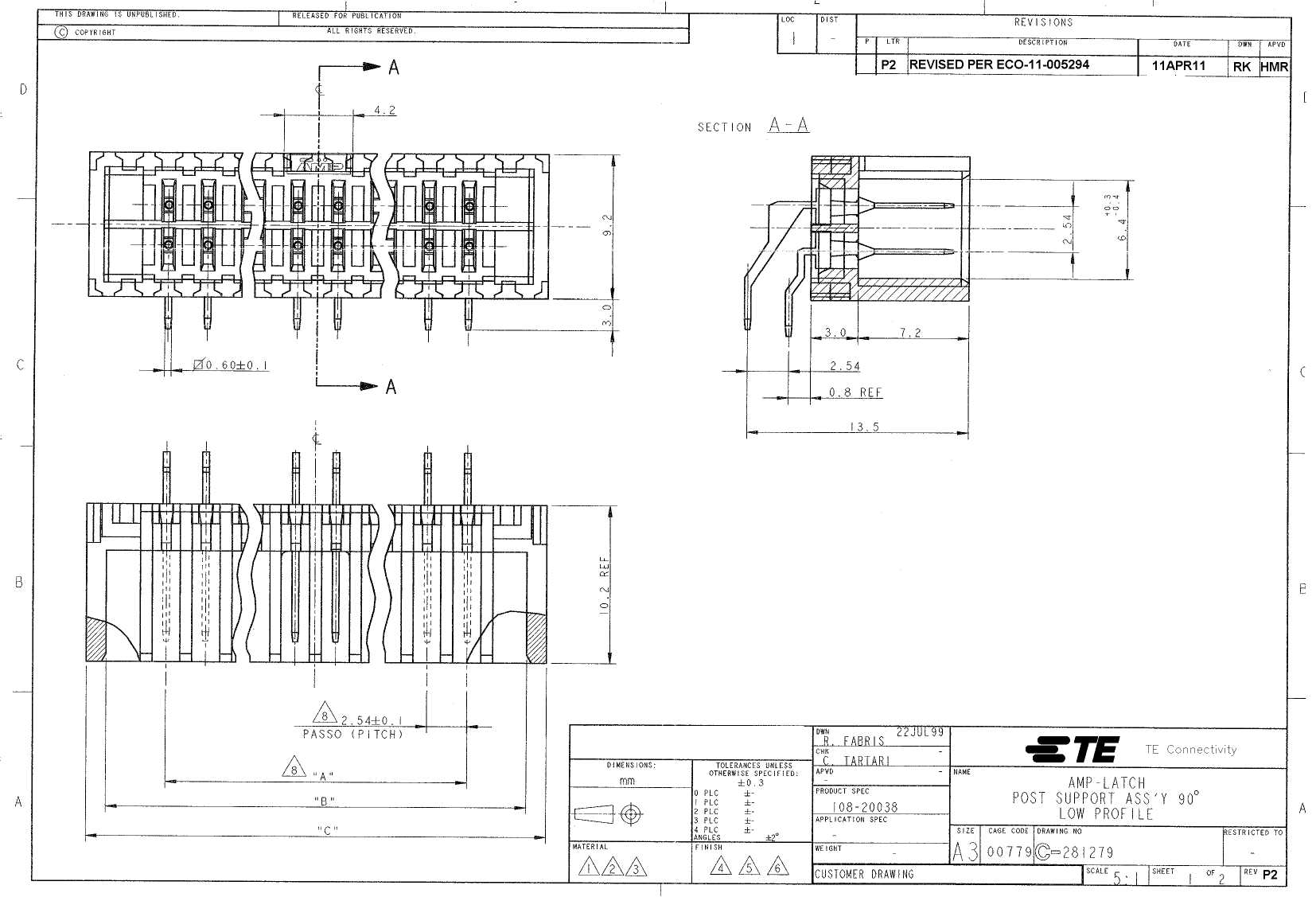

281285-5 Overview

TWO PART BOARD CONNECTOR

281285-5 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerTE Connectivity
Reach Compliance Codeunknown
Other featuresLOW PROFILE
body width0.362 inch
subject depth0.531 inch
body length2.3 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU ON NI
Contact point genderMALE
Contact materialBRASS
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Insulation resistance1000000000 Ω
Insulator colorGRAY
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number281285
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-65 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness8u inch
polarization keyCENTER
Rated current (signal)1 A
GuidelineUL, CSA
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts40
Base Number Matches1
