537-567 Series Normally Open
SMA
C M A
Commercial
Military
Avionics
S
Space
RF Characteristics
Frequency
GHz
DC-1
1-4
4-8
8-12
12-18
VSWR
(max)
1.10
1.20
1.30
1.40
1.50
Isolation
dB (min)
85
80
70
65
60
Ins. Loss
dB (max)
0.10
0.20
0.30
0.40
0.50
5X7 Series Normally
Open, SMA
Specifications
Operating Voltage:
(across temperature range)
12 Vdc (11-14 Vdc)
28 Vdc (24-32 Vdc)
Coil Current (max @ nom.Vdc & 20°C):
12 Vdc 310mA
28 Vdc 140mA
Switching Time:
15 mS maximum
Operating Temperature:
-25ºC to +65ºC (Standard)
-55ºC to +85ºC (Extended “T” Option)
Mechanical Life, Cycles:
1,000,000 minimum
Vibration, Operating:
10G RMS, 20-2000 Hz
Mechanical Shock, Non-Operating:
50G, 1/2 Sine, 11mS
Nominal Weight:
3.0 oz., (85g.)

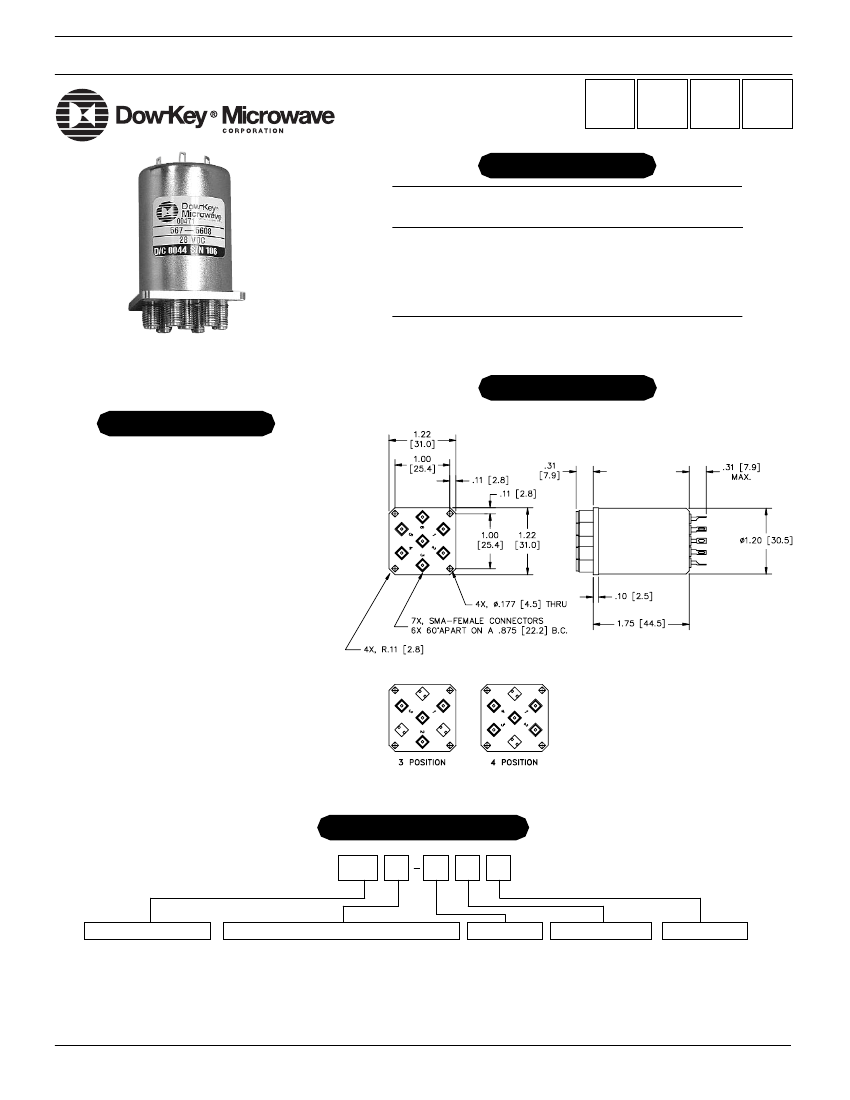

Mechanical
567-5X08 Shown
Part Number Selection
5X7
J
5
2
08
For Electrical Schematic
see page # 4-7
Family
Special Options
Actuator
Coil Voltage
Connectors
537
= SP3T
547
= SP4T
567
= SP6T
J
= 9 Pin Micro ‘D’ Connector
S
= Epoxy Seal
T
= -55
O
C to +85
O
C
5
= Normally Open
2
= 12 Vdc
3
= 28 Vdc
8
= 24 Vdc
9
= 15 Vdc
08
= SMA Female
ISO 9001 Certified
4-6
www.dowkey.com

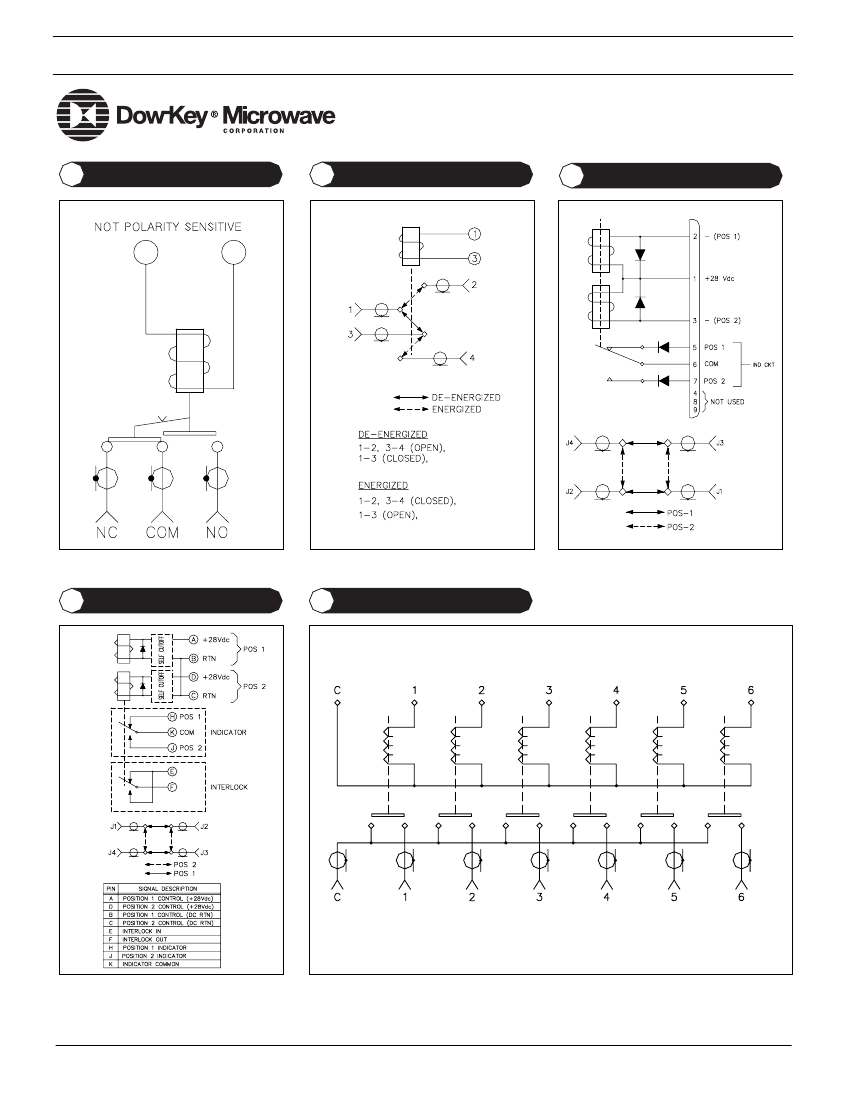

Special Section Electrical Schematics
1
409 Failsafe
2
411FL Failsafe
3
411JNT Pulse Latching
4
417LP Latching
5
537-567 N.O.
Terminals are not polarity sensitive
Shown with all ports normally open
ISO 9001 Certified
4-7
www.dowkey.com
