ISR5050-320.65-25-P: Description1-Port Saw Resonator, 320.65MHz Nom, HALOGEN FREE AND ROHS COMPLIANT, SMD, 8 PIN; CategoryPassive components Crystal/resonator; File Size142KB，1 Pages; ManufacturerITTI Company Limited; Websitehttp://www.itti-co.com; Environmental Compliance

Download Datasheet Parametric View All

ISR5050-320.65-25-P Overview

1-Port Saw Resonator, 320.65MHz Nom, HALOGEN FREE AND ROHS COMPLIANT, SMD, 8 PIN

ISR5050-320.65-25-P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	ITTI Company Limited
package instruction	SMD, 8 PIN
Reach Compliance Code	unknown
Crystal/Resonator Type	1-PORT
frequency stability	0.0008%
Frequency tolerance(MHz)	0.25
Installation features	SURFACE MOUNT
Nominal operating frequency	320.65 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
Parallel capacitor	3.2 pF
physical size	5mm X 5mm X 1.5mm
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

Halogen

Free

PRODUCTS

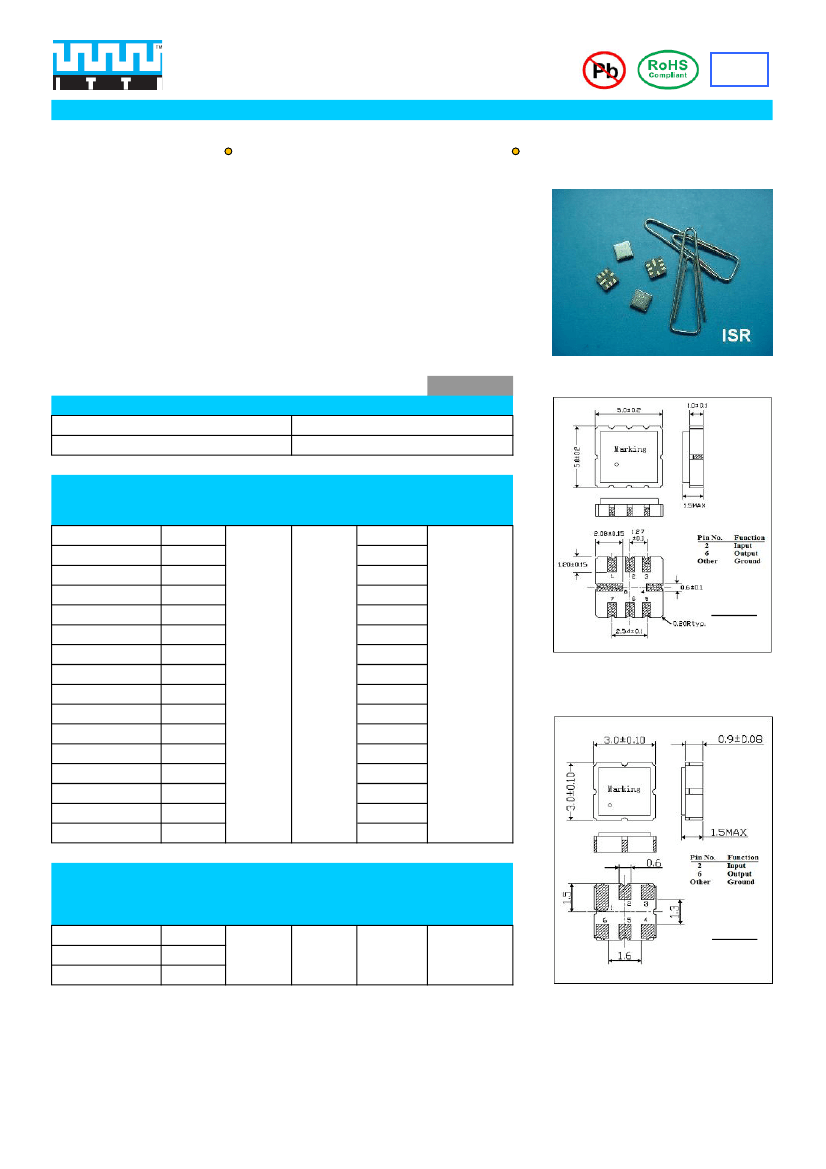

Typical Applications:

Communication

S.A.W. Resonator (SMD)

Short Range Wireless

ISR

(SMD S.A.W. Resonator Series)

Part Number: ISR5050 - Freq - Deviation - Package

ISR3030 - Freq - Deviation - Package

Example: ISR5050-303.875-25-P

ISR3030-303.875-25-P

■

Specification

Part No.

ISR5050 - Frequency - Deviation - Package

ISR3030 - Frequency - Deviation - Package

Example

ISR5050-303.875-25-P

ISR3030-303.875-25-P

ISR

■

Dimension

(Unit: mm)

Part

Number

ISR5050-303.875-25-P

ISR5050-304.30-25-P

ISR5050-310.00-25-P

ISR5050-314.00-25-P

ISR5050-314.50-25-P

ISR5050-315.00-25-P

ISR5050-320.65-25-P

ISR5050-345.00-25-P

ISR5050-359.90-25-P

ISR5050-417.50-25-P

ISR5050-418.00-25-P

ISR5050-423.22-25-P

ISR5050-432.92-25-P

ISR5050-433.42-25-P

ISR5050-433.92-25-P

ISR5050-479.50-25-P

Freq.

(in MHz)

303.875

304.300

310.000

314.000

314.500

315.000

320.650

345.000

Deviation

(in MHz)

Resonant

Loss

(dB)

Parallel

Capacitance

(pF max)

4.0

3.2

Temperature

Characteristics

-10°C to 60°C

(ppm/°C)

ISR5050

0.25

359.900

417.500

418.000

423.220

432.920

433.420

433.920

479.500

2.5 Max

3.2

2.3

±8

Part

Number

ISR3030-443.92-25-P

ISR3030-868.35-25-P

ISR3030-915.00-25-P

Freq.

(in MHz)

443.920

868.350

915.000

Deviation

(in MHz)

Resonant

Loss

(dB)

Parallel

Capacitance

(pF max)

Temperature

Characteristics

-10°C to 60°C

(ppm/°C)

ISR3030

0.25

2.5 Max

4.0

±8
