PCA1225L501M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PCA1225L501M

PCA1225L501M: Description1 ELEMENT, 500uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED; CategoryPassive components inductor; File Size107KB，1 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

PCA1225L501M Overview

1 ELEMENT, 500uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, AXIAL LEADED

PCA1225L501M Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KOA Speer
Reach Compliance Code	compliant
core material	FERRITE
DC Resistance	0.5 Ω
Nominal inductance(L)	500 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e0
Manufacturer's serial number	PCA
Number of functions	1
Number of terminals	2
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
Maximum rated current	0.8 A
Shape/Size Description	TUBULAR PACKAGE
shield	NO
surface mount	NO
Terminal surface	TIN LEAD
Terminal location	AXIAL
Terminal shape	WIRE
Test frequency	0.001 MHz
Tolerance	20%
Base Number Matches	1

Preview

Download Datasheet

View All

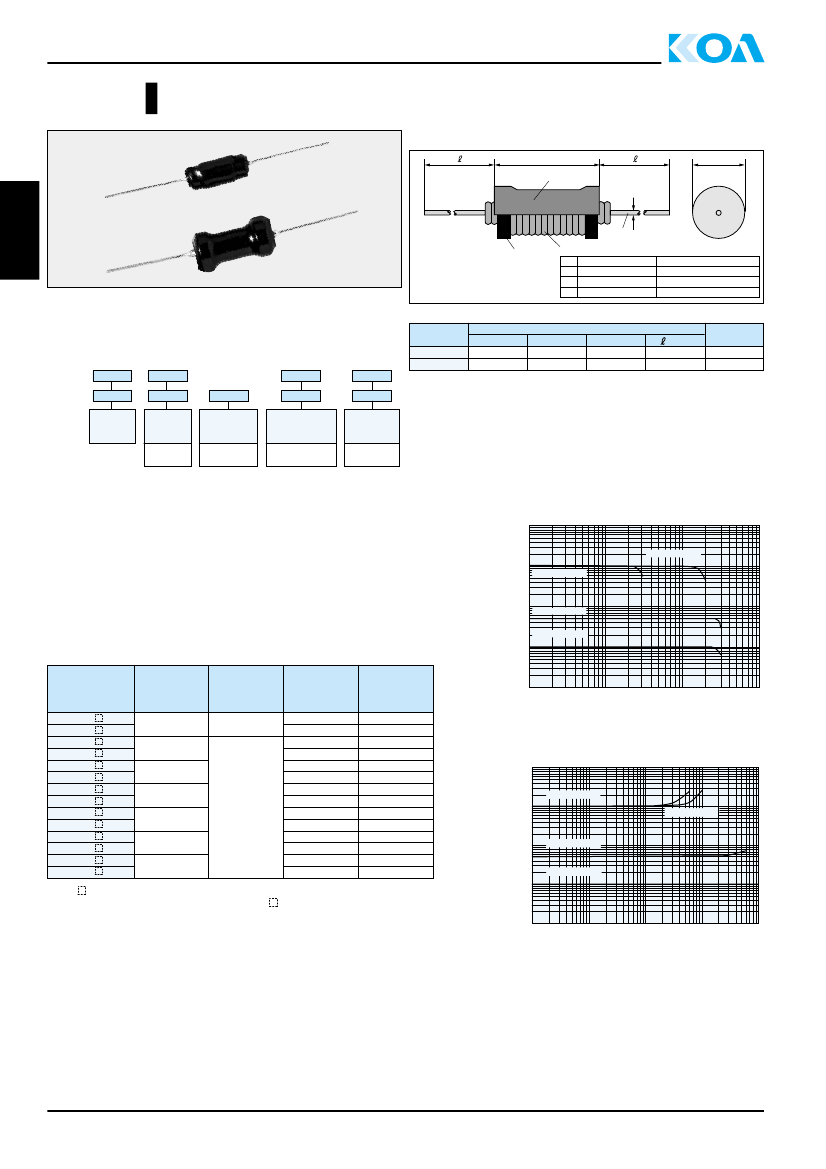

HIGH FREQUENCY INDUCTORS

PCA

インダクタ

Inductor

アキシャル型パワーチョークコイル

Axial Lead Type Power Choke Coils

■外½寸法及び構造図 Dimensions and Construction

①

φd

④

②

③

外装 : 収縮チューブ

Seal：Shrinkable tube

無表示

No marking

① 収縮チューブ又はクリア塗装 Shrinkable tube or Clear coating

② フェライトコア Ferrite core

③ マグネットワイヤ Magnet wire

④ リード線

Lead wire

■品名構成 Type Designation

Old Type

New Type

PCA

品種

Product

Code

½名

Type

PCA0618

PCA1225

100

許容差

Tolerance

Ｋ：±10%

M：±20%

L Max.

18.0

25.0

寸法Dimensions（mm）

D Max.

d（Nominal）

6.0

0.65

12.0

0.8

Min.

Weight

（g/1000pcs）

1300

7700

0618

種類

Style

0618

1225

端子表面材質

Terminal

Surface Material

T：Sn

L：Sn/Pb

100

公称インダクタンス

Nominal

Inductance

3 digits

（unit：μH）

端子表面材質は鉛フリーめっき品が標準となります。

■特長 Features

カスタム品にも対応いたします。

クリア塗装品についても対応いたしますのでお問い合せ下さい。

●

端子鉛フリー品は、RoHS対応品です。

●

Custom products are available on request.

●

Clear coating products are also available upon request.

●

Products with lead free termination meet RoHS requirements.

●

■特性 Characteristics

直流重畳特性 DC Bias Characteristic

10000

PCA1225-102K

イ

ンダクンス (μH)

タ

Inductance

1000

PCA0618-102K

100

■定格 Ratings

½用温度範囲 Operating Temperature Range

測定周波数 Measuring Frequence 1kHz

½名

Type

PCA0618

PCA1225

PCA0618

PCA1225

PCA0618

PCA1225

PCA0618

PCA1225

PCA0618

PCA1225

PCA0618

PCA1225

PCA0618

PCA1225

100M

250□

500□

101□

251□

501□

102□

公称インダクタンス

Nominal

Inductance

（μH）

100

250

500

1000

K：±10%

M：±20%

インダクタンス

許容差

Inductance

Tolerance

M：±20%

PCA1225-500K

PCA0618-100M

−20℃∼＋80℃

直流抵抗

Resistance

（mΩ） Max.

150

200

300

125

1000

300

2000

500

3000

1200

イ

ンダクンス (μH)

タ

Inductance

許容直流電流

Allowable

DC Current

（A） Max.

2.00

5.00

1.20

4.00

0.80

3.00

0.60

2.00

0.40

1.00

0.25

0.80

0.20

0.60

100

1000

10000

直流重畳電流 DC Bias (mA)

L−f 特性 L−Frequency Characteristics

10000

PCA1225-102K

1000

PCA0618-102K

100

PCA1225-500K

PCA0618-100M

½名中には、端子表面材質記号

（T、L）

が入ります。

The code for terminal surface material (T, L) enters .

½名中□には、インダクタンス許容差（K、M）

が入ります。

The code for Inductance Tolerance (K, M) enter □.

温度上昇は45℃以下です。The temperature rise is 45℃ or less.

許容電流印加時のインダクタンス変化率は−15％以内です。

When the allowable current is loaded, the inductance drop is within-15%.

100

1000

周波数 Frequency (kHz)

■½用上の注意 Precautions for Use

インダクタに強い力、過度の衝撃を加えると電気、磁気特性が変化することがありますので、搭載時及び搭載後に過度の衝撃が加わらないように

して下さい。

●

コイルボビンにフェライトを½用している½品のため、スイッチング周波数により、発熱量が異なるので½用温度が85℃以下になるようにご½用

下さい。

●

Avoid strong pressure or excessive shock at mounting or after mounting because electric/magnetic characteristics may change if it is applied to the inductors.

●

Due to the products using ferrite for coil bobbins, use them 85 ℃ or under of inductor temperature because the volume of generating heat varies

depending on switching frequency.

●

本カタログに掲載の仕様は予告なく変更する場合があります。御注文及び御½用前に、納入仕様書などで内容を御確認下さい。

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

www.koanet.co.jp
