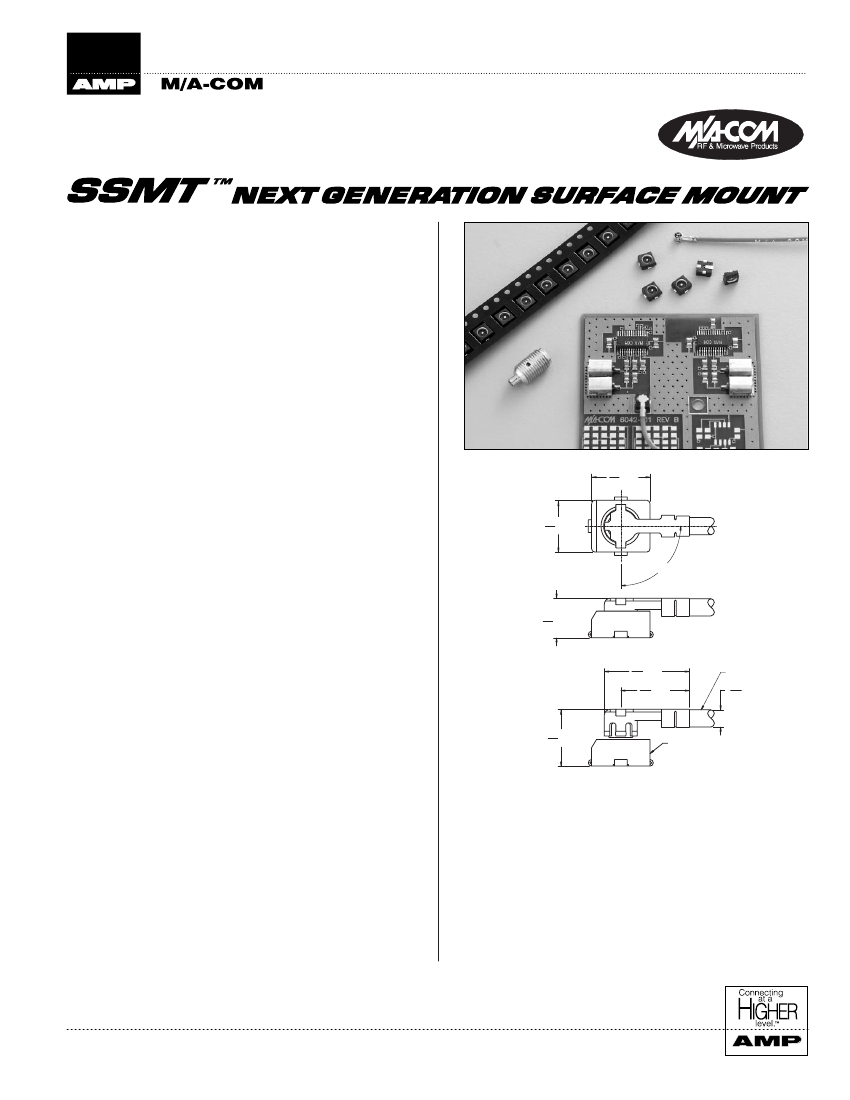

SSMT™ Interconnect System
Microminiature Surface Mount RF Connectors
•
•
•
•
•
3.0 mm mated height
Excellent interface retention
Flexible micro-coax cable
360 degree mated rotation
Tape and Reel packaging
M/A-COM’s next generation SSMT™ surface mount
Interconnect System is designed to provide superior electrical
and mechanical performance for wireless communication
applications. The SSMT™ occupies less printed circuit board
(PCB) real estate than conventional through hole coaxial con-
nectors. An innovative microstrip mounting pattern and plug
receptacle design ensure reliable grounding and PCB reten-
tion characteristics. The SSMT™ Interconnect System allows
closer pitch/spacing, standing a mere 3.0 mm (fully mated
height) off the board. The mated SSMT™ interface allows 360
degrees of rotation providing maximum PCB design flexibility.
The SSMT™ interface has been designed to provide optimal
retention for applications where shock, vibration or cable flex-
ure may be encountered. Force to disengage by cable load
(cam-out) exceeds 300 grams.
These next generation enhancements and features have been
built into the SSMT™ design to provide the performance of
much larger industry standard connectors. The SSMT™
Interconnect System consistently achieves broad band electri-
cal performance through 6 GHz with a maximum VSWR of
1.20:1 at 2 GHz. This broad band performance establishes a
reliable interface that can be utilized for future system
upgrades without concern for performance degradation.
The SSMT™ utilizes a common OSMT plug receptacle, part
number 2367-0000-54, which is designed for high volume
assembly using surface mount technology and is available in
tape and reel packaging for automatic pick and place board
assembly. The mating cable jack is available terminated to a
highly flexible micro-coax cable as either a pigtail, jumper or
standard interseries connector assembly to meet your needs.
The SSMT™ Interconnect System can be manually mated,
facilitating high volume assembly and eliminating the need for
special engagement tooling. The SSMT™ interface design
aligns the center contacts prior to full mating to ensure a
robust mechanical engagement. Interface durability is rated at
100 mating cycles.
4.5
REF
.177
4.0
REF
.157
360° ROTATION
MATED
HEIGHT
3.0
REF
.120
MINIMUM CLEARANCE
FOR DISENGAGEMENT
6.6
REF
.258
5.3
REF
.208
SSMT™JACK
1.3 DIA REF
.052 (CABLE)
4.4
REF
.172
SMT PLUG
Note: Unless otherwise specified, all dimensions are mm/in
M/A-COM’s SSMT™ Interconnect System is ideal for wireless
surface mount applications in cellular basestations, handsets,
personal communications systems (PCS), global positioning
systems (GPS), wireless local loops (WLL), wireless LAN
(WLAN) and paging. The SSMT™ provides versatile, high
quality RF solutions for next generation interconnect needs.
M/A-COM is an ISO 9001 certified manufacturer and main-
tains a SPC controlled manufacturing environment. Call your
local Sales or authorized Distribution office for additional
information or qualification samples.
V4.00
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel. +85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
Specifications
Requirement
General
Materials
SMT Plug
SSMT™ Cable Jack
Housing:
Contacts:
Outer Contact:
Inner Contact:
Dielectric:
Polyphenylene Sulfide
Copper Alloy
Beryllium Copper
Beryllium Copper
Polypropylene, GF
Detail
Finish
Plug and cable jack - Contacts: Gold plate over nickel plate
Electrical
Frequency
Nominal Impedance
Voltage Rating
VSWR (Mated Pair)
Insulation Resistance
Dielectric Withstanding Voltage
Contact Resistance (Connectors Only)
Center Contact
Outer Contact
Insertion Loss (Connectors Only)
dc - 6 GHz
50 Ohms
250 Volts (VRMS Maximum) @ Sea Level
1.20:1 Maximum @ 2 GHz
1.40:1 Maximum @ 6 GHz
5000 Megohms Minimum
500 Volts (VRMS Minimum) @ Sea Level
15 milliohms Maximum
10 milliohms Maximum
.15dB Max. @ 6 GHz
Mechanical
Connector Durability
Tape/Reel Packaging (Plug)
Force to Engage
Force to Disengage
Force to Disengage by
Cable Load (camout)
100 mating cycles
12mm per EIA-481
5.5 lbs. Max. (3.5 lbs. typ.)
(2.0 lbs. typ.) 4.0 lbs. Max. (2.0 lbs. typ.)
300 Grams Min. (800 Grams typ. initial mate)
Environmental
Temperature Rating (Mated Pair)
Resistance to Solder Heat
-40°C (-40°F) to +125°C (257°F)
Infrared, convection and vapor phase solderable (plug only). Maximum reflow time/temperature not to exceed
260°C for 3 minutes.
Cable Specifications
Materials
Jacket:
Shield:
Dielectric:
Center Conductor:
Minimum Bend Radius
Insertion Loss (Cable Only)
Center Conductor Resistance
FEP (polytetraflouroethylene)
Silver plated copperwire, 44 AWG, 90% min. coverage
PTFE (polytetraflouroethylene)
Silver plated copper clad steel, 30 AWG
6.35mm (.250 inch)
0.5 dB/ft., 2.0 dB/m @ 1 GHz
0.9 dB/ft., 3.0 dB/m @ 2 GHz
.25 Ohms per foot average.
819 milliohm/ meter Nom.; 250 milliohm/ Ft. Nom.
OUTER JACKET
SHIELD
(BRAID)
DIELECTRIC
CENTER
CONDUCTOR
1.3 DIA REF
.052
1.0 DIA REF
.040
0.8 DIA REF
.030
0.3 DIA REF
.010
V4.00
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel. +85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.

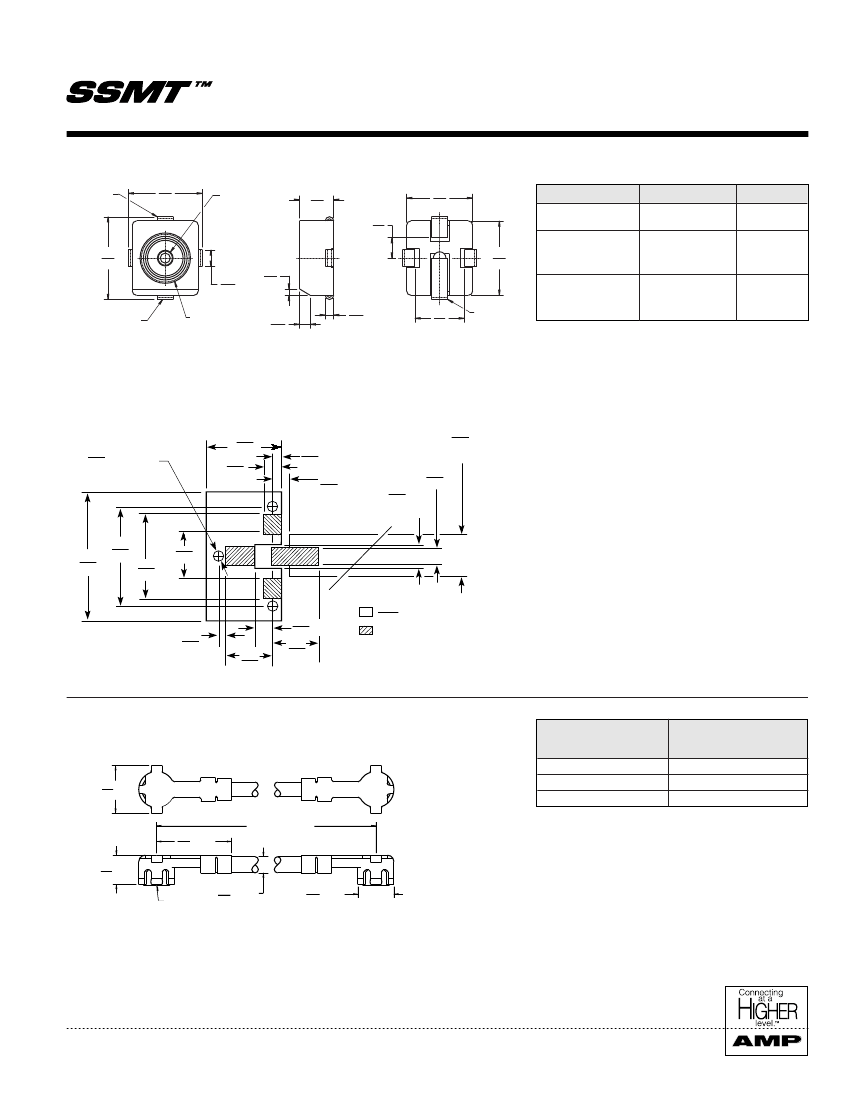

Surface Mount Coaxial Connectors
Straight SMT PCB Mount Plug Receptacle
GROUND
TERMINAL
(3 PLCS)
4.5
.177
.020
CENTER
CONTACT
(PIN)
2.1
.081
1.24
.049
4.5
.177
4.0
.157
Part Number
2367-0000-54
2367-5001-54
Packaging
Bulk
178mm
(7.0 inches)
Dia. Taping
330mm
(13.3 inches)
Dia. Taping
Quantity
Multiple
of 100
800
pcs/reel
3000
pcs/reel
5.0
.197
0.4
1.0
.015
.039
4 PLACES
OUTER
CONTACT
0.6
.025
0.5
.020
4 PLACES
3.0
.118
CENTER
CONTACT
TERMINAL
CENTER
CONTACT
TERMINAL
2367-5002-54
Recommended Mounting Pattern
for Microstrip Line
0.5 VIA HOLES
.020 3 PLCS
5.3
.207
1.2
.047
0.6
.024
1.2
.047
1.6
.064
(SEE NOTE 2)
2.9
.113
(SEE NOTE 2)
1.2
.047
Notes:
1. Printed wiring board material: glass epoxy.
FR-4 or similar, relative permittivity:
4.8, 1 oz. copper clad both sides.
2. These dimensions valid for 1.6 (.062) board
thickness.
9.0
.354
7.0
.274
6.0
.236
3.0
.118
0.5
.019
3.3
.128
1.2
.047
3.3
.128
1 OZ
COPPER
.0014
AREA FREE OF SOLDER MASK

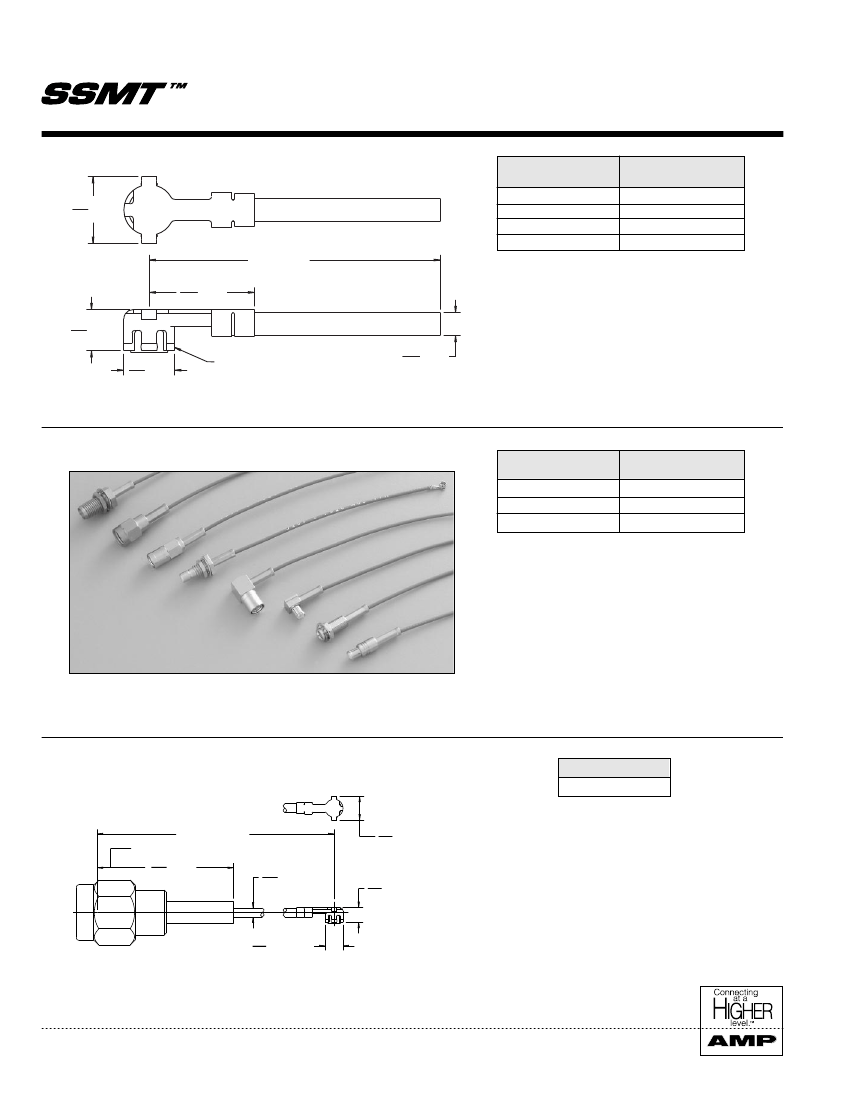

Right Angle Jack to Jack Cable Assembly
Part
Number
3.4
REF
.132
LENGTH "A"
CENTERLINE TO CENTERLINE
9960-1100-24
9960-1200-24
9960-1305-24
5.3 REF
.208
Cable
Length
1
mm
(Inches)
100
4
200
8
305
12
2.1 REF
.081
SSMT™
JACK
1.3 REF
.052 CABLE
2.5 DIA
.100 REF
1. Consult factory for non-standard cable lengths.
Length ‘A’ Tolerances.
Length ‘A’ mm (IN)
Tolerance mm (IN)
50 To 100 (3.94)
± 3 (± .12)
101 To 500 (3.98 to 19.69) ± 5 (± .20)
Over 500 (19.69)
± 10 (± .39)
2. Connector centerlines align ±30° as shown for
lengths of 165mm (6.5 in.) or less. Cable assem-
blies over 165mm
(6.5 in.) have randomly aligned connectors.
3. SSMT™ Jack is not mateable with OSMT High
Retention plug receptacle (2367-5006-54)
V4.00
Note: Unless otherwise specified, all dimensions are mm/in
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel. +85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
Surface Mount Coaxial Connectors
Right Angle Jack Cable Pigtail
3.4
REF
.132
Part
Number
9960-2100-24
9960-2200-24
9960-2305-24
9960-2510-24
Cable Length
1
mm (Inches)
100
200
305
510
(4)
(8)
(12)
(20)
LENGTH "A"
CENTERLINE TO CABLE END
5.3
REF
.208
2.1
REF
.081
2.5
DIA
.100 REF
SSMT™JACK
1.3
REF
.052 CABLE
1. Consult factory for non-standard cable lengths.
Cable length tolerance:
Length ‘A’ Tolerances.
Length ‘A’ mm (IN)
Tolerance mm (IN)
50 To 100 (3.94)
± 3 (± .12)
101 To 500 (3.98 to 19.69) ± 5 (± .20)
Over 500 (19.69)
± 10 (± .39)
2. SSMT™ Jack is not mateable with OSMT High
Retention Plug receptacle (2367-5006-54).
Note: To avoid damaging the cable, minimize time at temperature while soldering and/or applying heat to unterminated end of cable.
Inter-Series Cable Assemblies
Part
Number
9960-4100-XX
9960-4200-XX
9960-4305-XX
Cable Length
2
mm (Inches)
100
(4)
200
(8)
305
(12)
Housing Finish: SMA, Passivated stainless steel; SMB and D-sub coax, Gold
Plate; OSX, Nickel plate.
1. To order, replace XX in part number with appropriate
dash numbers from tables below indicating connector
choice.
2. Consult factory for non-standard cable lengths:
Length ‘A’ Tolerances.
Length ‘A’ mm (IN)
Tolerance mm (IN)
50 To 100 (3.94)
± 3 (± .12)
101 To 500 (3.98 to 19.69) ± 5 (± .20)
Over 500 (19.69)
± 10 (± .39)
3. Connectors are randomly aligned unless otherwise
noted below.
4. SSMT™ Jack is not mateable with OSMT High
Retention Plug receptacle (2367-5006-54).
SMA Straight Plug
Dash Number
-01
LENGTH "A"
REFERENCE PLANE TO CENTERLINE
19.2
REF
1.3 DIA REF
.757
.052 CABLE
3.4
REF
.132
2.1
REF
.081
SSMT™ RIGHT
ANGLE JACK
SMA STRAIGHT PLUG
2.5
DIA REF
.100
V4.00
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel. +85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
Surface Mount Coaxial Connectors
SMA Bulkhead Jack
LENGTH "A"
REFREENCE PLANE TO CENTERLINE
21.3 REF
.839
1.3 DIA REF
.052 CABLE
3.4 REF
.132
2.1 REF
.081
Dash Number
-02
6.4 DIA MIN
.250
6.0 MIN
.235
RECOMMENDED
MOUNTING HOLE
7.9 HEX
.312
2.5
DIA REF
.100
3.2 MAX
THICKNESS
.125 PANEL
SSMT™ RIGHT
ANGLE JACK
SMA BULKHEAD JACK
SMB Straight Plug
Dash Number
-03
LENGTH "A"
REFERENCE PLANE TO CENTERLINE
21.9
REF
1.3 DIA REF
.862
.052 CABLE
3.4 REF
.132
2.1
REF
.081
SSMT™ RIGHT
ANGLE JACK
2.5
DIA REF
.100
SMB Bulkhead Jack
LENGTH "A"
REFERENCE PLANE TO CENTERLINE
17.1 REF
.675
7.4
1.3 DIA REF
.290
.052 CABLE
3.4 REF
.132
Dash Number
-04
2.1 REF
.081
4.9 DIA MIN
.192
6.4 HEX
.250
2.4
MAX PANEL
THICKNESS .093
2.5 DIA REF
7.9 HEX .100
.312
SSMT™ RIGHT
ANGLE JACK
4.4 MIN
.172
RECOMMENDED
MOUNTING HOLE
SMB Right Angle Plug
LENGTH "A"
CENTERLINE TO CENTERLINE
12.7
REF
1.3
.500
DIA REF
.052
CABLE
3.4
REF
.132
2.1
REF
.081
SSMT™ RIGHT
ANGLE JACK
10.8
.427
2.5
DIA REF
.100
SMB RIGHT ANGLE PLUG
Dash Number
-05
14.0
.550
Note: Unless otherwise specified, all dimensions are mm/in
M/A-COM Division of AMP Incorporated
s
North America: Tel. (800) 366-2266, Fax (800) 618-8883
s
Asia/Pacific: Tel. +85 2 2111 8088, Fax +85 2 2111 8087
s
Europe: Tel. +44 (1344) 869 595, Fax +44 (1344) 300 020
V4.00
www.macom.com
AMP and Connecting at a Higher Level are trademarks.
Specifications subject to change without notice.
京公网安备 11010802033920号
EEWORLD
