FEATURES AND SPECIFICATIONS
Features and Benefits
2 to 20 circuits
Holds wires for secure, reliable contact
Industry-standard interface
End-to-end stackable
High flammability rating
Electrical
Voltage: 300 V
Maximum Current: 10 Amp
Insulation Resistance: >5,000 Megaohms
3.5mm (.138”) Pitch
Beau Eurostyle®
Pluggable PCB
Terminal Block
39351
180
o
Wire Entry
Mechanical
Rec. Tightening Torque:
2.5 in. lbs, .31 Nm
Operating Temperature: 140
o
C
Wire Strip Length: 1/4” or 6mm
Reference Information
File No. E48521
Guide No. XCFR2
UL Recognized Component to US and
Canadian safety requirements
UL :
Physical
Housing: Polyamide 4/6, black
Screws: M2 Cheesehead, Silicon Bronze
Screw Plating: Nickel
Contacts: Beryllium Copper
Contact Plating: Hot Tin Dip
Pressure Clamp: Yellow Brass
Pressure clamp plating: Nickel
Wire Range: 16 to 24 AWG, 1.0 to 0.2mm
2
35 Series

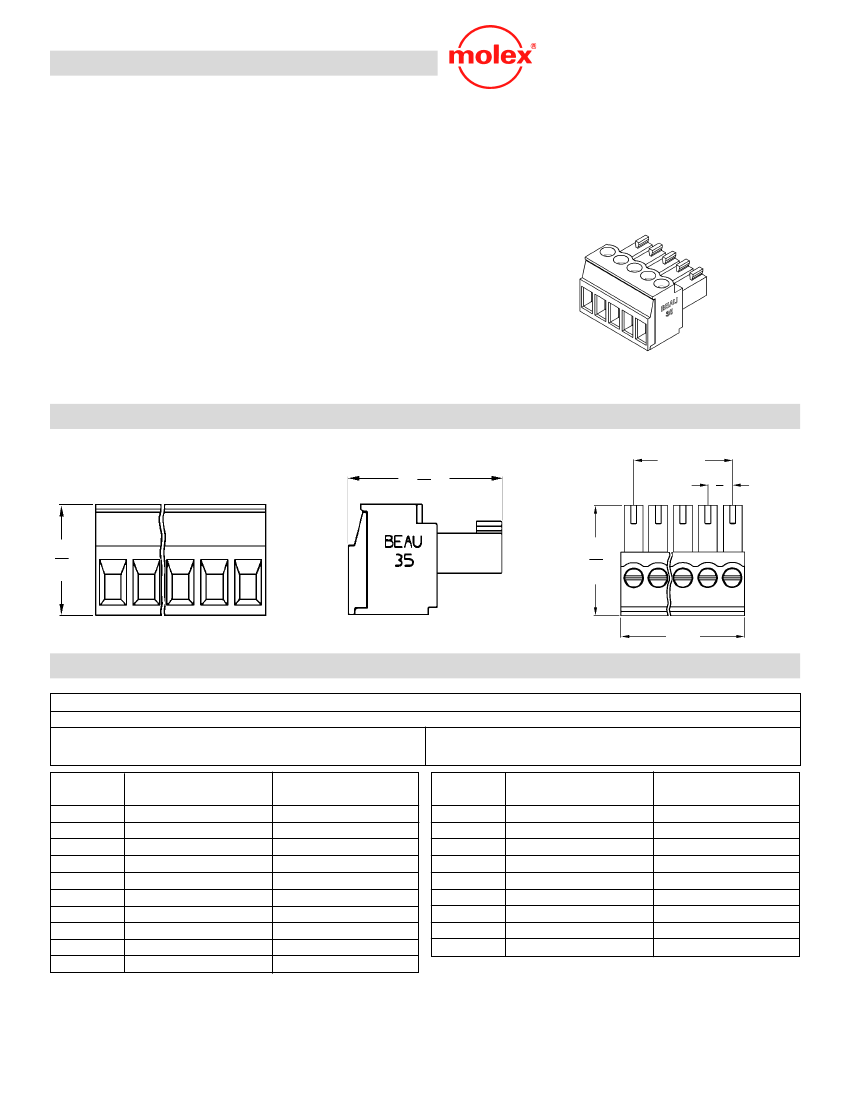

CATALOG DRAWING (FOR REFERENCE ONLY)
A
15.57
.613”
3.5
.138”
11.28
.444”
15.57
.613”
C
ORDERING INFORMATION AND DIMENSIONS
Order #
Replace XX with # of circuits, 02-20
Right Angle
Tin Plated
39351-00XX
# of
Circuits
2
3
4
5
6
7
8
9
10
11
A
in
.14
.28
.41
.55
.69
.83
.96
1.10
1.24
1.38
mm
3.50
7.00
10.50
14.00
17.50
21.00
24.50
28.00
31.50
35.00
in
.28
.41
.55
.69
.83
.97
1.10
1.24
1.38
1.52
C
mm
7.11
10.41
13.97
17.53
21.08
24.64
27.94
31.50
35.05
38.61
# of
Circuits
12
13
14
15
16
17
18
19
20
A
in
1.52
1.65
1.79
1.93
2.07
2.20
2.34
2.48
2.62
mm
38.50
42.00
45.50
50.00
52.50
56.00
59.50
63.00
66.50
in
1.65
1.79
1.93
2.07
2.21
2.34
2.48
2.62
2.76
Gold Plated
39351-01XX
C
mm
41.91
45.47
49.02
52.58
56.13
59.44
62.99
66.55
70.10
*Consult factory for imprinting and other options
Molex Industrial Division
New England Operations
Gilford, NH 03249-6600
Phone
(603) 524-5101
Fax
(603) 524-1627
