5788827-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5788827-1

5788827-1: DescriptionCONNECTOR,D-SHELL,PCB MNT,RECEPT,37 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40; CategoryThe connector The connector; File Size220KB，12 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5788827-1 Overview

CONNECTOR,D-SHELL,PCB MNT,RECEPT,37 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40

5788827-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	305465473
Reach Compliance Code	not_compliant
ECCN code	EAR99
body width	0.494 inch
subject depth	0.226 inch
body length	2.729 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYAMIDE
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	SCREWLOCKS
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Guideline	UL, CSA
Shell surface	TIN
Shell material	CARBON STEEL
Terminal length	0.125 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	37

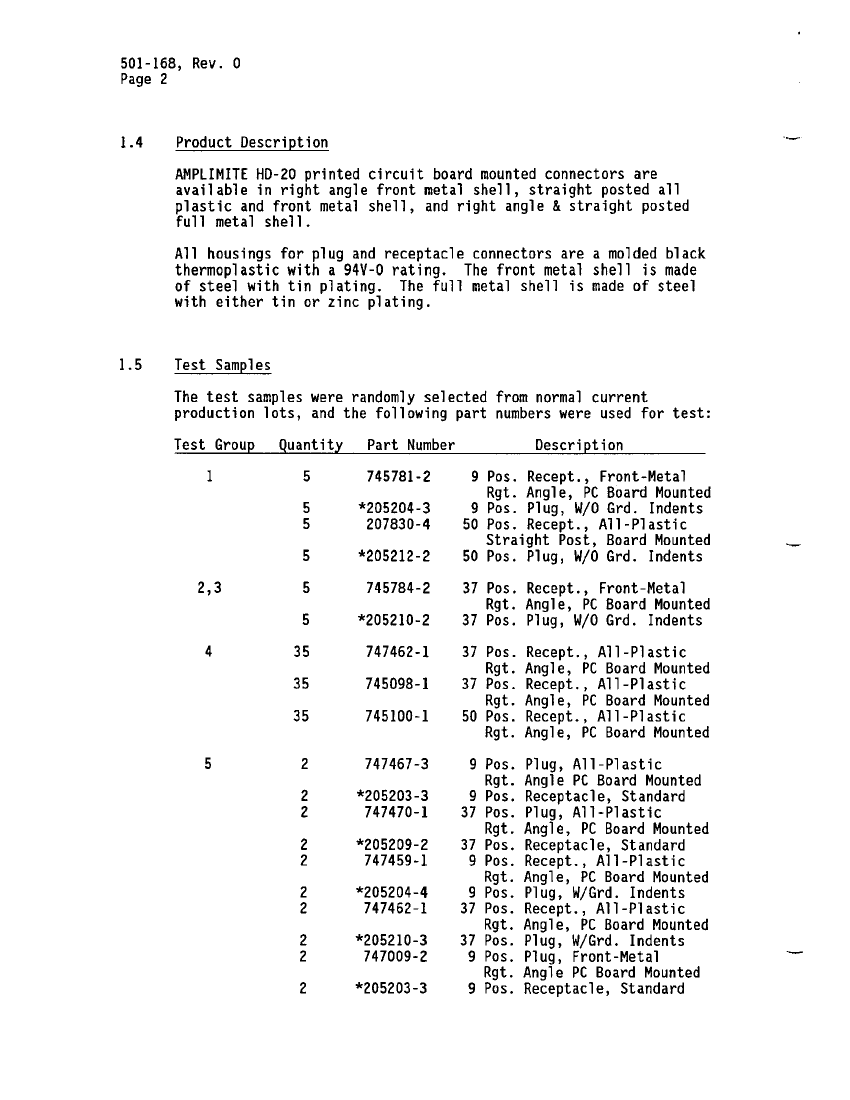

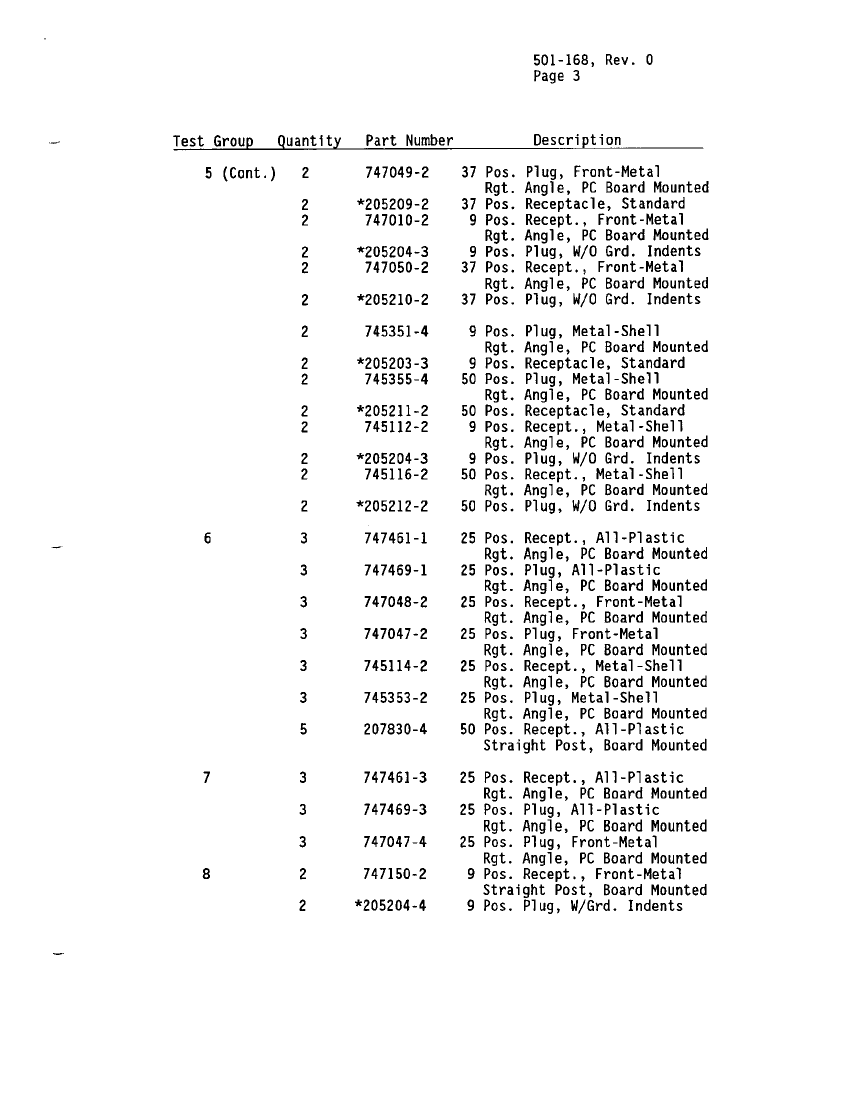

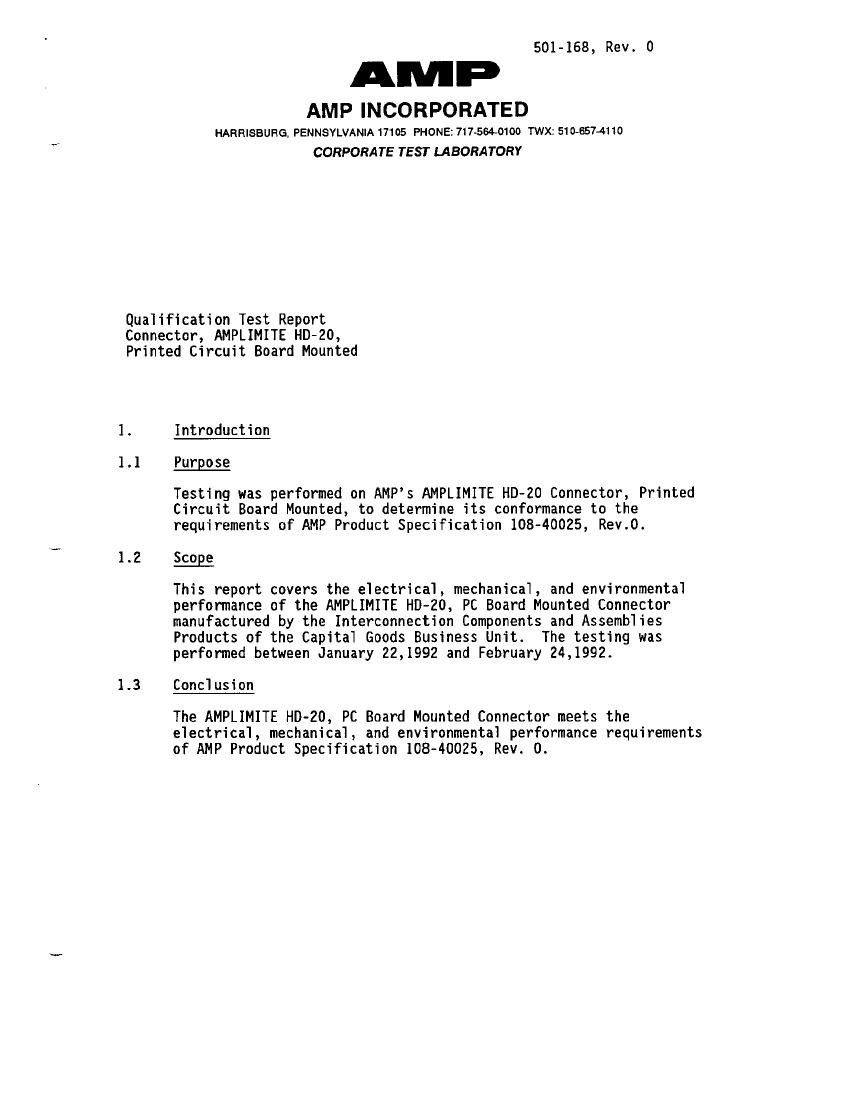

Preview

Download Datasheet

View All

5788827-1 Related Products

	5788827-1	750714-1	747850-6	788798-2	788798-3	747831-4
Description	CONNECTOR,D-SHELL,PCB MNT,RECEPT,37 CONTACTS,SKT,0.109 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR, 37 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE	CONNECTOR,D-SHELL,PCB MNT,RECEPT,25 CONTACTS,PIN,0.109 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.108 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR,D-SHELL,PCB MNT,PLUG,15 CONTACTS,SKT,0.108 PITCH,PC TAIL TERMINAL,#4-40	CONNECTOR, 37 CONTACT(S), FEMALE, D SUBMINIATURE CONNECTOR, SOLDER, RECEPTACLE
Is it Rohs certified?	conform to	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	not_compliant	unknown	compliant	unknown	compliant	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	PLUG	PLUG	RECEPTACLE
Contact to complete cooperation	AU ON NI	GOLD (30)	AU ON NI	AU ON NI	AU ON NI	GOLD (30)
Contact point gender	FEMALE	FEMALE	MALE	FEMALE	FEMALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	BRASS	PHOSPHOR BRONZE	PHOSPHOR BRONZE	PHOSPHOR BRONZE
insulator material	GLASS FILLED POLYAMIDE	POLYAMIDE	THERMOPLASTIC	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Shell surface	TIN	TIN	TIN	TIN	TIN	TIN
Shell material	CARBON STEEL	CARBON STEEL	STEEL	CARBON STEEL	CARBON STEEL	STEEL
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
contact mode	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	-
Contact style	RND PIN-SKT	-	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-
Insulator color	BLACK	-	BLACK	BLACK	BLACK	-
Installation option 1	#4-40	-	#4-40	#4-40	#4-40	-
Installation option 2	SCREWLOCKS	-	ROUND STANDOFF	THREADED	THREADED	-
Installation method	STRAIGHT	-	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	-
Number of rows loaded	2	-	2	2	2	-
Options	GENERAL PURPOSE	GENERAL PURPOSE	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	-	STAGGERED	STAGGERED	STAGGERED	-
Total number of contacts	37	37	25	15	-	37
