DS52-0002TR datasheet, PDF - EEWORLD Datasheet

DS52-0002TR: DescriptionSplitter, 1850MHz Min, 1990MHz Max, 0.6dB Insertion Loss-Max, PLASTIC, MS-012AA, SOIC-8; CategoryWireless rf/communication Radio frequency and microwave; File Size131KB，2 Pages; ManufacturerMACOM; Websitehttp://www.macom.com

Download Datasheet Parametric Compare View All

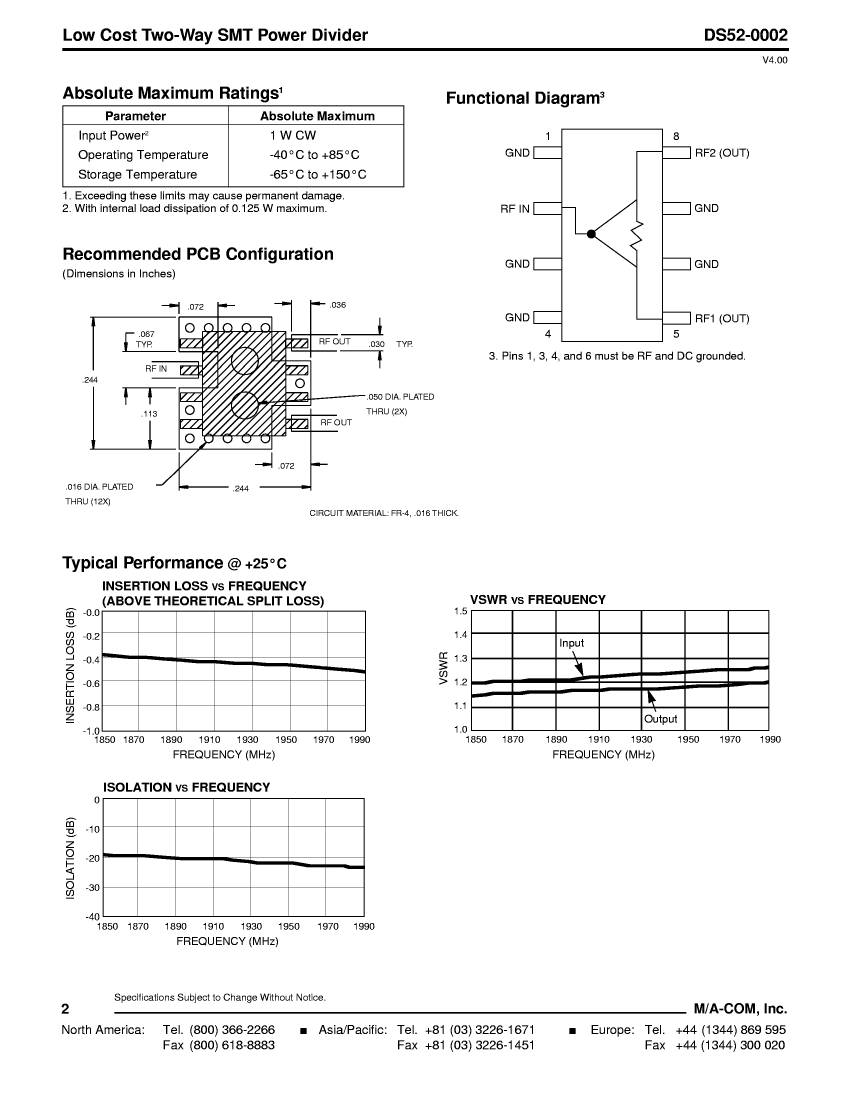

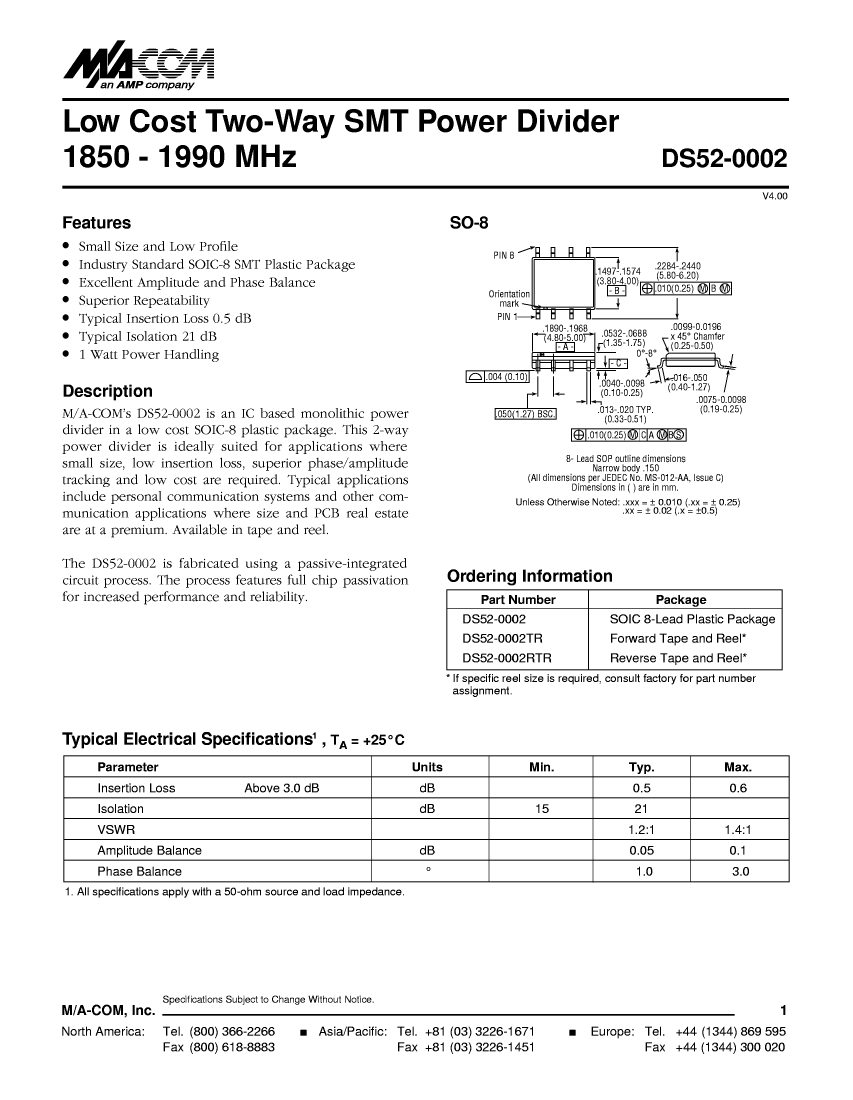

DS52-0002TR Overview

Splitter, 1850MHz Min, 1990MHz Max, 0.6dB Insertion Loss-Max, PLASTIC, MS-012AA, SOIC-8

Parameter Name	Attribute value
Maker	MACOM
package instruction	SOP8,.25
Reach Compliance Code	compliant
Other features	HIGH RELIABILITY, ISOLATION-MIN (DB):15
Characteristic impedance	50 Ω
structure	COMPONENT
Maximum input power (CW)	44.77 dBm
Maximum insertion loss	0.6 dB
Installation features	SURFACE MOUNT
Number of terminals	8
Maximum operating frequency	1990 MHz
Minimum operating frequency	1850 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	SOP8,.25
RF/Microwave Device Types	SPLITTER
surface mount	YES
Maximum voltage standing wave ratio	1.6
Base Number Matches	1

	DS52-0002TR	DS52-0002RTR	DS52-0002
Description	Splitter, 1850MHz Min, 1990MHz Max, 0.6dB Insertion Loss-Max, PLASTIC, MS-012AA, SOIC-8	1850 MHz - 1990 MHz RF/MICROWAVE SPLITTER, 0.6 dB INSERTION LOSS	Splitter, 1850MHz Min, 1990MHz Max, 0.6dB Insertion Loss-Max, PLASTIC, MS-012AA, SOIC-8
Maker	MACOM	MACOM	MACOM
Reach Compliance Code	compliant	unknown	compliant
Characteristic impedance	50 Ω	50 Ω	50 Ω
structure	COMPONENT	COMPONENT	COMPONENT
Maximum input power (CW)	44.77 dBm	30 dBm	44.77 dBm
Maximum insertion loss	0.6 dB	0.6 dB	0.6 dB
Maximum operating frequency	1990 MHz	1990 MHz	1990 MHz
Minimum operating frequency	1850 MHz	1850 MHz	1850 MHz
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
RF/Microwave Device Types	SPLITTER	SPLITTER	SPLITTER
Maximum voltage standing wave ratio	1.6	1.4	1.6
Base Number Matches	1	1	1
package instruction	SOP8,.25	-	SOP8,.25
Other features	HIGH RELIABILITY, ISOLATION-MIN (DB):15	-	HIGH RELIABILITY, ISOLATION-MIN (DB):15
Installation features	SURFACE MOUNT	-	SURFACE MOUNT
Number of terminals	8	-	8
Package body material	PLASTIC/EPOXY	-	PLASTIC/EPOXY
Encapsulate equivalent code	SOP8,.25	-	SOP8,.25
surface mount	YES	-	YES
