BTC-5R0-03 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> inductor> BTC-5R0-03

Preview

BTC-5R0-03: DescriptionGeneral Purpose Inductor, 4.74uH, 2 Element, SMD,; CategoryPassive components inductor; File Size116KB，2 Pages; ManufacturerFenghua (HK) Electronics Ltd.

Download Datasheet Parametric View All

BTC-5R0-03 Overview

General Purpose Inductor, 4.74uH, 2 Element, SMD,

BTC-5R0-03 Parametric

Parameter Name	Attribute value
Maker	Fenghua (HK) Electronics Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	0.023 Ω
Nominal inductance(L)	4.74 µH
Inductor Applications	DC-DC CONVERTER
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	BTC
Number of functions	2
Number of terminals	4
Maximum rated current	3.2 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
special characteristics	PARALLEL CONNECTED
surface mount	YES
Terminal location	ON CIRCLE
Terminal shape	ONE SURFACE
Base Number Matches	1

Preview

Download Datasheet

View All

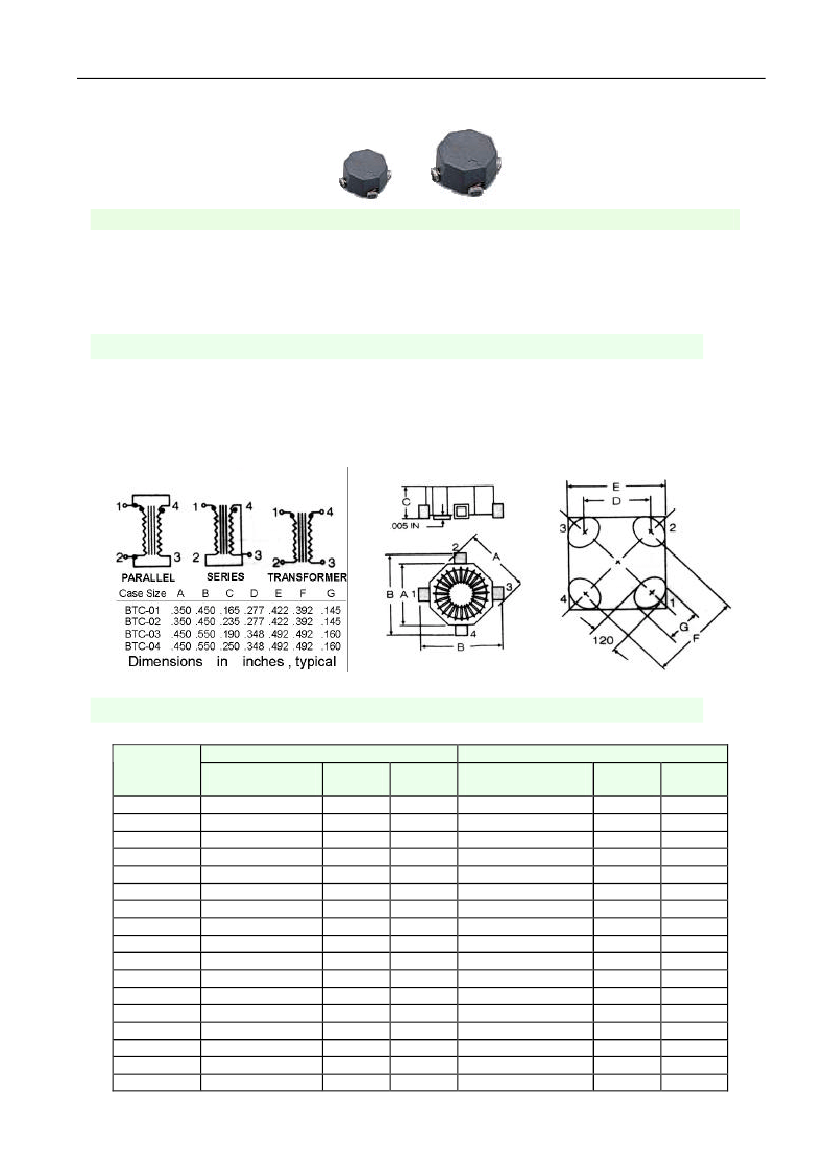

广东肇庆英达电感器件有限公司

GUANGDONG ZHAOQING YINGDA INDUCTOR CO.，LTD

表面贴装元件

SMD COMPONENTS

BTC

线圈系列

BTC Coils

特征　ＦＥＡＴＵＲＥＳ　

・高的应用频率　

・采用高饱和材料　

・½电磁干扰

・½直流电阻

・Higher

Frequency

・

High Saturation Material

・Low

EMI Radiation

・Low

DC Resistance

应用Ａ½½½½½½½½½½：　

1． DC-DC

½换(平行模式)

DC-DC Conversion (Paraller Mode)

2．

隔离/耦合(变压器模式)

Isolation/Coupling (Transformer)

3．

输入滤波(连接模式)

Input Filter (Serial Mode)

4．

抗

EMI/RFI EMI/RFI Suppression

电性½参数Ｅ½½½½½½½½½　Ｃ½½½½½½½½½½½½½½　

PARALLEL

Inductance

IDC

(µH)

(A)

0.42

5.50

0.60

5.10

1.07

4.50

2.02

3.40

4.83

2.00

8.08

1.80

9.62

1.70

15.03

1.40

20.46

1.00

25.40

0.96

32.33

0.80

50.52

0.70

68.40

0.66

99.01

0.54

150.72

0.44

198.41

0.36

299.87

0.32

SERIES

DCR

(Ω)

0.006

0.007

0.008

0.014

0.041

0.052

0.057

0.087

0.159

0.177

0.251

0.316

0.373

0.557

0.844

1.208

1.525

Inductance

(µH)

1.67

2.40

4.28

8.08

19.31

32.33

38.48

60.12

81.83

101.60

129.32

202.07

273.61

396.06

602.87

793.65

1199.46

IDC

(A)

2.75

2.55

2.25

1.70

1.00

0.90

0.85

0.70

0.50

0.48

0.40

0.35

0.33

0.27

0.22

0.18

0.16

DCR

(Ω)

0.022

0.025

0.032

0.054

0.161

0.208

0.227

0.348

0.634

0.708

1.001

1.263

1.490

2.227

3.376

4.831

6.100

Part No.

BTC-R47-01

BTC-R68-01

BTC-1R0-01

BTC-2R0-01

BTC-5R0-01

BTC-8R0-01

BTC-100-01

BTC-150-01

BTC-200-01

BTC-250-01

BTC-330-01

BTC-500-01

BTC-680-01

BTC-101-01

BTC-151-01

BTC-201-01

BTC-301-01
