54S135DM datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > logic> logic> 54S135DM

Preview

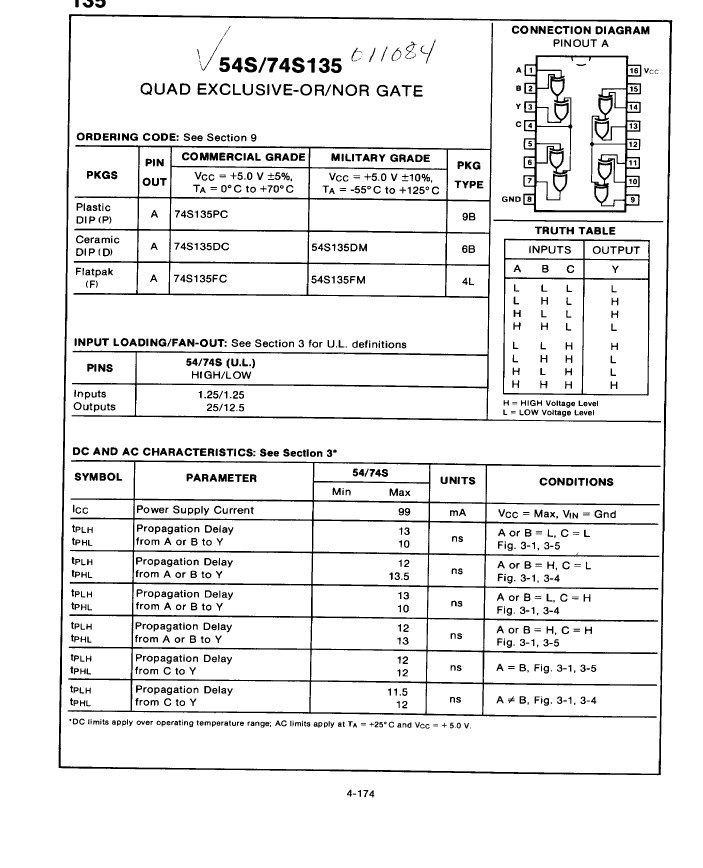

54S135DM: DescriptionXOR/XNOR Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14; Categorylogic logic; File Size31KB，1 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

54S135DM Overview

XOR/XNOR Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14

54S135DM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Fairchild
package instruction	DIP, DIP16,.3
Reach Compliance Code	compliant
series	TTL/H/L
JESD-30 code	R-CDIP-T14
JESD-609 code	e0
Logic integrated circuit type	XOR/XNOR GATE
Humidity sensitivity level	2A
Number of functions	4
Number of entries	2
Number of terminals	14
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	250
power supply	5 V
propagation delay (tpd)	13.5 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
Base Number Matches	1

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

54S135DM Related Products

	54S135DM	54S135FM	74S135PC
Description	XOR/XNOR Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, CDIP14, CERAMIC, DIP-14	XOR/XNOR Gate, TTL/H/L Series, 4-Func, 2-Input, TTL, PDFP14, DFP-14	XOR/XNOR Gate, TTL, PDIP16,
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild
package instruction	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3
Reach Compliance Code	compliant	compliant	compliant
JESD-30 code	R-CDIP-T14	R-PDFP-F14	R-PDIP-T16
JESD-609 code	e0	e0	e0
Logic integrated circuit type	XOR/XNOR GATE	XOR/XNOR GATE	XOR/XNOR GATE
Humidity sensitivity level	2A	2A	2A
Number of terminals	14	14	16
Maximum operating temperature	125 °C	125 °C	70 °C
Minimum operating temperature	-55 °C	-55 °C	-
Package body material	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	DFP	DIP
Encapsulate equivalent code	DIP16,.3	FL16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE
Peak Reflow Temperature (Celsius)	250	250	250
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Schmitt trigger	NO	NO	NO
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	YES	NO
technology	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	30	30	30
series	TTL/H/L	TTL/H/L	-
Number of functions	4	4	-
Number of entries	2	2	-
propagation delay (tpd)	13.5 ns	13.5 ns	-
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-
Base Number Matches	1	1	-
