ADC-HS12BMM-QL datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> logic> ADC-HS12BMM-QL

ADC-HS12BMM-QL: Description1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP32; Categorysemiconductor logic; File Size249KB，4 Pages; ManufacturerETC

Download Datasheet Parametric Compare View All

ADC-HS12BMM-QL Overview

1-CH 12-BIT SUCCESSIVE APPROXIMATION ADC, SERIAL/PARALLEL ACCESS, CDIP32

ADC-HS12BMM-QL Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	32
Maximum operating temperature	125 Cel
Minimum operating temperature	-55 Cel
Rated supply voltage	15 V
Maximum conversion time	9 uS
Maximum linear error	0.0122 %
Maximum limit analog input voltage	10 V
Minimum limit analog input voltage	-10 V
Processing package description	Hybrid, Ceramic PACKAGE-32
state	TRANSFERRED
packaging shape	Rectangle
Package Size	IN-line
Terminal form	PIN/PEG
Terminal spacing	2.54 mm
terminal coating	tin lead
Terminal location	pair
Packaging Materials	Ceramic, Metal-SEALED COFIRED
Temperature level	MILITARY
Rated negative supply voltage	-15 V
Output format	SERIAL, PARALLEL, WORD
Type of converter	continuous approximation
Number of digits	12
Output bit encoding	COMPLEMENTARY binary, COMPLEMENTARY OFFSET binary
Number of analog channels	1
Sample and hold and track and hold	SAMPLE

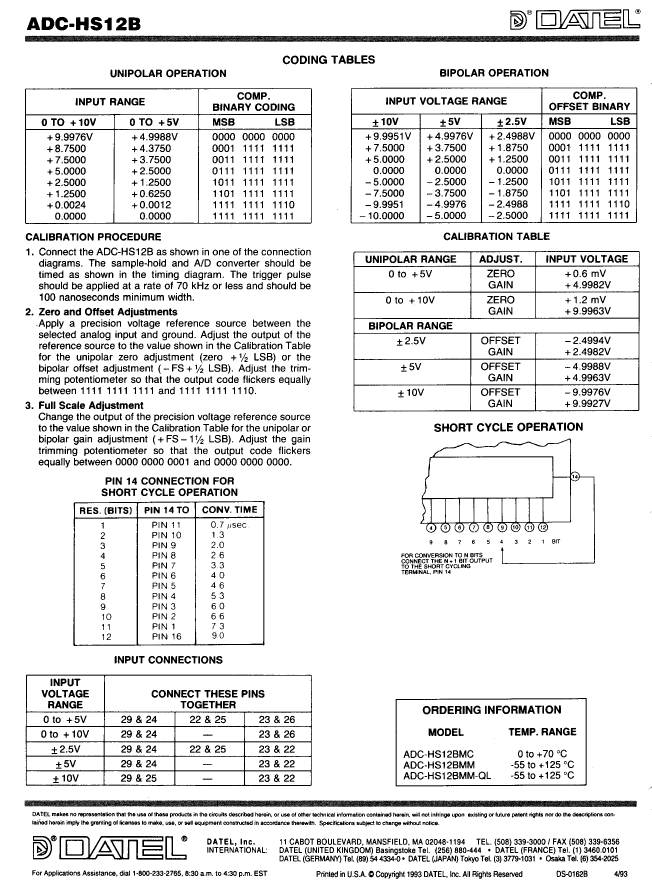

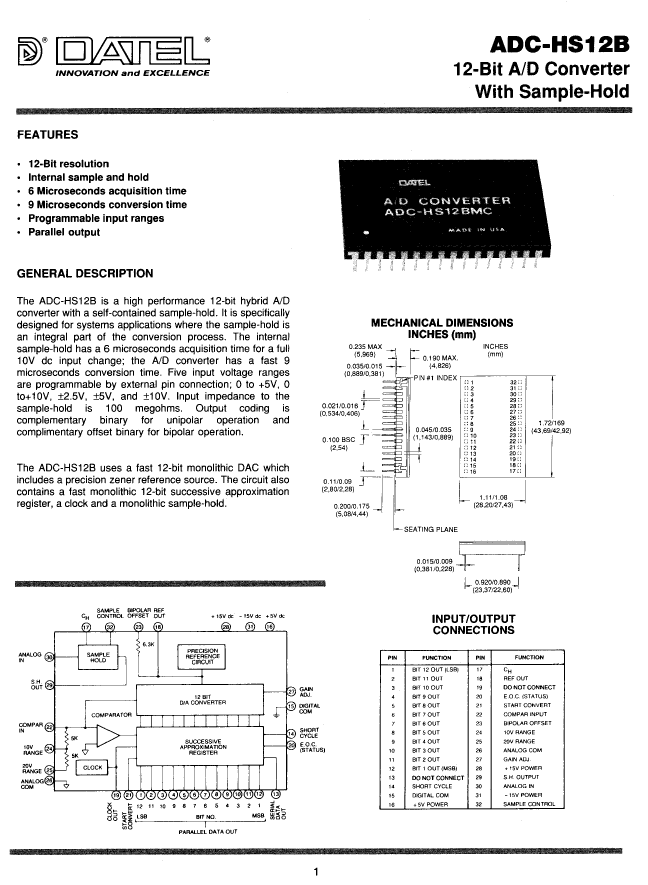

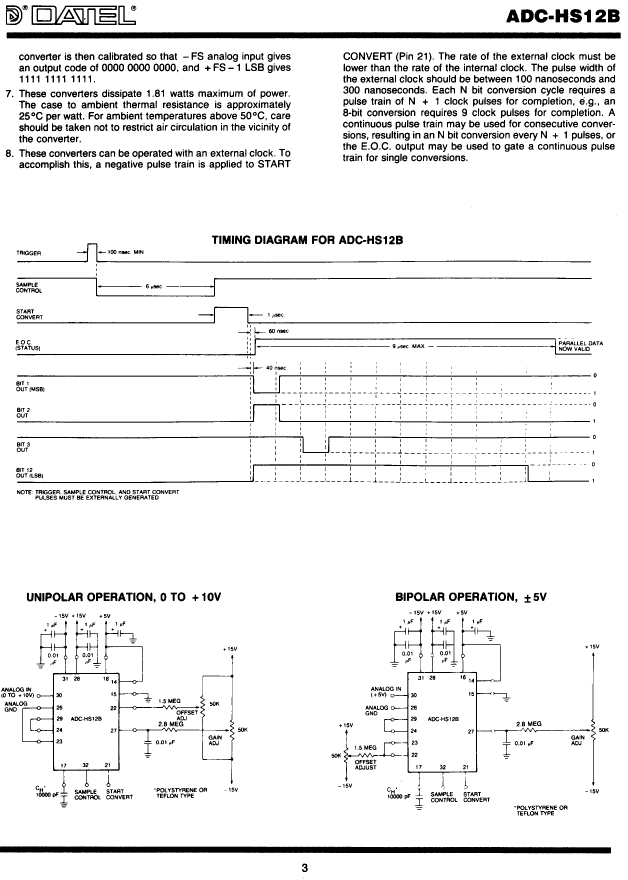

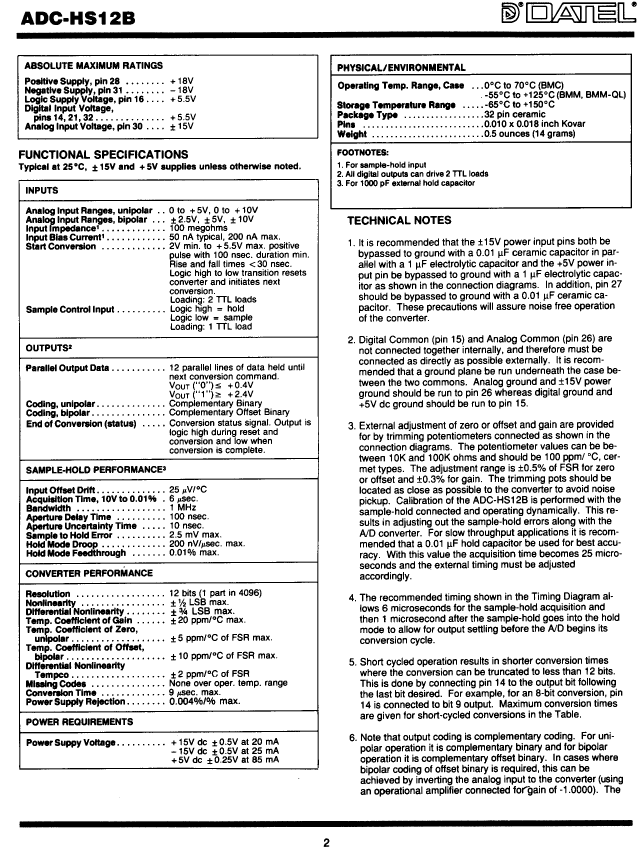

Preview

Download Datasheet

View All
