52030-2226

Description
Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, LEAD FREE
CategoryThe connector    The connector
File Size97KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric Compare View All

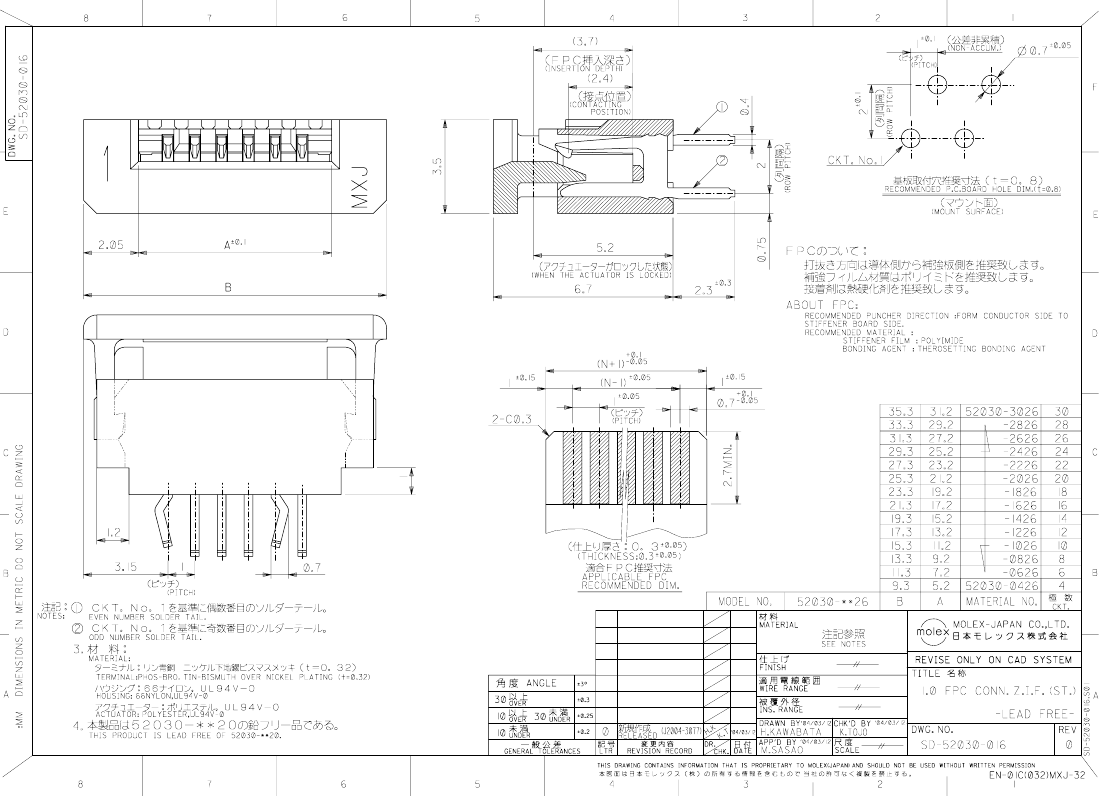

52030-2226 Overview

Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, LEAD FREE

52030-2226 Parametric

Parameter NameAttribute value
package instructionLEAD FREE
Reach Compliance Codeunknown
Connector typeFFC/FPC CONNECTOR
Contact point genderFEMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch1 mm
Termination typeSOLDER
Total number of contacts22
UL Flammability Code94V-0
Base Number Matches1

52030-2226 Related Products

52030-2226 52030-2426 52030-2026
Description Card Edge Connector, 22 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, LEAD FREE Card Edge Connector, 24 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, LEAD FREE Card Edge Connector, 20 Contact(s), 1 Row(s), Female, Straight, Solder Terminal, LEAD FREE
package instruction LEAD FREE LEAD FREE LEAD FREE
Reach Compliance Code unknown compliant unknown
Connector type FFC/FPC CONNECTOR FFC/FPC CONNECTOR FFC/FPC CONNECTOR
Contact point gender FEMALE FEMALE FEMALE
DIN compliance NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
MIL compliance NO NO NO
Mixed contacts NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of rows loaded 1 1 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 1 mm 1 mm 1 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 22 24 20
UL Flammability Code 94V-0 94V-0 94V-0
Base Number Matches 1 1 1
