Part Number

Search

54F283DM

Description
Adder/Subtractor, F/FAST Series, 4-Bit, TTL, CDIP16, CERAMIC, DIP-16
Categorylogic    logic
File Size93KB,4 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Download Datasheet Parametric View All

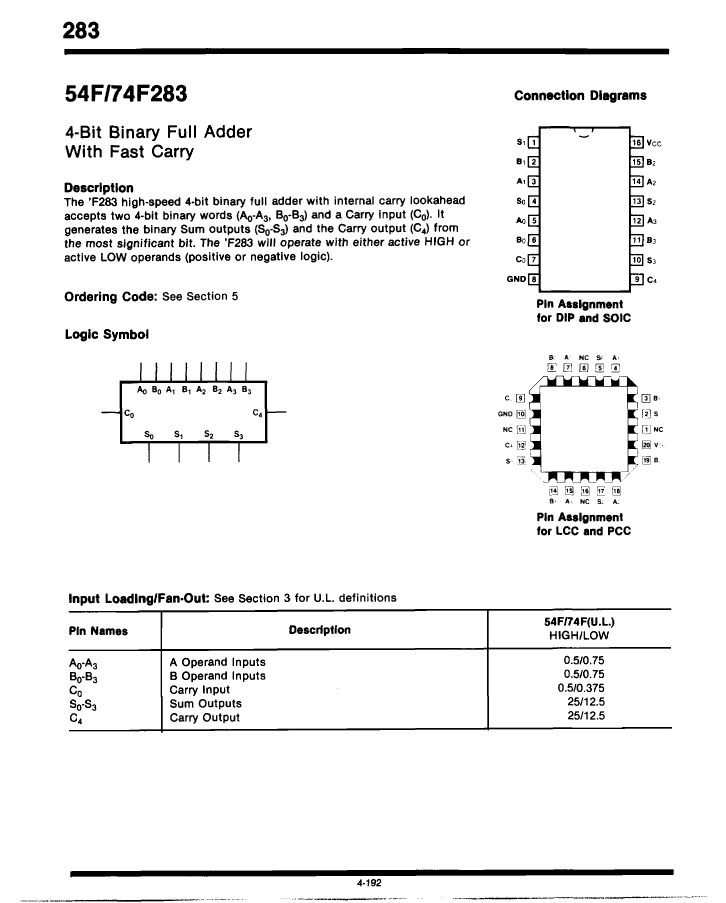

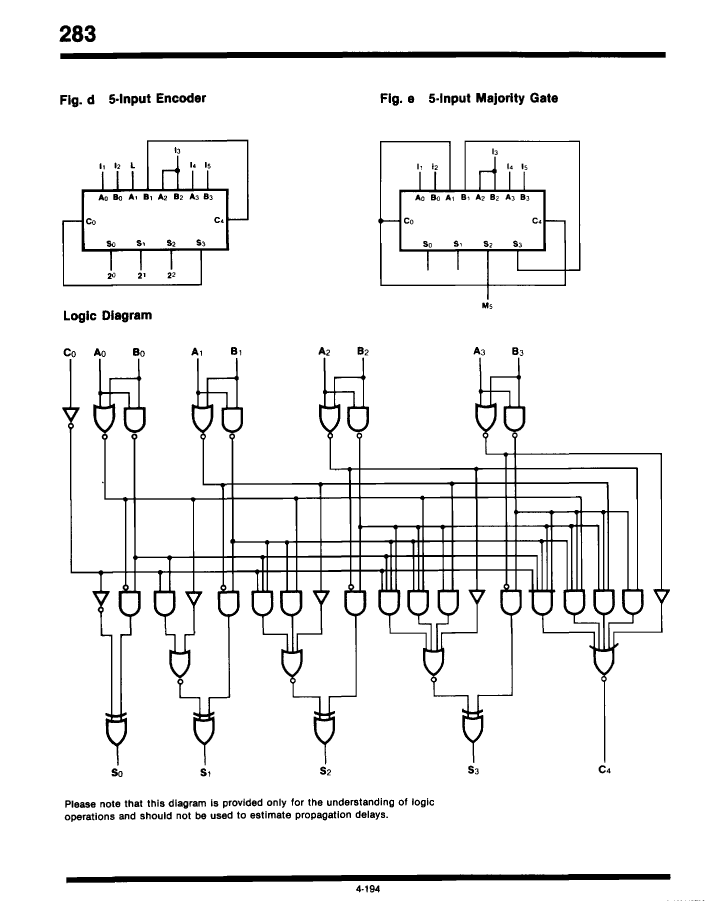

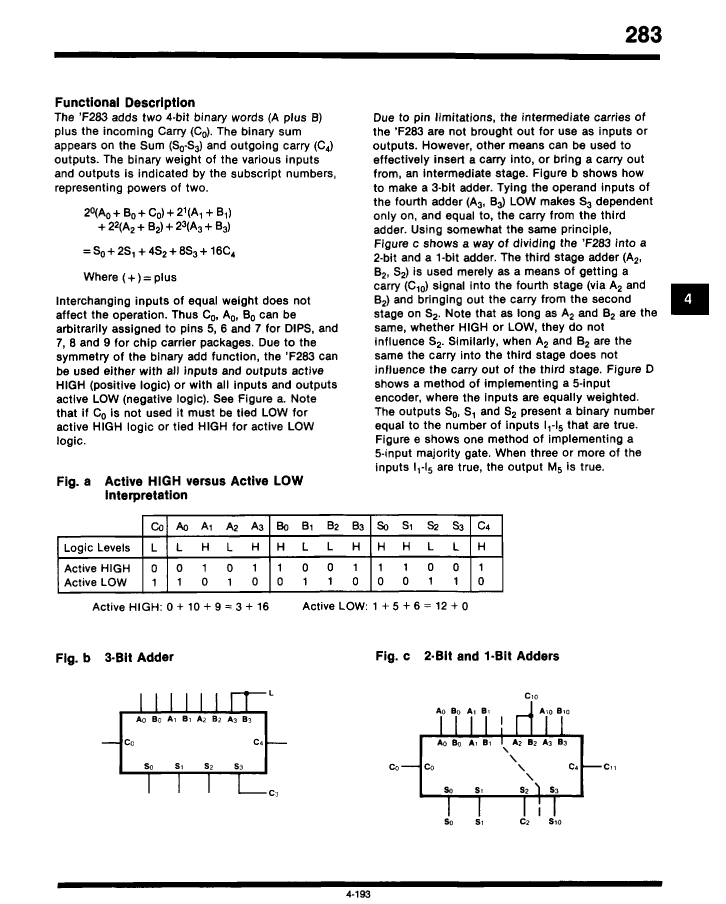

54F283DM Overview

Adder/Subtractor, F/FAST Series, 4-Bit, TTL, CDIP16, CERAMIC, DIP-16

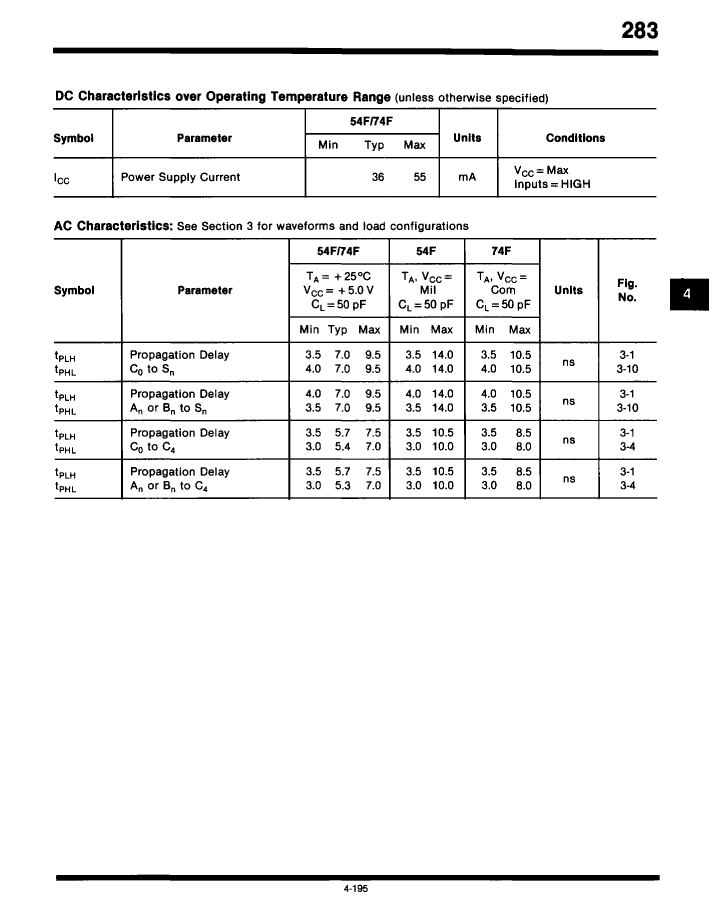

54F283DM Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Parts packaging codeDIP
package instructionDIP, DIP16,.3
Contacts16
Reach Compliance Codeunknown
Other featuresFULL ADDER; WITH INTERNAL CARRY LOOKAHEAD
seriesF/FAST
JESD-30 codeR-GDIP-T16
JESD-609 codee0
length19.43 mm
Logic integrated circuit typeADDER/SUBTRACTOR
Number of digits4
Number of functions1
Number of terminals16
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDIP
Encapsulate equivalent codeDIP16,.3
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT SPECIFIED
power supply5 V
propagation delay (tpd)14 ns
Certification statusNot Qualified
Maximum seat height5.08 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountNO
technologyTTL
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width7.62 mm
Base Number Matches1
