DM74S194N datasheet, PDF - EEWORLD Datasheet

DM74S194N: DescriptionParallel In Parallel Out, S Series, 4-Bit, Bidirectional, True Output, TTL, PDIP16, PLASTIC, DIP-16; Categorylogic logic; File Size122KB，5 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

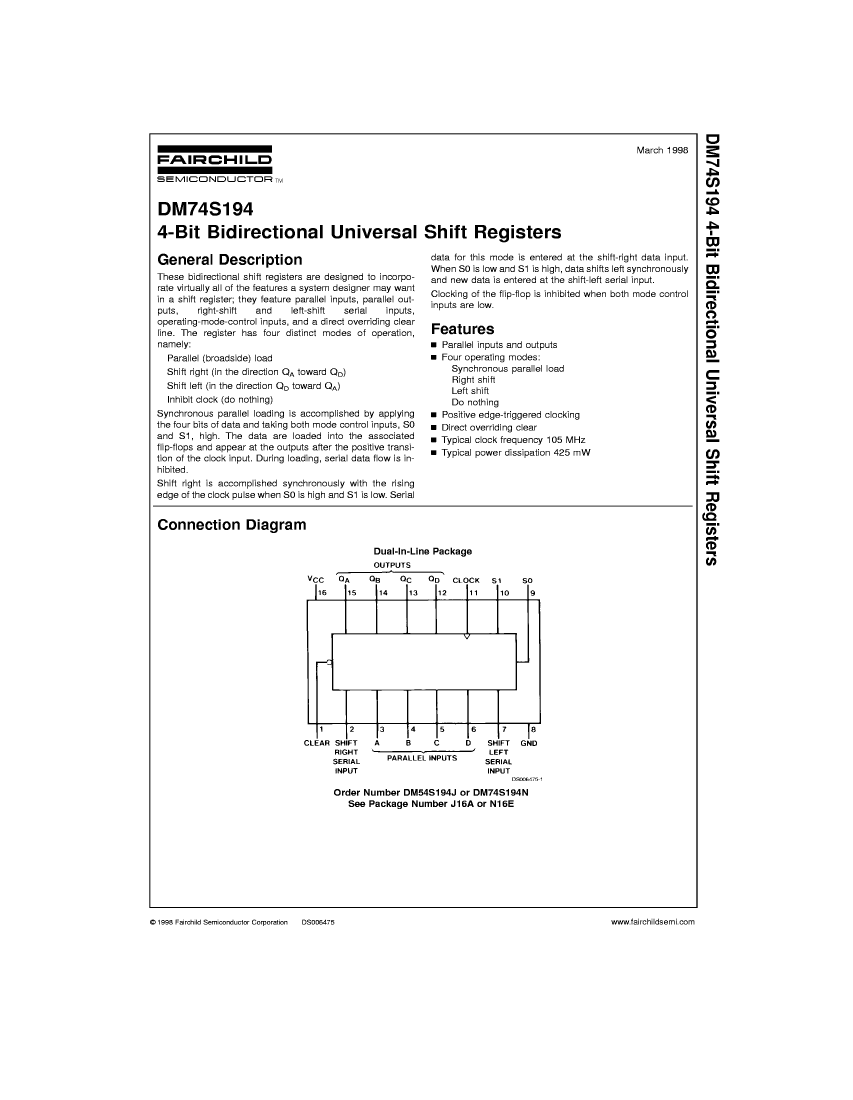

DM74S194N Overview

Parallel In Parallel Out, S Series, 4-Bit, Bidirectional, True Output, TTL, PDIP16, PLASTIC, DIP-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	PLASTIC, DIP-16
Contacts	16
Reach Compliance Code	compliant
Other features	HOLD MODE
Counting direction	BIDIRECTIONAL
series	S
JESD-30 code	R-PDIP-T16

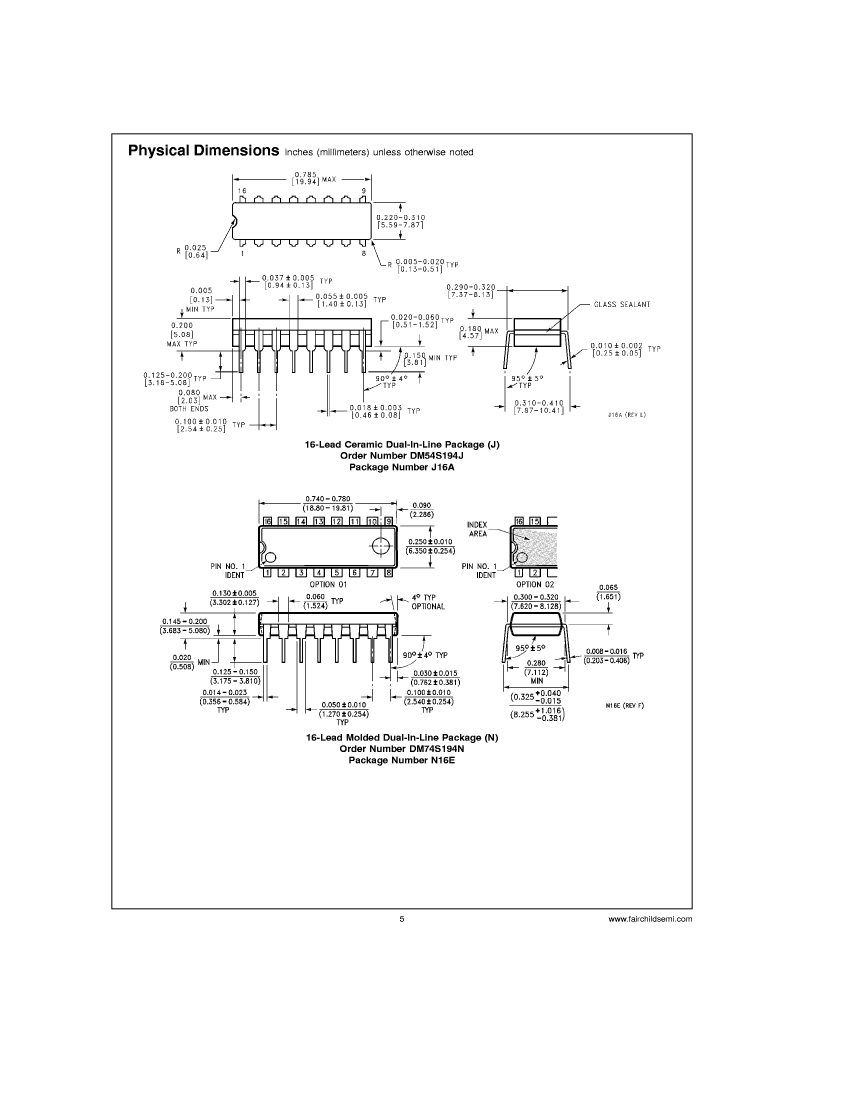

length	19.305 mm
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Maximum Frequency@Nom-Sup	60000000 Hz
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE

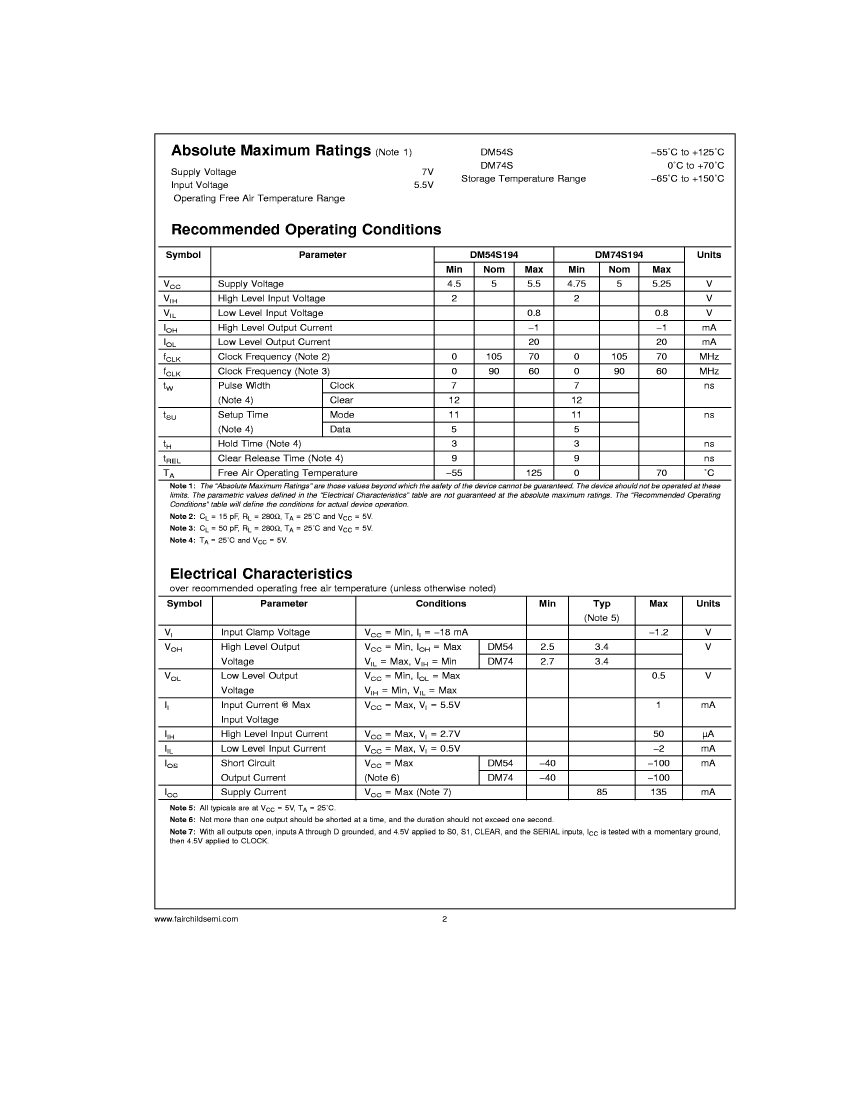

power supply	5 V

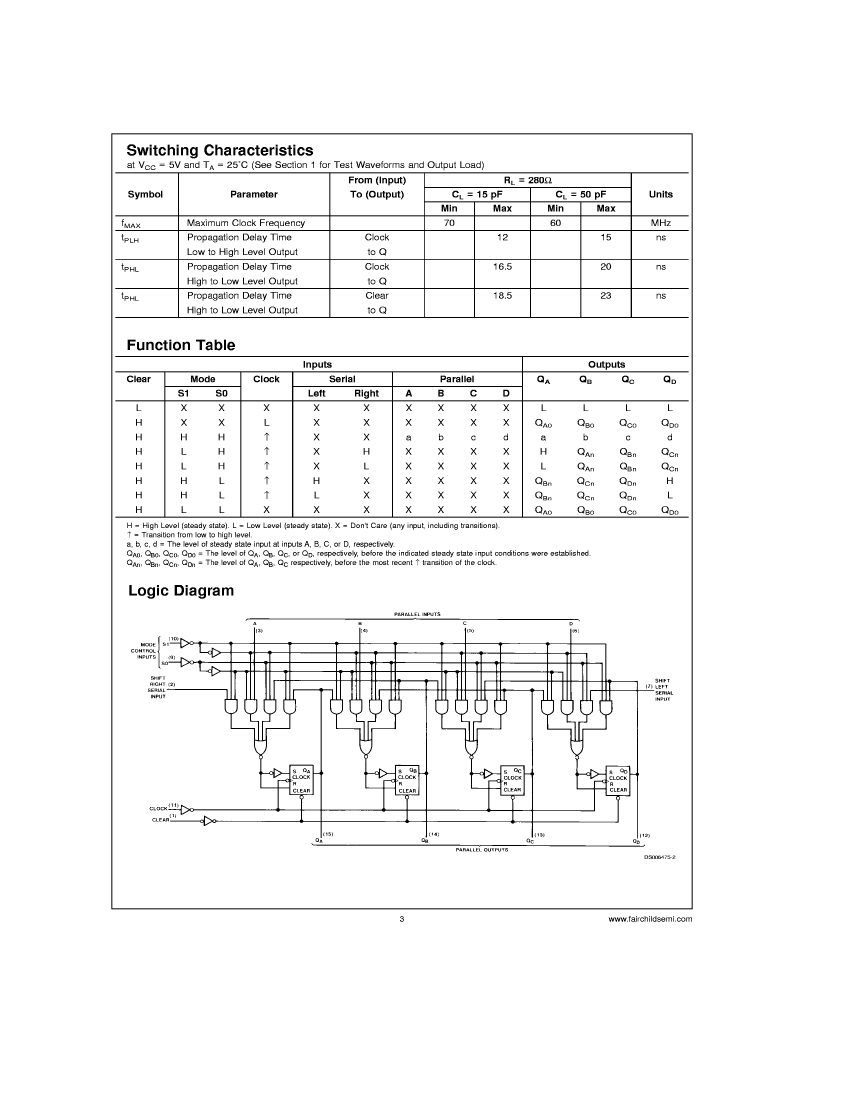

propagation delay (tpd)	20 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	105 MHz
Base Number Matches	1

This Material Copyrighted By Its Respective Manufacturer

	DM74S194N	DM54S194J
Description	Parallel In Parallel Out, S Series, 4-Bit, Bidirectional, True Output, TTL, PDIP16, PLASTIC, DIP-16	Parallel In Parallel Out, S Series, 4-Bit, Bidirectional, True Output, TTL, CDIP16, CERAMIC, DIP-16
Parts packaging code	DIP	DIP
package instruction	PLASTIC, DIP-16	DIP,
Contacts	16	16
Reach Compliance Code	compliant	unknown
Other features	HOLD MODE	HOLD MODE
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL
series	S	S
JESD-30 code	R-PDIP-T16	R-GDIP-T16
length	19.305 mm	19.43 mm
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	4	4
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	125 °C
Output polarity	TRUE	TRUE
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
propagation delay (tpd)	20 ns	20 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.5 V
Minimum supply voltage (Vsup)	4.75 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	MILITARY
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	7.62 mm
minfmax	105 MHz	105 MHz
Base Number Matches	1	1
