3-435469-4: DescriptionSLIDE DIP SWITCH-2SWITCHES, DPST, LATCHED,THROUGH HOLE-STRAIGHT; CategoryMechanical and electronic products switch; File Size138KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric Compare View All

3-435469-4 Overview

SLIDE DIP SWITCH-2SWITCHES, DPST, LATCHED,THROUGH HOLE-STRAIGHT

3-435469-4 Parametric

Parameter Name	Attribute value
Objectid	1578550750
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	0
body width	9.65 mm
body height	7.37 mm
Body length or diameter	7.11 mm
Installation features	THROUGH HOLE-STRAIGHT
Number of switching segments	2
surface mount	NO
Switch action	LATCHED
switch function	DPST
Switch type	SLIDE DIP SWITCH
Termination type	SOLDER

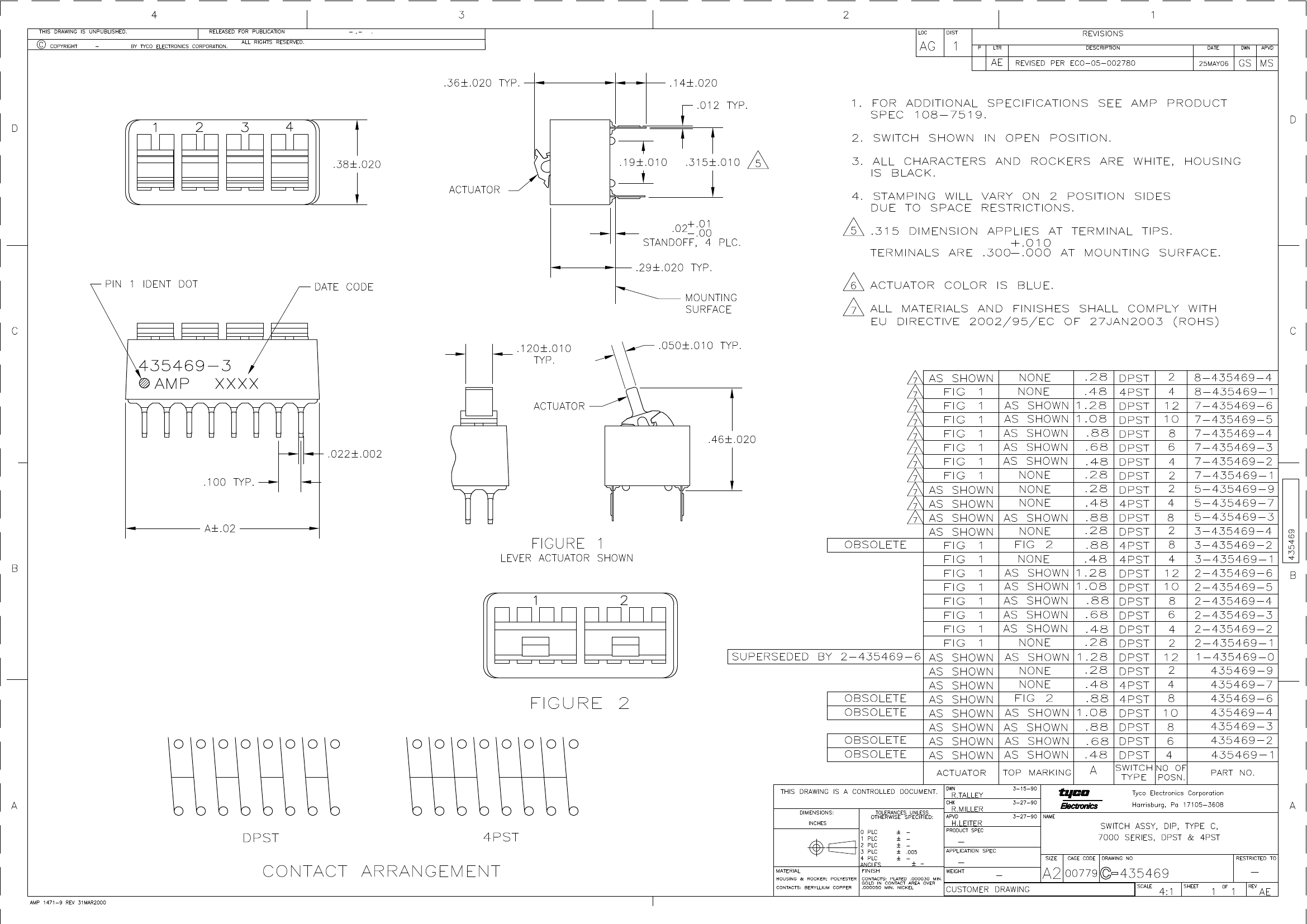

Preview

Download Datasheet

View All

3-435469-4 Related Products

	3-435469-4	SIT3521AI-1CF28-8S340.000000	3-435469-2	435469-6	435469-1	435469-2	435469-4	8-435469-4
Description	SLIDE DIP SWITCH-2SWITCHES, DPST, LATCHED,THROUGH HOLE-STRAIGHT	LVPECL Output Clock Oscillator, 340MHz Nom, QFN, 10 PIN	SLIDE DIP SWITCH-8SWITCHES, 4PST, LATCHED,THROUGH HOLE-STRAIGHT	SLIDE DIP SWITCH-8SWITCHES, 4PST, LATCHED,THROUGH HOLE-STRAIGHT	SLIDE DIP SWITCH-4SWITCHES, DPST, LATCHED,THROUGH HOLE-STRAIGHT	SLIDE DIP SWITCH-6SWITCHES, DPST, LATCHED,THROUGH HOLE-STRAIGHT	SLIDE DIP SWITCH-10SWITCHES, DPST, LATCHED,THROUGH HOLE-STRAIGHT	SLIDE DIP SWITCH-2SWITCHES, DPST, LATCHED,THROUGH HOLE-STRAIGHT, ROHS COMPLIANT
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Installation features	THROUGH HOLE-STRAIGHT	SURFACE MOUNT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
surface mount	NO	YES	NO	NO	NO	NO	NO	NO
Objectid	1578550750	145145256724	1578550749	1578550775	1578550771	-	1578550774	-
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
body width	9.65 mm	-	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm	9.65 mm
body height	7.37 mm	-	7.37 mm	7.37 mm	7.37 mm	7.37 mm	7.37 mm	7.37 mm
Body length or diameter	7.11 mm	-	22.35 mm	22.35 mm	12.19 mm	17.27 mm	27.43 mm	7.11 mm
Number of switching segments	2	-	8	8	4	6	10	2
Switch action	LATCHED	-	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED	LATCHED
switch function	DPST	-	4PST	4PST	DPST	DPST	DPST	DPST
Switch type	SLIDE DIP SWITCH	-	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH	SLIDE DIP SWITCH
Termination type	SOLDER	-	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
