81-3001B-5R8-2: DescriptionFixed Resistor, Thin Film, 5.8ohm, 2% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP; CategoryPassive components The resistor; File Size38KB，2 Pages; ManufacturerEMC Technology RF Labs

Download Datasheet Parametric Compare View All

81-3001B-5R8-2 Overview

Fixed Resistor, Thin Film, 5.8ohm, 2% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP

81-3001B-5R8-2 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	EMC Technology RF Labs
package instruction	, 2010
Reach Compliance Code	compliant
ECCN code	EAR99
JESD-609 code	e0
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
Rated power dissipation(P)	5 W
Rated temperature	100 °C
resistance	5.8 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	THIN FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	2%
Base Number Matches	1

Preview

Download Datasheet

View All

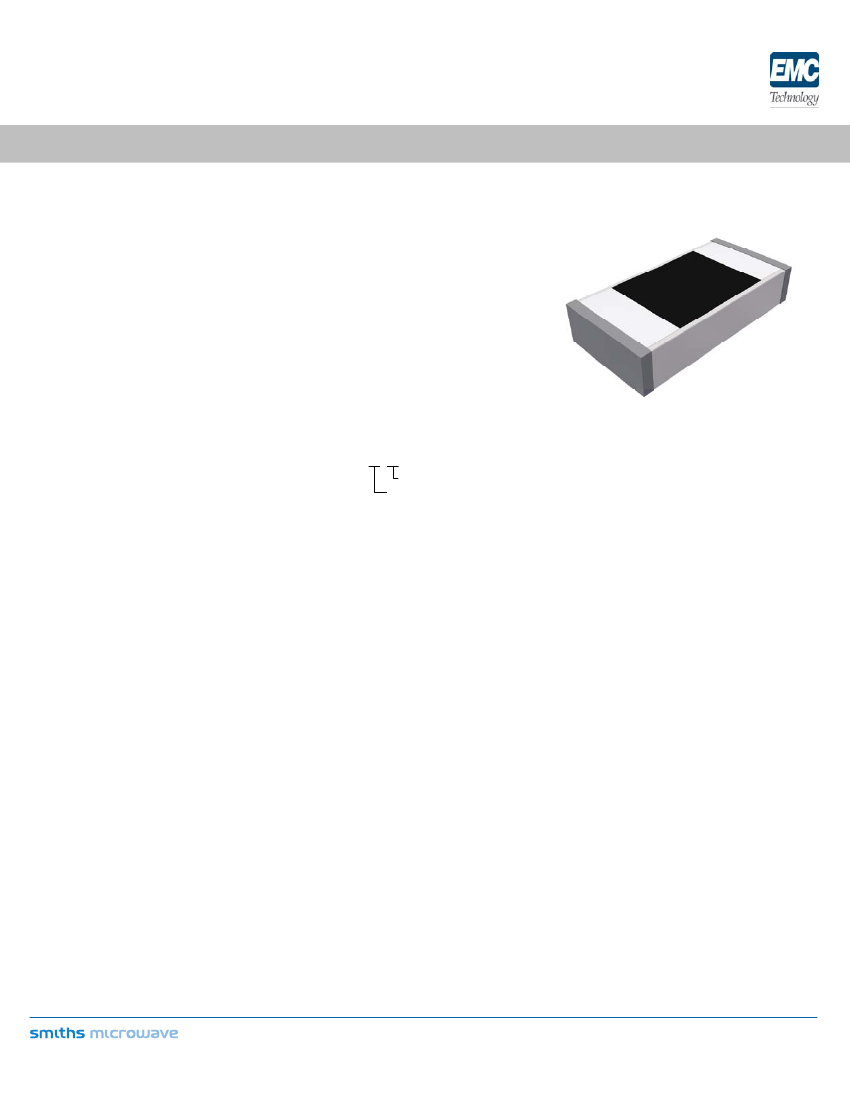

RESISTOR

CHIP 5 WATT

DATA SHEET

FEATURES

Wide Band Operation

High Power

Direct Attached

Low Capacitance

Easy Installation

Wide Resistance Range

PART SERIES: 81-3001B-X-X

APPLICATIONS

Broadcast

High Power Filters

High Power Amplifiers

Isolators

Military

Instrumentation

SHEET 1 OF 2

Dwg 81-3001B

EN 13-3508

Revision-

GENERAL DESCRIPTION

EMC Technology offers the widest selection of chip resistors worldwide.

Chip components are offered in both thick and thin film resistive material and

available in Alumina, Aluminium Nitride, Beryllium Oxide and CVD Diamond.

ORDERING INFORMATION

Part Identifier:

81-3001B-X-X

Tolerance

Resistance Value

SPECIFICATIONS

1.0 ELECTRICAL

Resistance Range:

Resistance Tolerance:

Input Power CW:

Peak Power:

0 OHM and 2.5 - 300 OHMS

±5% standard 1% and 2% available (+ .20 – 0.0 for OHM)

5 watts @ 100˚C heat sink, derated linearly to zero power at 150˚C

50 watts (based on 10us pulse width and 1% duty cycle)

2.0 ENVIRONMENTAL

Operating Temperature:

Non-operating Temperature:

Temperature Coefficient:

-55˚C to +150˚C

-65˚C to +150˚C

+/-200 PPM / ˚C max

3.0 MARKING

Unit Marking:

No Marking

4.0 QUALITY ASSURANCE

Visual and Mechanical Inspection:

DC Resistance Check:

Data Retention:

Per 824W107

100% DC Resistance Check

Standard

5.0 PACKAGING

Standard Packaging:

Tape and Reel

Cage Codes: 24602 / 2Y194

Form 423F106 Rev-

Specifications are Subject to Change Without Notice

www.emc-rflabs.com • +1 772-286-9300

AS 9100, ISO 9001 and 14001 Certified
