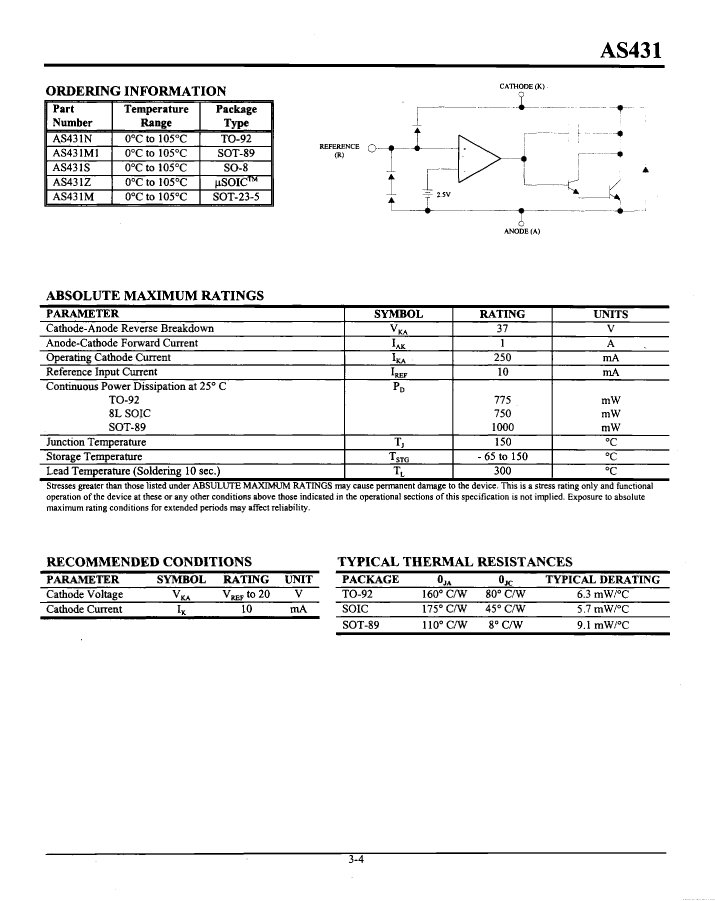

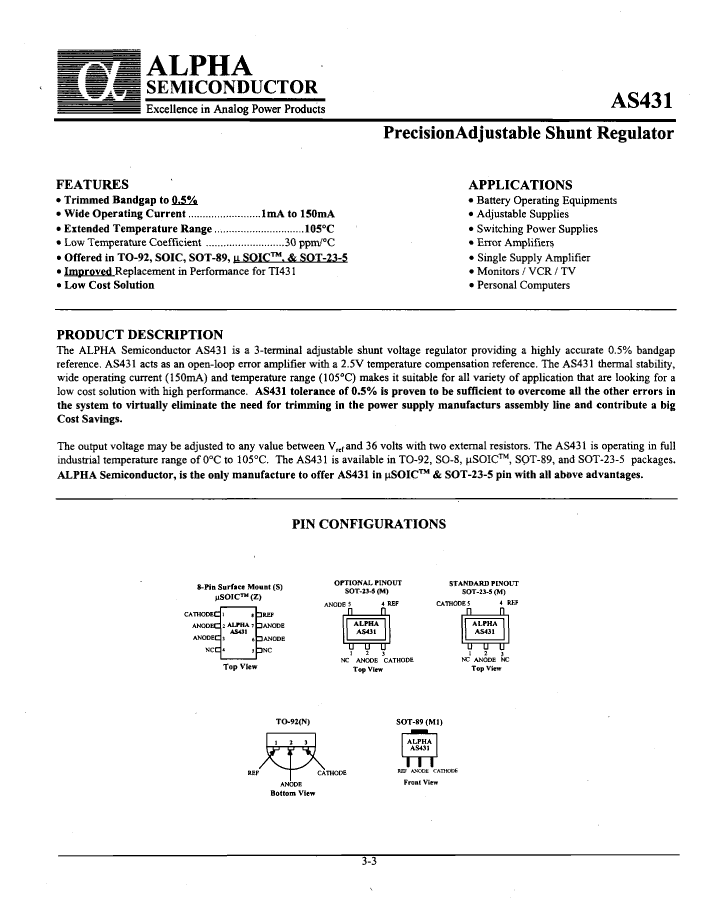

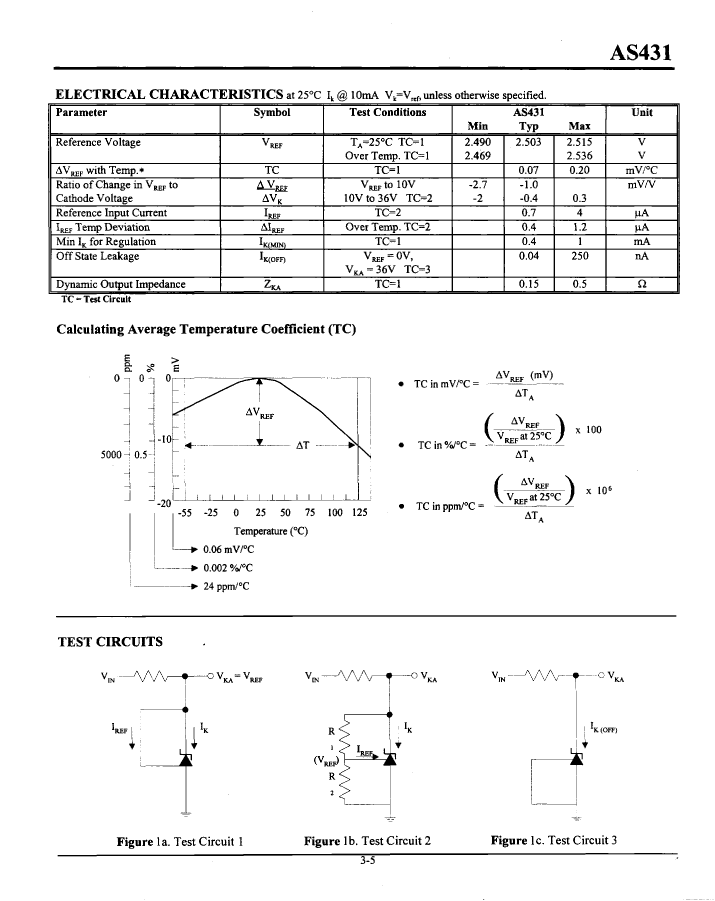

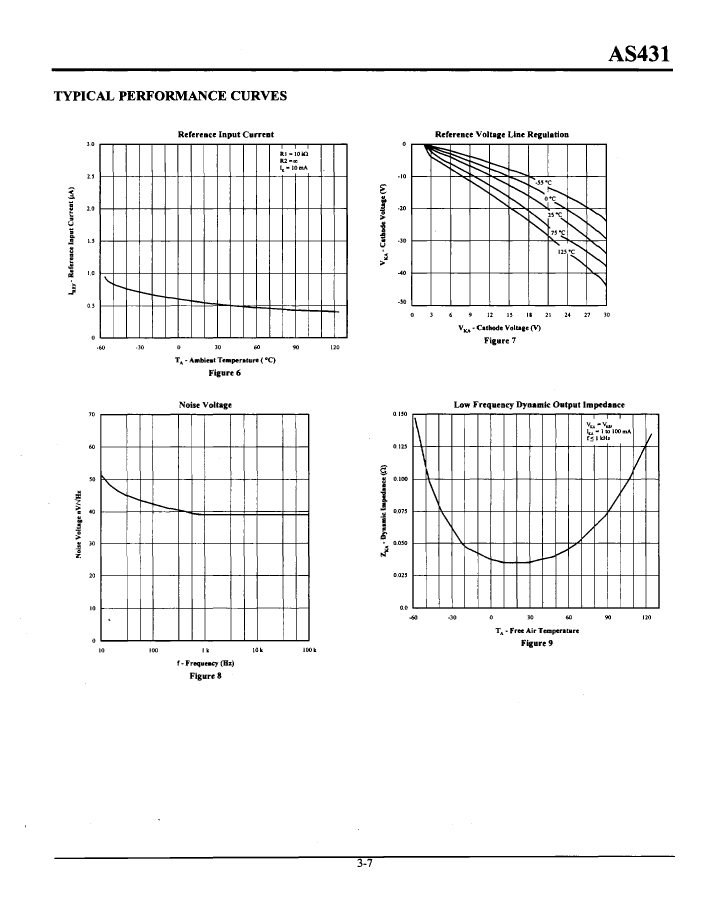

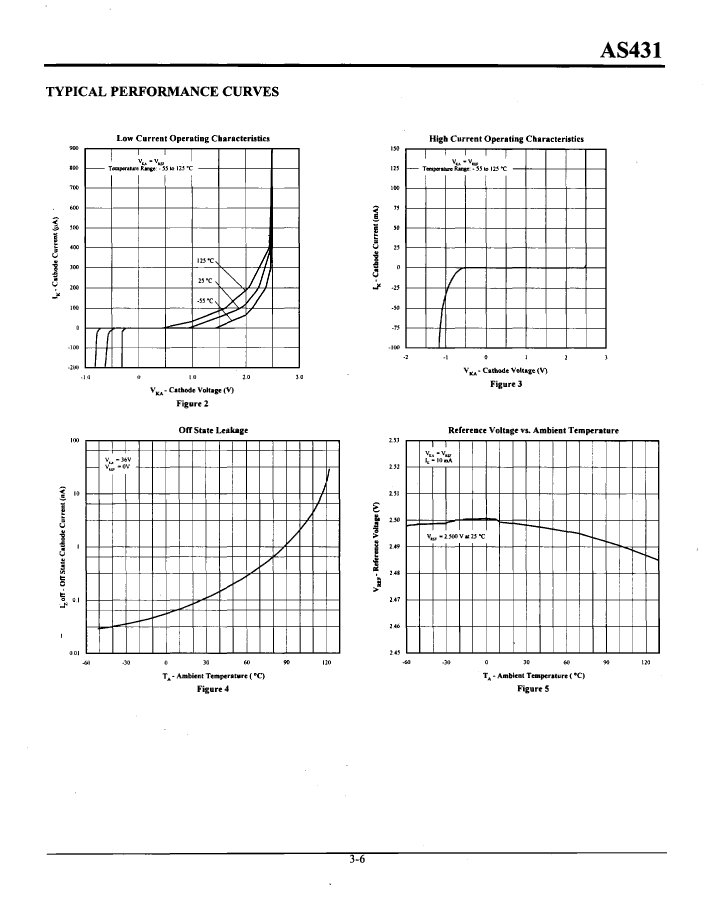

Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PSSO3, SOT-89, 3 PIN
| Parameter Name | Attribute value |
| Maker | Calogic |
| Parts packaging code | SOT-89 |
| package instruction | SOT-89, 3 PIN |
| Contacts | 3 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Analog Integrated Circuits - Other Types | TWO TERMINAL VOLTAGE REFERENCE |
| JESD-30 code | R-PSSO-F3 |
| length | 4.5 mm |
| Number of functions | 1 |
| Output times | 1 |
| Number of terminals | 3 |
| Maximum operating temperature | 105 °C |
| Minimum operating temperature | |
| Maximum output voltage | 20 V |
| Minimum output voltage | 2.49 V |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE |
| Certification status | Not Qualified |
| Maximum seat height | 1.6 mm |
| surface mount | YES |
| Temperature level | OTHER |
| Terminal form | FLAT |
| Terminal pitch | 1.5 mm |
| Terminal location | SINGLE |
| Fine-tuning/adjustable output | YES |
| width | 2.445 mm |
| Base Number Matches | 1 |
| AS431M1 | AS431NOPTION4 | AS431NOPTION1 | AS431S | AS431NOPTION3 | AS431NOPTION2 | AS431N | AS431M | AS431Z | |
|---|---|---|---|---|---|---|---|---|---|
| Description | Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PSSO3, SOT-89, 3 PIN | Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PBCY3, TO-92 | Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PBCY3, TO-92 | Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PDSO8, 0.150 INCH, SOIC-8 | Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PBCY3, TO-92 | Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PBCY3, TO-92 | Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PBCY3, TO-92, 3 PIN | Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PDSO5, SOT-23, 5 PIN | Two Terminal Voltage Reference, 1 Output, Trim/Adjustable, PDSO8, MICRO, SOIC-8 |
| Maker | Calogic | Calogic | Calogic | Calogic | Calogic | Calogic | Calogic | Calogic | Calogic |
| Parts packaging code | SOT-89 | TO-92 | TO-92 | SOIC | TO-92 | TO-92 | TO-92 | SOT-23 | SOIC |
| package instruction | SOT-89, 3 PIN | , | , | 0.150 INCH, SOIC-8 | , | , | TO-92, 3 PIN | SOT-23, 5 PIN | MICRO, SOIC-8 |
| Contacts | 3 | 3 | 3 | 8 | 3 | 3 | 3 | 5 | 8 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Analog Integrated Circuits - Other Types | TWO TERMINAL VOLTAGE REFERENCE | TWO TERMINAL VOLTAGE REFERENCE | TWO TERMINAL VOLTAGE REFERENCE | TWO TERMINAL VOLTAGE REFERENCE | TWO TERMINAL VOLTAGE REFERENCE | TWO TERMINAL VOLTAGE REFERENCE | TWO TERMINAL VOLTAGE REFERENCE | TWO TERMINAL VOLTAGE REFERENCE | TWO TERMINAL VOLTAGE REFERENCE |
| JESD-30 code | R-PSSO-F3 | O-PBCY-T3 | O-PBCY-T3 | R-PDSO-G8 | O-PBCY-T3 | O-PBCY-T3 | O-PBCY-T3 | R-PDSO-G5 | R-PDSO-G8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Output times | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 8 | 3 | 3 | 3 | 5 | 8 |
| Maximum operating temperature | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C | 105 °C |
| Maximum output voltage | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V | 20 V |
| Minimum output voltage | 2.49 V | 2.49 V | 2.49 V | 2.49 V | 2.49 V | 2.49 V | 2.49 V | 2.49 V | 2.49 V |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | ROUND | ROUND | RECTANGULAR | ROUND | ROUND | ROUND | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE | CYLINDRICAL | CYLINDRICAL | SMALL OUTLINE | CYLINDRICAL | CYLINDRICAL | CYLINDRICAL | SMALL OUTLINE, LOW PROFILE, SHRINK PITCH | SMALL OUTLINE |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| surface mount | YES | NO | NO | YES | NO | NO | NO | YES | YES |
| Temperature level | OTHER | OTHER | OTHER | OTHER | OTHER | OTHER | OTHER | OTHER | OTHER |
| Terminal form | FLAT | THROUGH-HOLE | THROUGH-HOLE | GULL WING | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | GULL WING | GULL WING |
| Terminal location | SINGLE | BOTTOM | BOTTOM | DUAL | BOTTOM | BOTTOM | BOTTOM | DUAL | DUAL |
| Fine-tuning/adjustable output | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Base Number Matches | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | - |
