BCS-802JLC: DescriptionGeneral Purpose Inductor, 8uH, 5%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size113KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

BCS-802JLC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BCS-802JLC	-	-	View	Buy Now

BCS-802JLC Overview

General Purpose Inductor, 8uH, 5%, 1 Element, SMD, ROHS COMPLIANT

BCS-802JLC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
Reach Compliance Code	compliant
ECCN code	EAR99
DC Resistance	3.39 Ω
Nominal inductance(L)	8 µH
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e1
Manufacturer's serial number	BCS
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
shield	NO
surface mount	YES
Terminal surface	Tin/Silver/Copper (Sn/Ag/Cu)
Test frequency	10 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

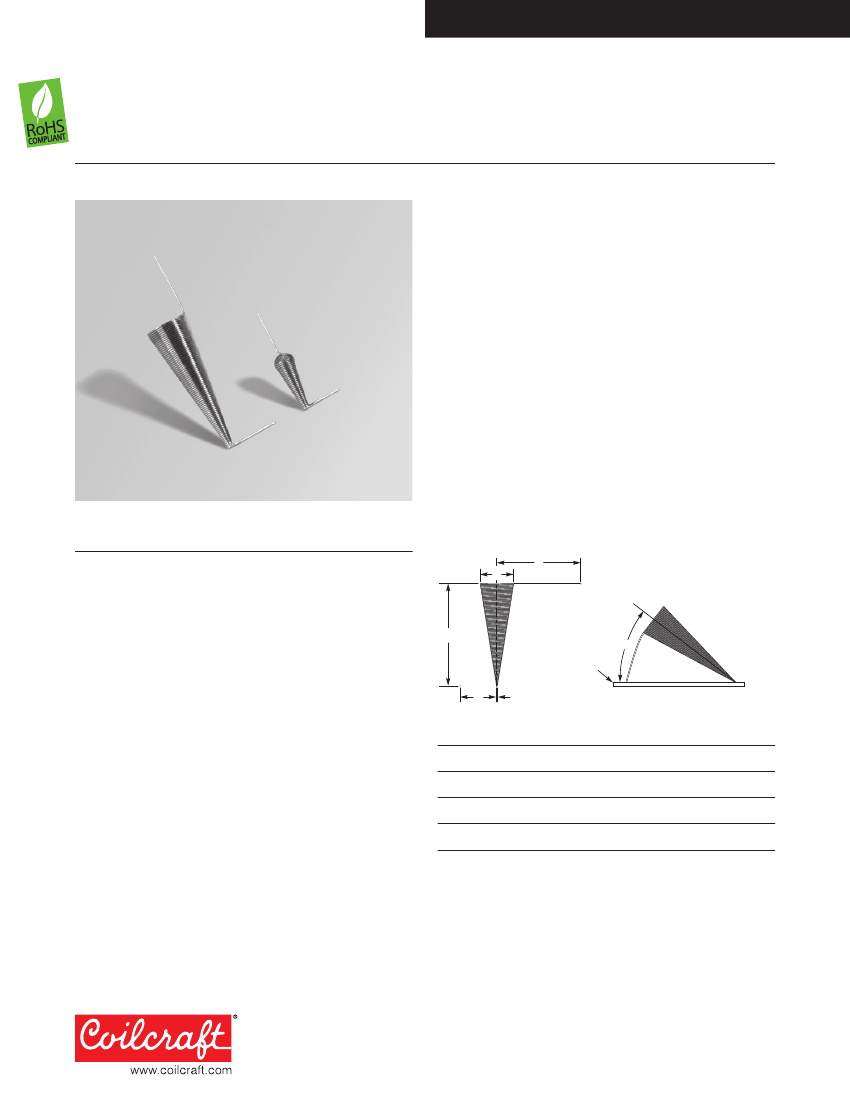

Document 334L-1

Broadband Conical Inductors

• Designed specifically for broadband and high frequency

applications.

• Operates as a series of narrow-band inductors throughout

an operating frequency range of 10 MHz to 40 GHz.

• Ideal for use in ultra-wideband bias Tees, where the conical

inductor provides the path for the DC bias injection or extraction

while isolating the power source from the active device.

• Supplied with “flying leads” that allow adjustment of the

mounting angle.

• For a surface mount version with a self positioning mounting

bracket, consider the BCR series.

Terminations

Tin-silver-copper (96.5/3/0.5) over copper

Ambient temperature

–40°C to +85°C

Storage temperature

Component: –40°C to +85°C.

Packaging trays: –40°C to +80°C

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

25 per tray

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

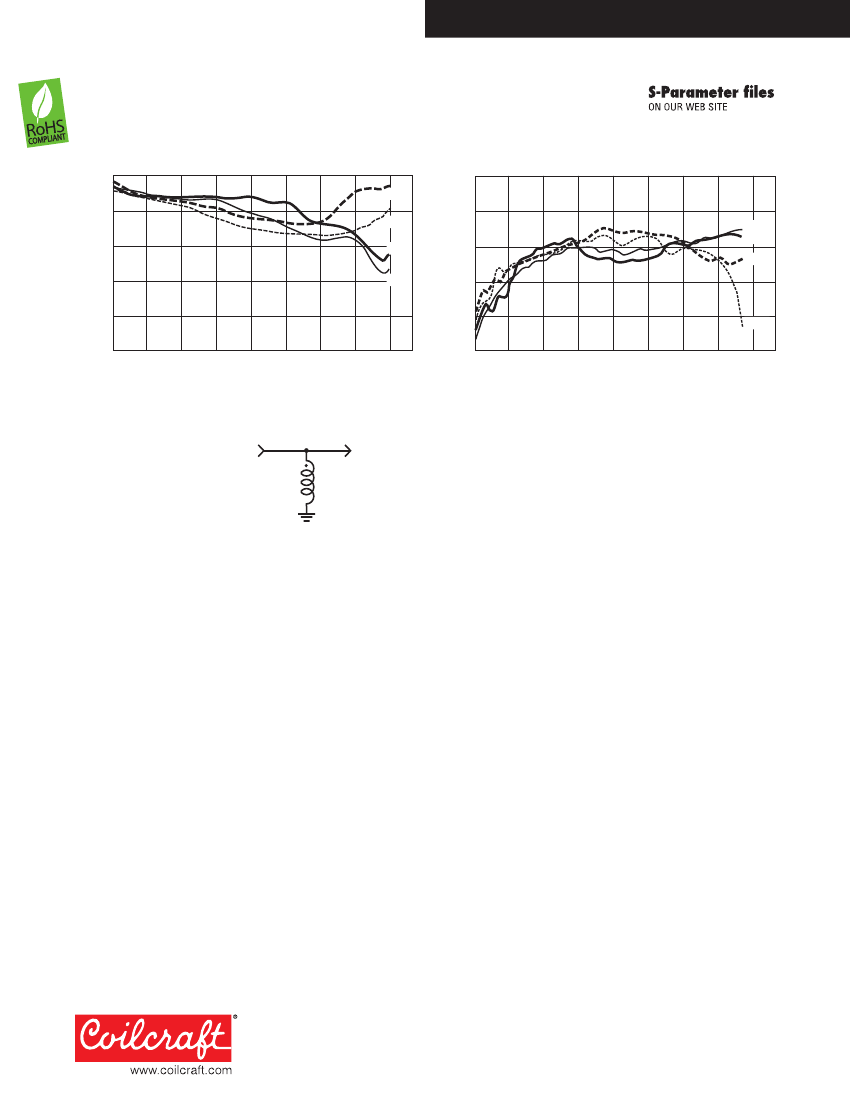

Part

number

BCL-531JL

BCL-122JL

BCL-652JL

BCL-802JL

Inductance

±5% (µH)

0.53

1.20

6.5

8.0

DCR max

(Ohms)

0.15

1.05

0.70

3.39

Irms

(mA)

830

200

510

150

1. Inductance measured at 10 MHz, 0.1 Vrms, 0 Adc using an Agilent/

HP 4286A LCR meter and a Coilcraft CCF 1111 fixture.

2. Average current for a 40°C rise above 25°C ambient.

3. Operating temperature range

−40°C

to +85°C.

4. Electrical specifications at 25°C.

PC board

A (ID)

Optimum mounting angle is application specific.

BCL-531

BCL-122

BCL-652

BCL-802

0.008 ±0.002

0,20 ±0,05

0.008 ±0.002

0,20 ±0,05

0.008 ±0.002

0,20 ±0,05

0.008 ±0.002

0,20 ±0,05

B max

0.071

1,80

0.045

1,14

0.140

3,56

0.074

1,88

Dimensions

C max

0.179

4,55

0.115

2,92

0.435

11,05

0.237

6,02

0.166

4,216

0.166

4,216

0.390

9,906

0.180

4,572

0.100

2,54

0.100

2,54

0.100

2,54

0.100

2,54

inches

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 334L-1

Revised 02/08/11

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.
