Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 1 of 5
Website – passives.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE 3640 SERIES
ELECTRICAL ~ 0402 Package
Inductance
Code
1N0
1N2
1N5
1N8
2N2
2N7
3N3
3N9
4N7
5N6
6N8
8N2
10N
12N
15N
18N
22N
27N
33N
39N
1
st
April 2003
ISSUE 2
Package
Marking
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
Inductance
(nH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
Tolerance
(±)
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
2%
2%
2%
2%
2%
2%
2%
2%
Q
Min.
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
LQ Test
Freq. (MHz)
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
200
200
S.R.F
(MHz)
7000
7000
7000
7000
7000
7000
7000
7000
7000
7000
5500
5500
5500
4000
4000
4000
2000
2000
1500
1500
Rdc Max.
(ohms)
0.10
0.10
0.15
0.15
0.20
0.20
0.30
0.40
0.60
0.70
0.80
1.30
1.50
1.80
2.55
2.55
2.55
2.70
3.60
4.00
Idc Max.
(mA)
1200
1200
930
730
600
580
500
420
340
320
290
230
210
190
160
160
160
150
130
120
ELECTRICAL ~ 0603 Package
Inductance
Code
1N0
1N2
1N5
1N8
2N2
2N7
3N3
3N9
4N7
5N6
6N8
8N2
10N
12N
15N
18N
22N
27N
33N
39N
47N
56N
68N
82N
R10
Package
Marking
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
Inductance
(nH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
Tolerance
(±)
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
Q
Min.
20
20
20
20
20
20
20
20
20
15
15
15
15
15
15
15
15
15
15
15
15
15
15
10
10
LQ Test
Freq. (MHz)
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
300
200
200
200
200
200
200
200
S.R.F
(MHz)
6000
6000
6000
6000
6000
6000
6000
6000
6000
5000
5000
5000
4000
4000
3000
3000
2000
2000
1500
1500
1500
1000
1000
1000
1000
Rdc Max.
(ohms)
0.10
0.10
0.10
0.15
0.15
0.15
0.20
0.20
0.25
0.50
0.50
0.50
1.00
1.00
1.00
1.50
1.50
2.00
2.00
3.00
3.00
4.00
4.50
6.00
8.50
Idc Max.
(mA)
1000
1000
1000
800
800
800
700
700
600
400
400
400
300
300
300
250
250
200
200
180
180
150
140
120
100
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 2 of 5
Website – passives.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE 3640 SERIES
ELECTRICAL ~ 0805 Package
Inductance
Code
1N0
1N2
1N5
1N8
2N2
2N7
3N3
3N9
4N7
5N6
6N8
8N2
10N
12N
15N
18N
22N
27N
33N
39N
47N
56N
68N
82N
1
st
April 2003
ISSUE 2
Package
Marking
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
Inductance
(nH)
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
Tolerance
(±)
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
2%
Q
Min.
24
24
24
28
28
28
28
29
30
30
30
30
32
30
28
22
22
15
17
17
17
15
15
15
LQ Test
Freq. (MHz)
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
500
200
200
200
200
200
200
200
S.R.F
(MHz)
13000
13000
10000
9000
8000
8000
6000
6000
5000
4500
4000
3000
2750
2500
2250
1600
1450
1350
1200
1000
950
800
700
600
Rdc Max.
(ohms)
0.03
0.04
0.05
0.06
0.07
0.09
0.10
0.12
0.16
0.18
0.26
0.28
0.36
0.38
0.40
1.00
1.10
1.20
1.30
1.40
1.50
3.50
3.50
4.00
Idc Max.
(mA)
900
900
900
900
800
800
800
800
700
700
500
500
450
450
400
300
300
300
300
250
250
150
150
150
ELECTRICAL ~ 1206 Package
Inductance
Code
2N2
2N7
3N3
3N9
4N7
5N6
6N8
8N2
10N
12N
15N
18N
22N
27N
33N
39N
47N
56N
68N
82N
R10
Package
Marking
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
None
Inductance
(nH)
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
Tolerance
(±)
0.2nh
0.2nh
0.2nh
0.2nh
0.2nh
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
2% / 5%
Q
Min.
32
38
40
42
44
44
40
40
44
42
42
42
42
30
28
28
28
18
17
18
19
LQ Test
Freq. (MHz)
500
500
500
500
500
500
500
500
500
500
500
500
500
200
200
200
200
200
200
200
200
S.R.F
(MHz)
9000
7000
6000
5000
4500
4000
3500
3000
2900
2700
2400
2100
1940
1680
1500
1300
1270
600
570
480
470
Rdc Max.
(ohms)
0.07
0.07
0.06
0.10
0.11
0.13
0.15
0.18
0.21
0.22
0.30
0.37
0.45
0.58
0.69
0.78
0.85
1.50
1.60
1.80
1.90
Idc Max.
(mA)
1000
1000
1000
900
900
900
800
800
800
800
500
500
500
500
400
400
400
400
200
200
200
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 3 of 5
Website – passives.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE 3640 SERIES
1
st
April 2003
ISSUE 2
ADDITIONAL DATA
Operating Temperature:
-40°C to +85°C
DIMENSIONS
Case Size
0402 (1E)
0603 (1J)
0805 (2A)
1206 (2B)
L
1.0 ±0.1
1.6 ±0.2
2.0 ±0.2
3.2 ±0.2
W
0.50 ±0.05
0.80 ±0.1
1.25 ±0.2
1.60 ±0.2
C
0.15 ±0.1
0.30 ±0.1
0.40 ±0.2
0.50 ±0.2
d
0.15 ±0.1
0.30 ±0.1
0.30 ±0.2
0.40 +0.2/-0.1
t
0.35 ±0.2
0.50 ±0.1
0.50 ±0.1
0.60 ±0.1
TAPE & REEL SPECIFICATION
04:02 Size (1E) ~ 10000 pieces per 7" Reel
06:03 Size (1J) ~ 5000 pieces per 7" Reel
08:05 Size (2A) ~ 4000 pieces per 7" Reel
12:06 Size (2B) ~ 4000 pieces per 7" Reel
miniReels available ~ please enquire
HOW TO ORDER
3640
COMMON PART
3640
2A
CASE SIZE
1E – 0402 Package
1J – 0603 Package
2A – 0805 Package
2B – 1206 Package
1N0
INDUCTANCE VALUE
See tables above for inductance
code
K
TOLERANCE
K – 10%
Telephone Tyco Passive Product Support Team ++ 44 (0) 1793 572484
Page 4 of 5
Website – passives.tycoelectronics.com
Email – passivesales@tycoelectronics.com
Product – Specification
TYPE 3640 SERIES

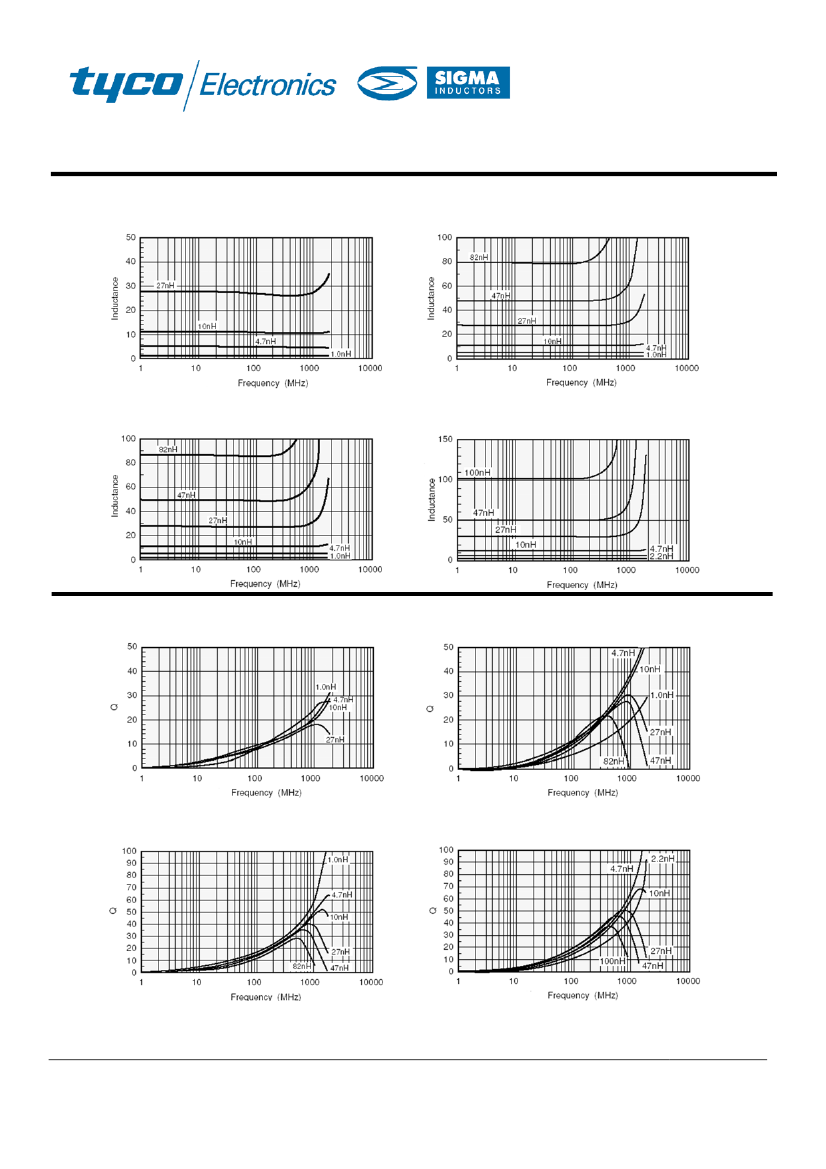

L FREQUENCY CHARACTERISTICS
3640 1E
1
st
April 2003
ISSUE 2
3640 1J
3640 2A
3640 2B
Q FREQUENCY CHARACTERISTICS
3640 1E
3640 1J
3640 2A
3640 2B
This publication is issued to provide outline information only and (unless specifically agreed to the contrary by the Company in writing) is not to form part of any order or be
regarded as a representation relating to the products or service concerned. We reserve the right to alter without notice the specification, design, price or conditions of
supply of any product or service. Whilst Tyco Electronics Components products are of the very highest quality and reliability, all electronic components can occasionally
be subject to failure. Where failure of a Tyco Electronics Components product could result in life threatening consequences, then the circuit and application must
be discussed with the Company. Such areas might include ECG, respiratory and other medical and nuclear applications and any non fail-safe applications circuit.
