350-10-125-00-001100: DescriptionIC Socket, SIP25, 25 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size68KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

350-10-125-00-001100 Overview

IC Socket, SIP25, 25 Contact(s), ROHS COMPLIANT

350-10-125-00-001100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	SIP HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrier
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	SIP25
Shell material	POLYCYCLOHEXYDIMETHYLENE TEREPHTHALATE-POLYESTER
JESD-609 code	e4
Number of contacts	25
Base Number Matches	1

Preview

Download Datasheet

View All

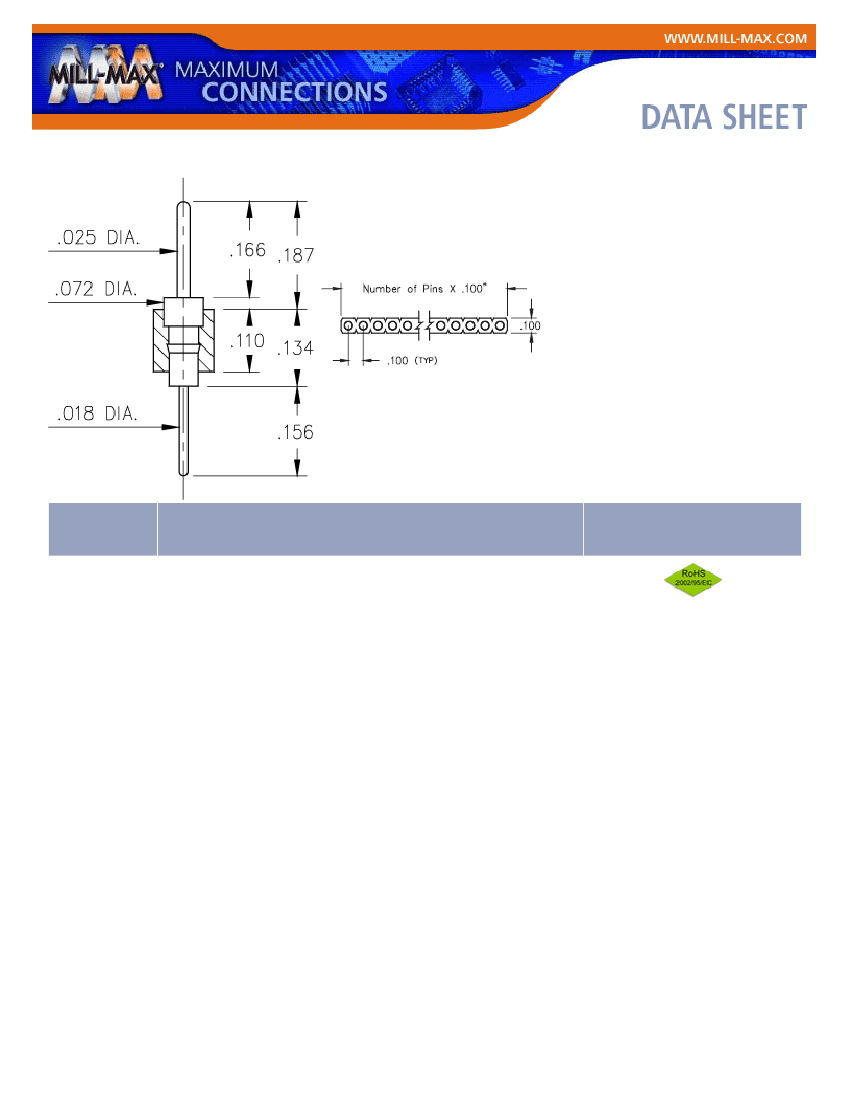

Product Number: 350-10-125-00-001100

Description:

Interconnect Header

.100 Grid; Straight Pin Header

.025 Pin Head with Solder Tail

Single Row

Through Hole

Plating Code:

10

Shell Plating:

10 " Gold over 100 " Nickel

#

Of

Pins

25

Mill-Max

Part

Number

350-10-125-00-001100

RoHS

Compliant

LOOSE PIN:

Loose Pin Used: 0290

BRASS ALLOY

(UNS C36000) per ASTM B 16

Properties of BRASS ALLOY:

Chemical composition: Cu 61.5%, Zn 35.4%, Pb 3.1%†

Hardness as machined: 80-90 Rockwell B

Density: .307 lbs/in3

Electrical conductivity: 26% IACS*

Melting point: 900°C/885°C (liquidus/solidus)

†(3 to 4% lead is used to permit “free machining” and is permitted by EC Directive 2002/95Annex 6; so all pin materials are

RoHS compliant)

*International Annealed Copper Standard, i.e. as a % of pure copper.

INSULATOR INFORMATION:

PCT

Polyester, (Thermx CG933, black)

High Temperature

Properties of PCT Polyester:

Brand: Thermx

Mill-Max Mfg. Corp. Datasheet – Last Modified 1/19/2008

Page 1 of 2
