A61-C-254-30-7-G datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> A61-C-254-30-7-G

Preview

A61-C-254-30-7-G: DescriptionBoard Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size98KB，1 Pages; ManufacturerAntelec; Websitehttp://www.antelec.fr; Environmental Compliance

Download Datasheet Parametric View All

A61-C-254-30-7-G Overview

Board Connector, 30 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal, ROHS COMPLIANT

A61-C-254-30-7-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Manufacturer's serial number	A61
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	30
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

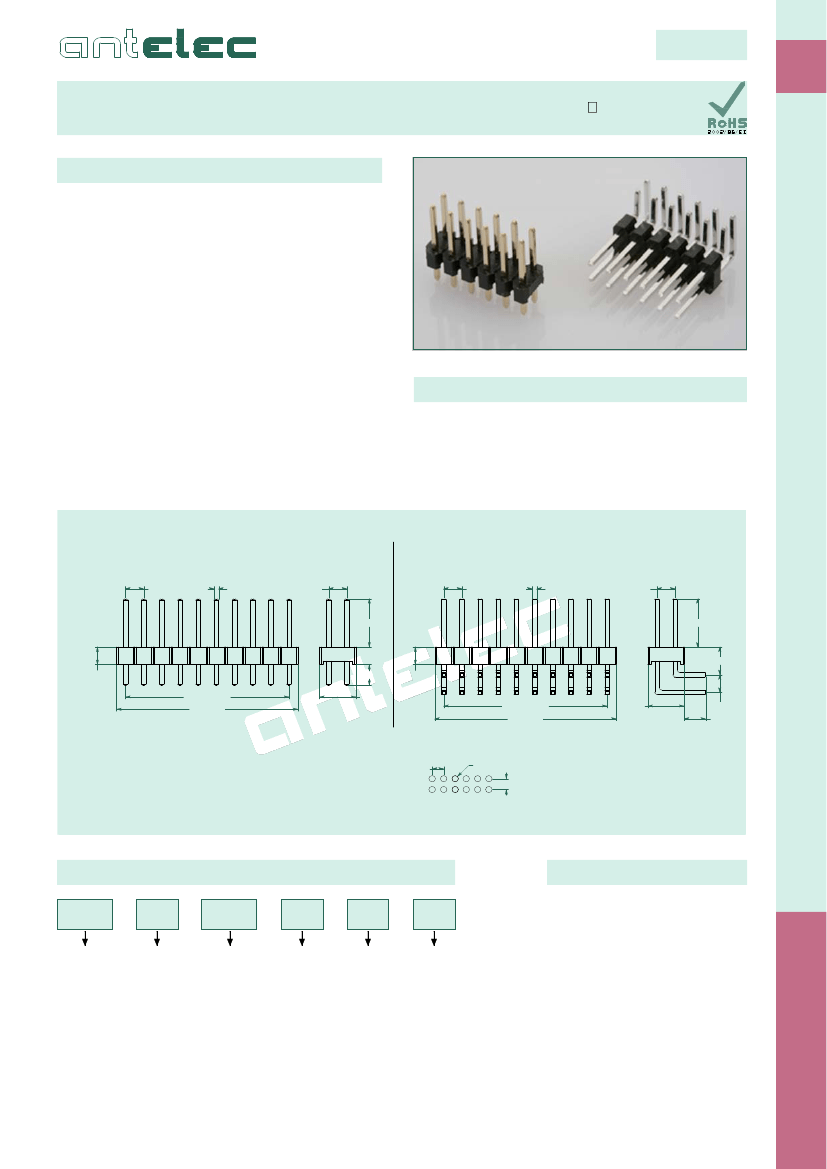

Pin header straight & right angle type HE13/HE14 2 rows pin

0.64 mm

Product specifications

Current rating : 3.0 A

Dielectric withstanding voltage : 1000 Volts AC during 1 mn

Insulation resistance : > 5000 MΩ

Operating temperature : -55°C to +125°C

Max processing temperature : 260°C during 5 sec

Contact : brass

Plating : nickel/gold or nickel/tin

Insulator : nylon-6T, UL94V-0

Mates with

Female headers

0.64 mm

Straight

2.54

0.64 x 0.64

2.54

Right angle

0.64 x 0.64

2.54

A (7.0)

4.0

H (2.5)

(N-1) x 2.54

N x 2.54

3.0

5.0

(N-1) x 2.54

N x 2.54

5.0

2.54

3.0

H (2.5)

2.54

Ø 1.02

2.54

PCB layout

(tolerance ± 0.05 mm)

Create your part number

Product range

A61

Antelec

2 rows

Straight

or C for

right angle

254

Pitch

2.54 mm

XX

Total

number

of contacts

7

Height

A = 7 mm

(other

lengths

on

request)

T

Tin or G

for Gold or

T/G for

Selective

(Straight

version

only)

Number of pins :

2 rows : 4 to 100 pins

info@antelec.fr

tel: +33 (0)1 49 80 14 14

fax: +33 (0)1 49 80 14 15

119

BOARD TO BOARD 2.54

BTB

www.antelec.fr

2.54 mm
