DC1507FR datasheet, PDF - EEWORLD Datasheet

DC1507FR: DescriptionMixer Diode, X Band, 350ohm Z(V) Max, 7dB Noise Figure, Silicon; CategoryDiscrete semiconductor diode; File Size28KB，2 Pages; ManufacturerDynex; Websitehttp://www.dynexsemi.com/

Download Datasheet Parametric View All

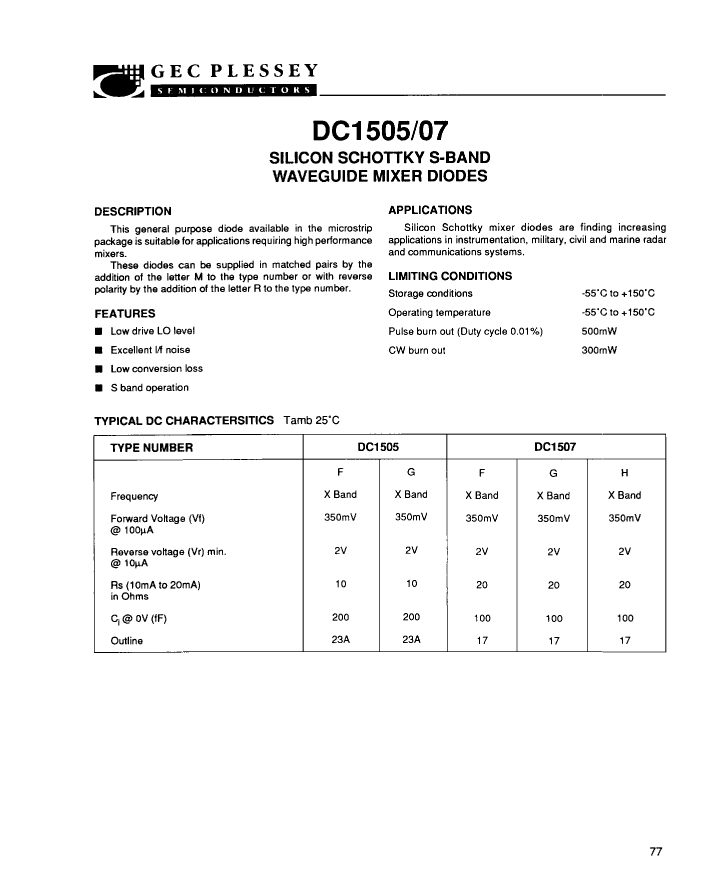

DC1507FR Overview

Mixer Diode, X Band, 350ohm Z(V) Max, 7dB Noise Figure, Silicon

Parameter Name	Attribute value
package instruction	O-CXMW-X2
Reach Compliance Code	unknown
ECCN code	EAR99
Minimum breakdown voltage	2 V
Configuration	SINGLE
Maximum diode capacitance	0.1 pF
Diode component materials	SILICON
Diode type	MIXER DIODE
Maximum forward voltage (VF)	0.35 V
frequency band	X BAND
maximum impedance	350 Ω
JESD-30 code	O-CXMW-X2
maximum noise index	7 dB
Number of components	1
Number of terminals	2
Maximum operating frequency	12 GHz
Minimum operating frequency	8 GHz
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	MICROWAVE
Pulse input maximum power	0.3 W
Minimum pulse input power	0.5 W
Certification status	Not Qualified
surface mount	NO
technology	SCHOTTKY
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Base Number Matches	1
